C1303

DTC C1303 MULTIPLEX COMMUNICATION CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

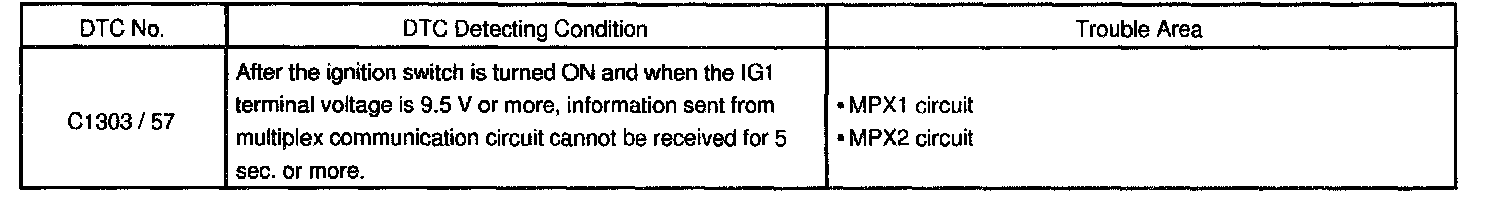

DTC Detecting Condition:

Skid control ECU (MPX1) and combination meter send and receive information each other, so do skid control ECU (MPX2) and ECM each other.

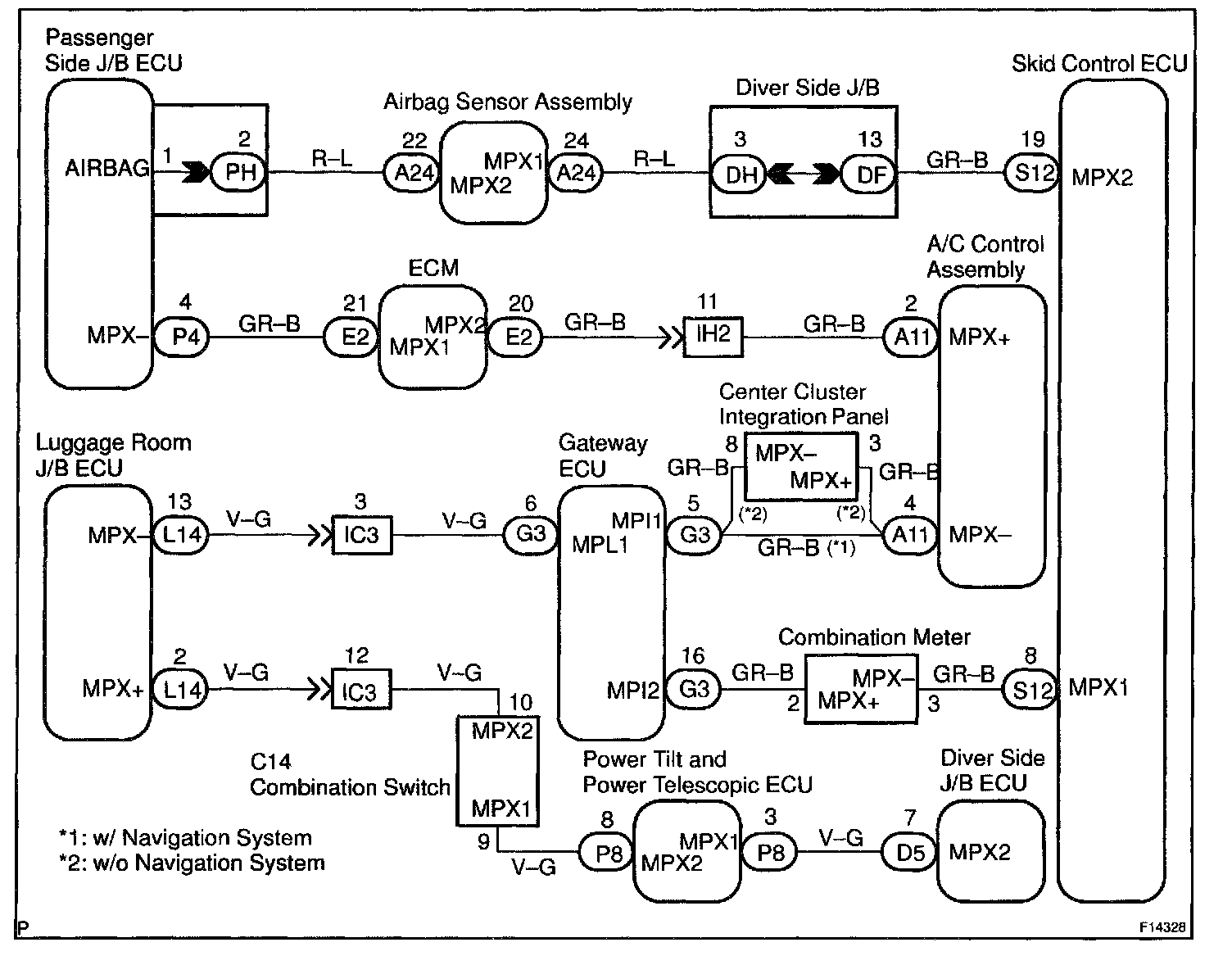

Wiring Diagram:

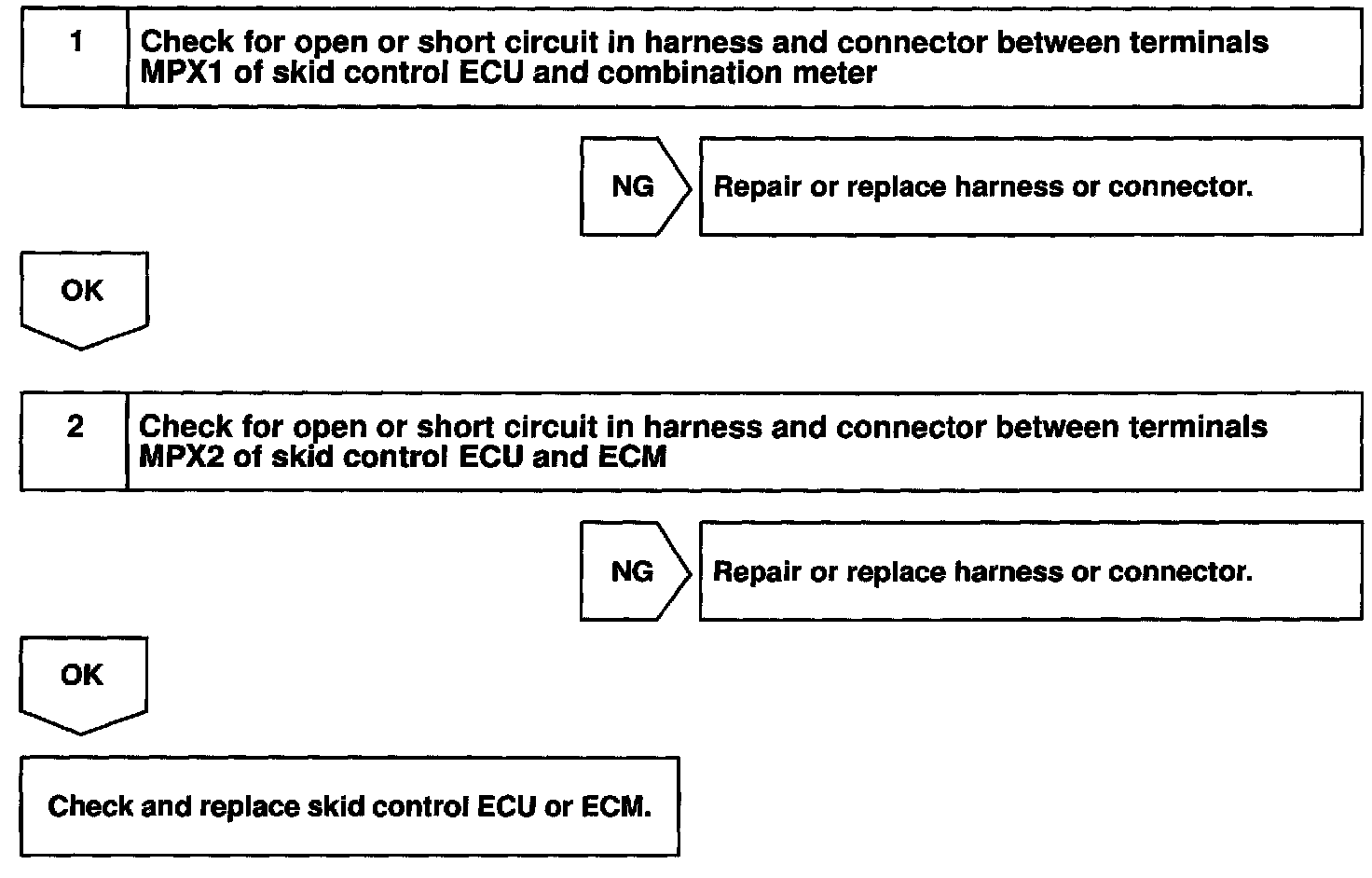

Step 1 - 2:

INSPECTION PROCEDURE
