C1232

DTC C1232 DECELERATION SENSOR DOSE NOT FUNCTION

CIRCUIT DESCRIPTION

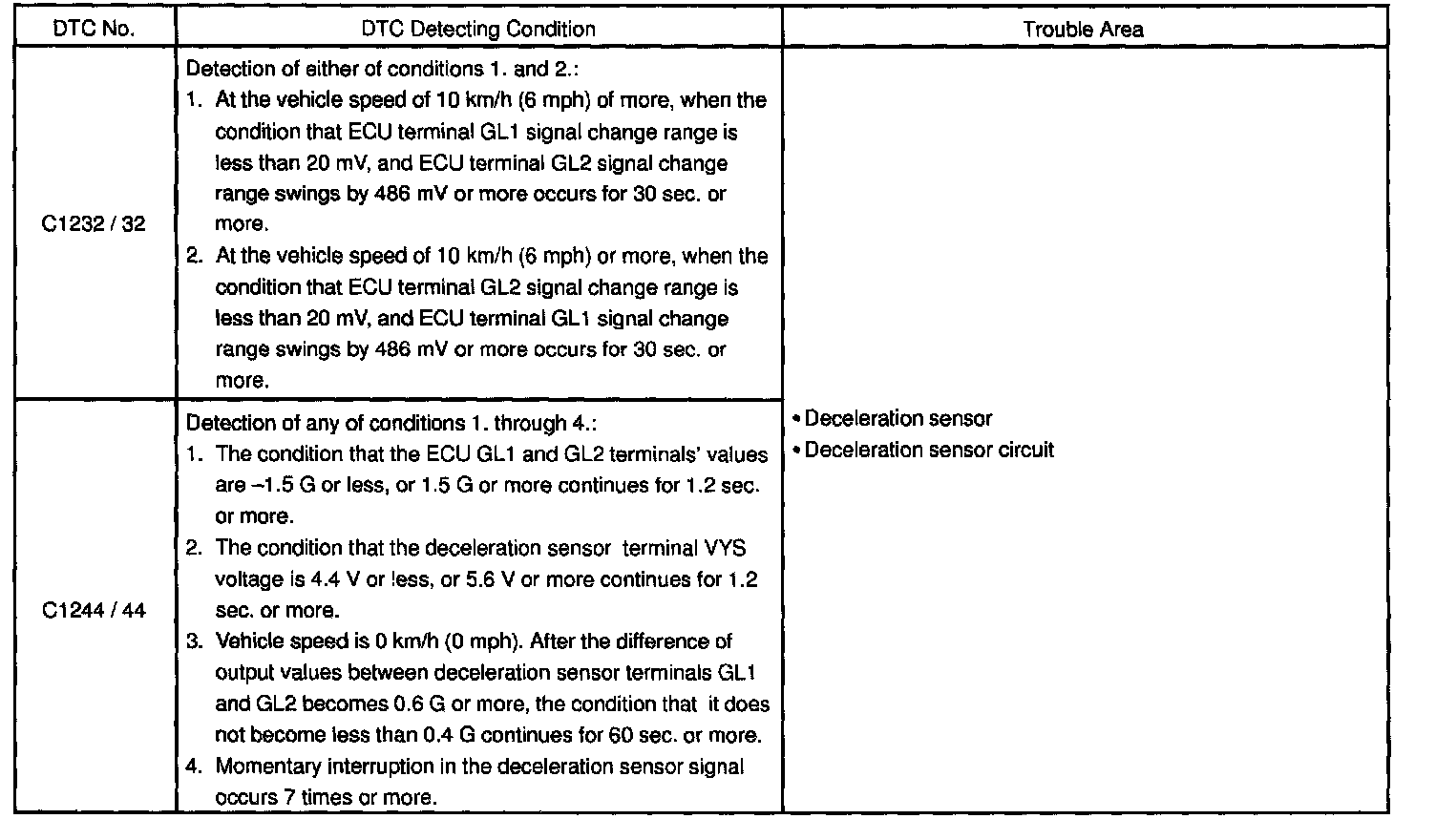

DTC Detecting Condition:

This sensor detects deceleration on the vehicle. The sensor signal is used in ABS & TRAC & VSC control.

If the sensor functions abnormally, the ABS warning light comes on.

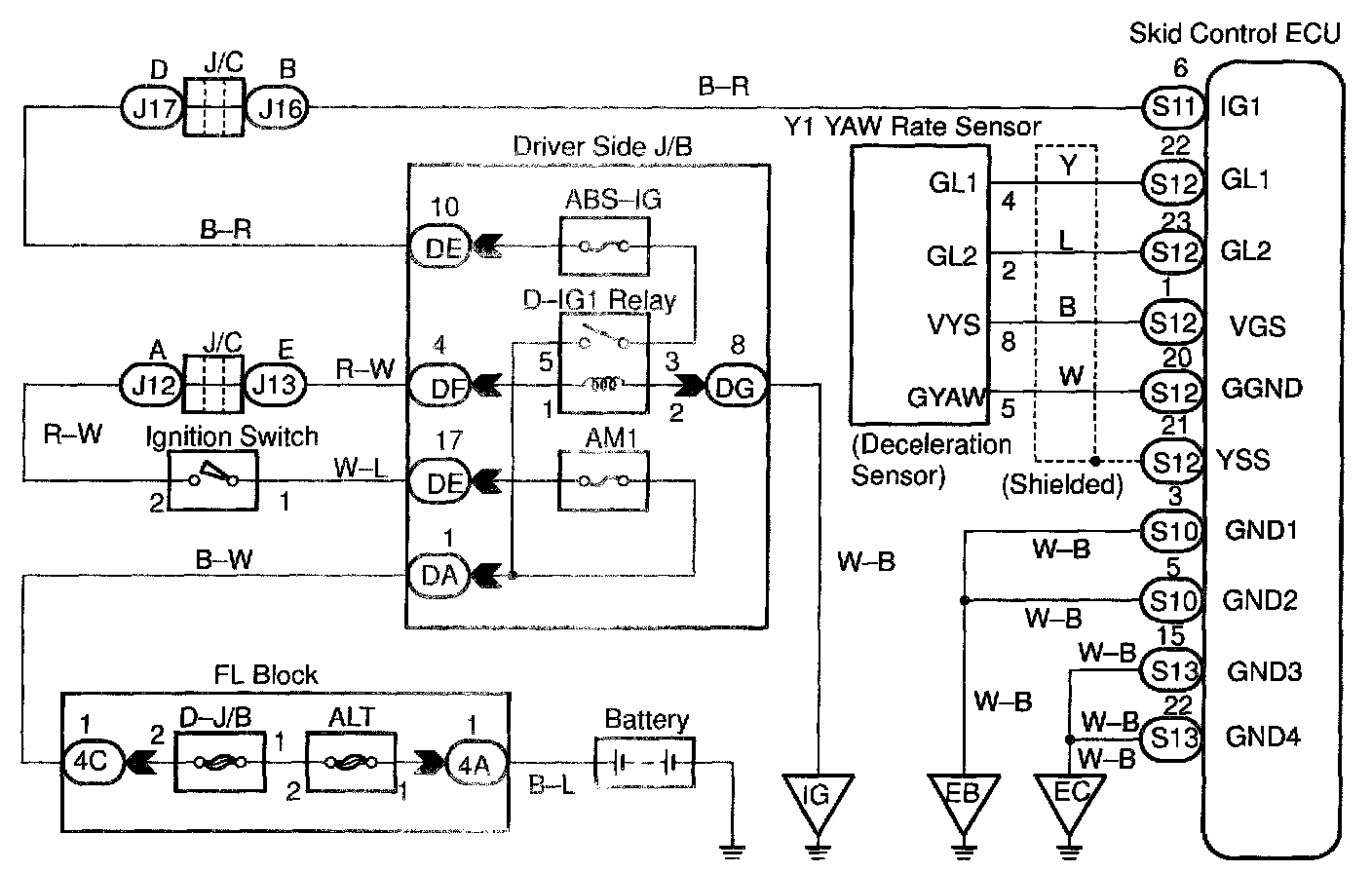

Wiring Diagram:

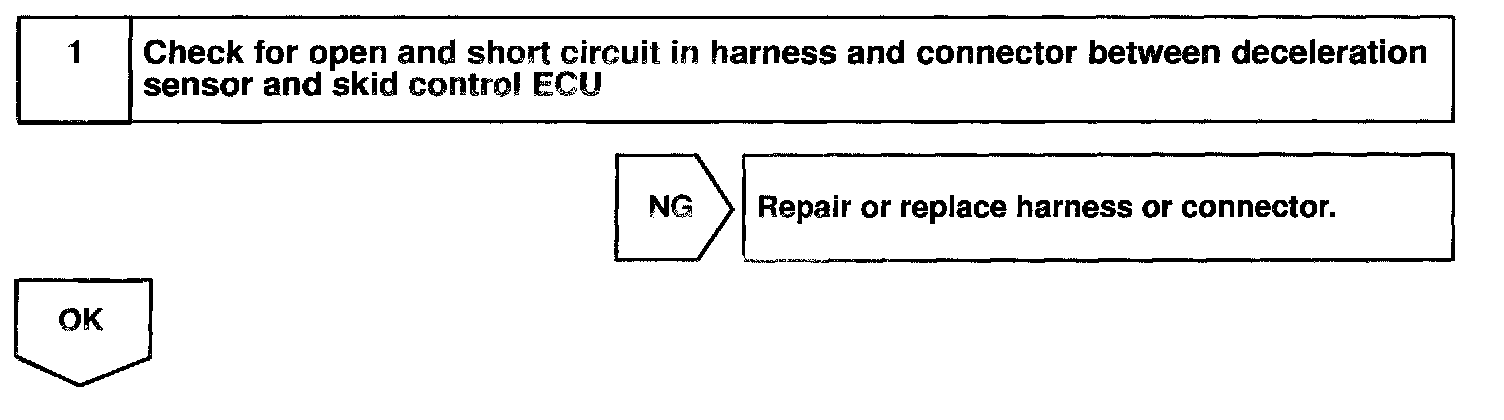

Step 1:

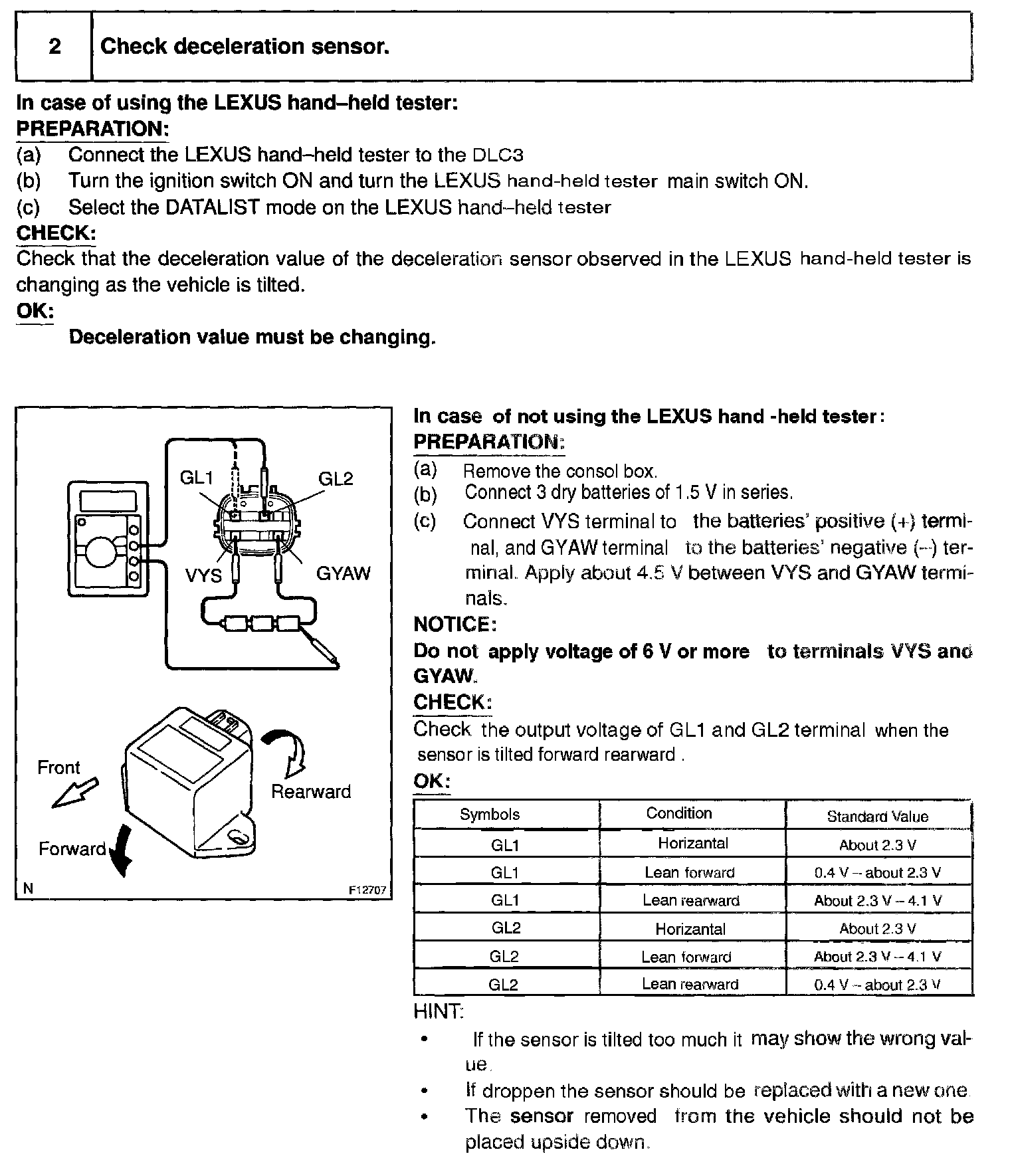

Step 2:

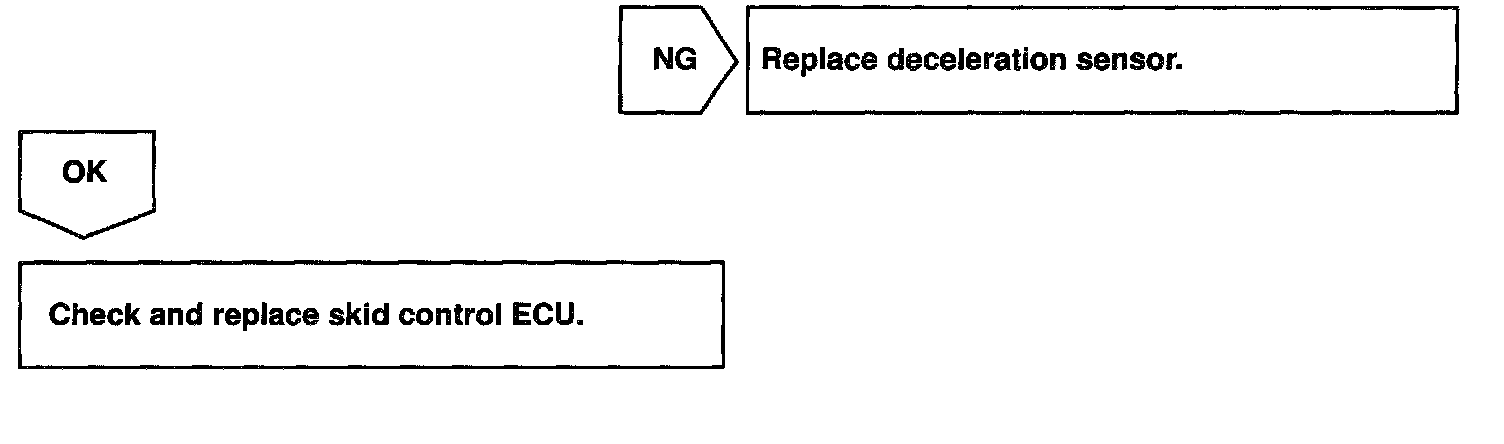

Step 2 (Continued):

INSPECTION PROCEDURE
