C1202

DTC C1202 BRAKE FLUID LEVEL WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

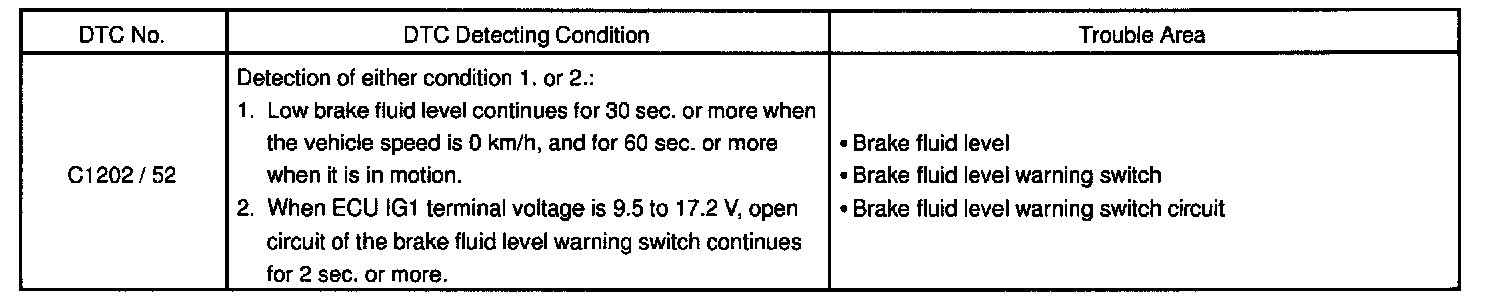

DTC Detecting Condition:

The brake fluid level warning switch sends the corresponding signal to the ECU when the brake fluid level drops.

HINT: Depressing the parking brake pedal also turns on the brake warning light but does not diagnose DTC No. C1202 /52.

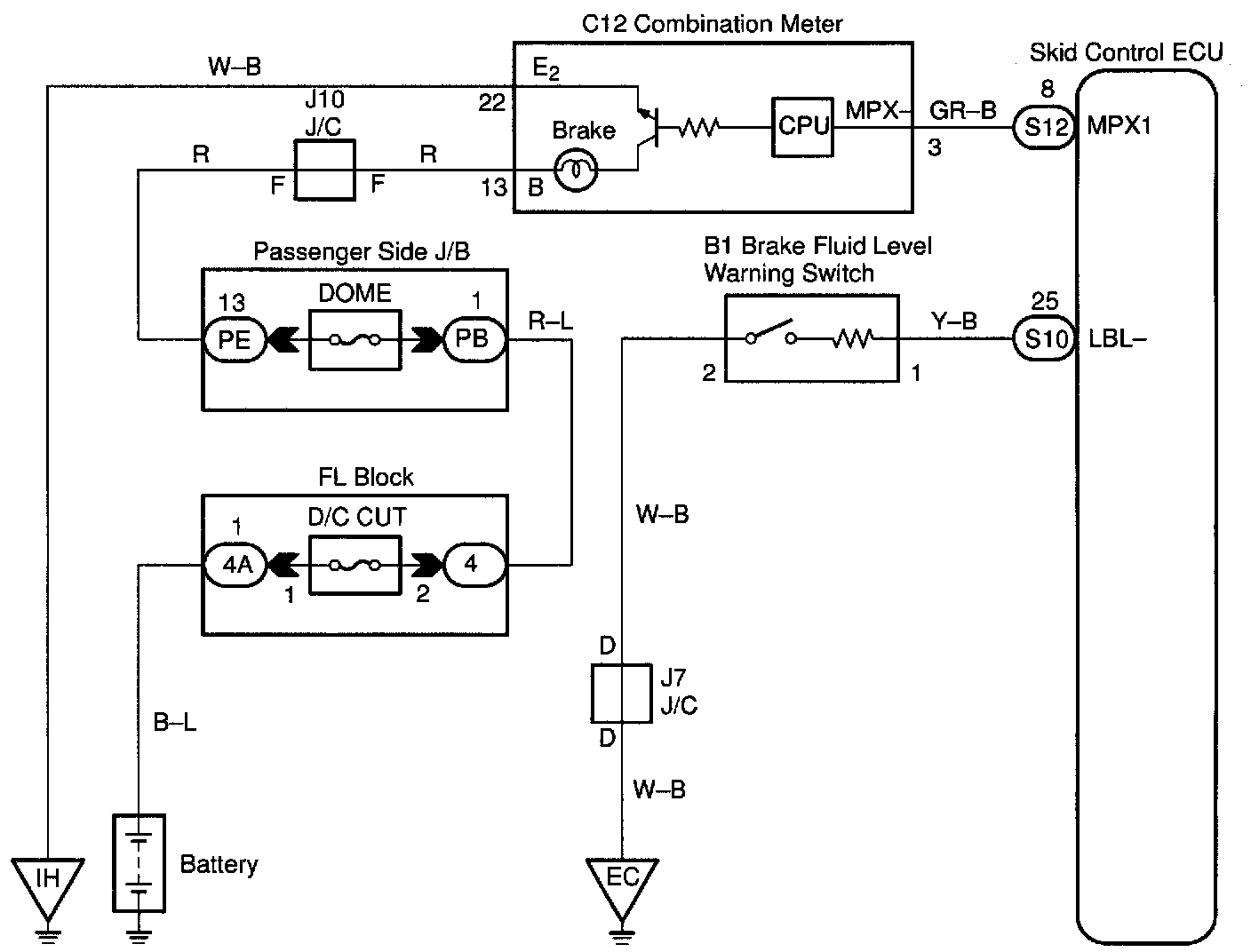

Wiring Diagram:

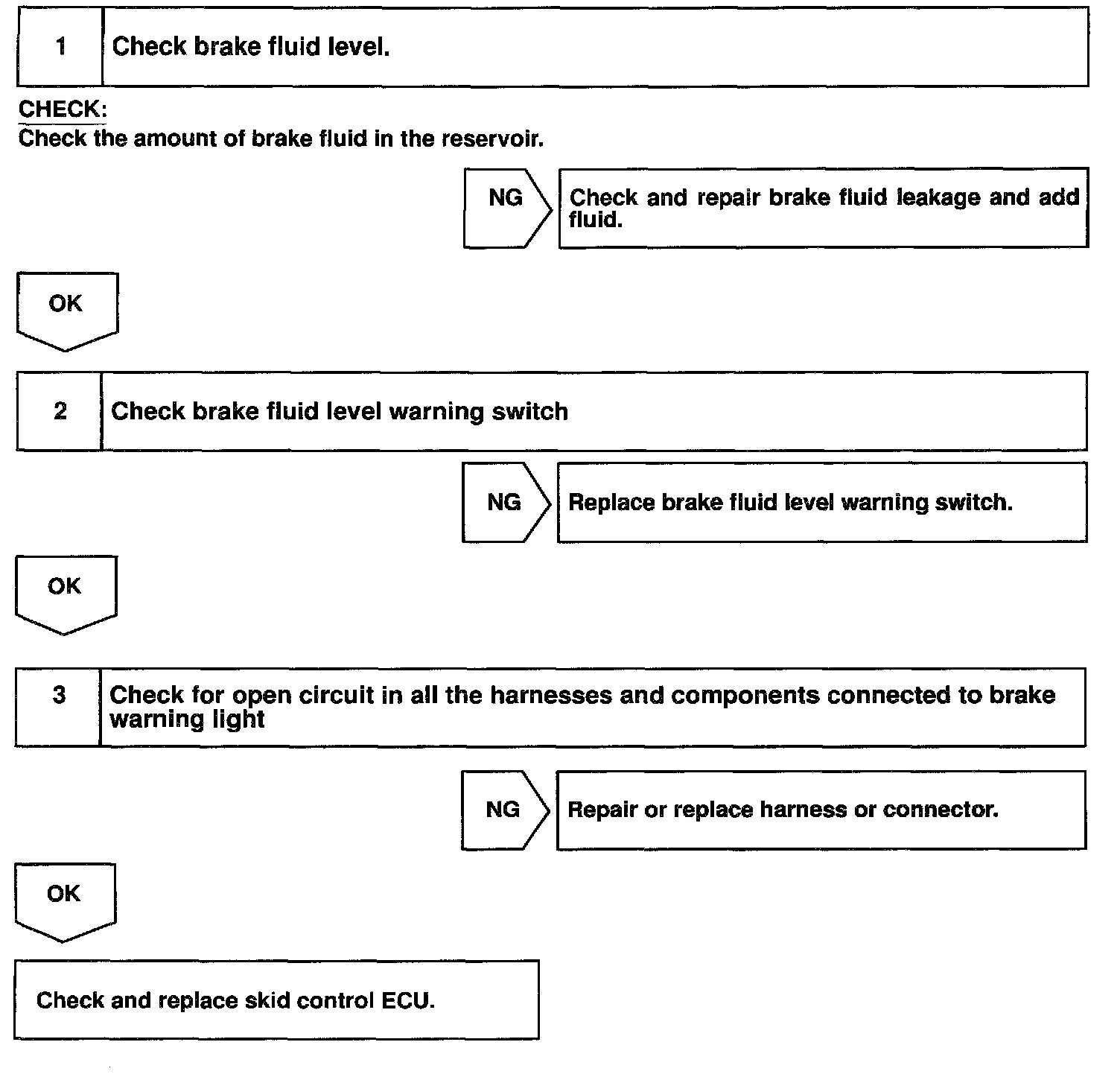

Step 1 - 3:

INSPECTION PROCEDURE
