B2797

DTC B2797 COMMUNICATION MALFUNCTION NO.1

CIRCUIT DESCRIPTION

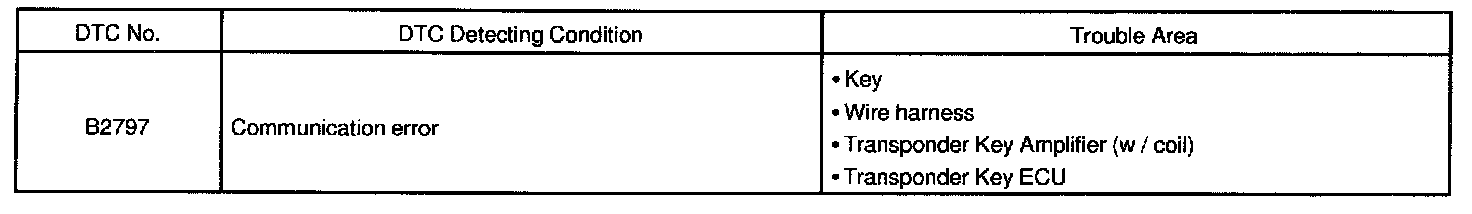

DTC Detecting Condition:

This DTC is detected when an error occurs, although the communication has been performed normally (Example. Some noise is included in communication line.).

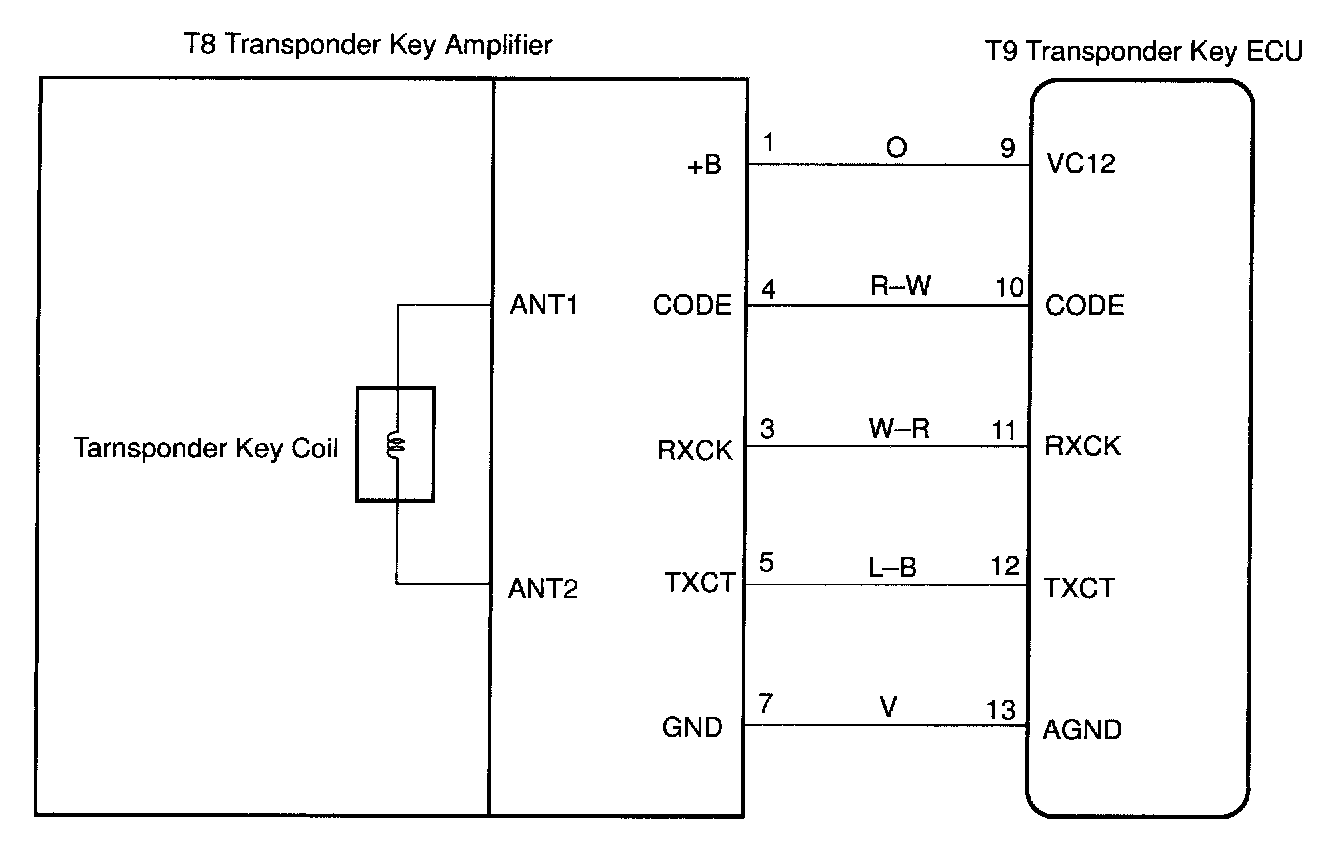

Wiring Diagram:

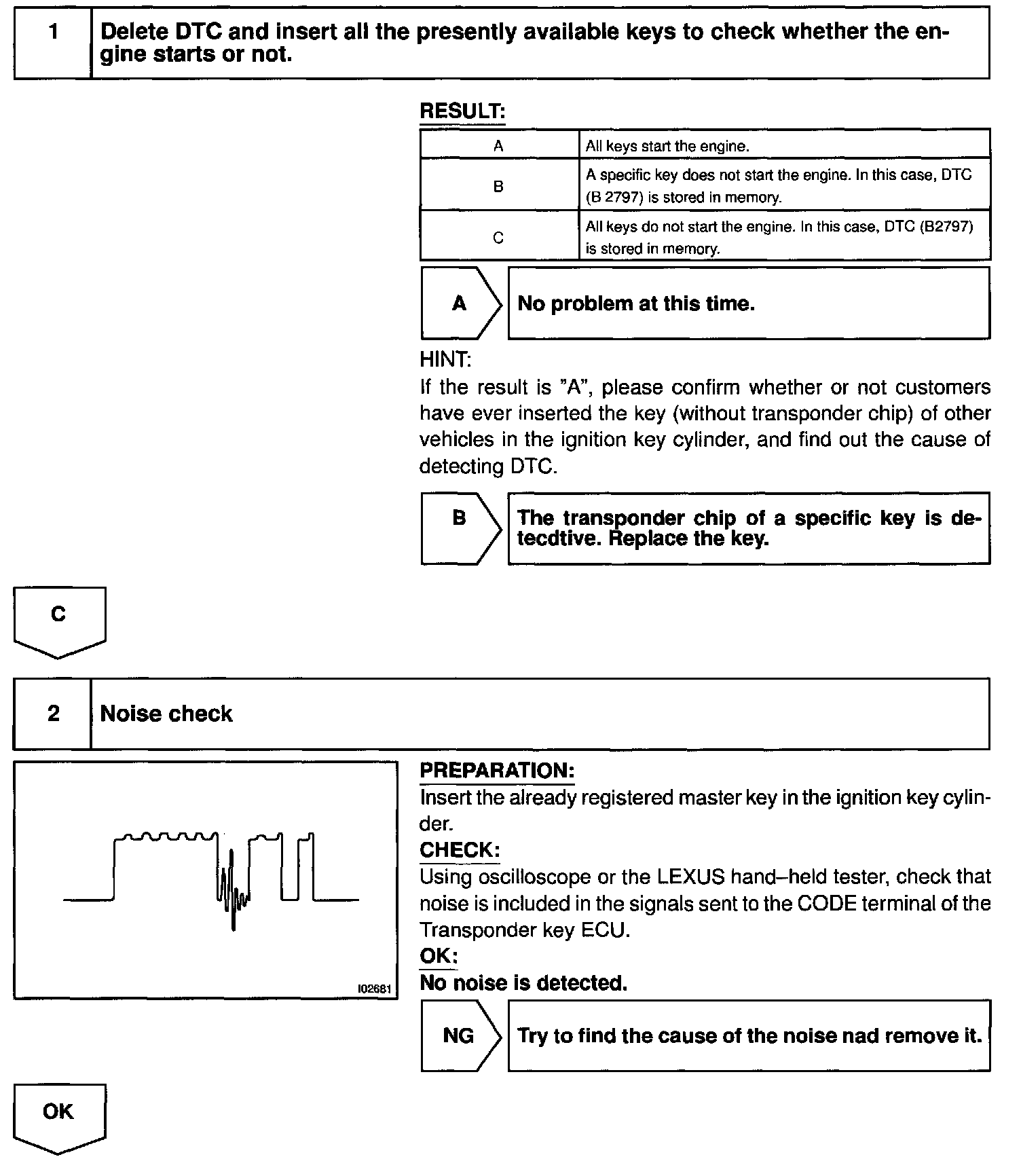

Step 1 - 2:

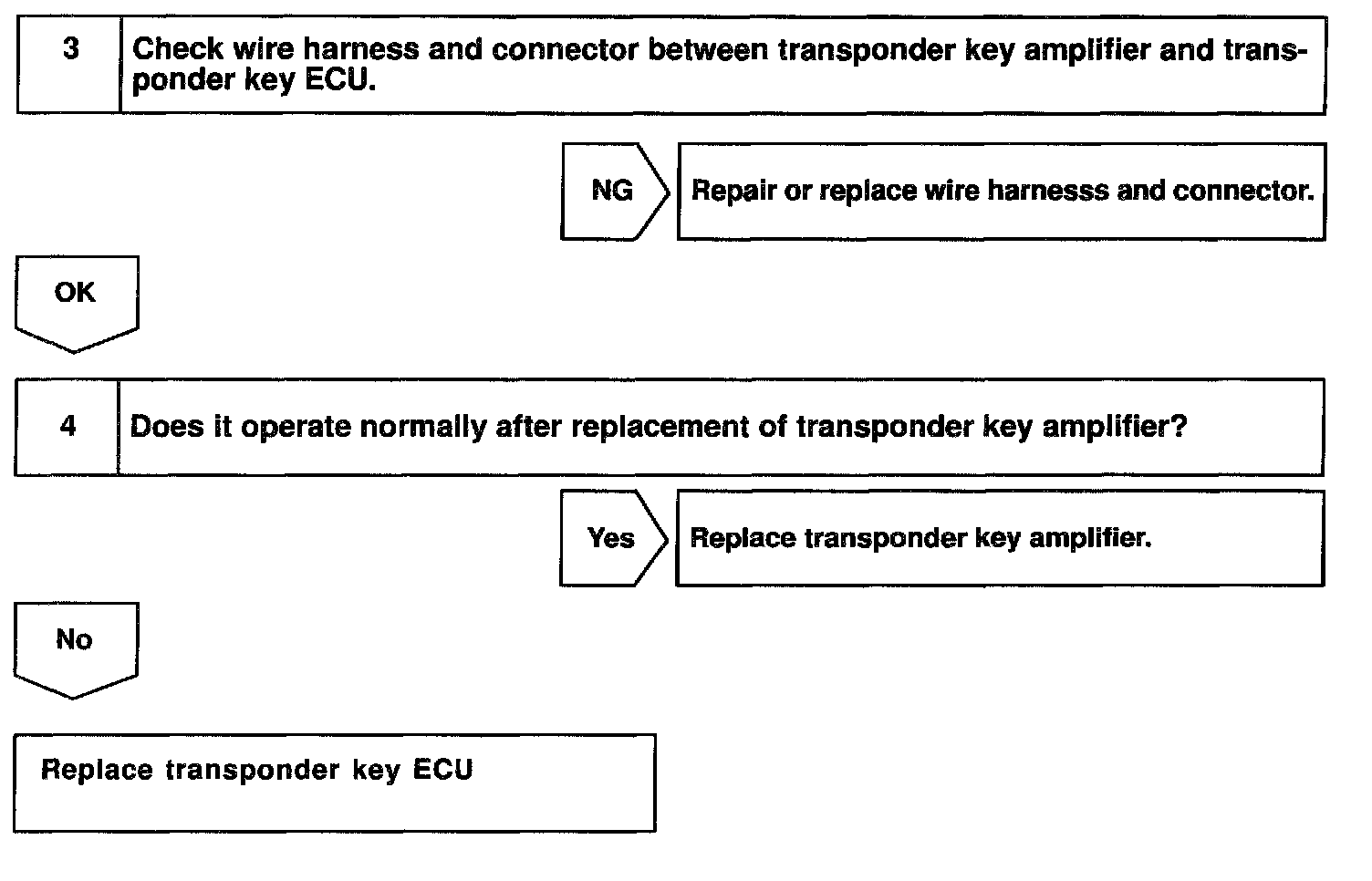

Step 3 - 4:

INSPECTION PROCEDURE
