B2796

DTC B2796 NO COMMUNICATION IN IMMOBILIZER SYSTEM

CIRCUIT DESCRIPTION

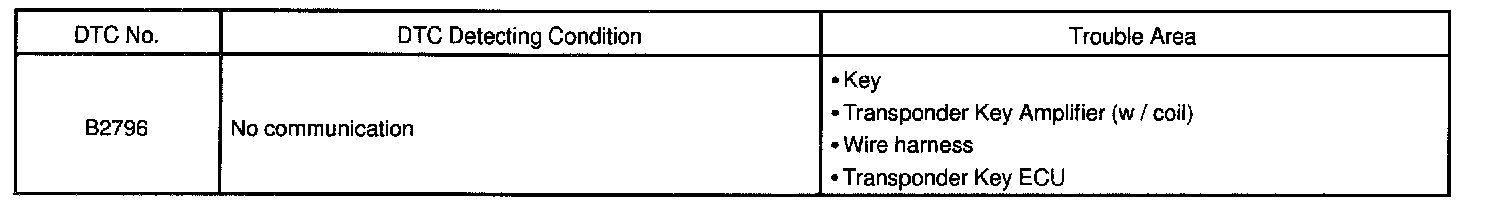

DTC Detecting Condition:

This DTC is stored in memory when the key that does not have a transponder chip is inserted or if communication between the key and transponder key ECU is impossible.

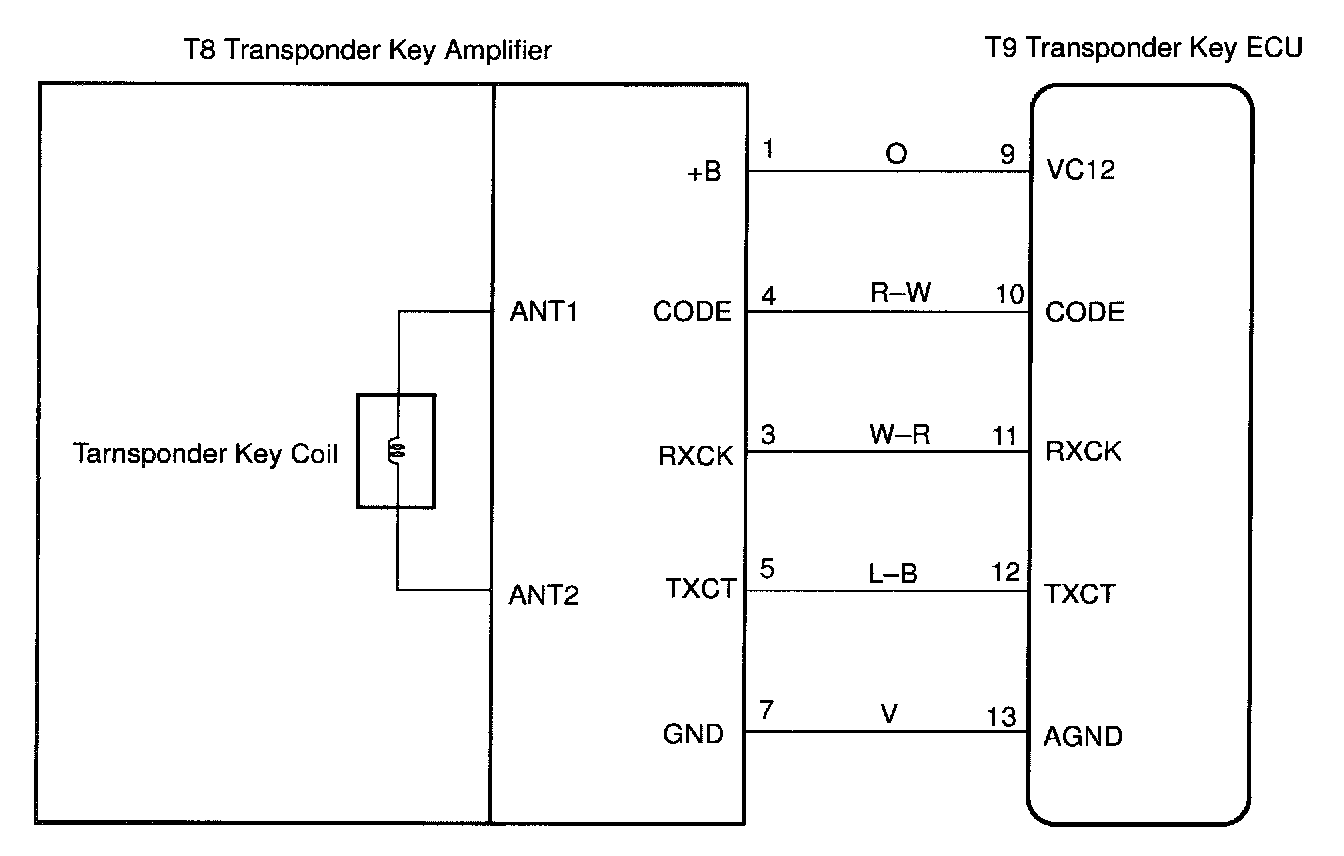

Wiring Diagram:

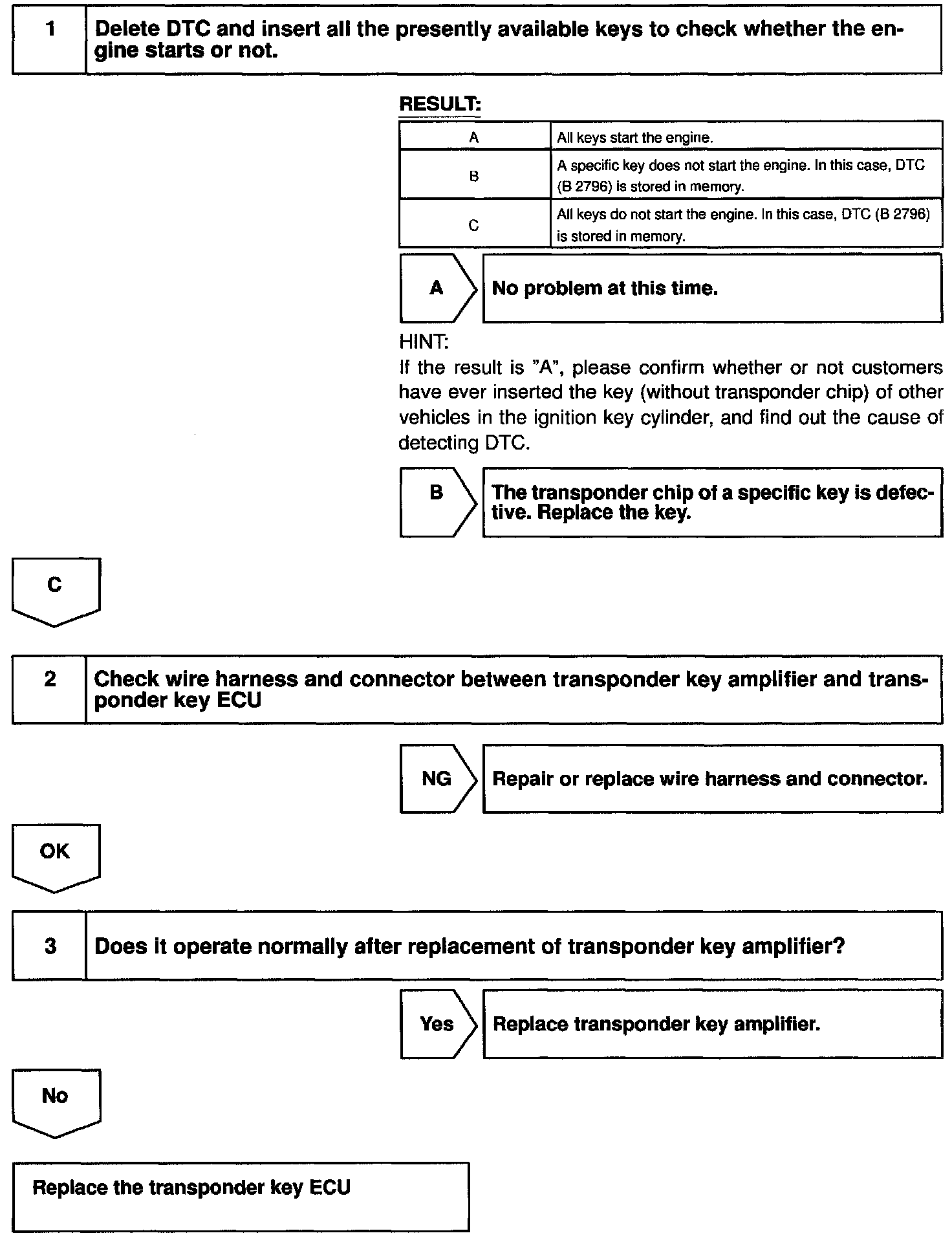

Step 1 - 3:

INSPECTION PROCEDURE
