B2620

DTC B2620 ECU POWER SOURCE CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

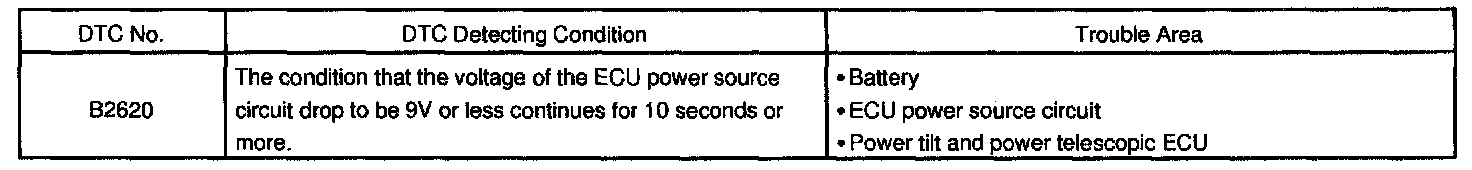

DTC Detecting Condition:

ECU power source circuit supply the battery positive voltage to power tilt and power telescopic ECU.

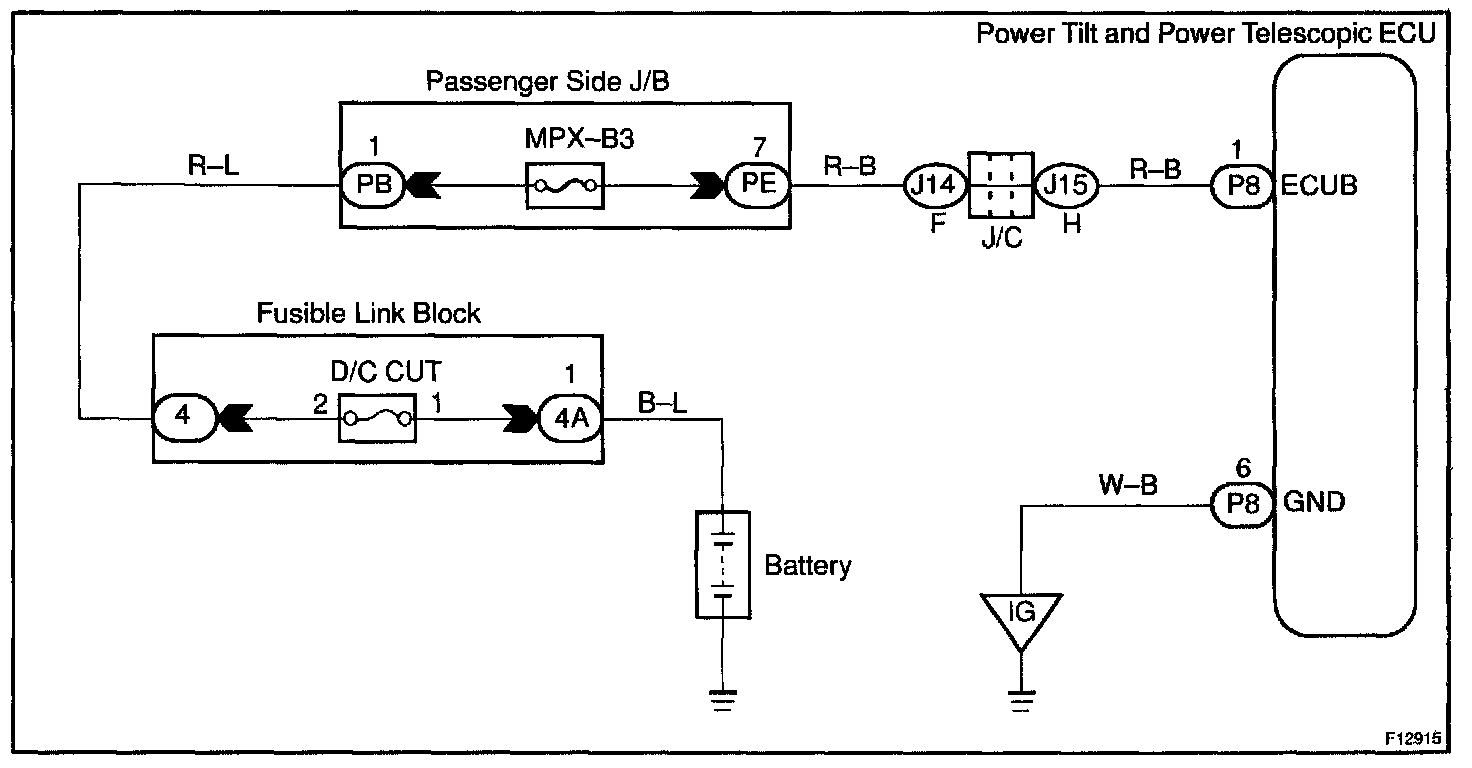

Wiring Diagram:

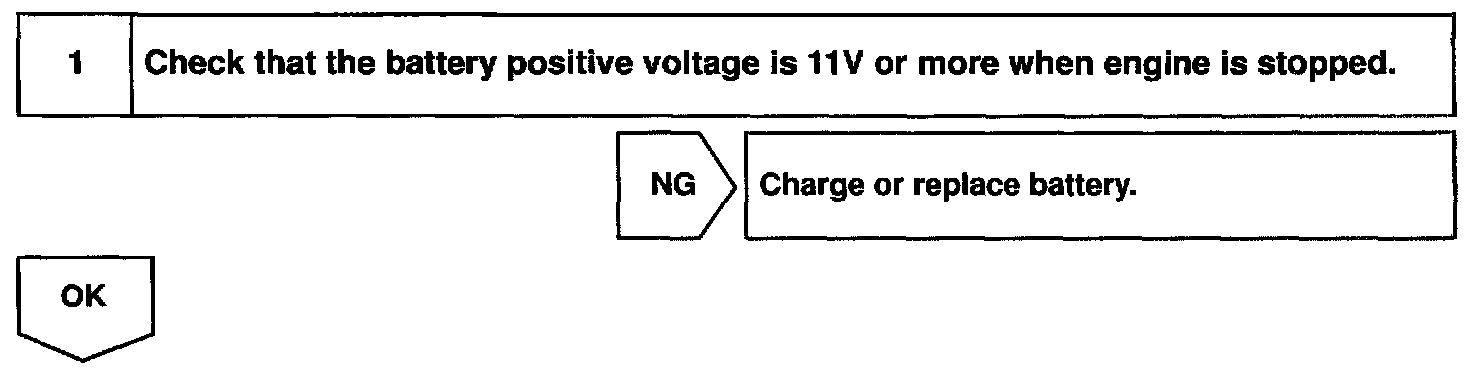

Step 1:

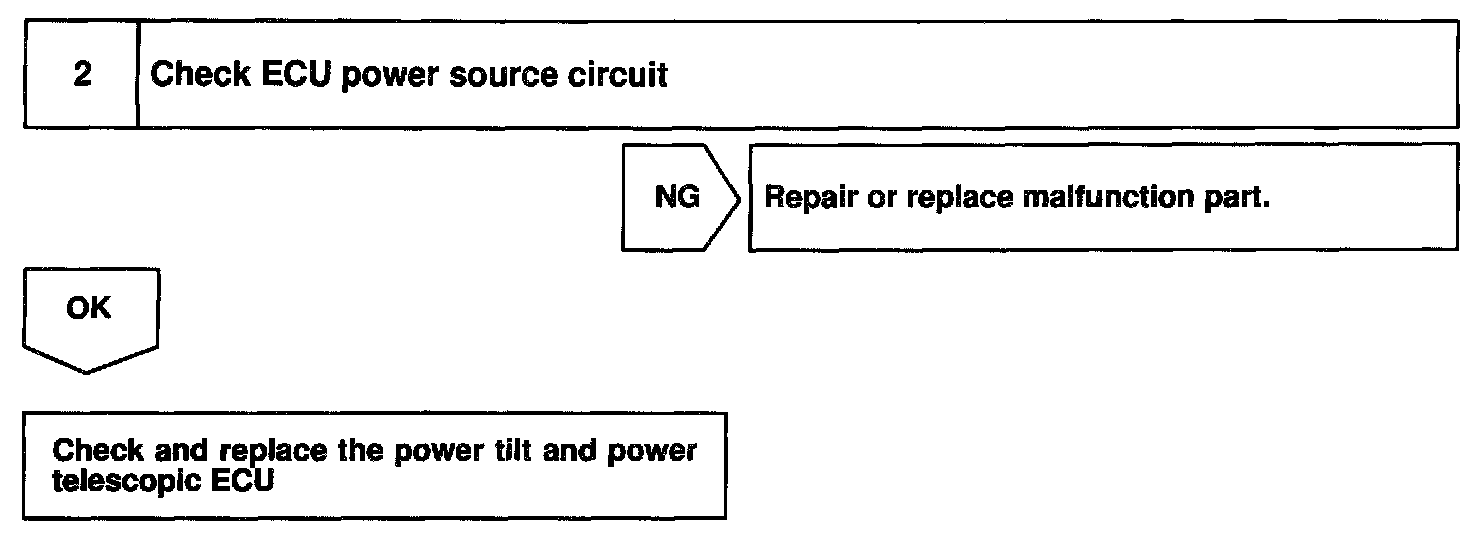

Step 2:

INSPECTION PROCEDURE
