B1461

DTC B1461 EXHAUST GAS SENSOR CIRCUIT (NOx)

CIRCUIT DESCRIPTION

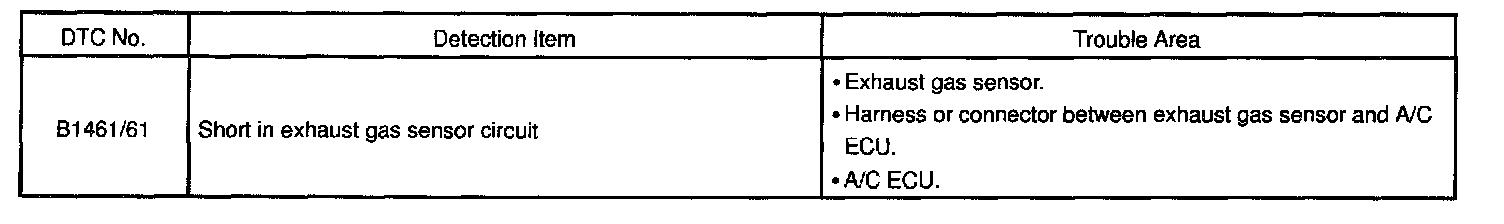

Detection Item:

This sensor detects the exhaust gas (NOx) outside the vehicle and sends signal to the A/C ECU.

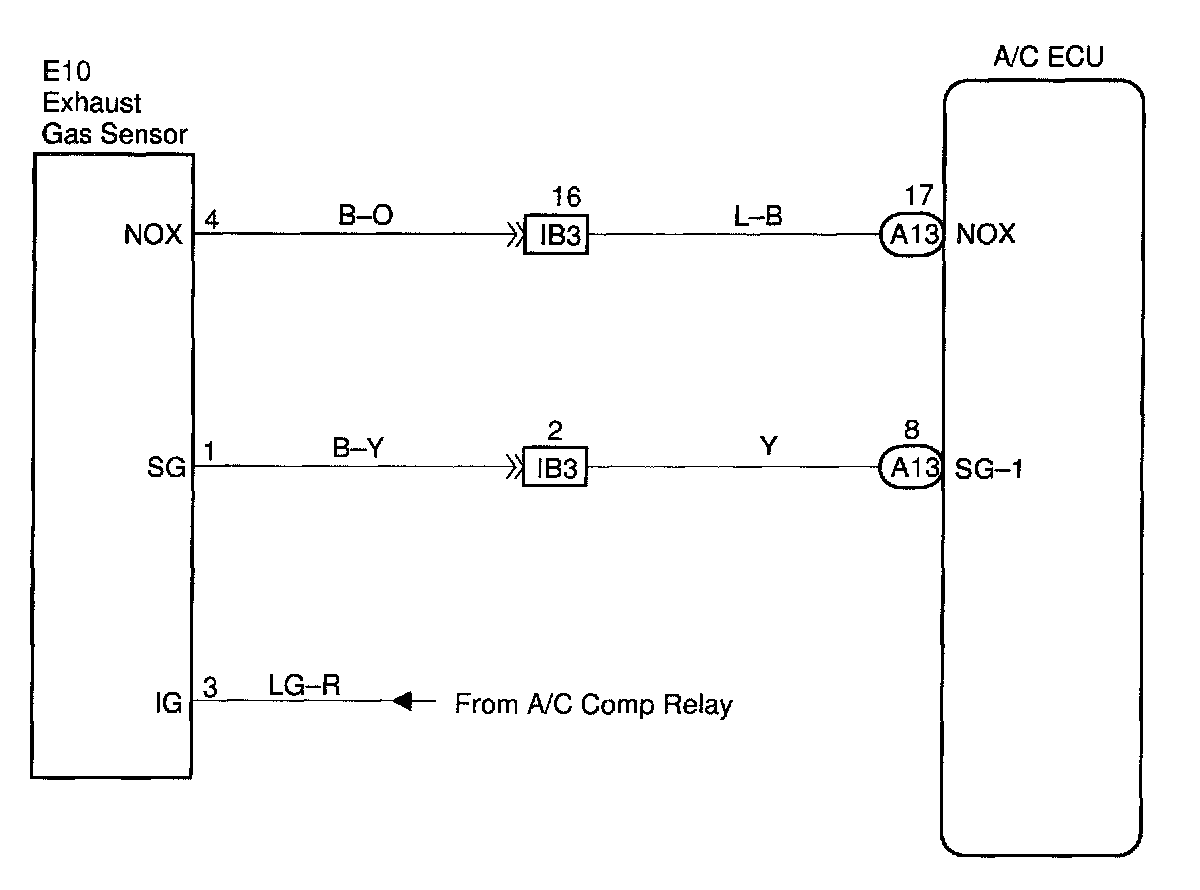

Wiring Diagram:

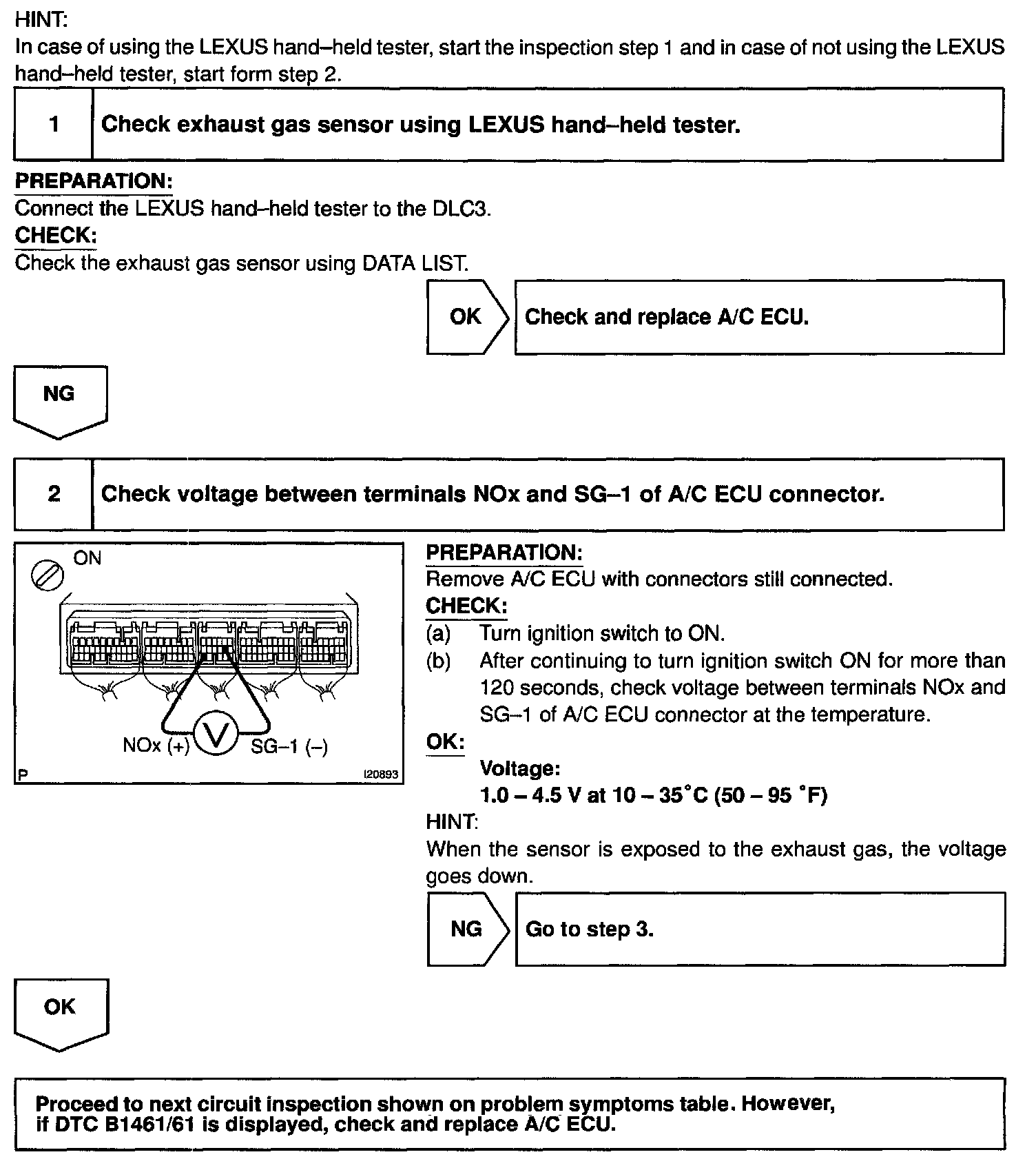

Step 1 - 2:

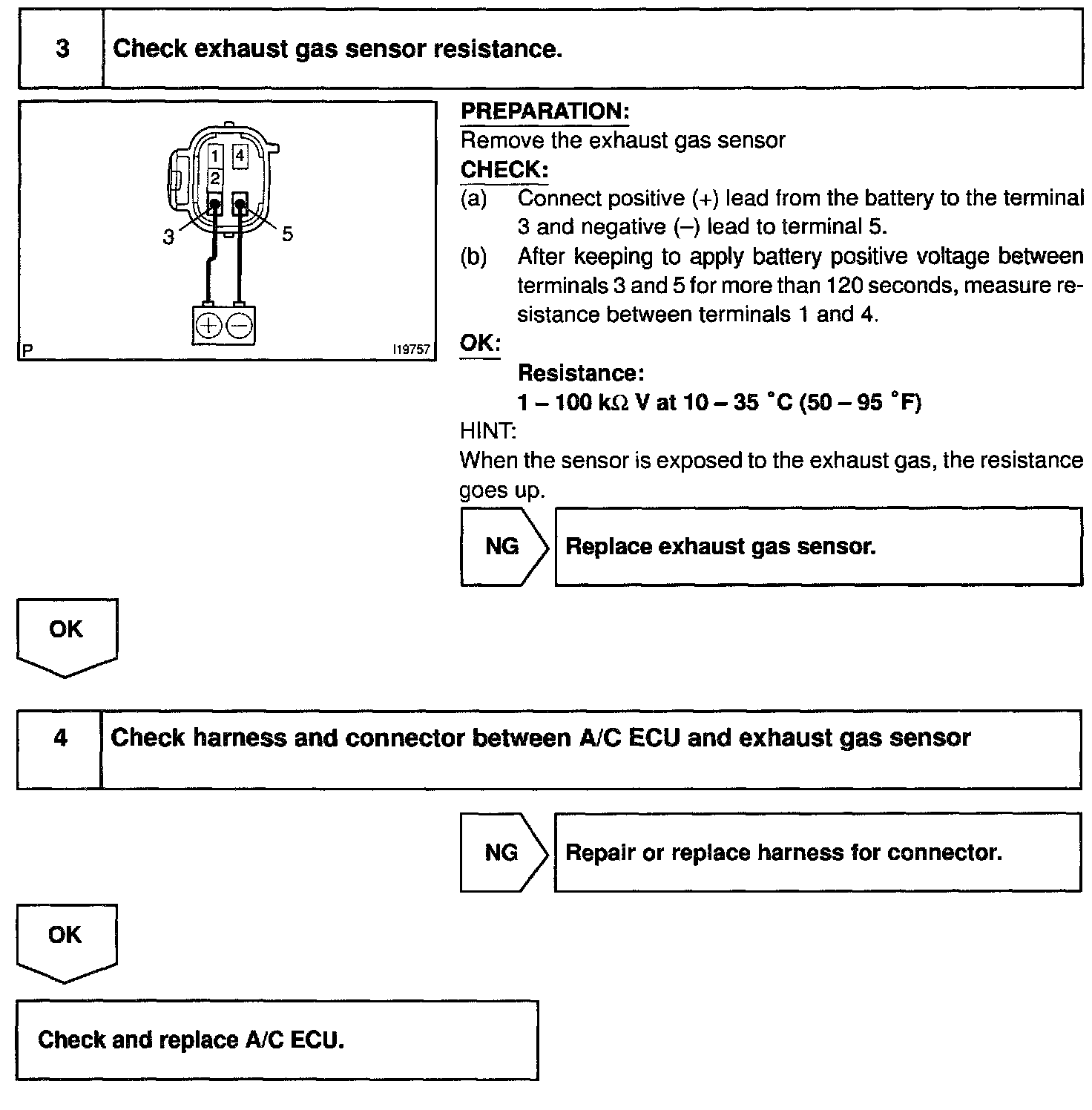

Step 3 - 4:

INSPECTION PROCEDURE
