B1451

DTC B1451 SOLENOID OF THE EXTERNALLY CHANGEABLE COMPRESSOR CIRCUIT

CIRCUIT DESCRIPTION

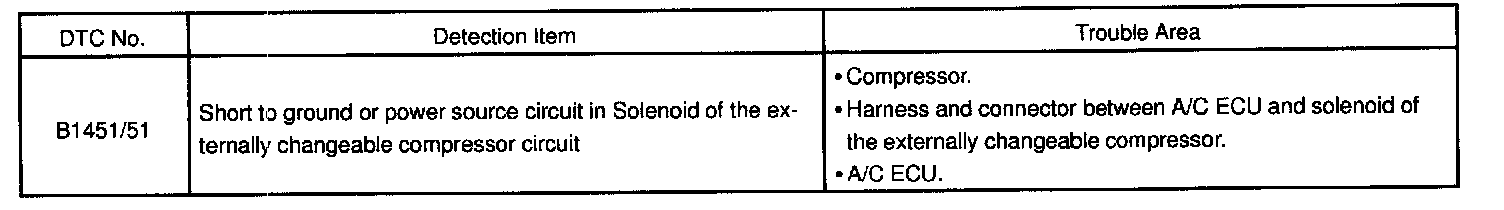

Detection Item:

This solenoid sends appropriate signals to the A/C ECU.

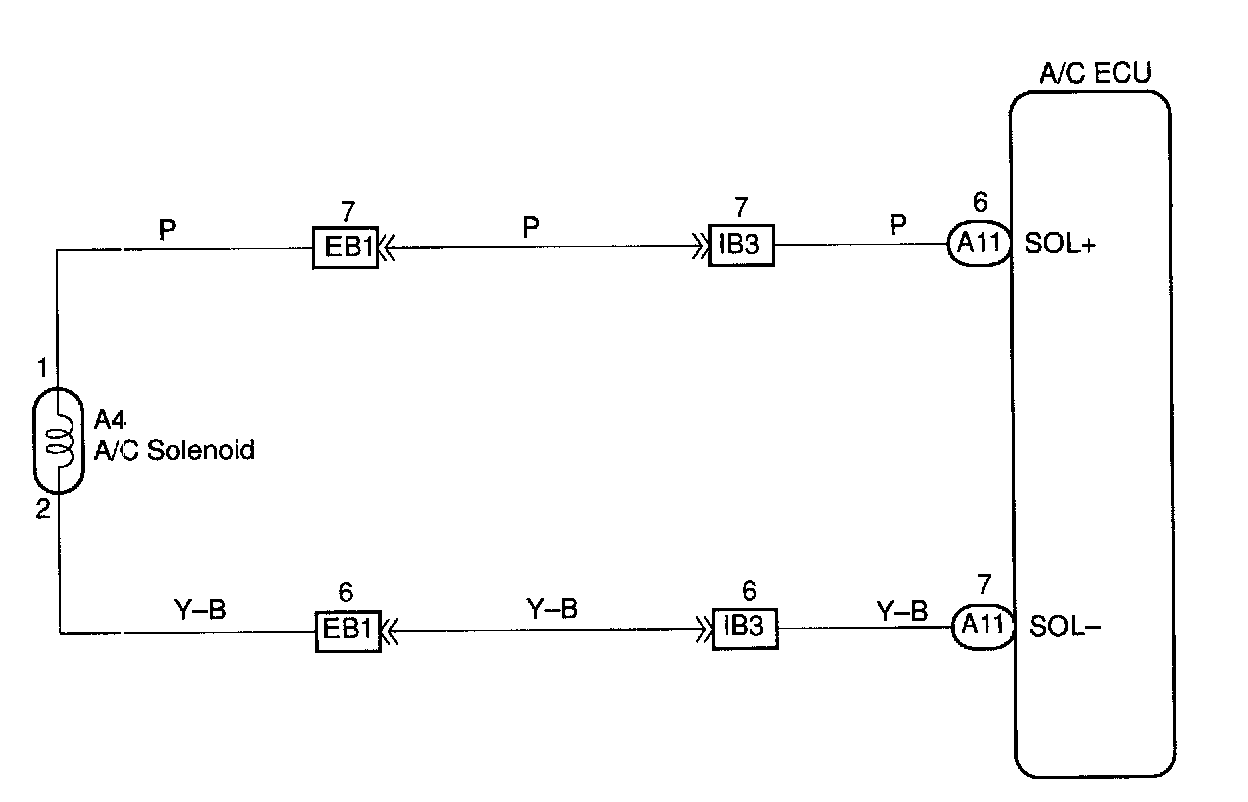

Wiring Diagram:

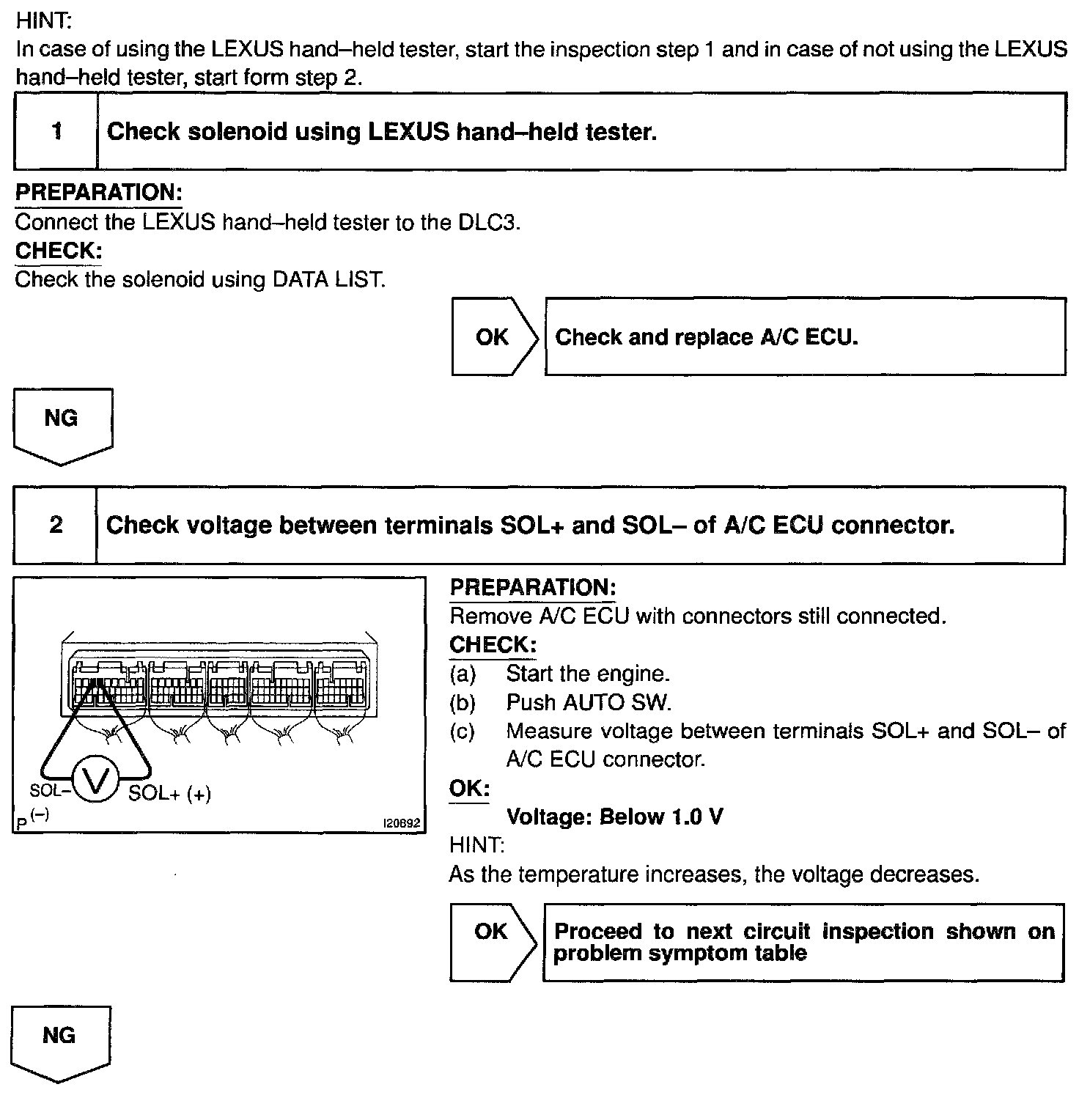

Step 1 - 2:

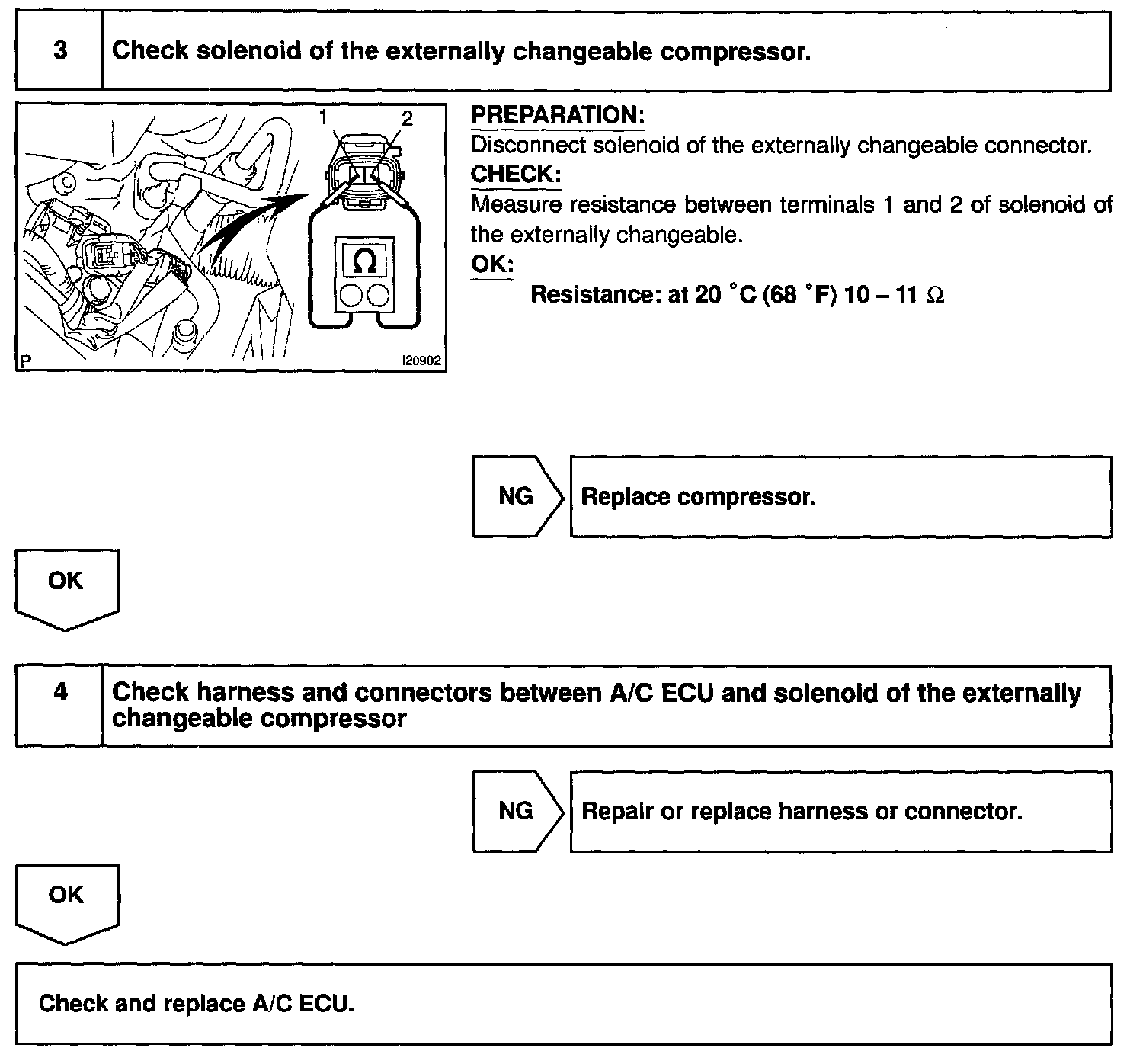

Step 3 - 4:

INSPECTION PROCEDURE
