Air Inlet Damper Position Sensor Circuit

DTC B1442 AIR INLET DAMPER POSITION SENSOR CIRCUIT

CIRCUIT DESCRIPTION

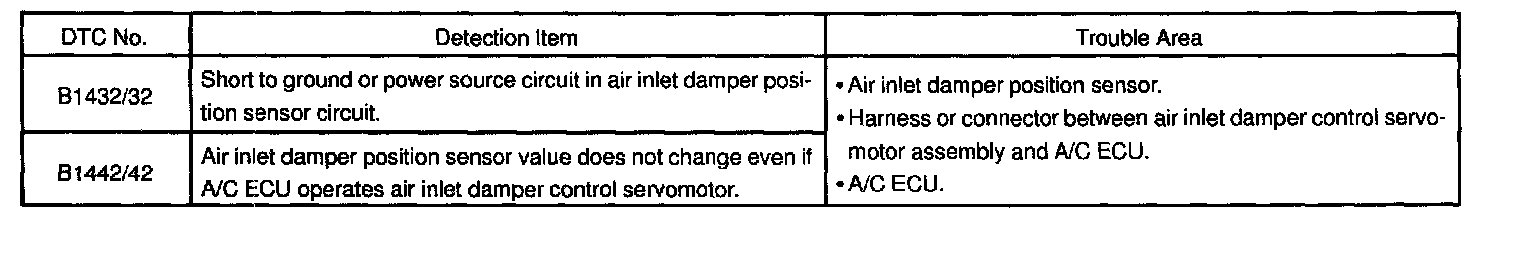

Detection Item:

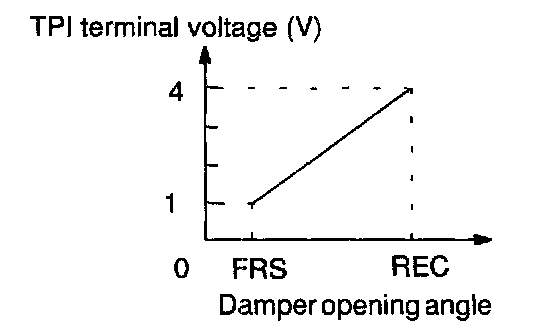

This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C ECU.

The position sensor is built into the air inlet damper control servomotor assembly.

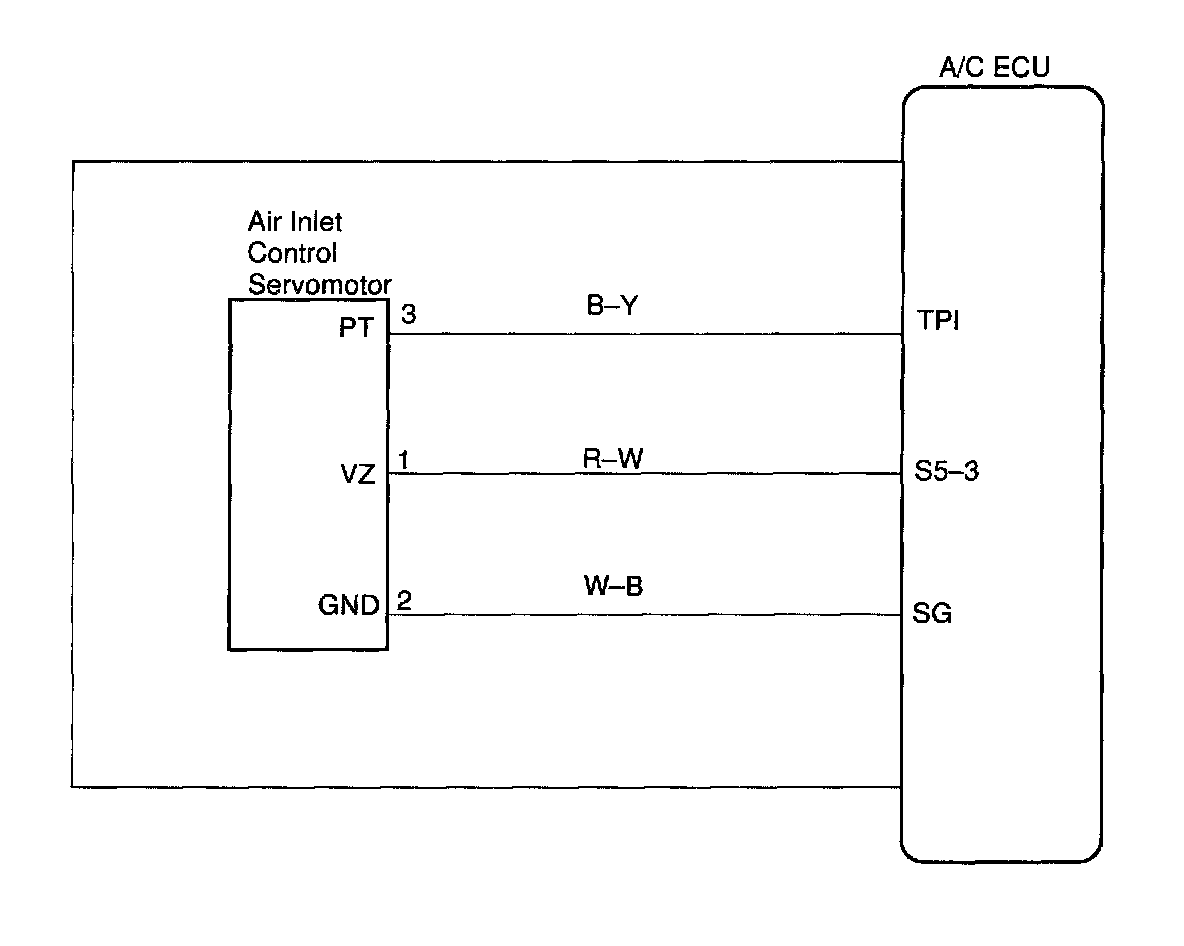

Wiring Diagram:

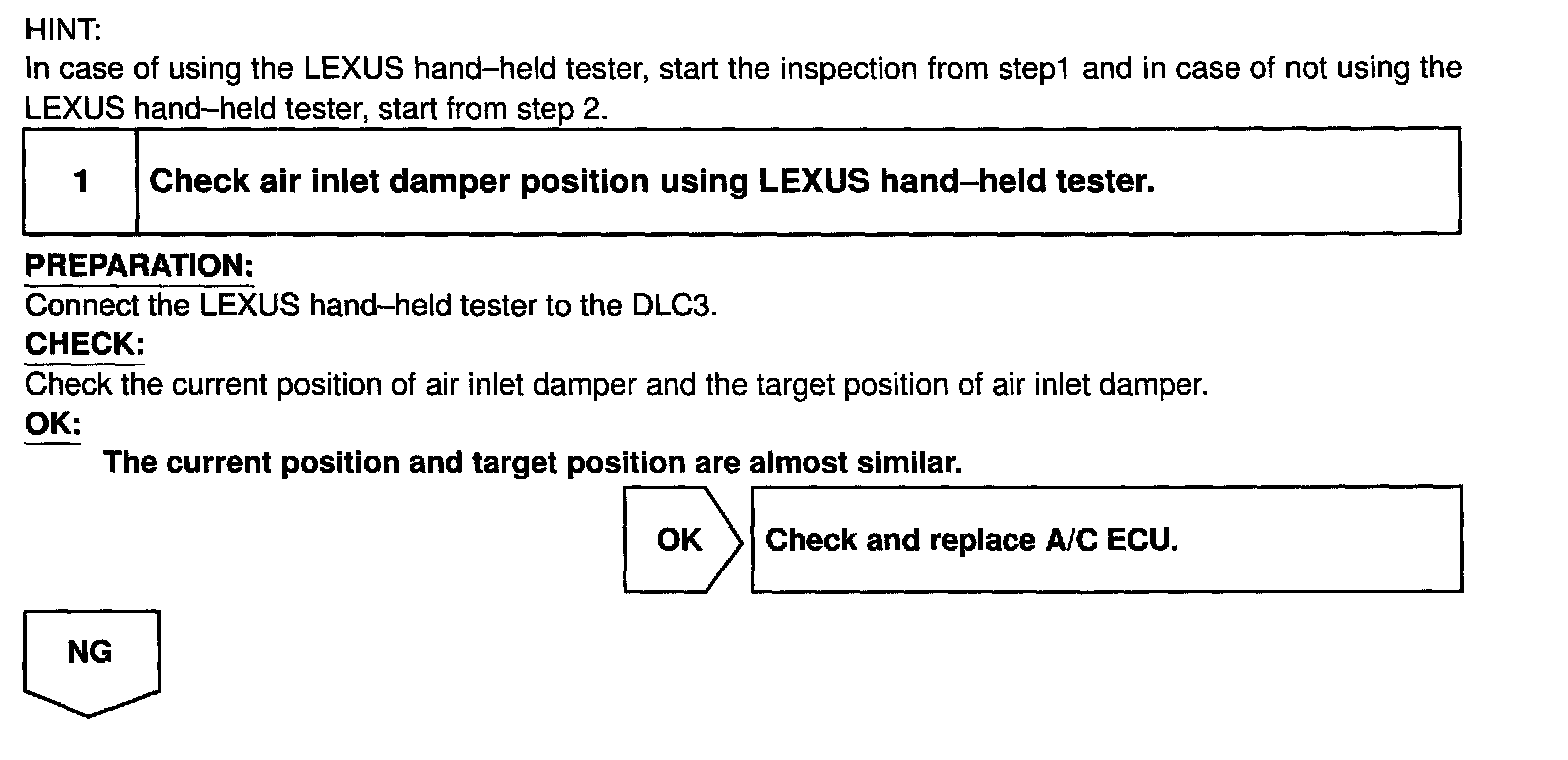

Step 1:

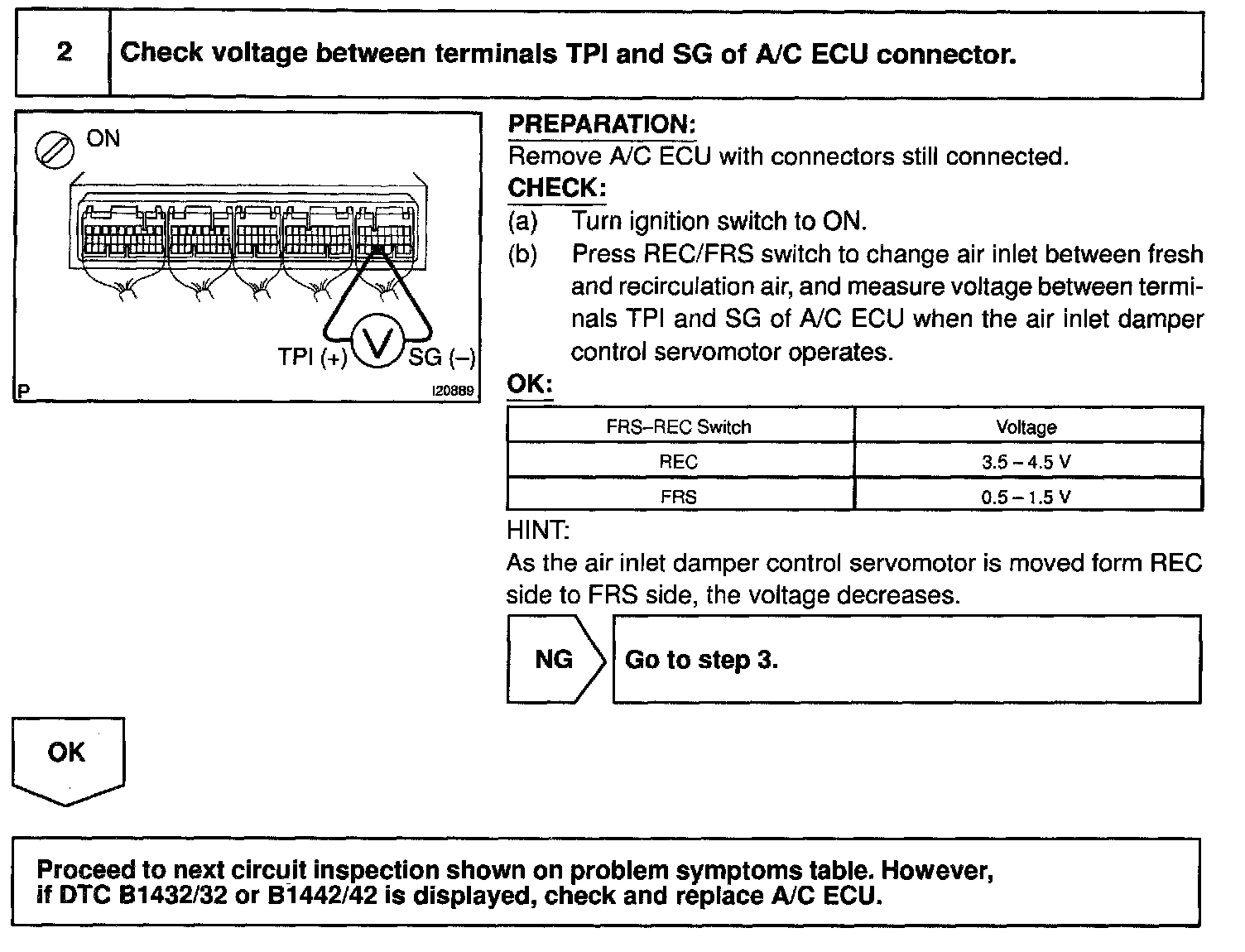

Step 2:

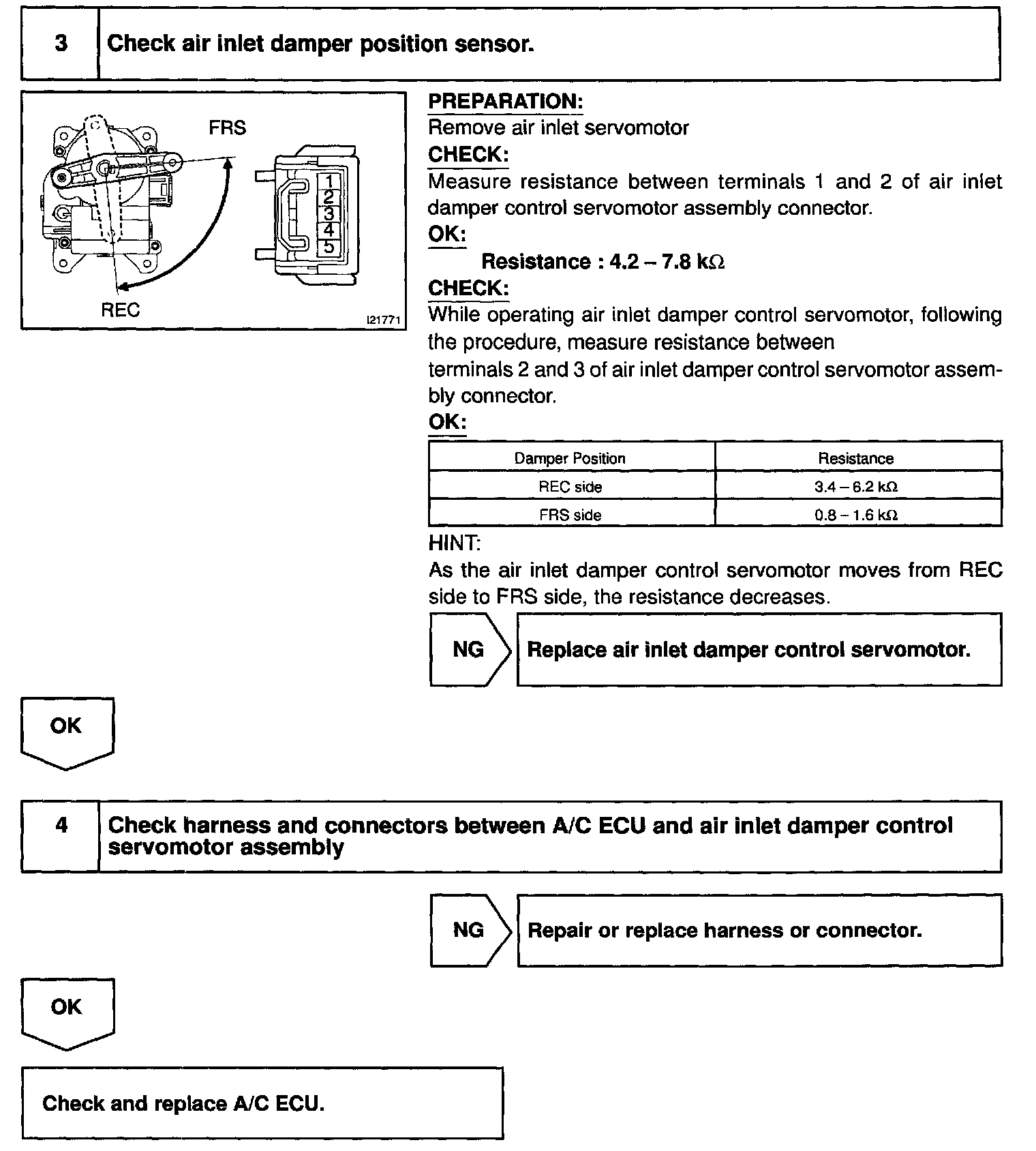

Step 3 - 4:

INSPECTION PROCEDURE
