B1434

DTC B1434 COOL AIR BYPASS DAMPER POSITION SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

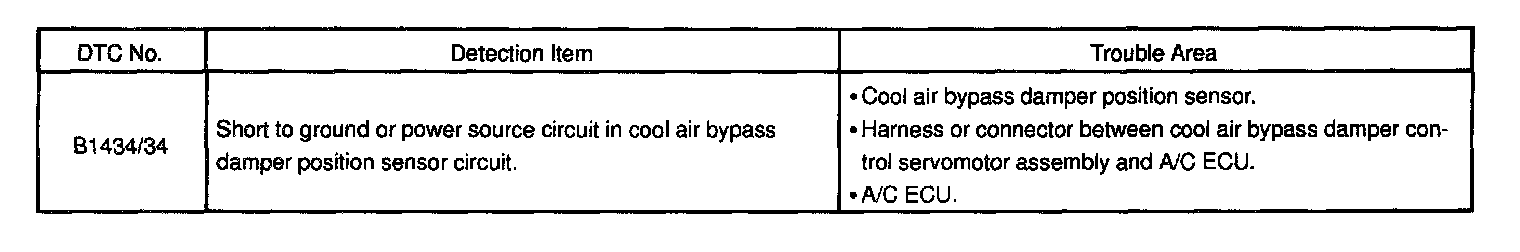

Detection Item:

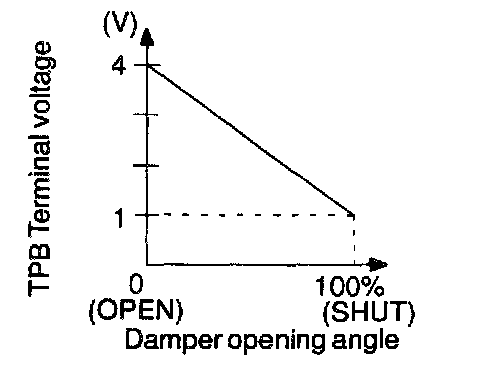

This sensor detects the position of the cool air bypass damper and sends the appropriate signals to the A/C ECU. The position sensor is built into the cool air bypass damper control servomotor assembly.

Wiring Diagram:

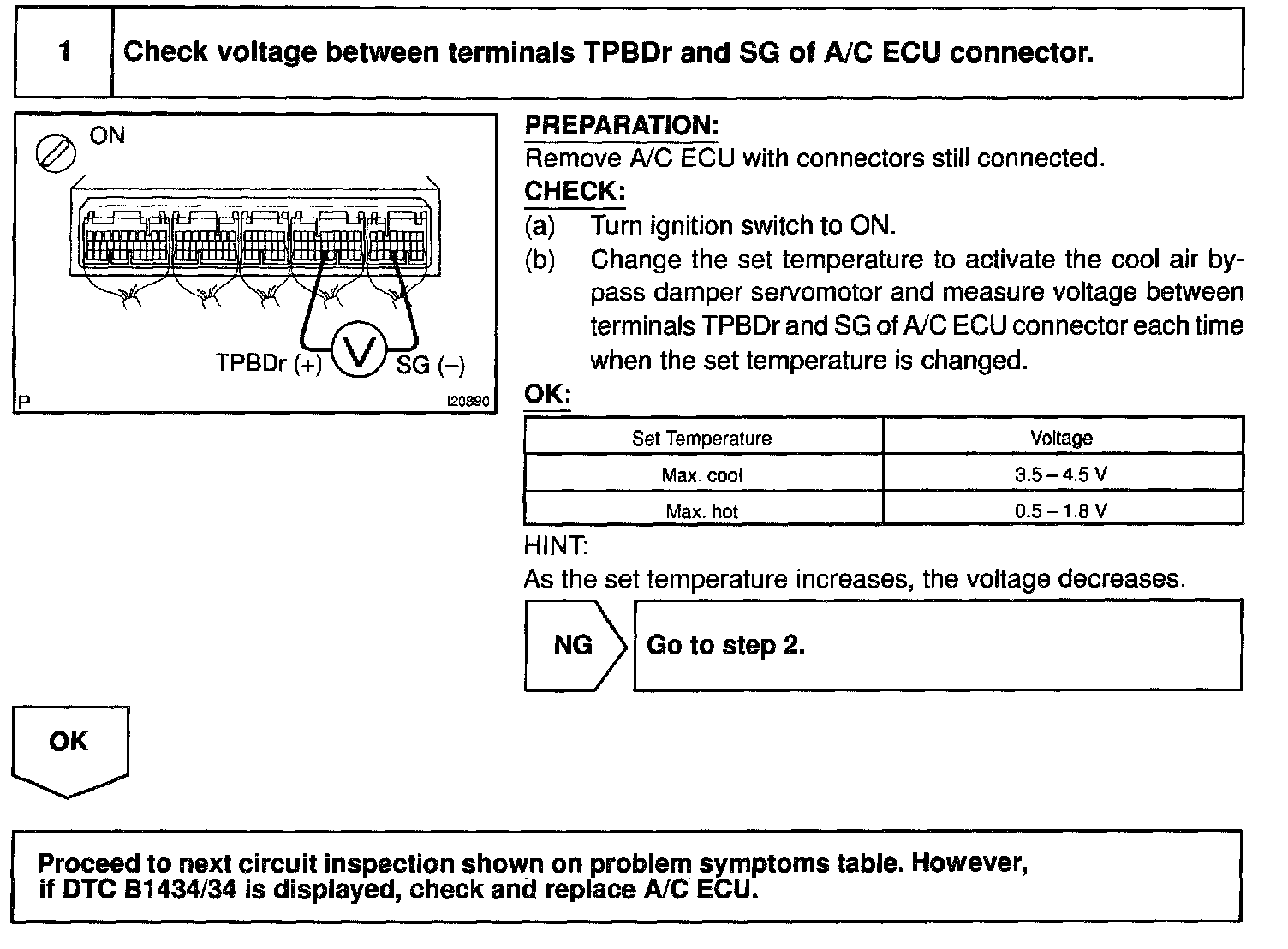

Step 1:

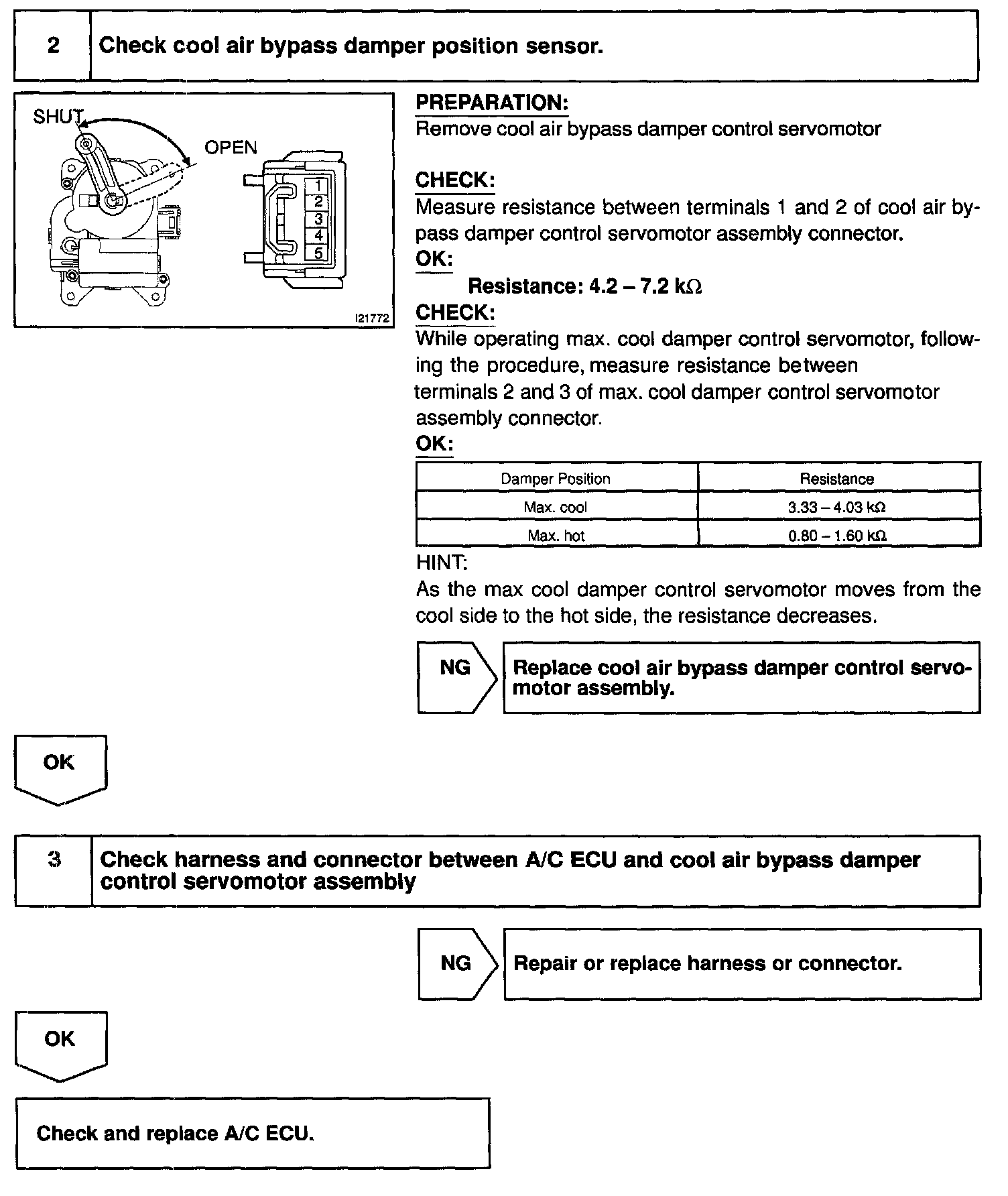

Step 2 - 3:

INSPECTION PROCEDURE
