B1423

DTC B1423 PRESSURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

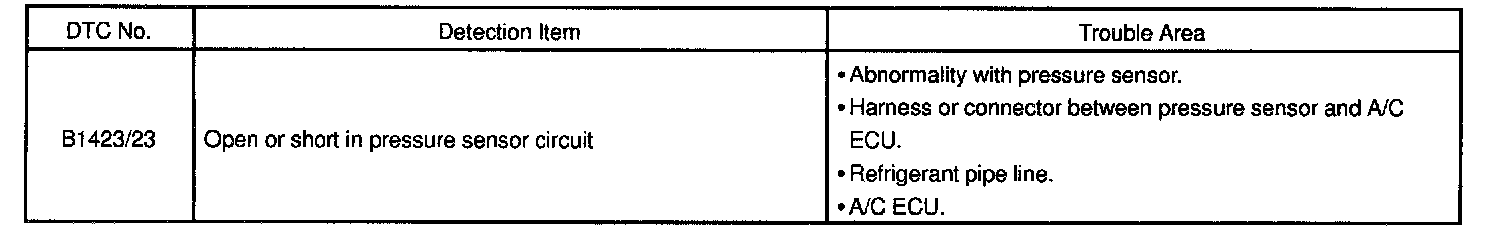

Detection Item:

This sensor sends the appropriate signals to the A/C ECU when the abnormality with compressor discharge pressure drops too low or rises too high.

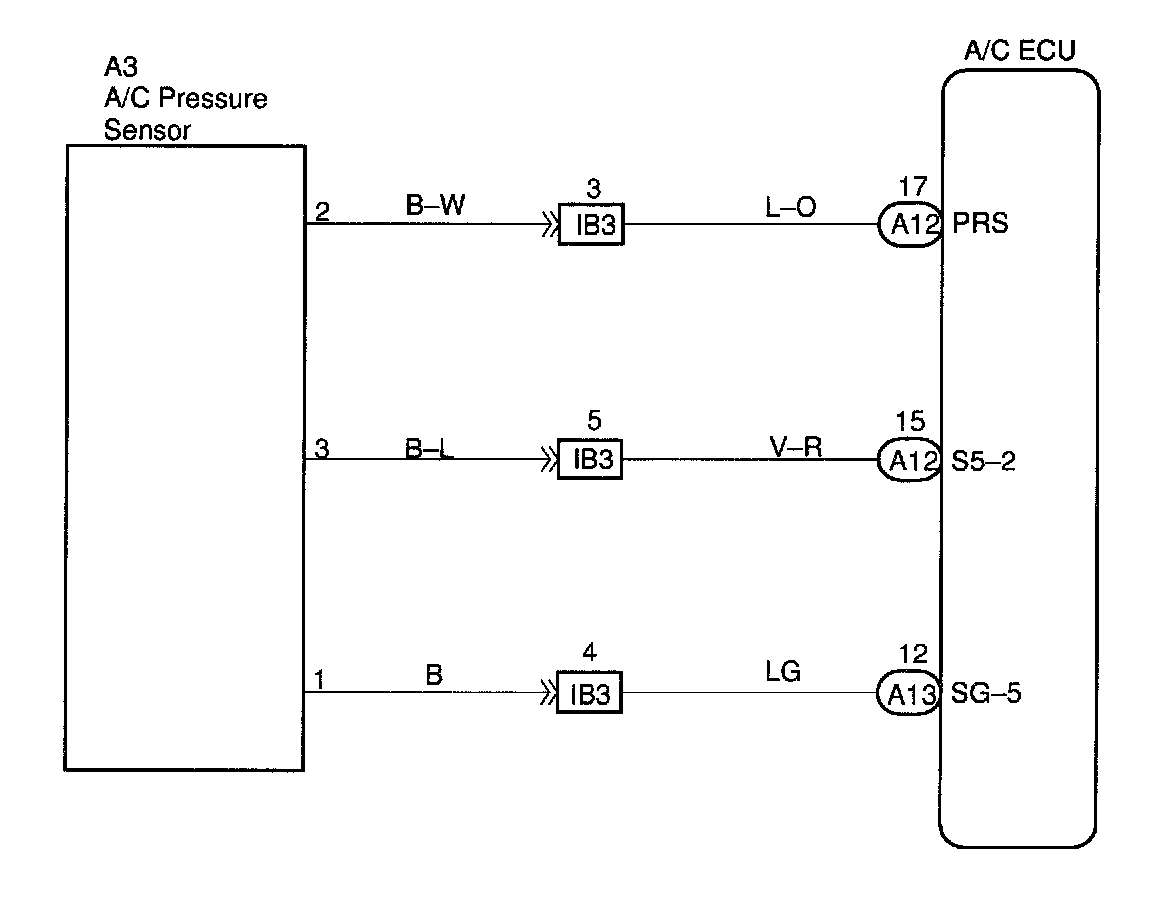

Wiring Diagram:

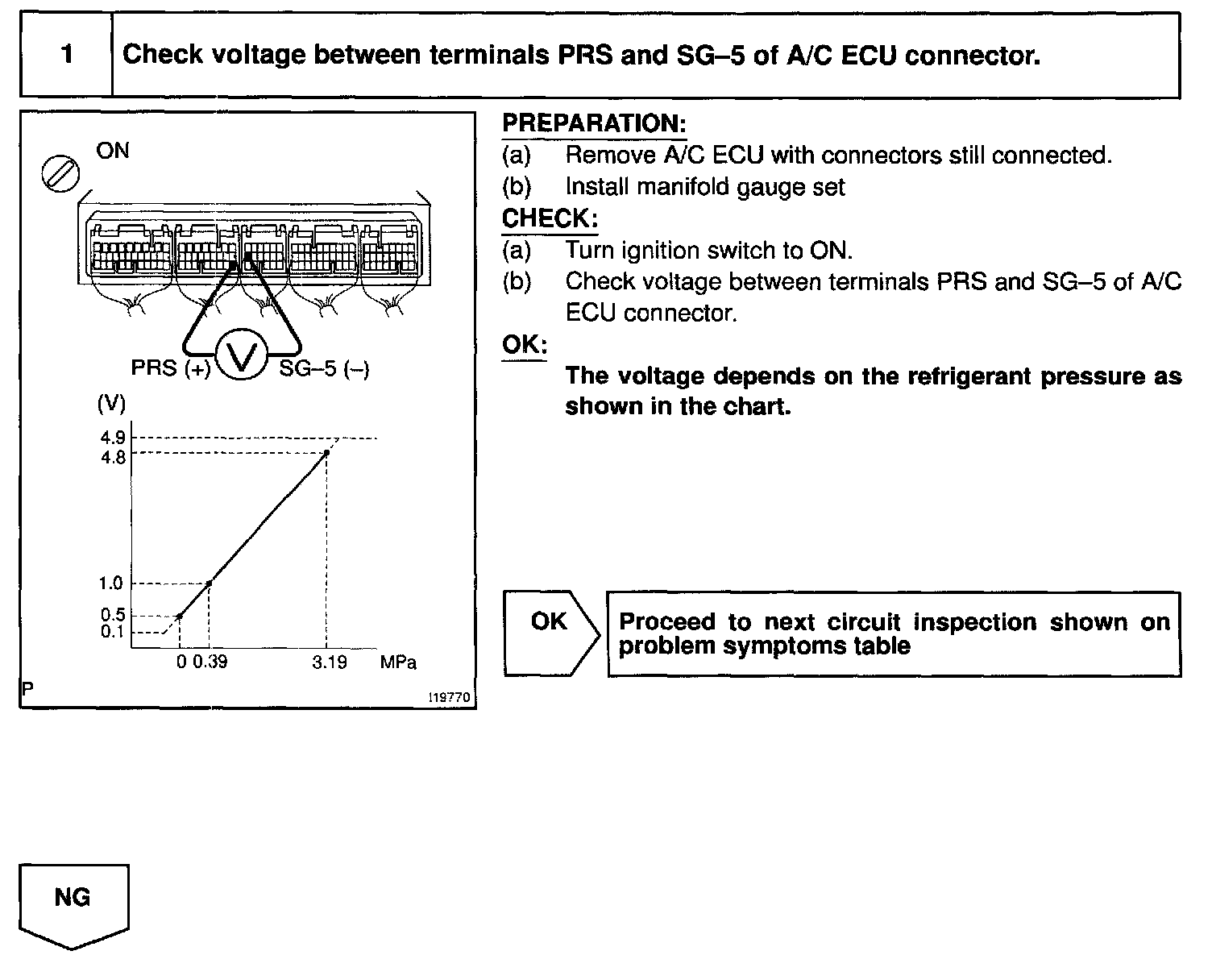

Step 1:

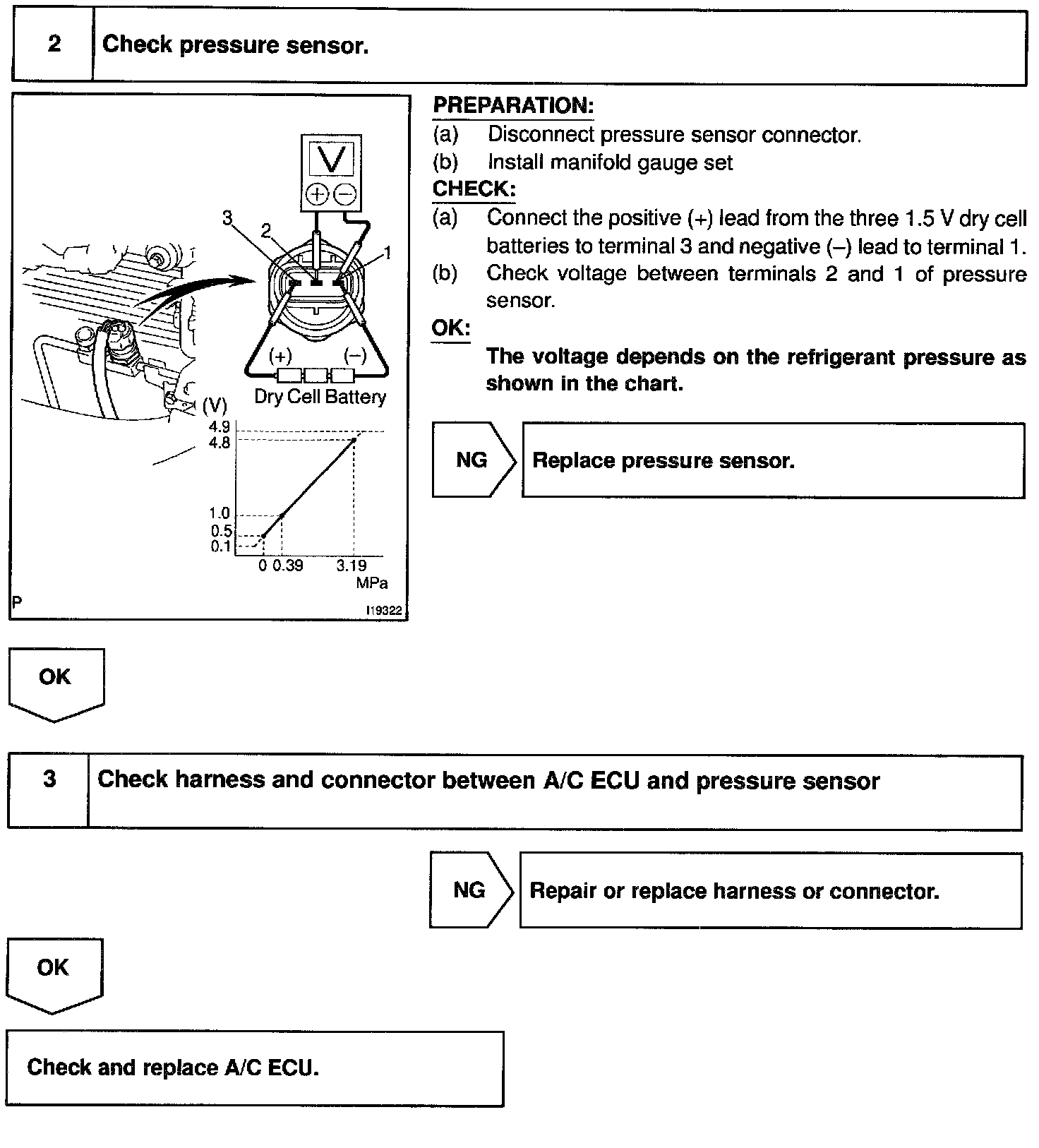

Step 2 - 3:

INSPECTION PROCEDURE
