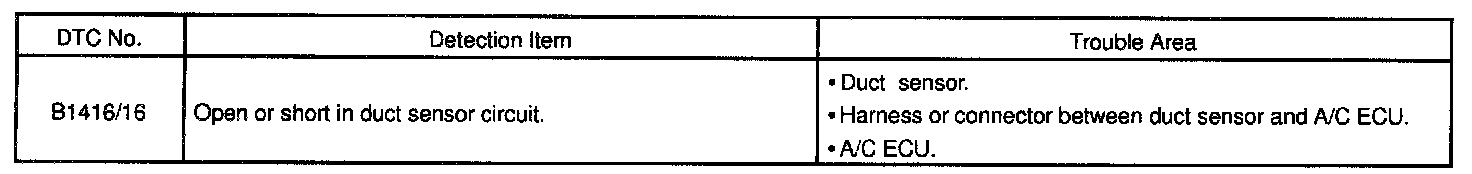

DTC B1416 AIR DUCT SENSOR CIRCUIT (PASSENGER SIDE)

CIRCUIT DESCRIPTION

Detection Item:

This sensor detects the temperature inside and sends the appropriate signals to the A/C ECU.

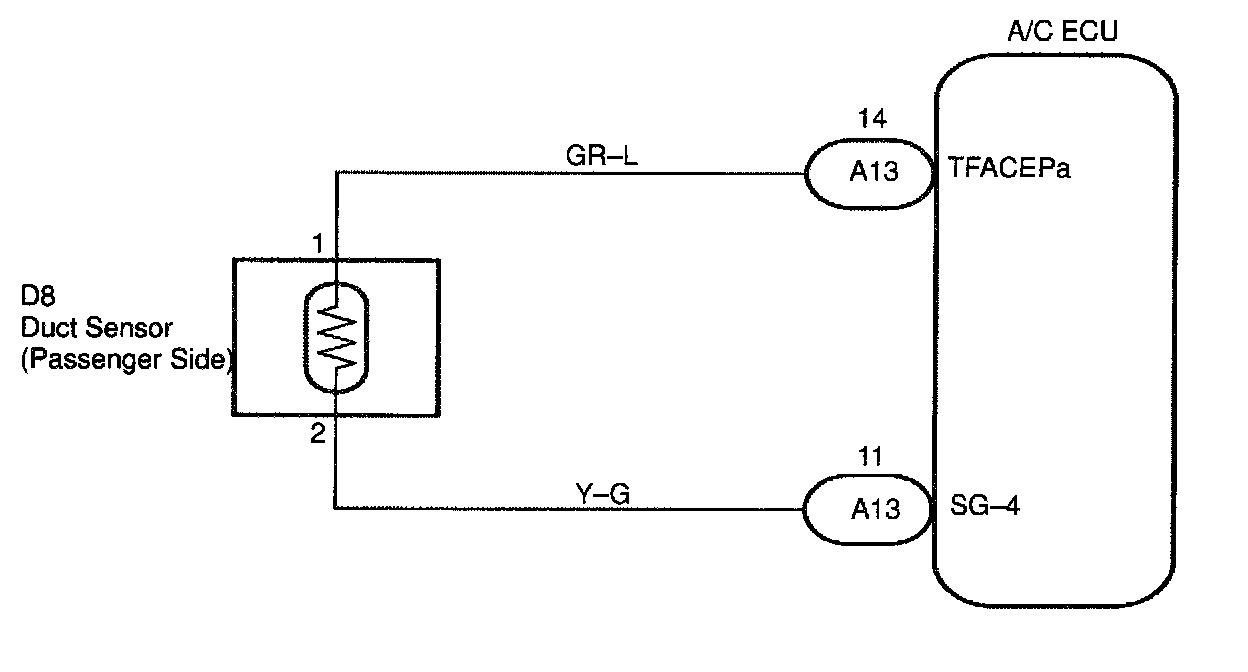

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

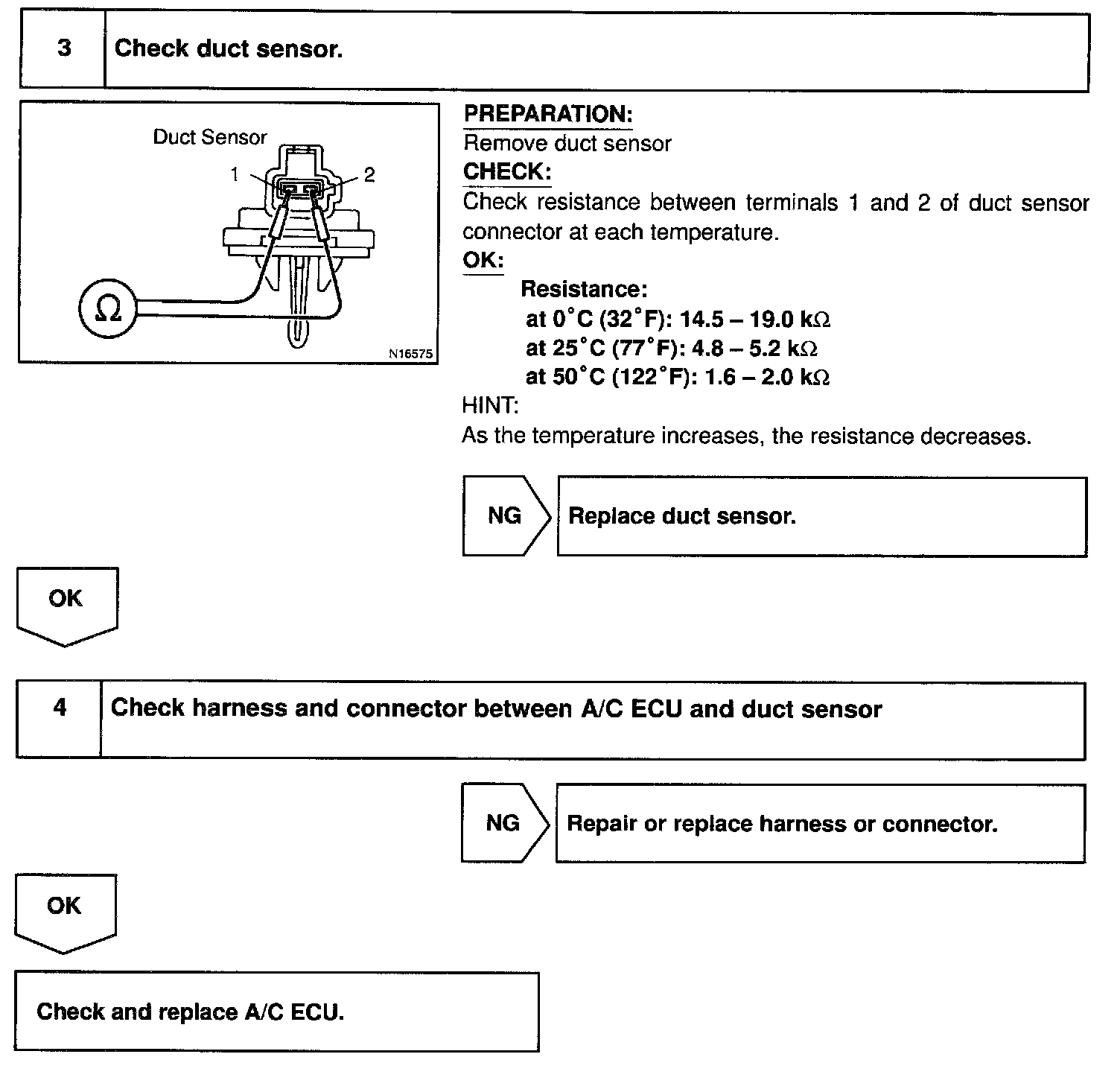

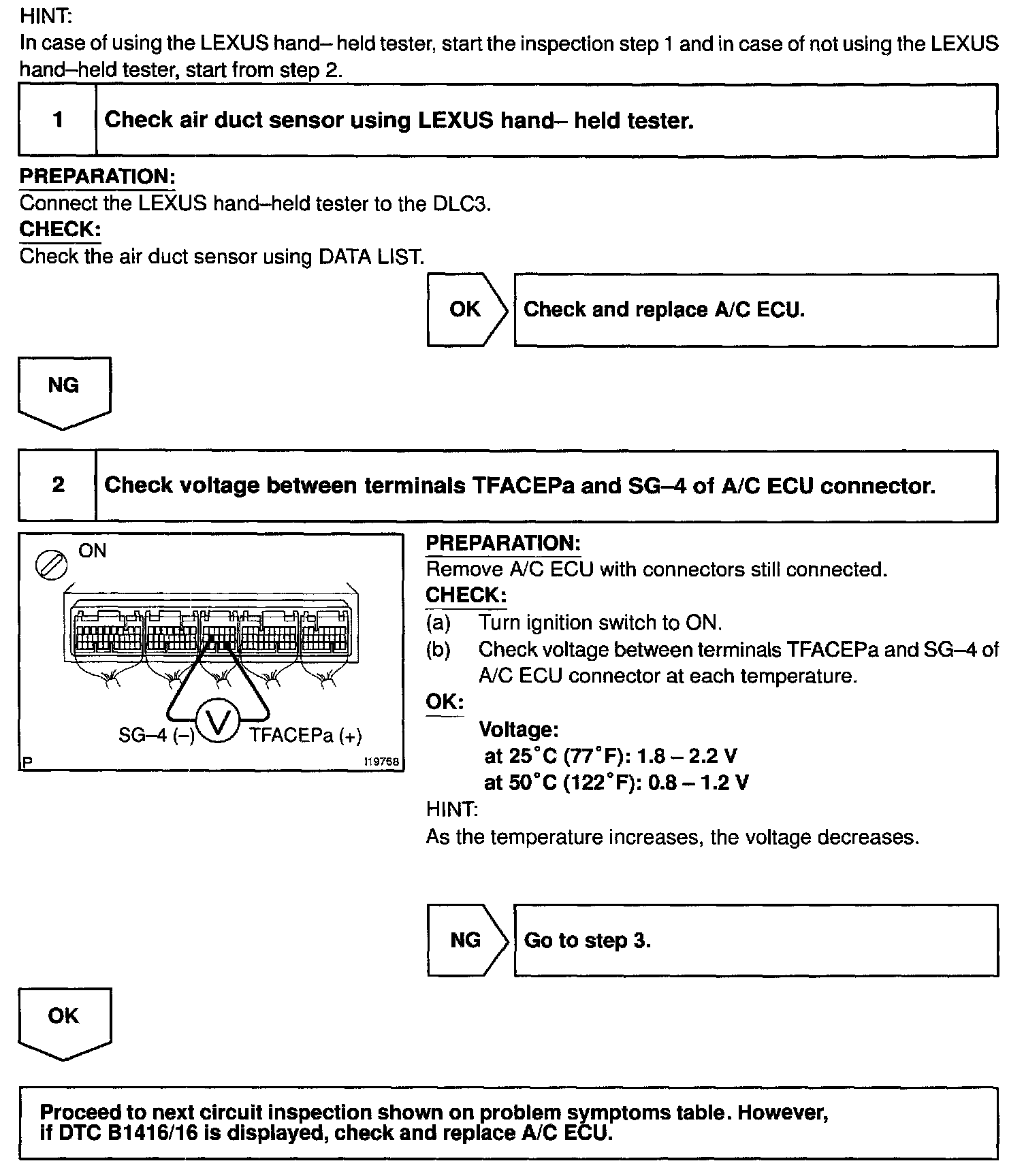

INSPECTION PROCEDURE
