B1415

DTC B1415 AIR DUCT SENSOR CIRCUIT (DRIVER SIDE)

CIRCUIT DESCRIPTION

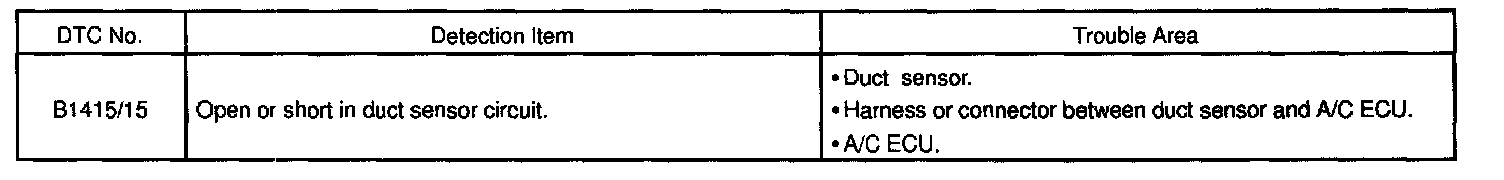

Detection Item:

This sensor detects the register temperature and sends the appropriate signals to the A/C ECU.

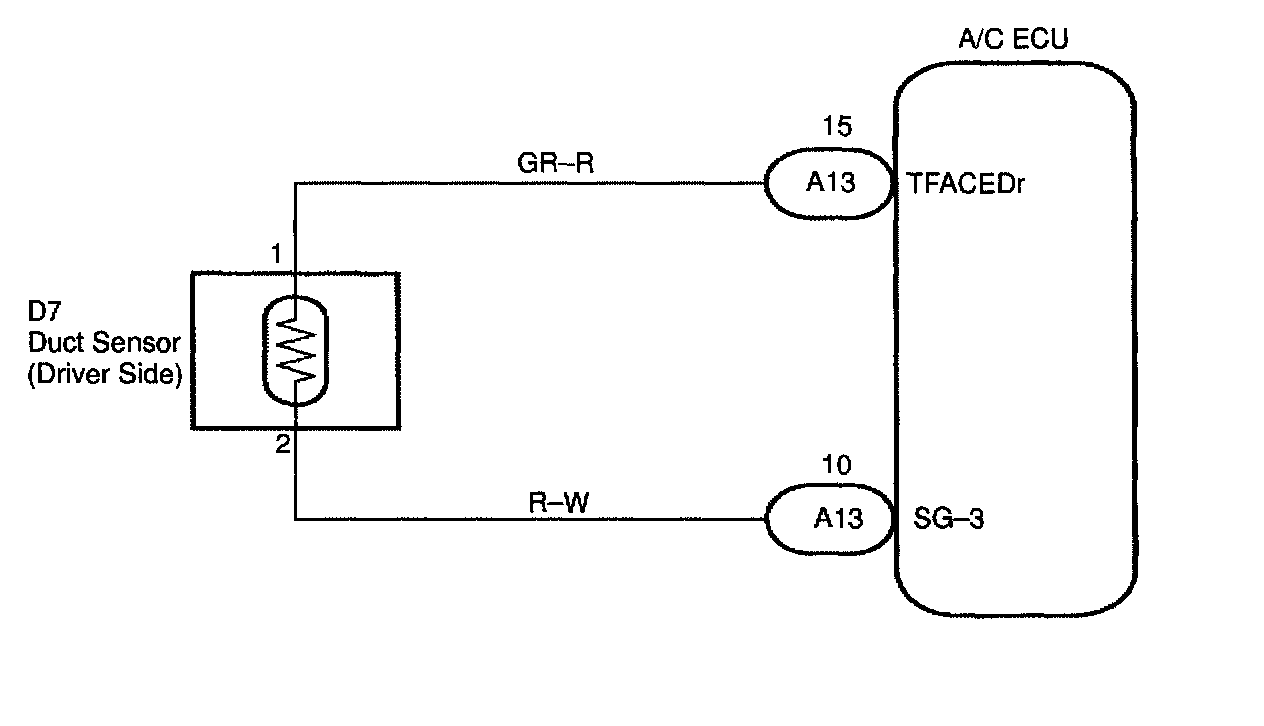

Wiring Diagram:

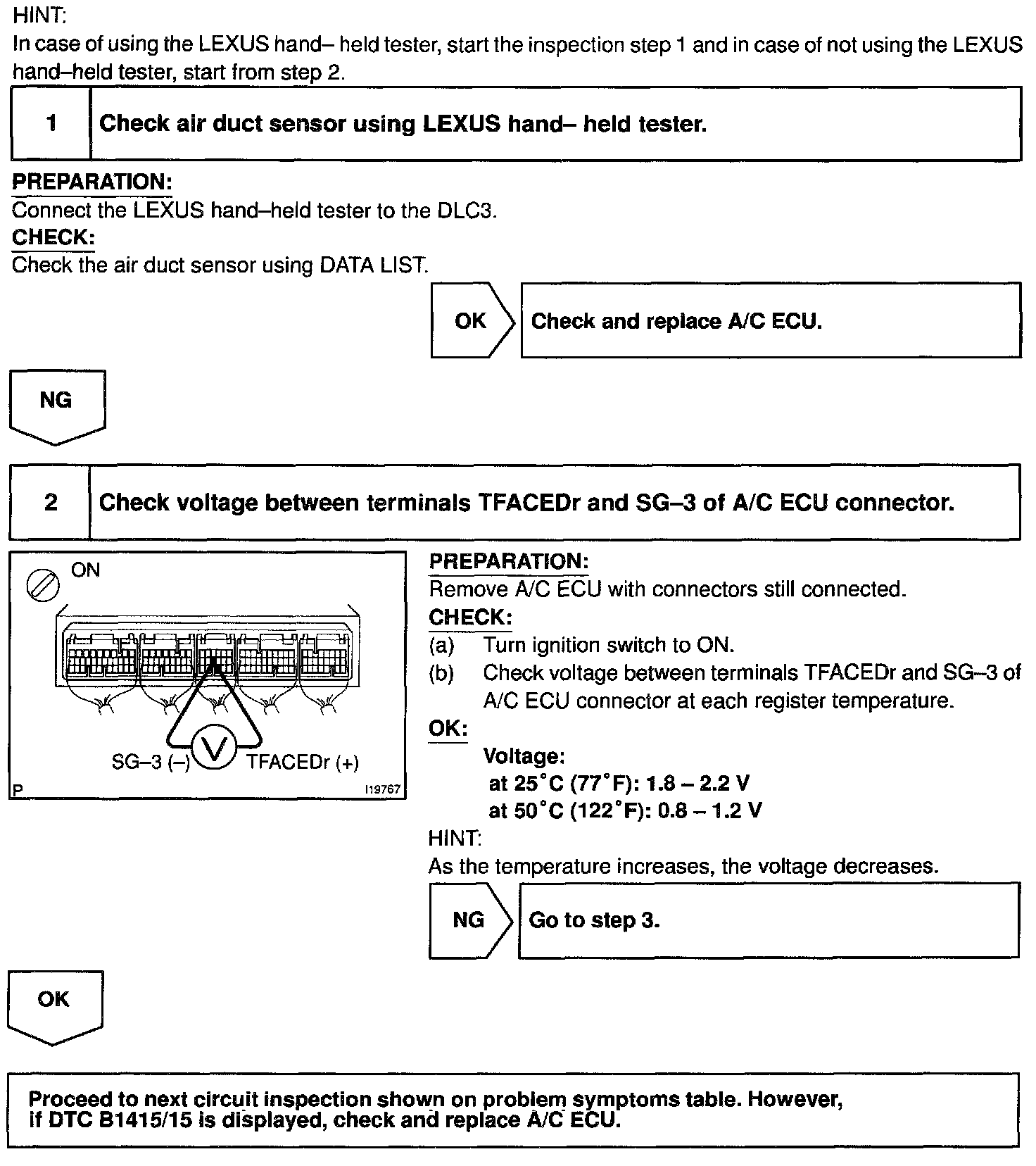

Step 1 - 2:

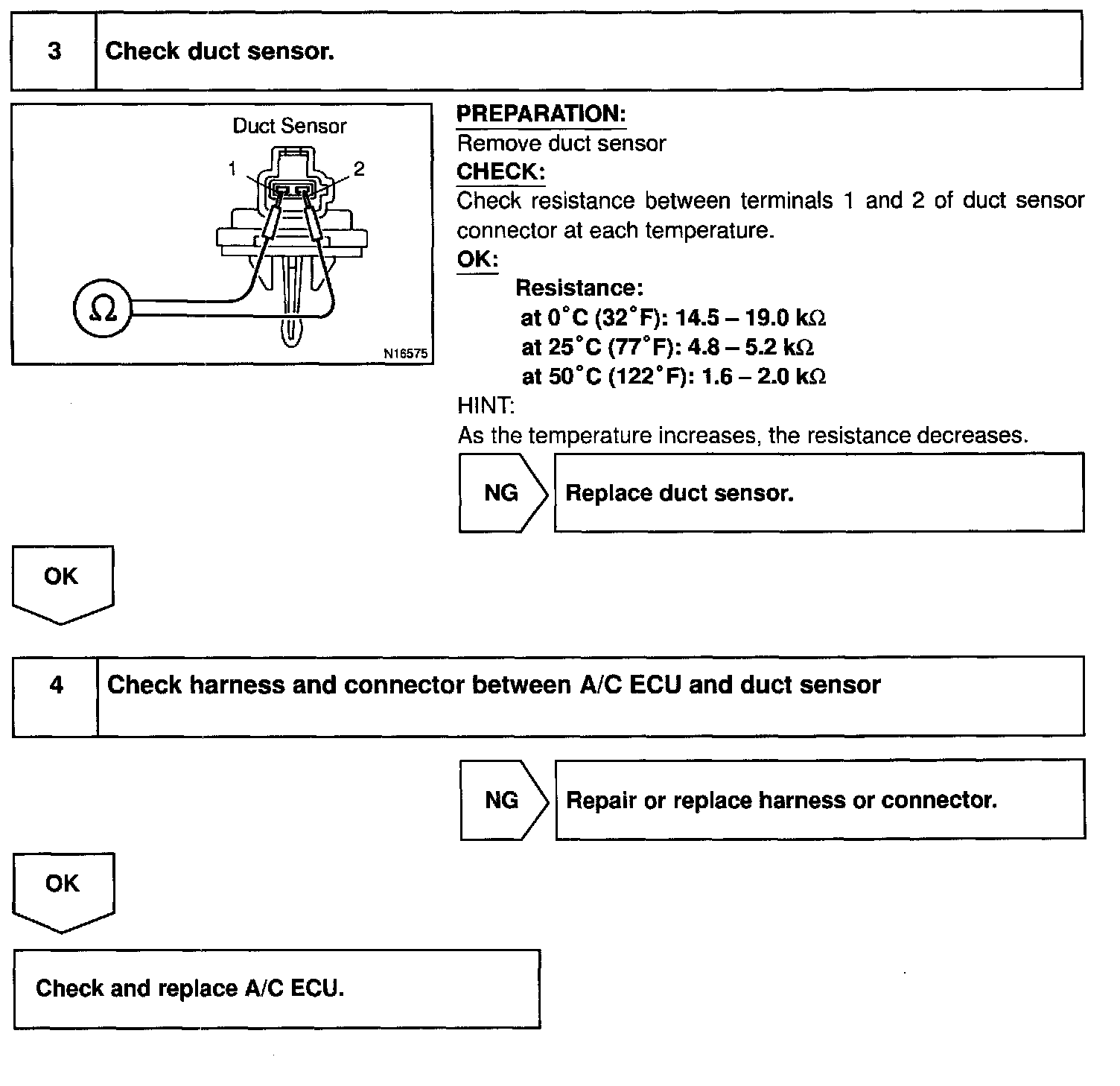

Step 3 - 4:

INSPECTION PROCEDURE
