B1411

DTC B1411 ROOM TEMPERATURE SENSOR CIRCUIT

CIRCUIT DESCRIPTION

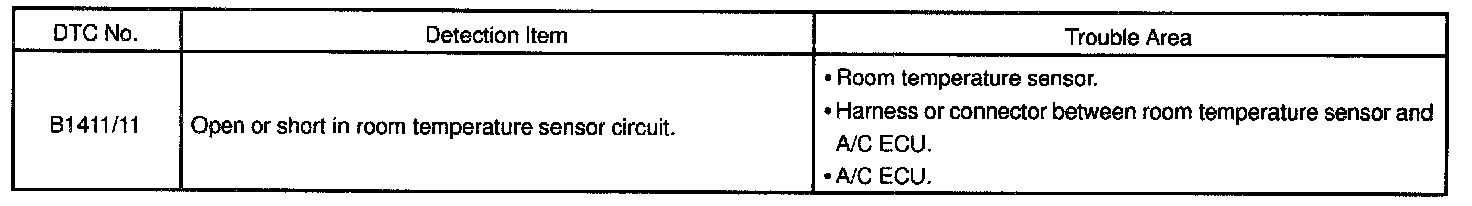

Detection Item:

This sensor detects the temperature inside the cabin and sends the appropriate signals to the A/C ECU.

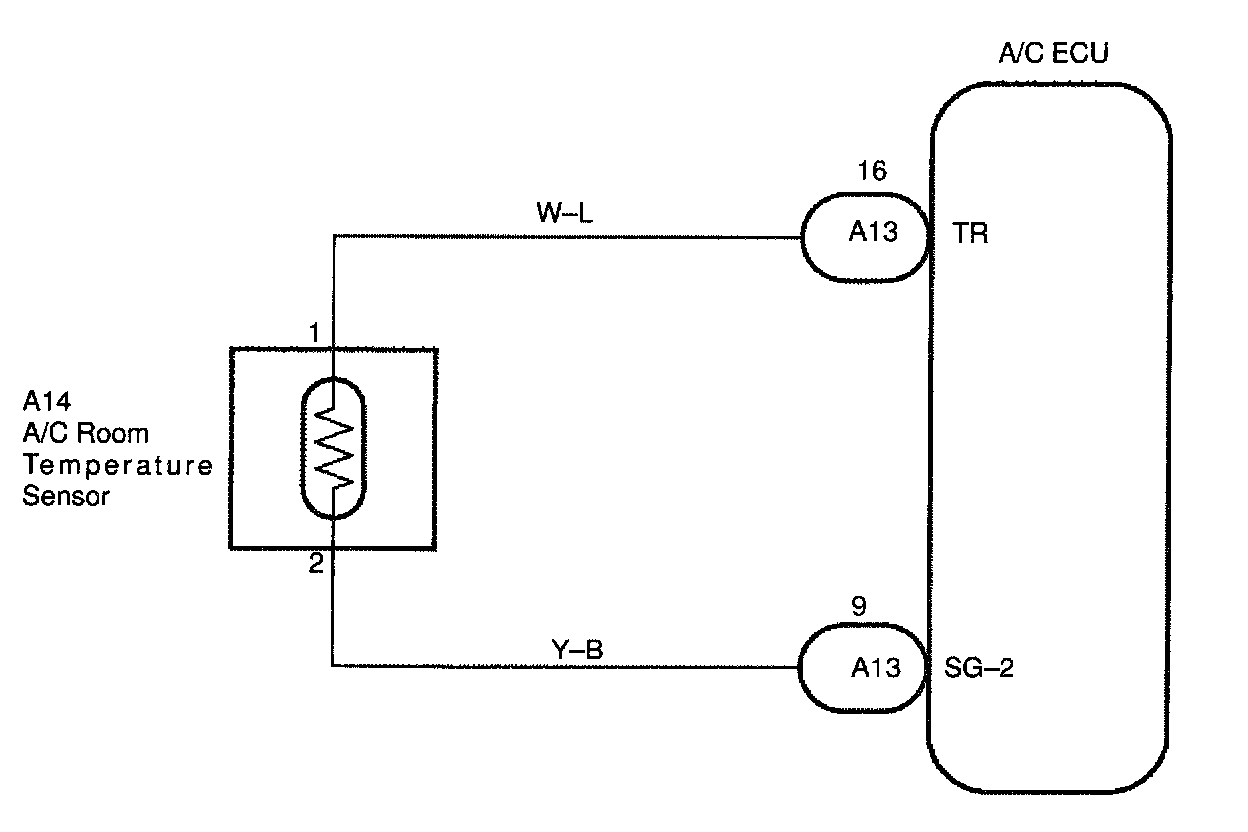

Wiring Diagram:

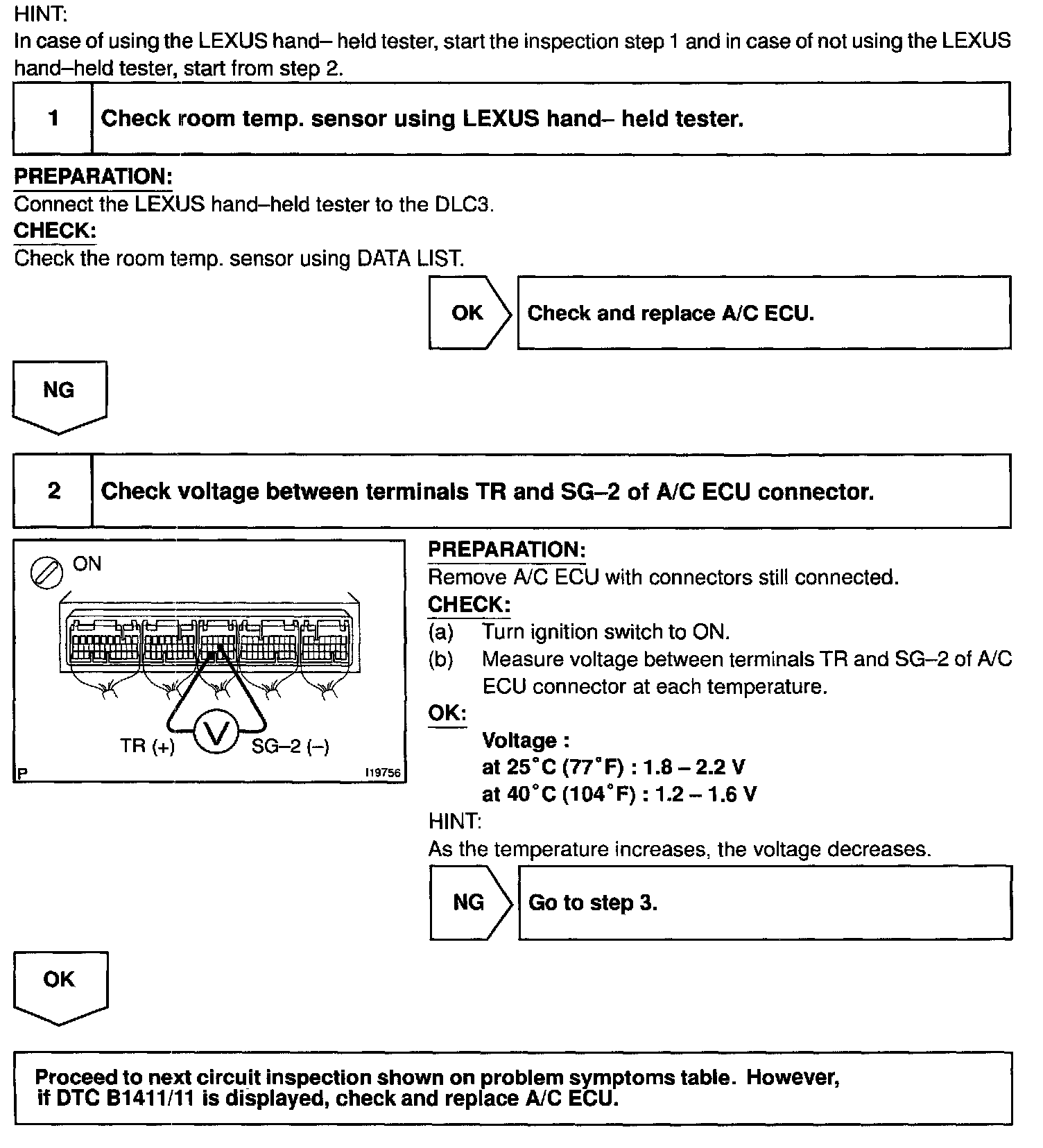

Step 1 - 2:

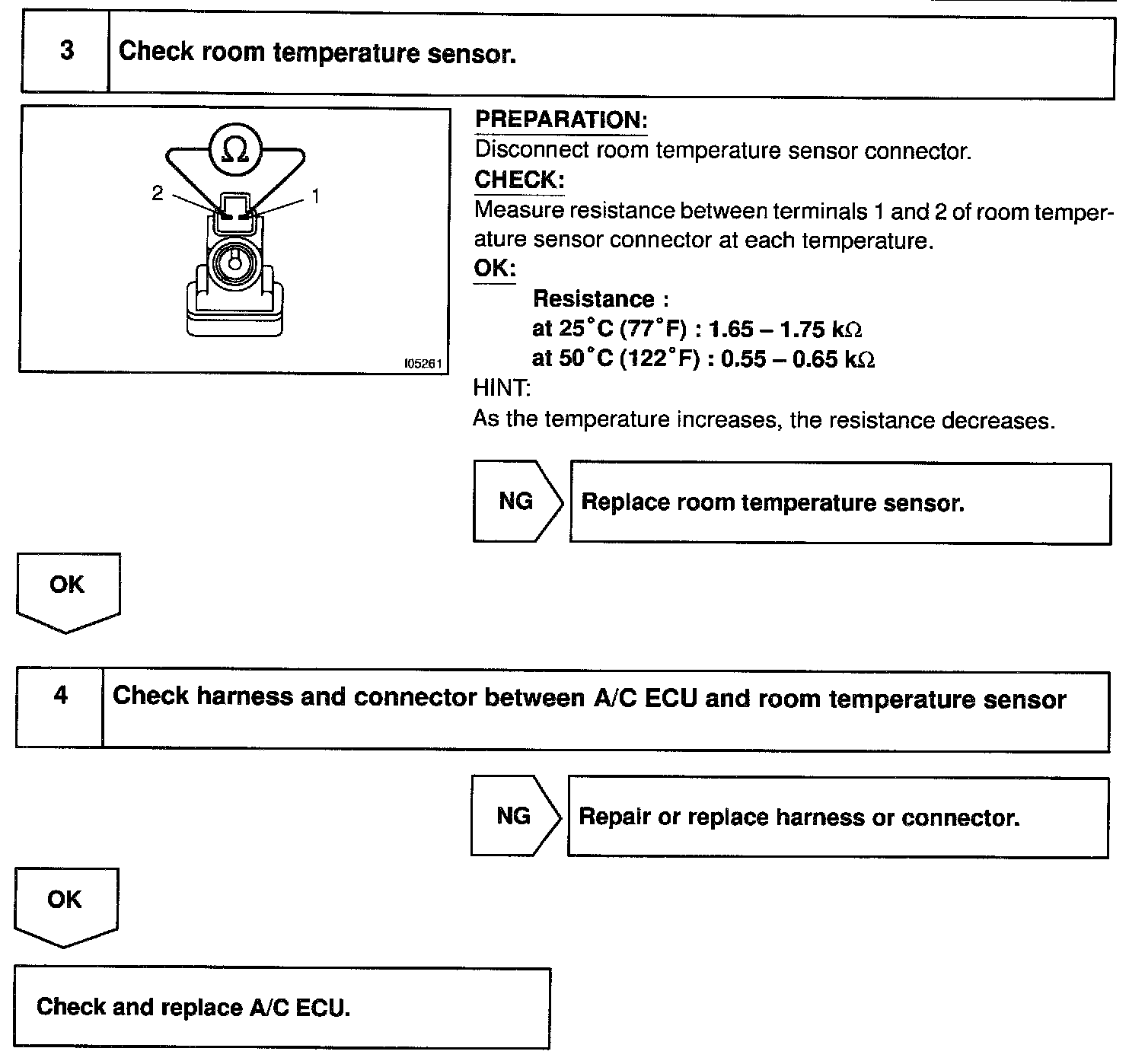

Step 3 - 4:

INSPECTION PROCEDURE
