B1292

DTC B1292 LIGHT SYSTEM COMMUNICATION BUS MALFUNCTION (GND SHORT)

CIRCUIT DESCRIPTION

This DTC is output when (+)B or GND short occurs on the rear lights control system communication bus.

Wiring Diagram:

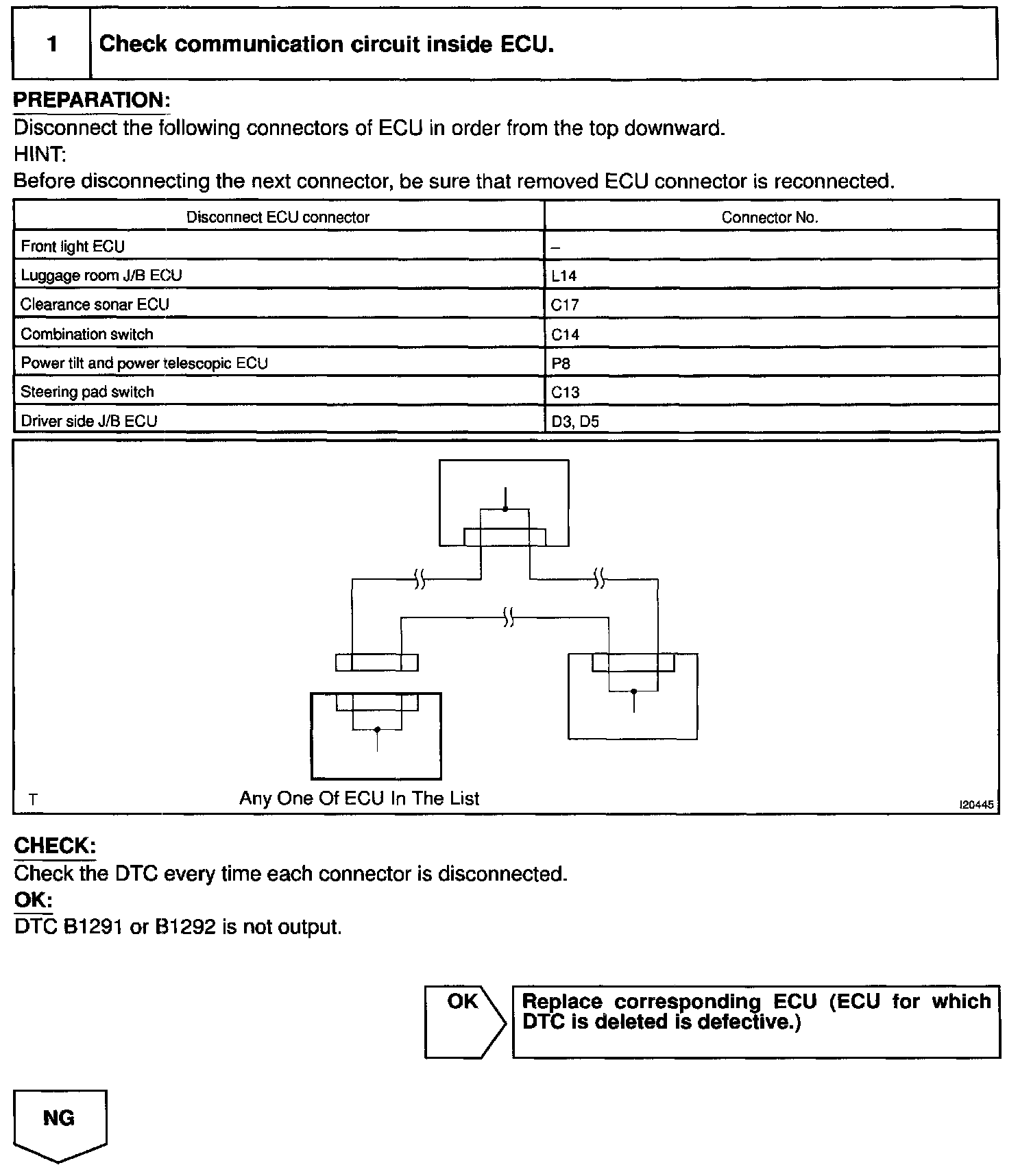

Step 1:

Step 2:

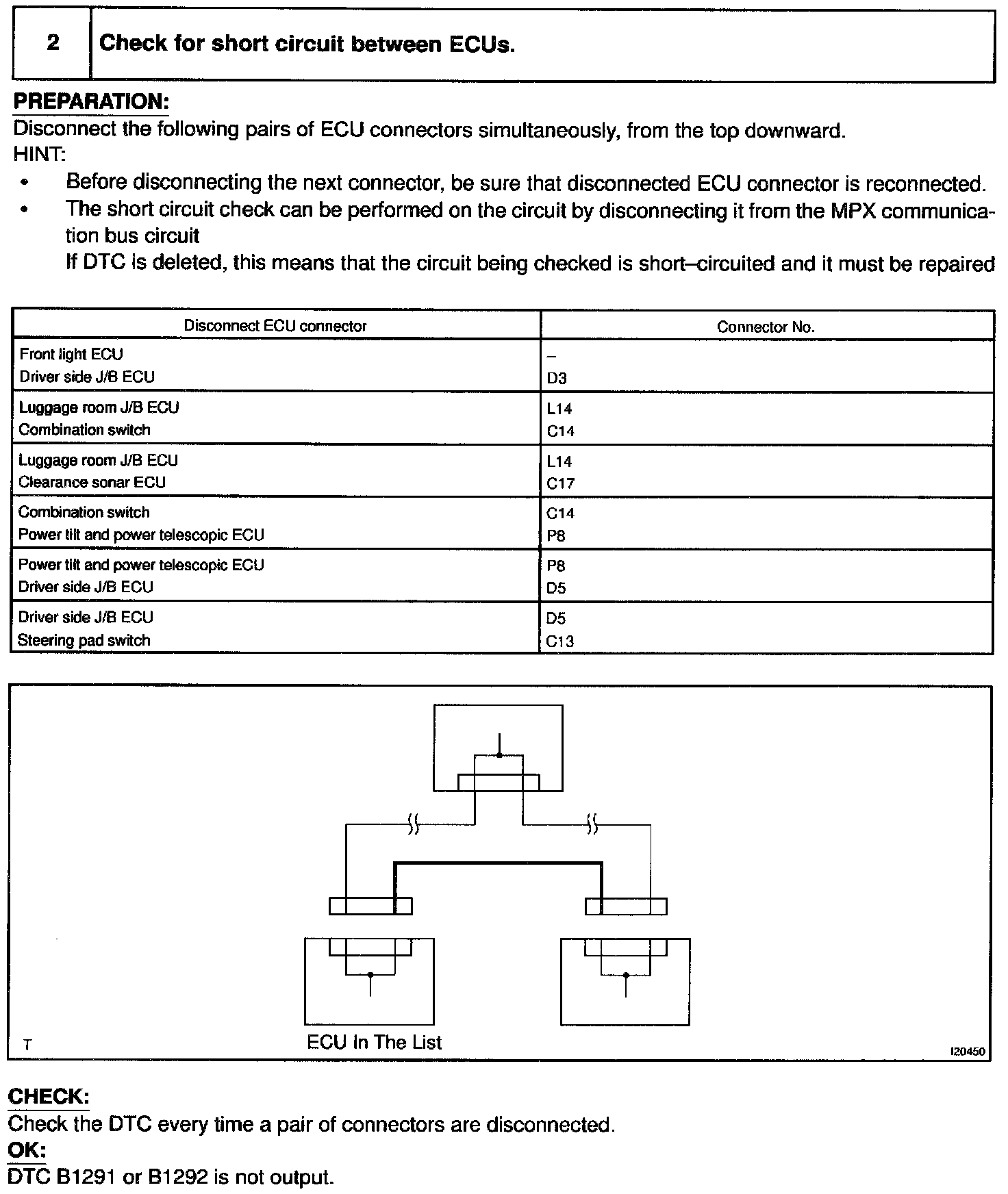

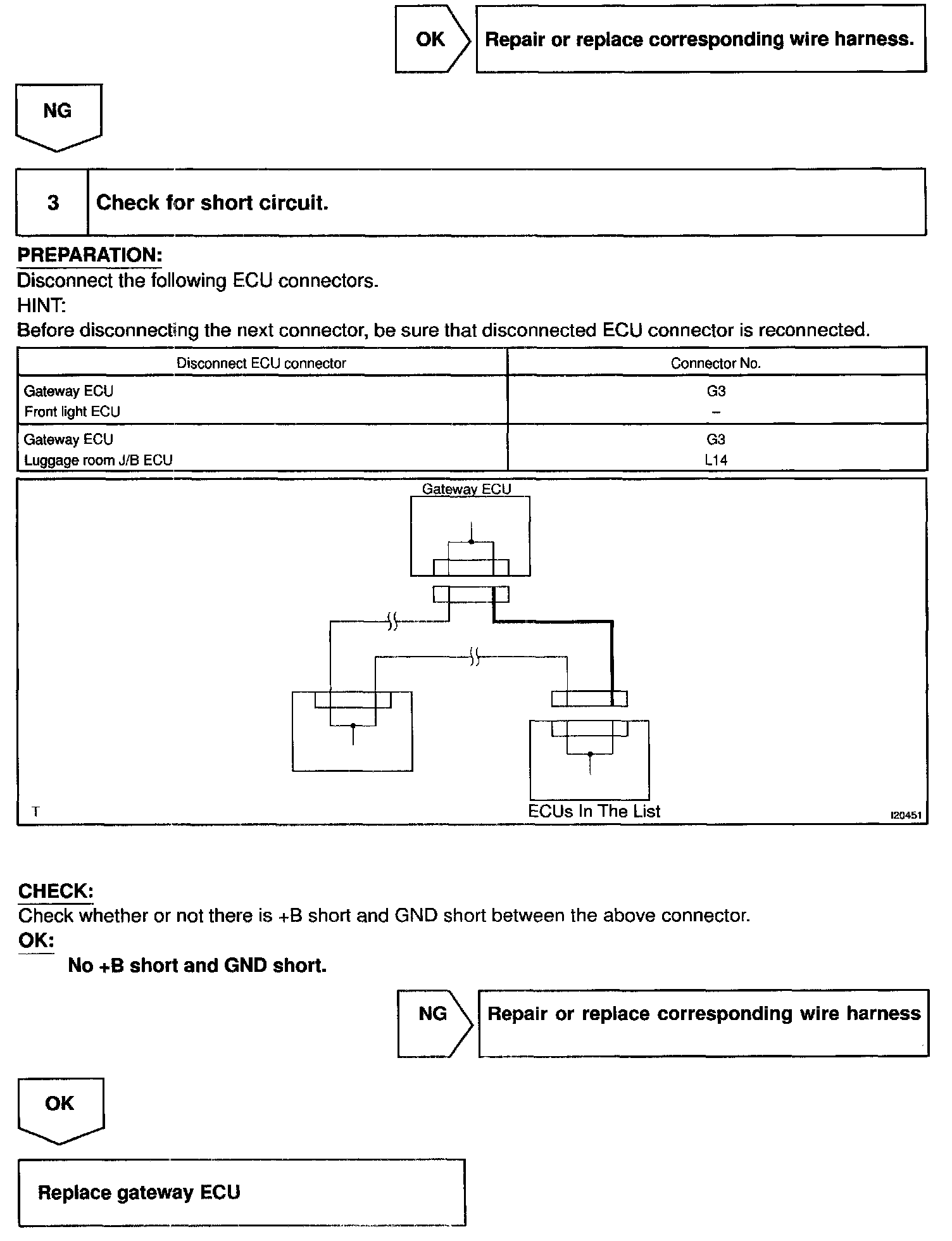

Step 2 (Continued) - 3:

INSPECTION PROCEDURE
