B1277

DTC B1277 CENTER CLUSTER INTEGRATION PANEL ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

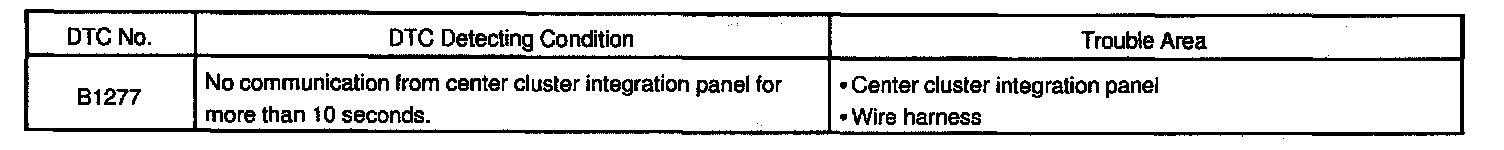

DTC Detecting Condition:

This DTC is output when communication stops between the center cluster integration and the gateway ECU.

Wiring Diagram:

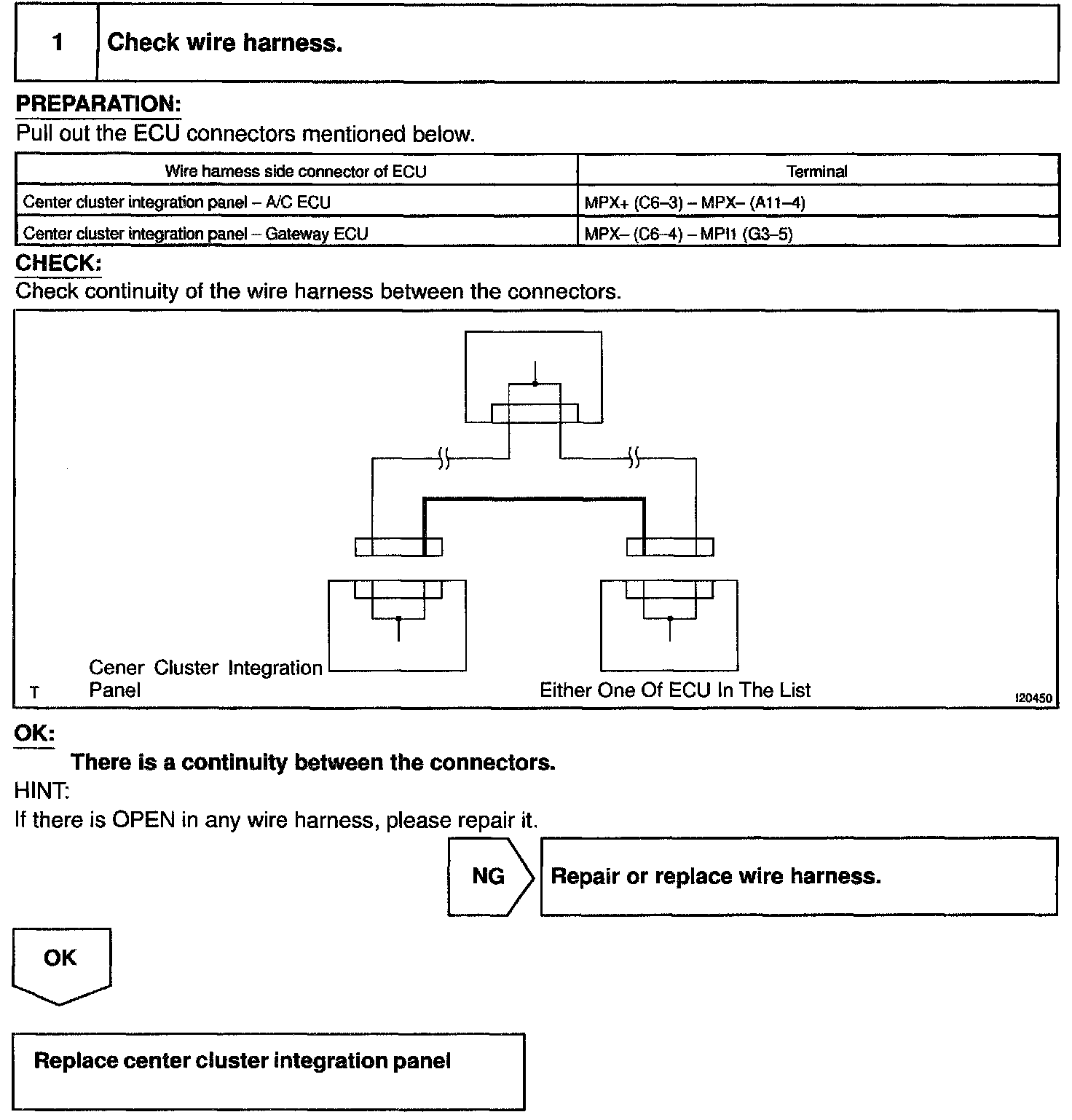

Step 1:

INSPECTION PROCEDURE
