B1275

DTC B1275 ACCESSORY BUS BUFFER COMMUNICATION STOP

CIRCUIT DESCRIPTION

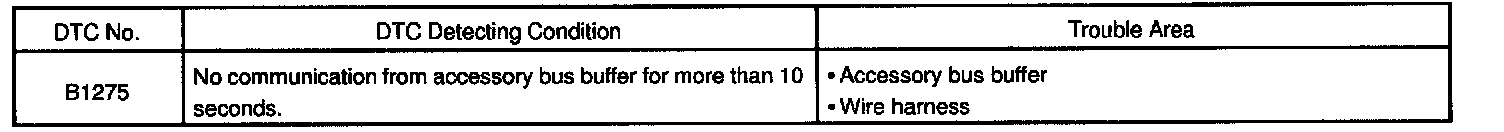

DTC Detecting Condition:

This DTC is output when communication stops between the accessory bus buffer and the gateway ECU.

Wiring Diagram:

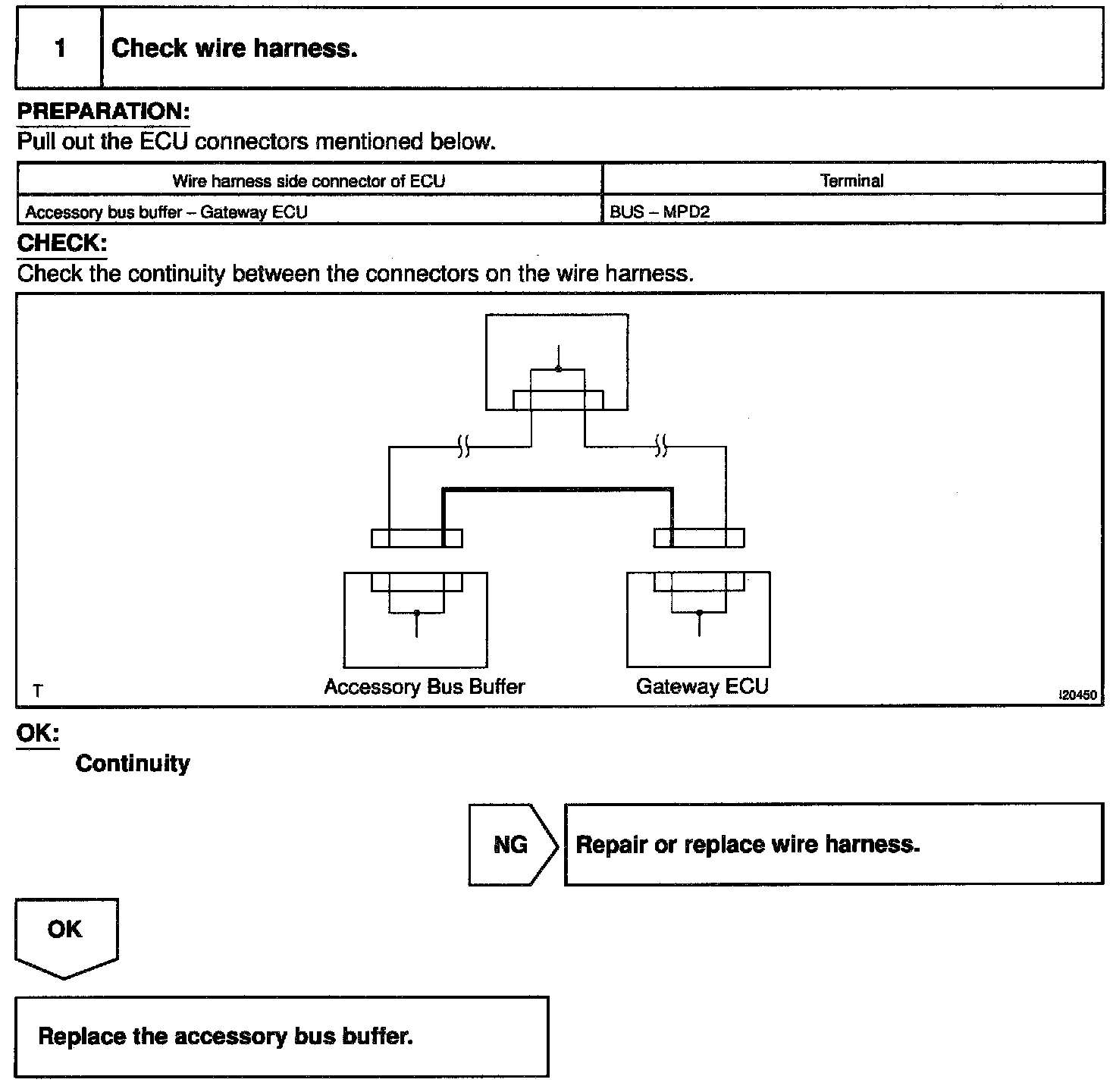

Step 1:

INSPECTION PROCEDURE
