B1271

DTC B1271 COMBINATION METER ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

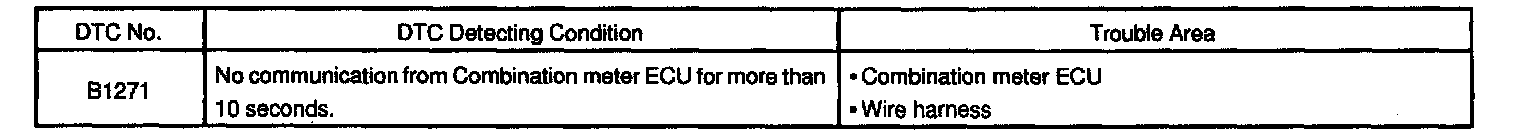

DTC Detecting Condition:

This DTC is output when communication stops between the combination meter ECU and the gateway ECU.

Wiring Diagram:

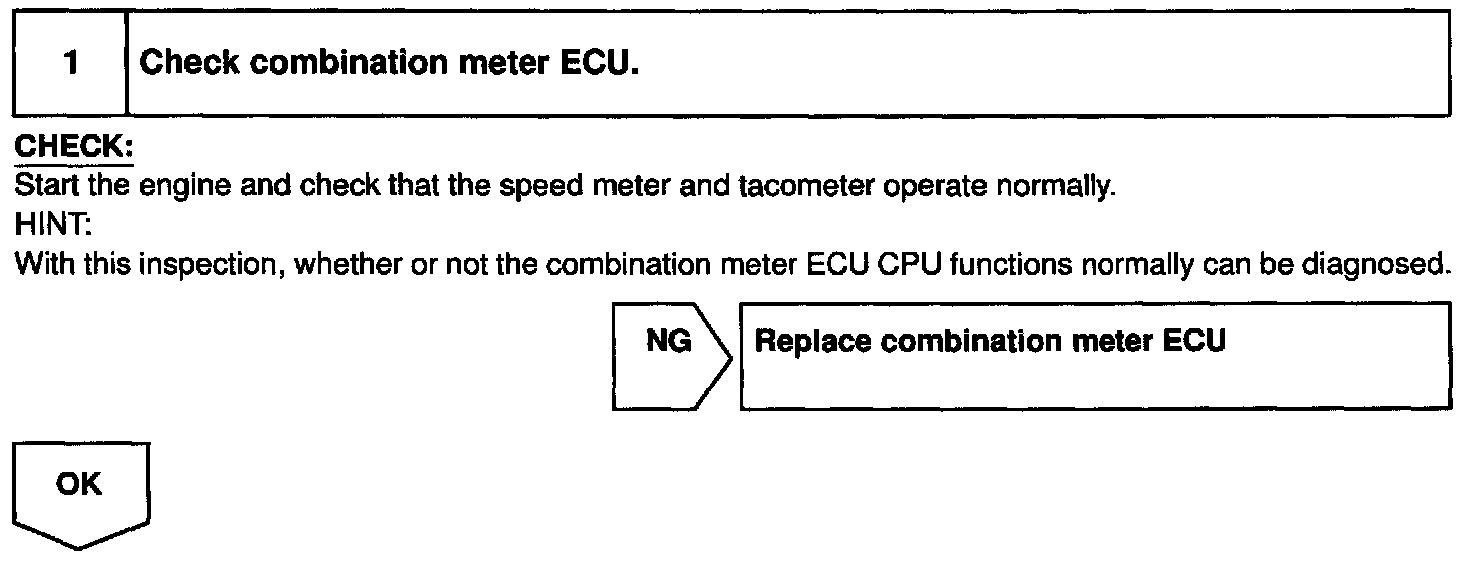

Step 1:

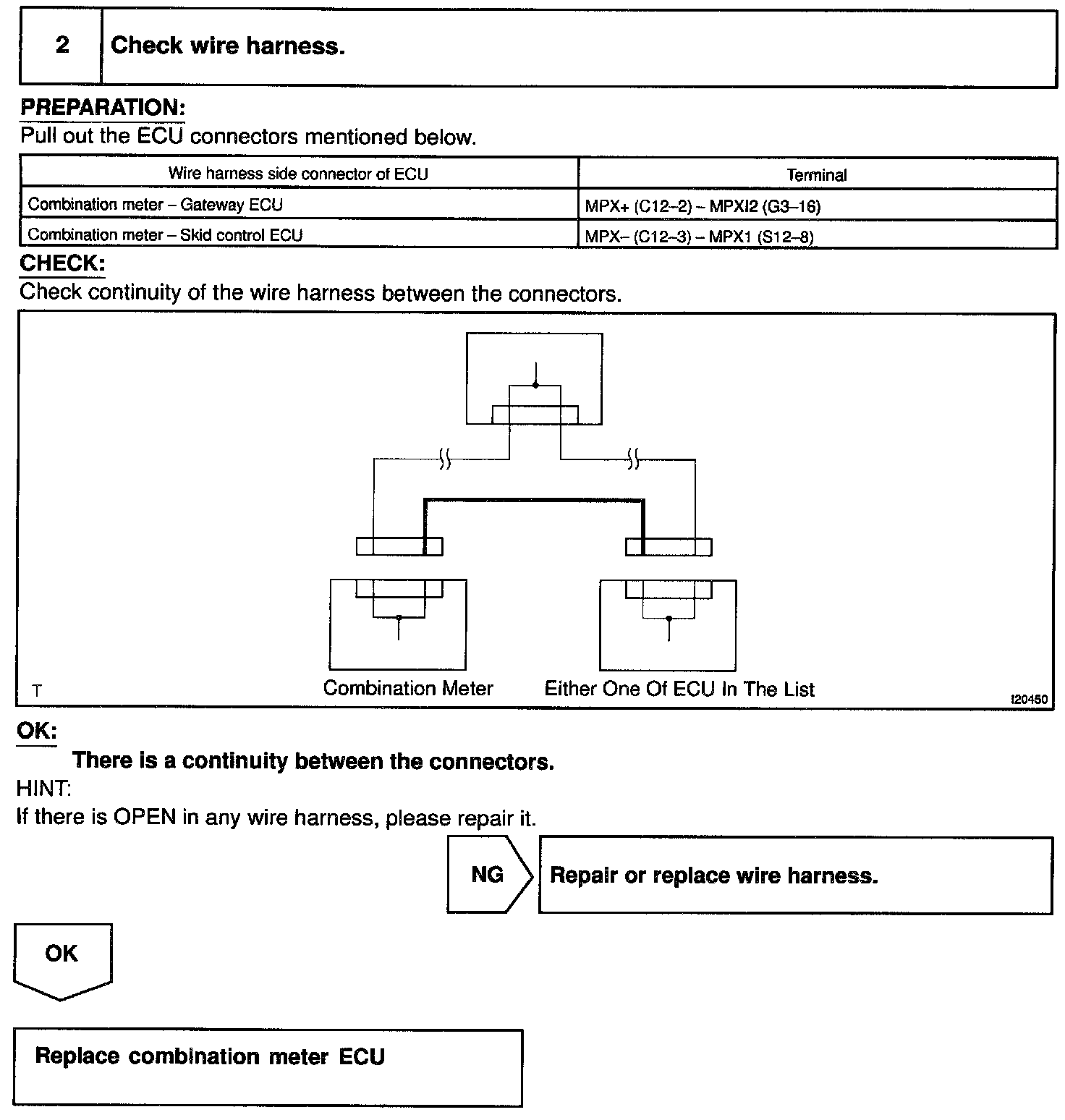

Step 2:

INSPECTION PROCEDURE
