B1214

DTC B1214 DOOR SYSTEM COMMUNICATION BUS MALFUNCTION ((+)B SHORT)

CIRCUIT DESCRIPTION

This DTC is output when (+)B or GND short occurs on the door system communication bus.

Wiring Diagram:

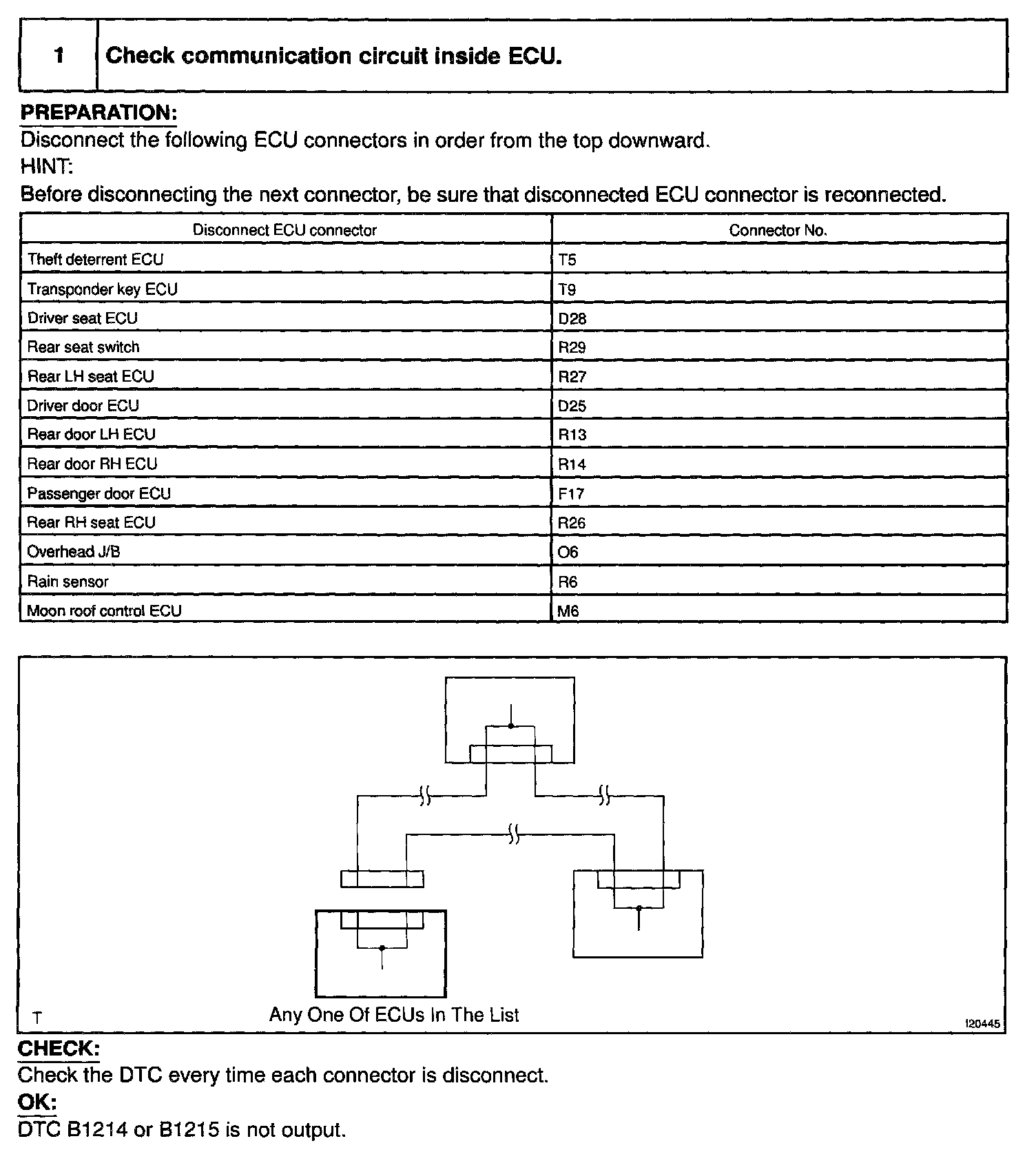

Step 1:

Step 1 (Continued) - 2:

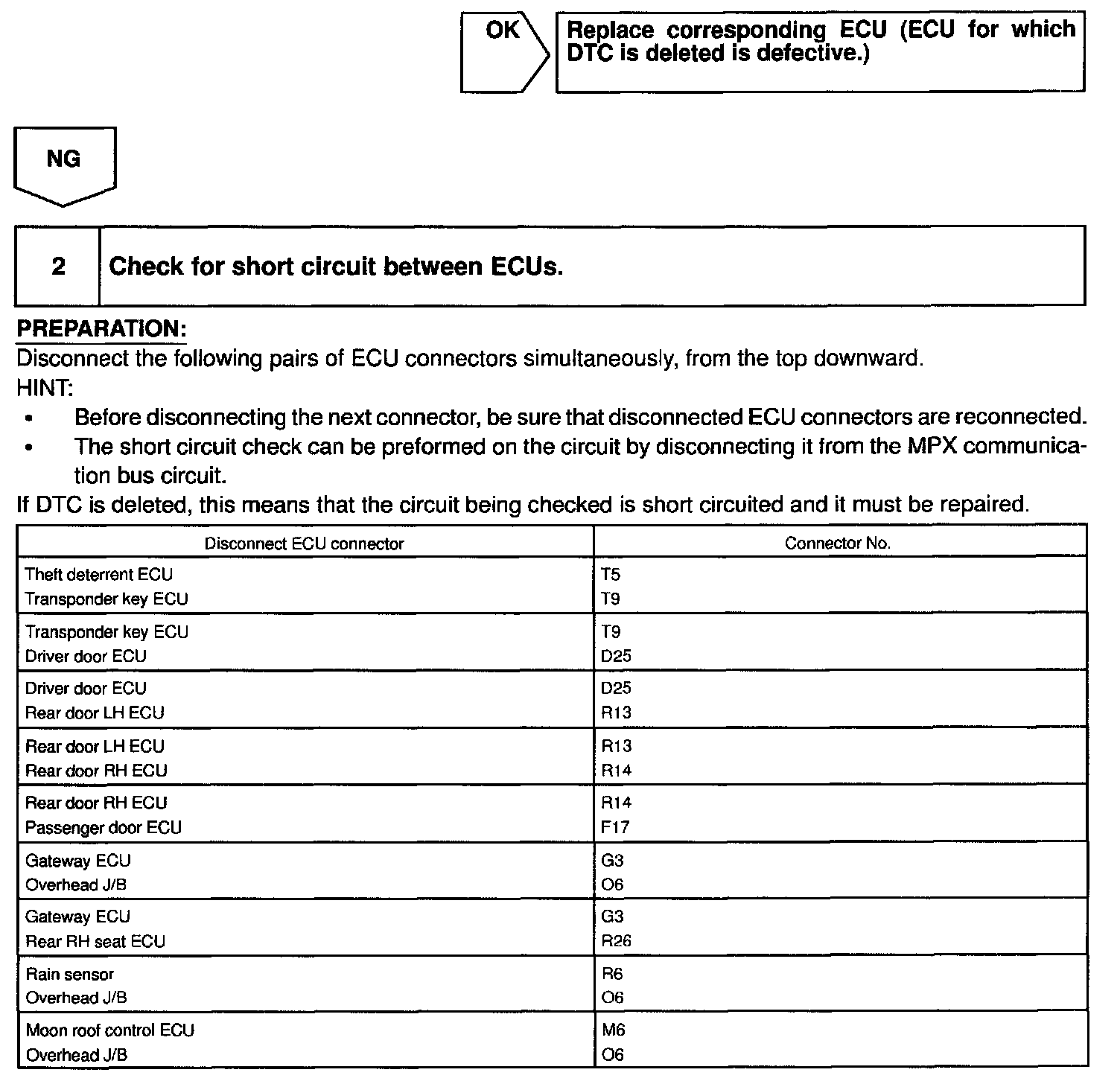

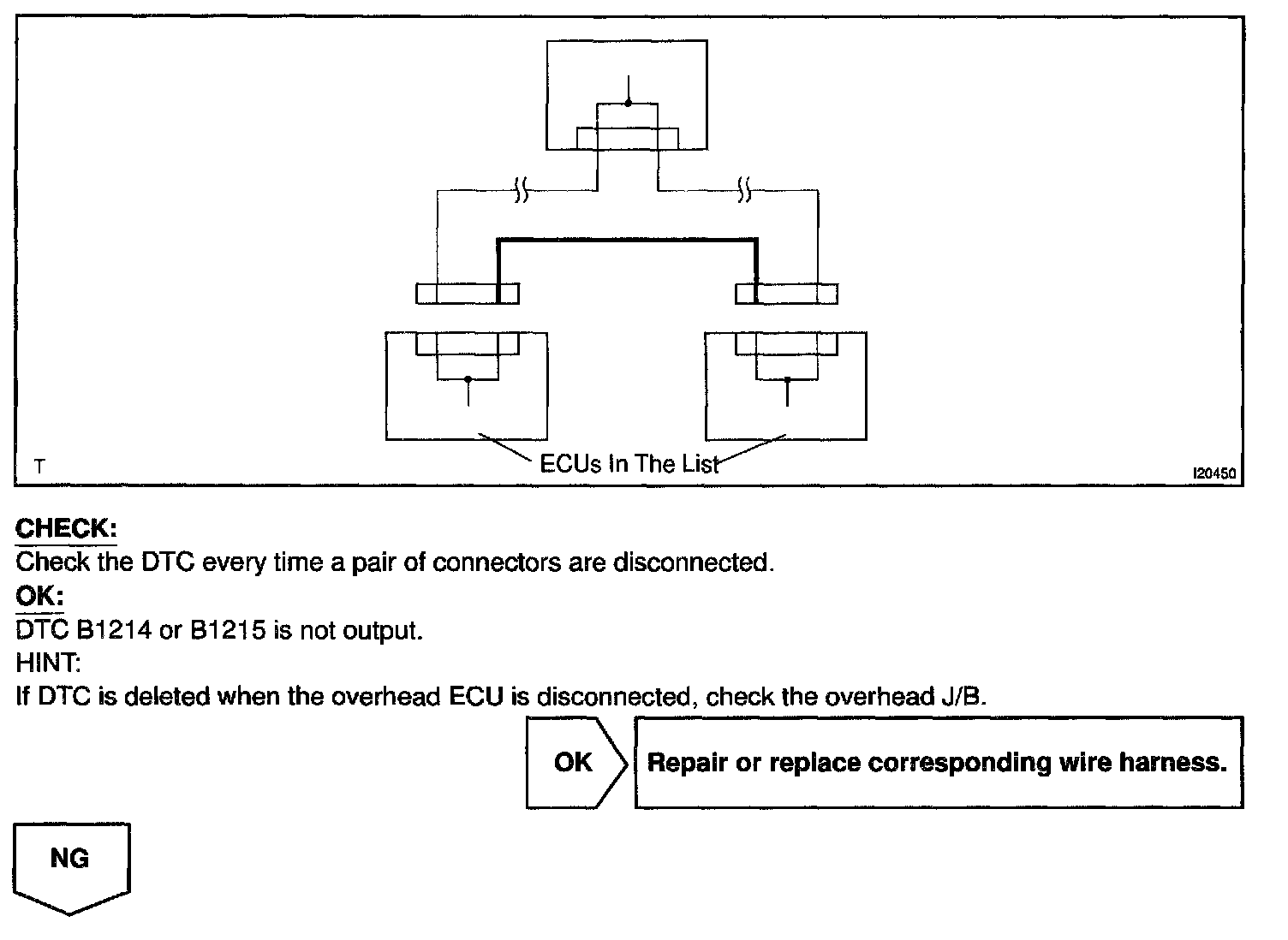

Step 2 (Continued):

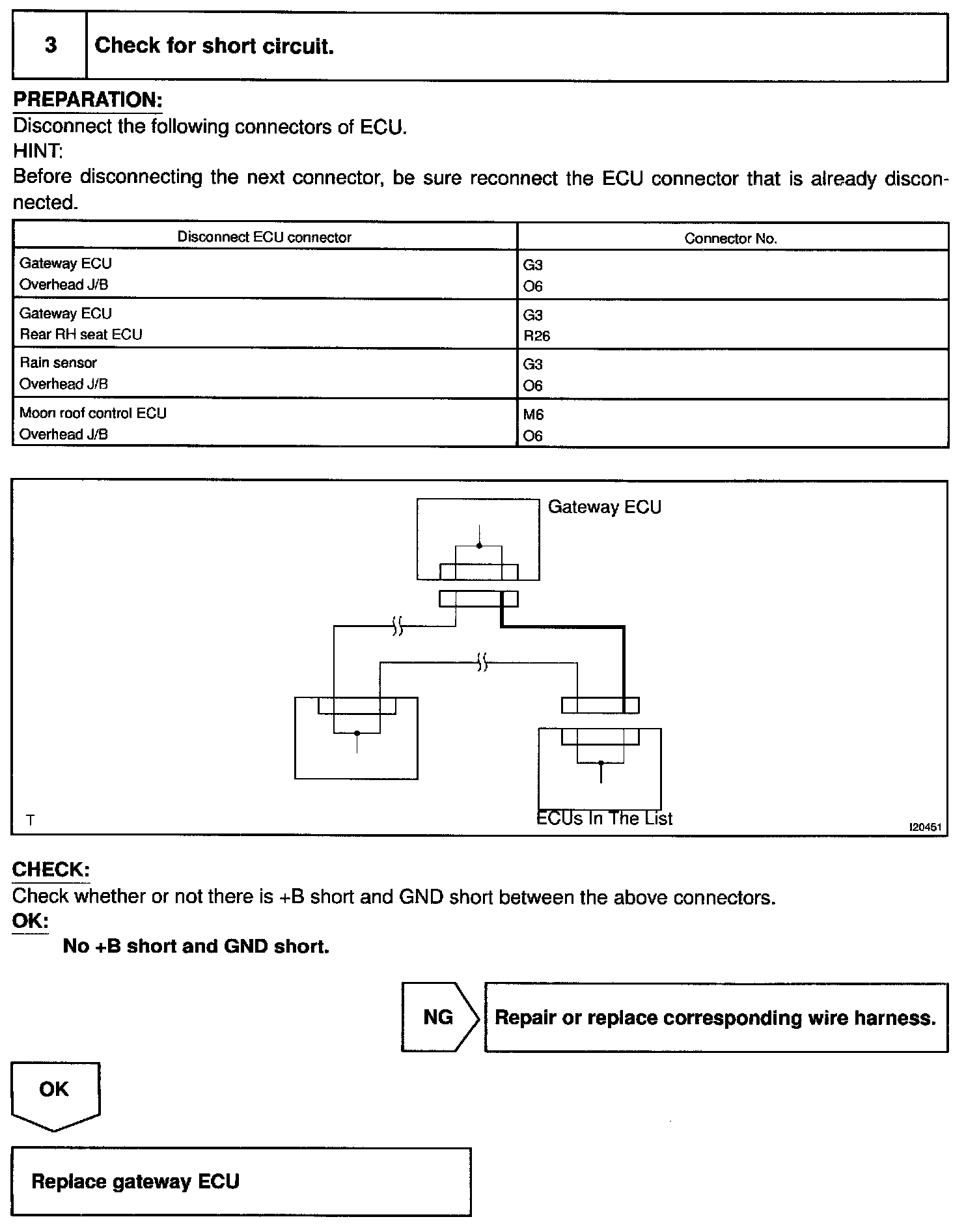

Step 3:

INSPECTION PROCEDURE
