B1213

DTC B1213 TILT AND TELESCOPIC ECU COMMUNICATION STOP

CIRCUIT DESCRIPTION

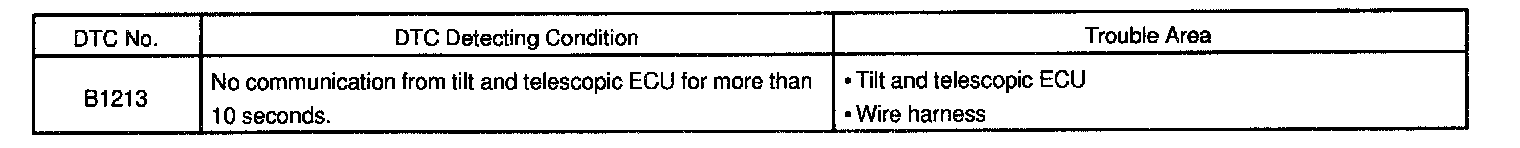

DTC Detecting Condition:

This DTC is output when communication stops between the tilt and telescopic ECU and the gateway ECU.

Wiring Diagram:

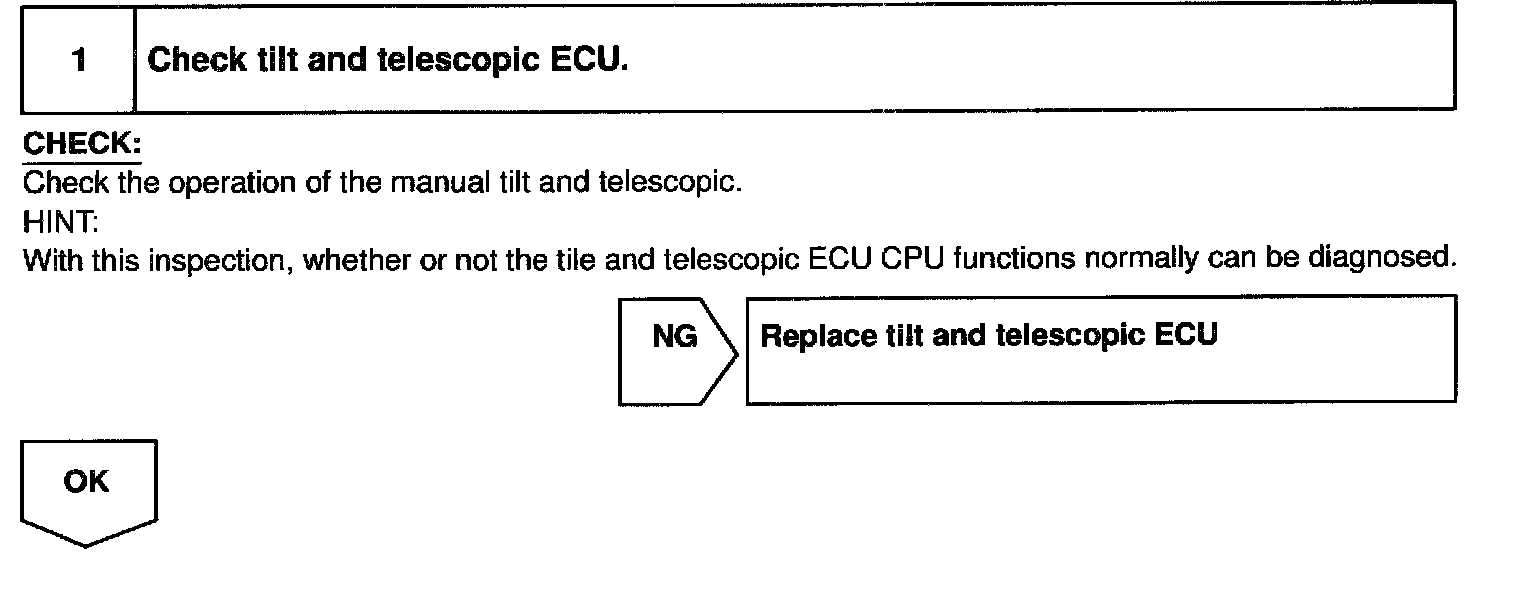

Step 1:

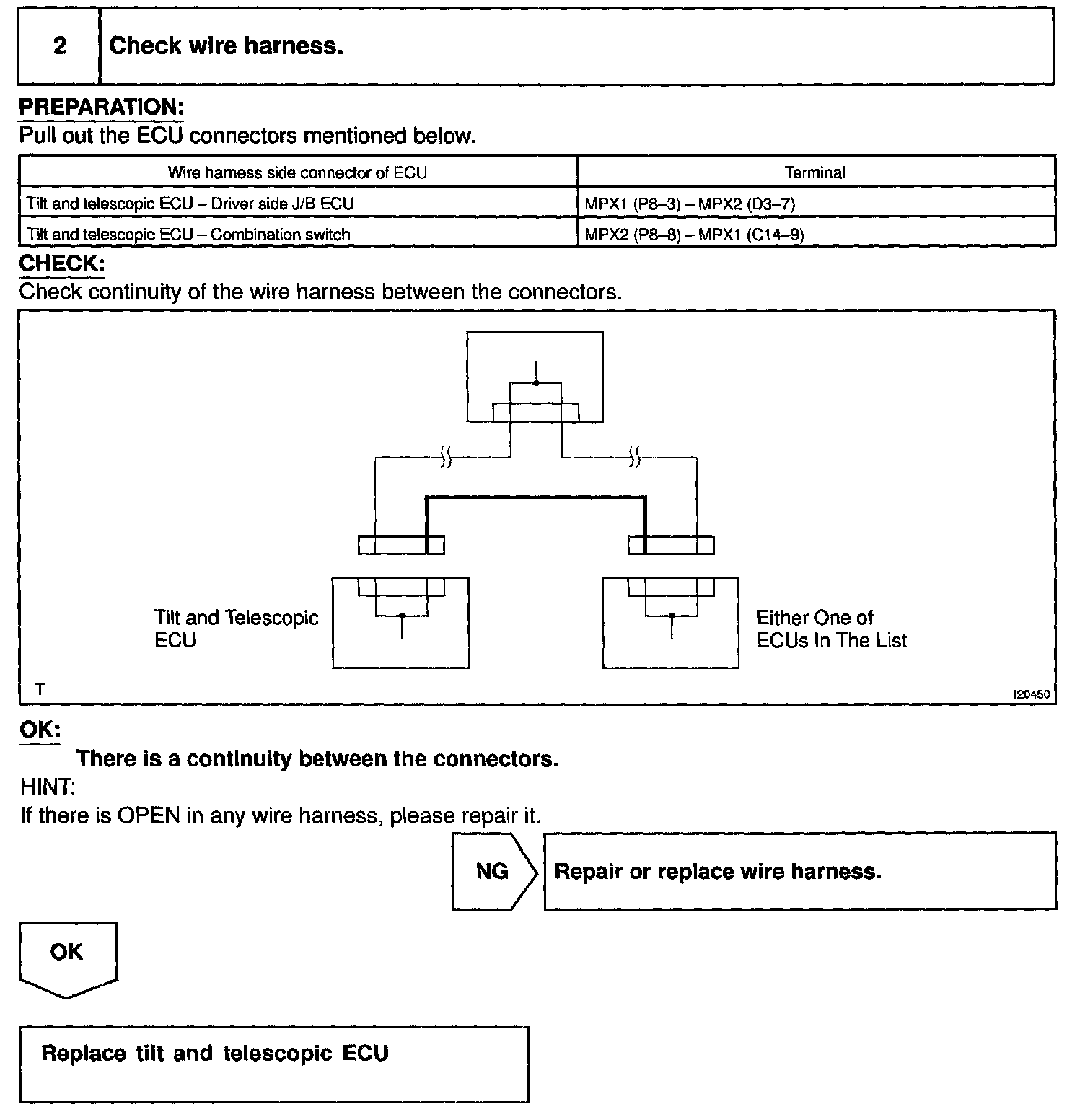

Step 2:

INSPECTION PROCEDURE
