Troubleshooting

DTC P0710 Transmission Fluid Temperature Sensor Malfunction (ATF Temperature Sensor)

CIRCUIT DESCRIPTION

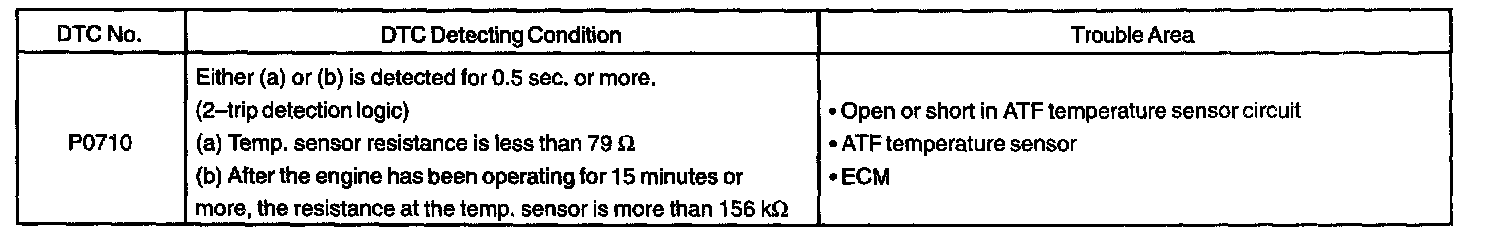

DTC Detecting Condition:

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

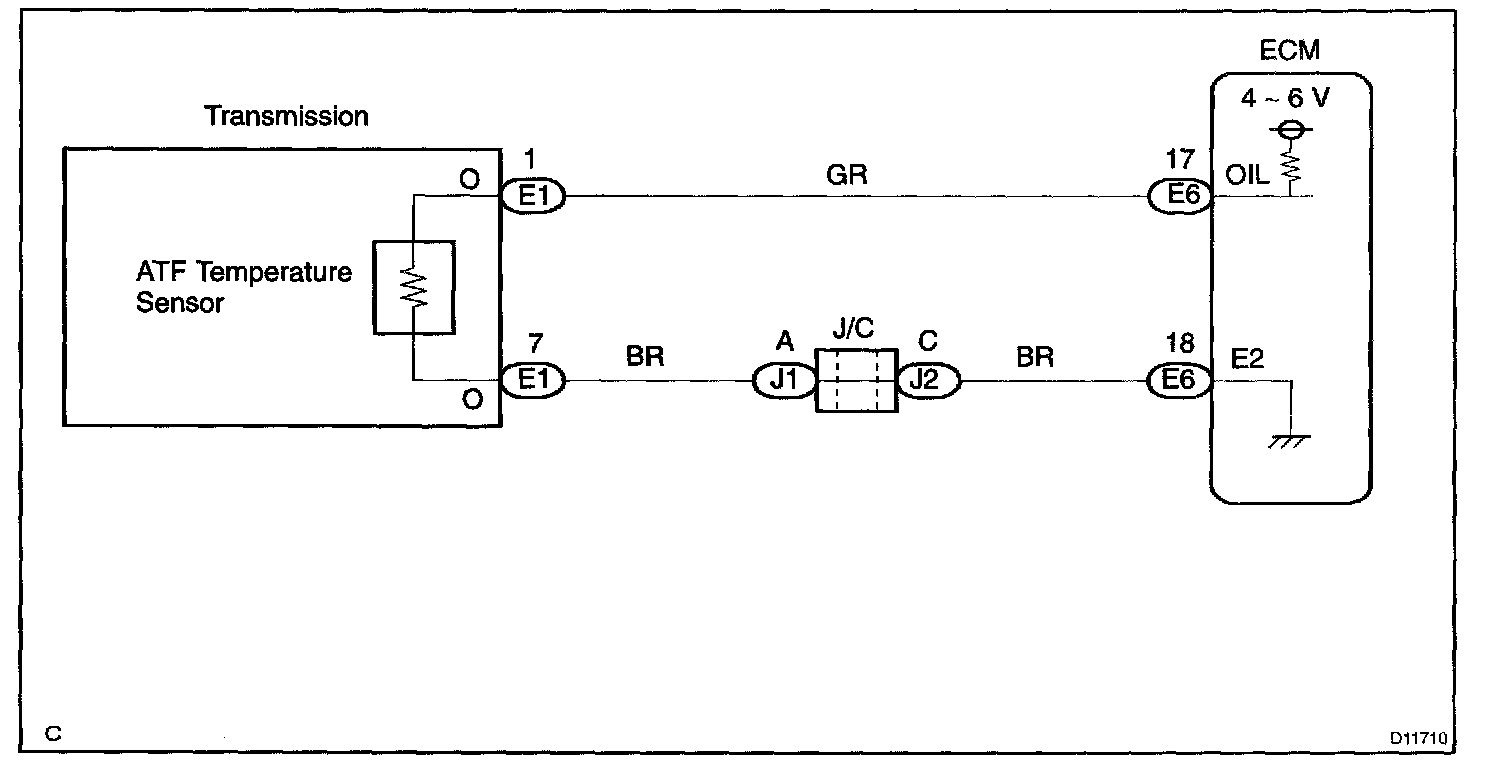

Wiring Diagram:

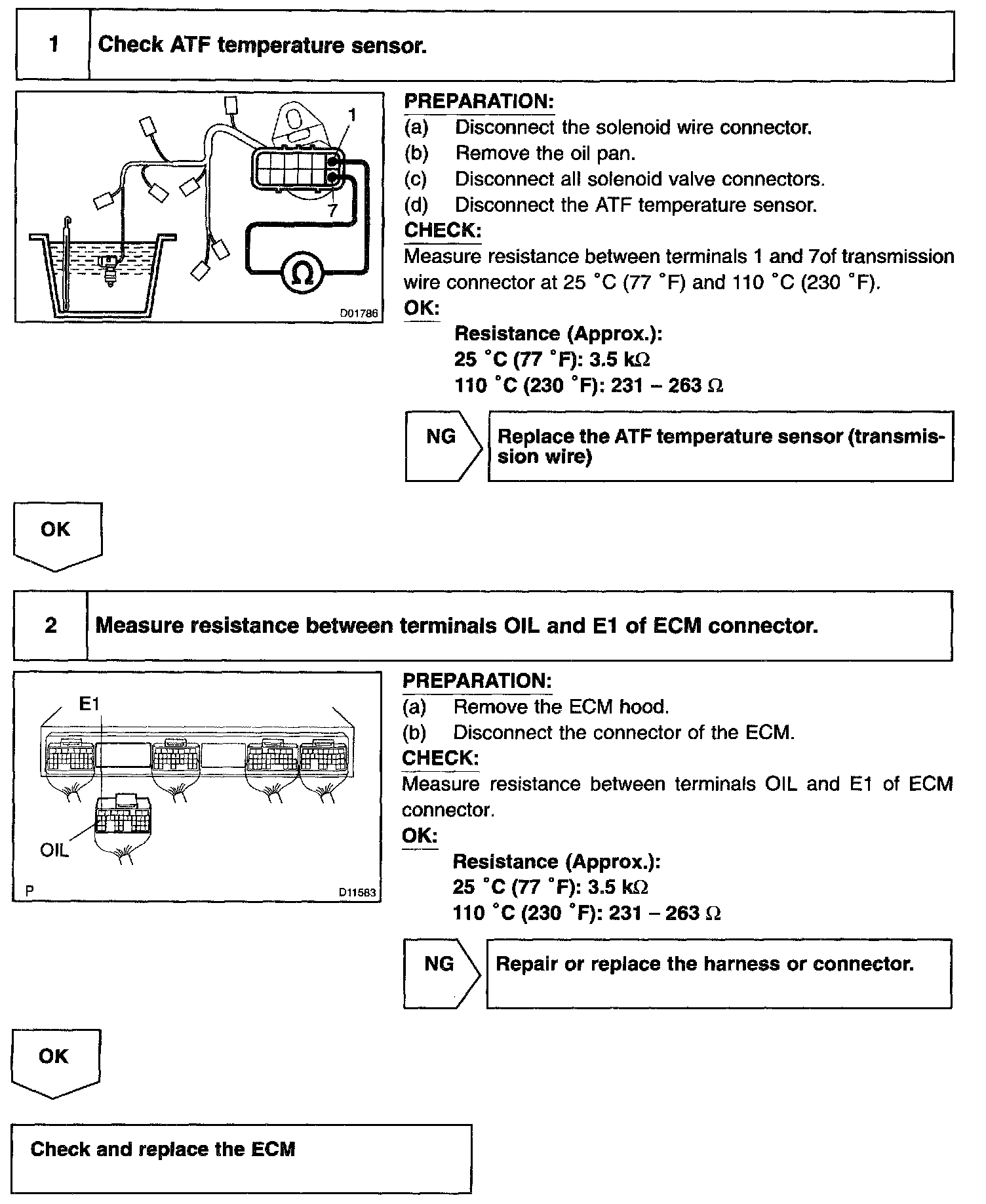

Step 1 - 2:

INSPECTION PROCEDURE
