E-Shift Main Switch Circuit
CIRCUIT DESCRIPTIONWhen the shift lever is in the M position (with E-shift main switch for D and M pressed), "M" in the shift position indicator light will come on and when the shift lever is in the D position (with E-shift main switch for D and M released), "D" in the shift position indicator light will come on.
When the shift lever is in the L position (with E-shift main switch for 2 and L pressed), "L" in the shift position indicator light will come on and when the shift lever is in the 2 position (with E-shift main switch for 2 and L released), "2" in the shift position indicator light will come on.
When the shift lever is in M position, the ECM prohibits shifting to 5th.

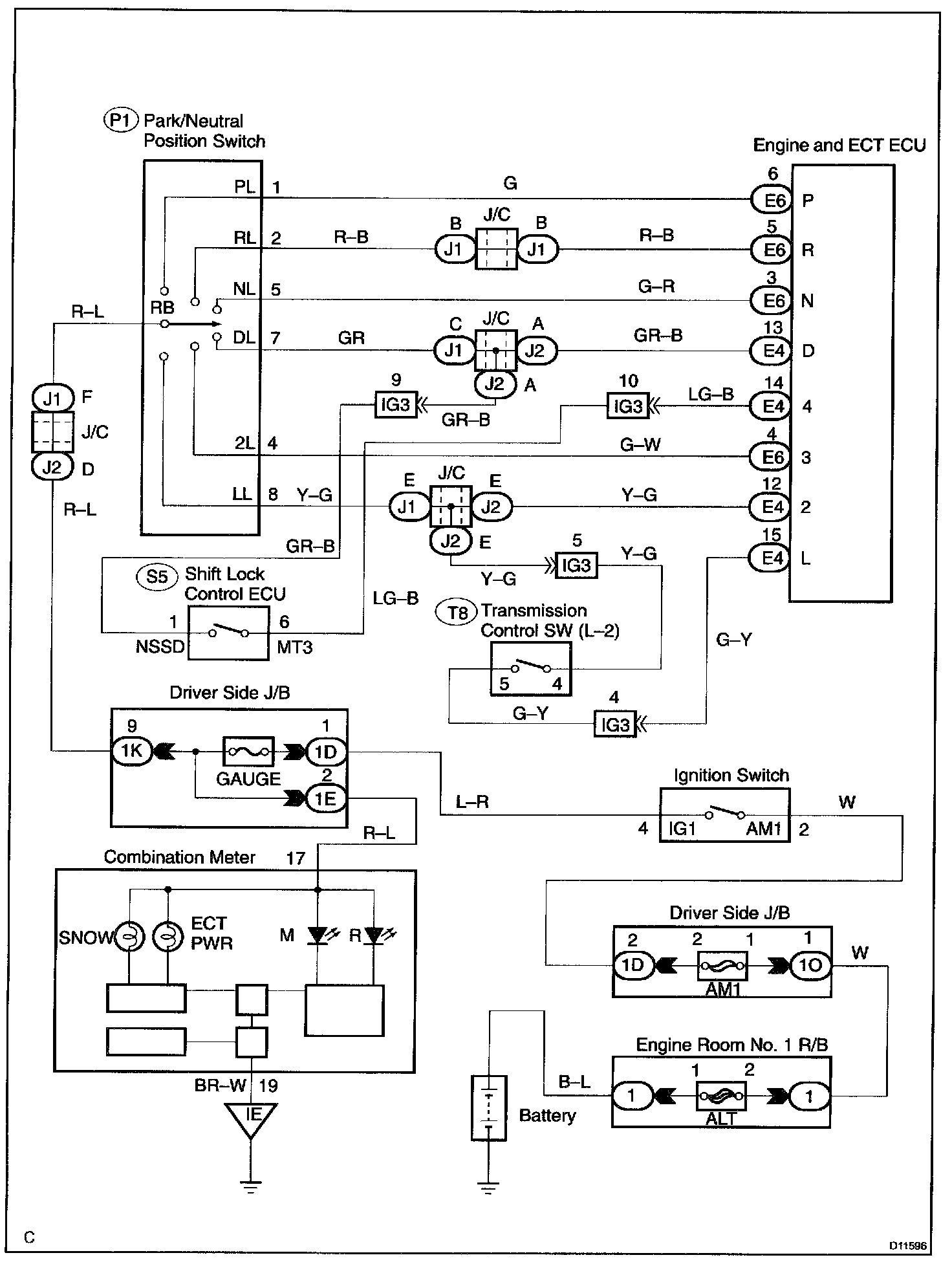

Wiring Diagram:
Step 1:

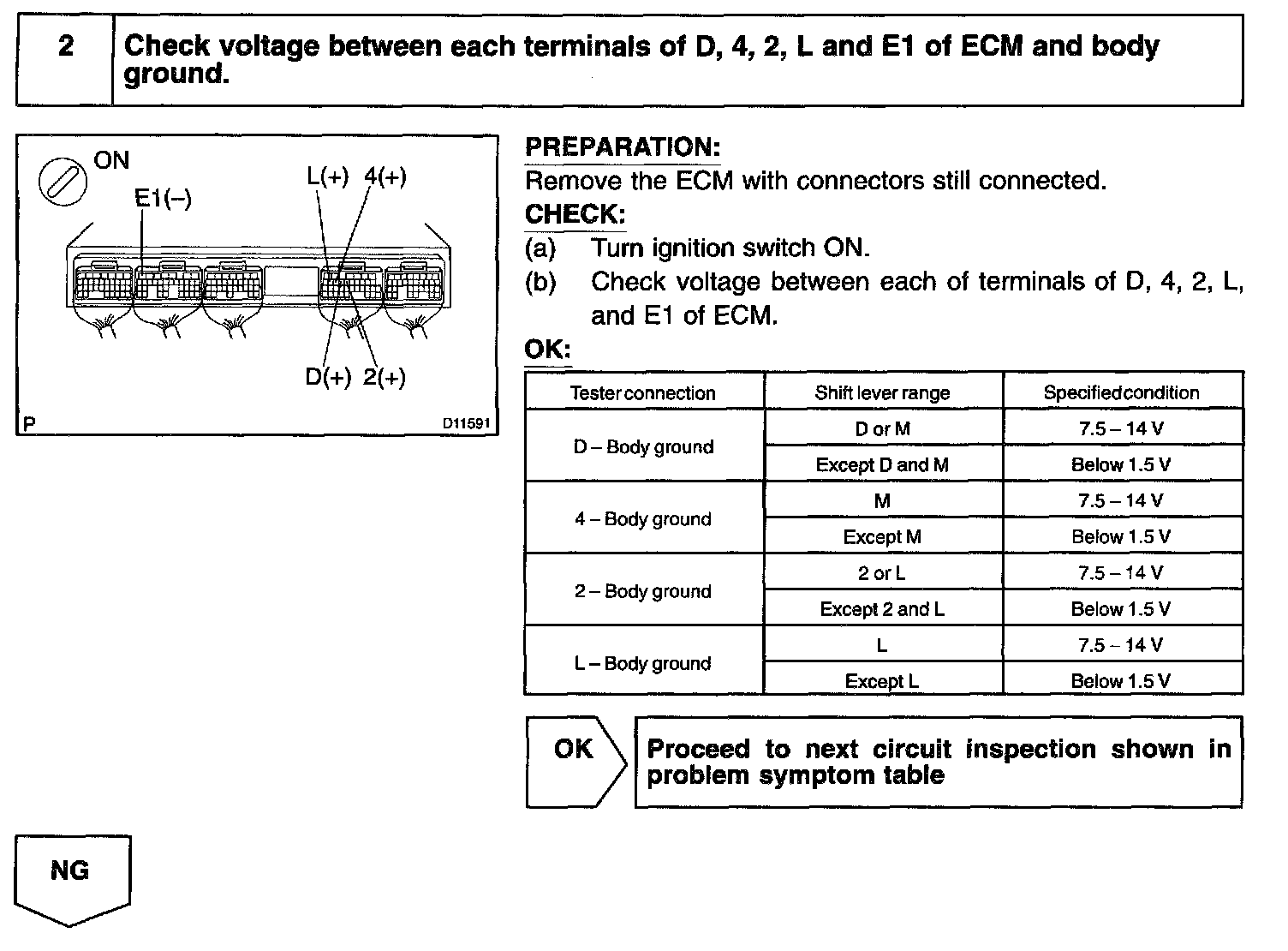

Step 2:

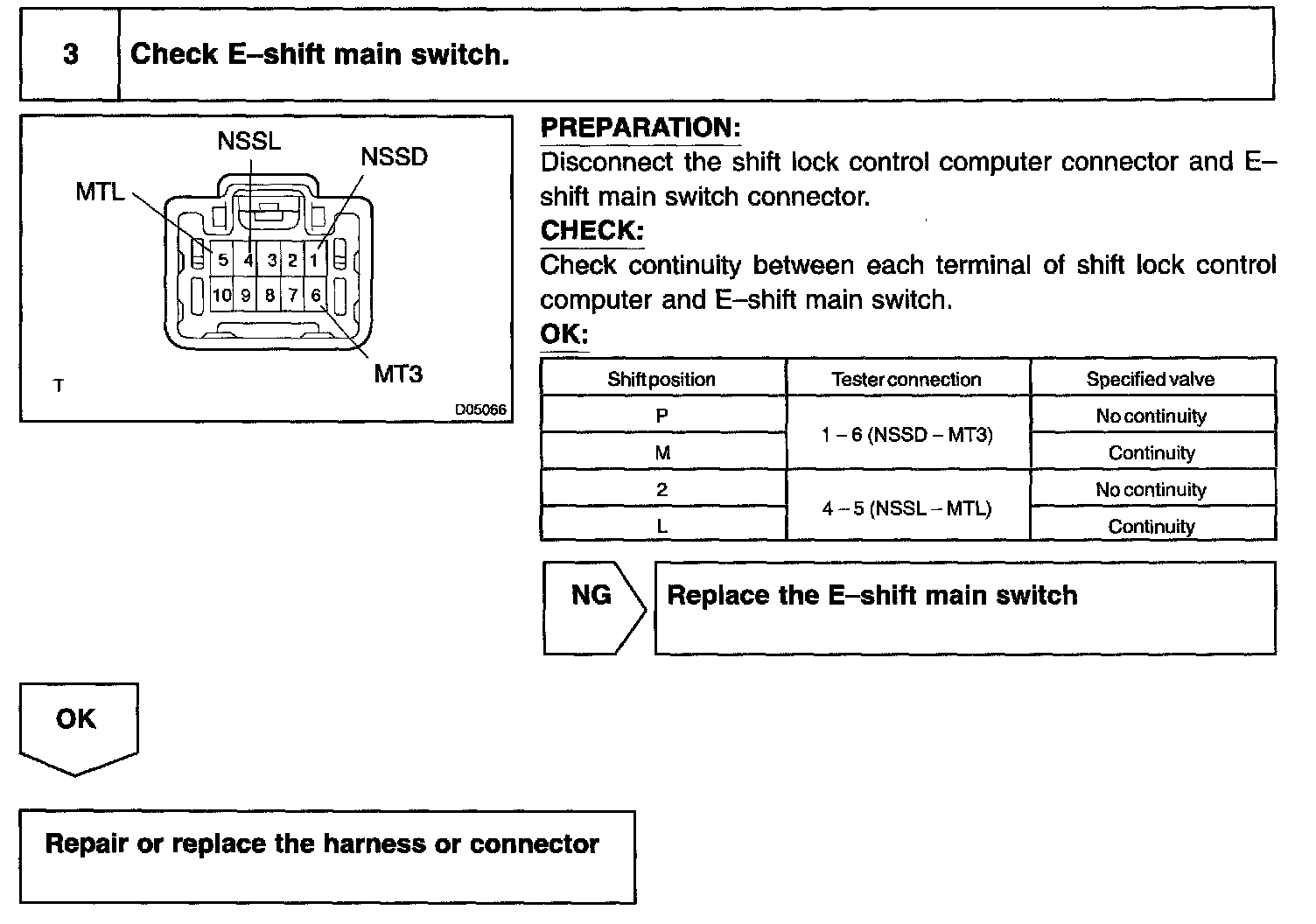

Step 3:

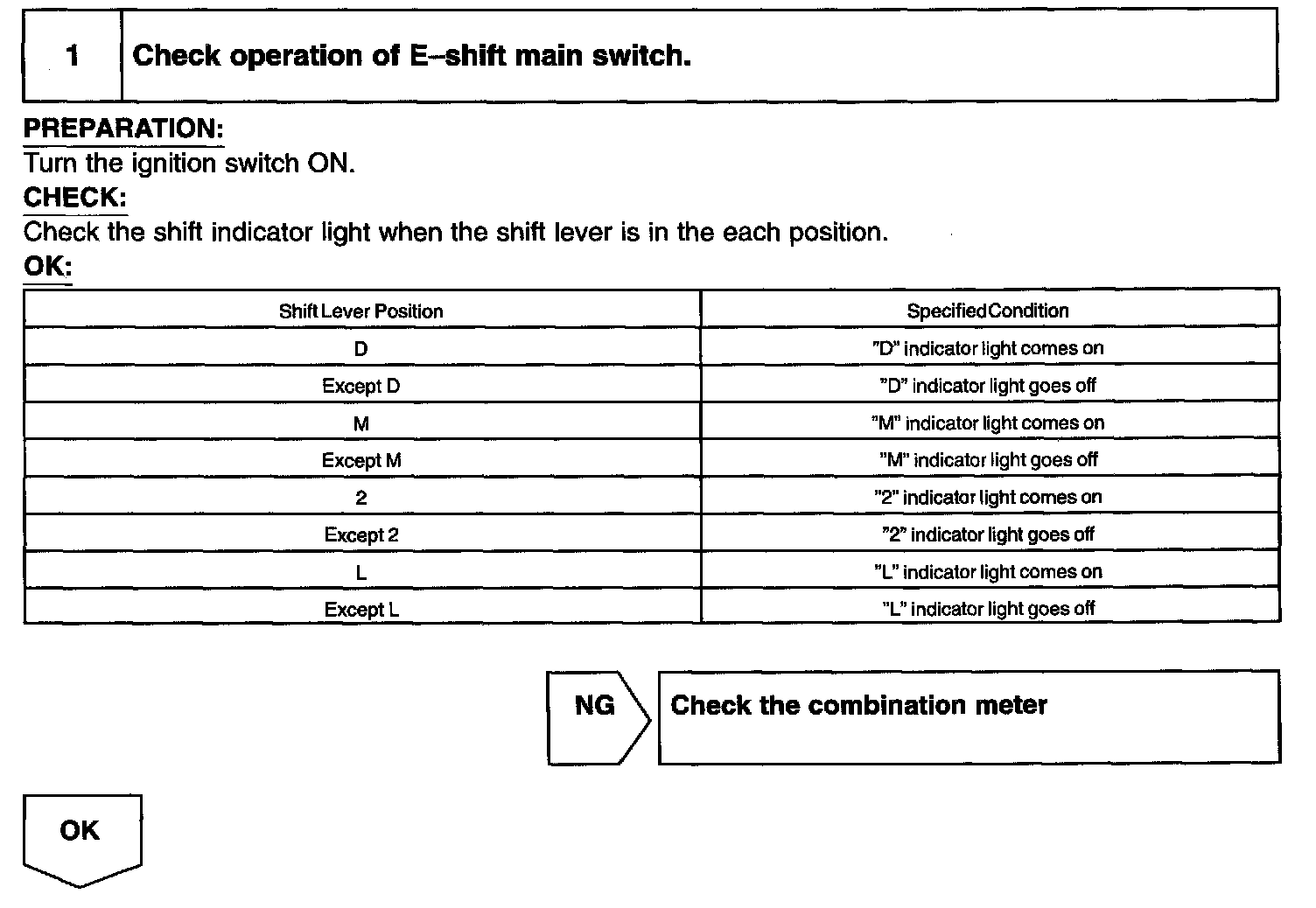

INSPECTION PROCEDURE
