MIL Circuit

CIRCUIT DESCRIPTION
If the ECM detects a trouble, the MIL lights up. At this time, the ECM records a DTC in the memory.

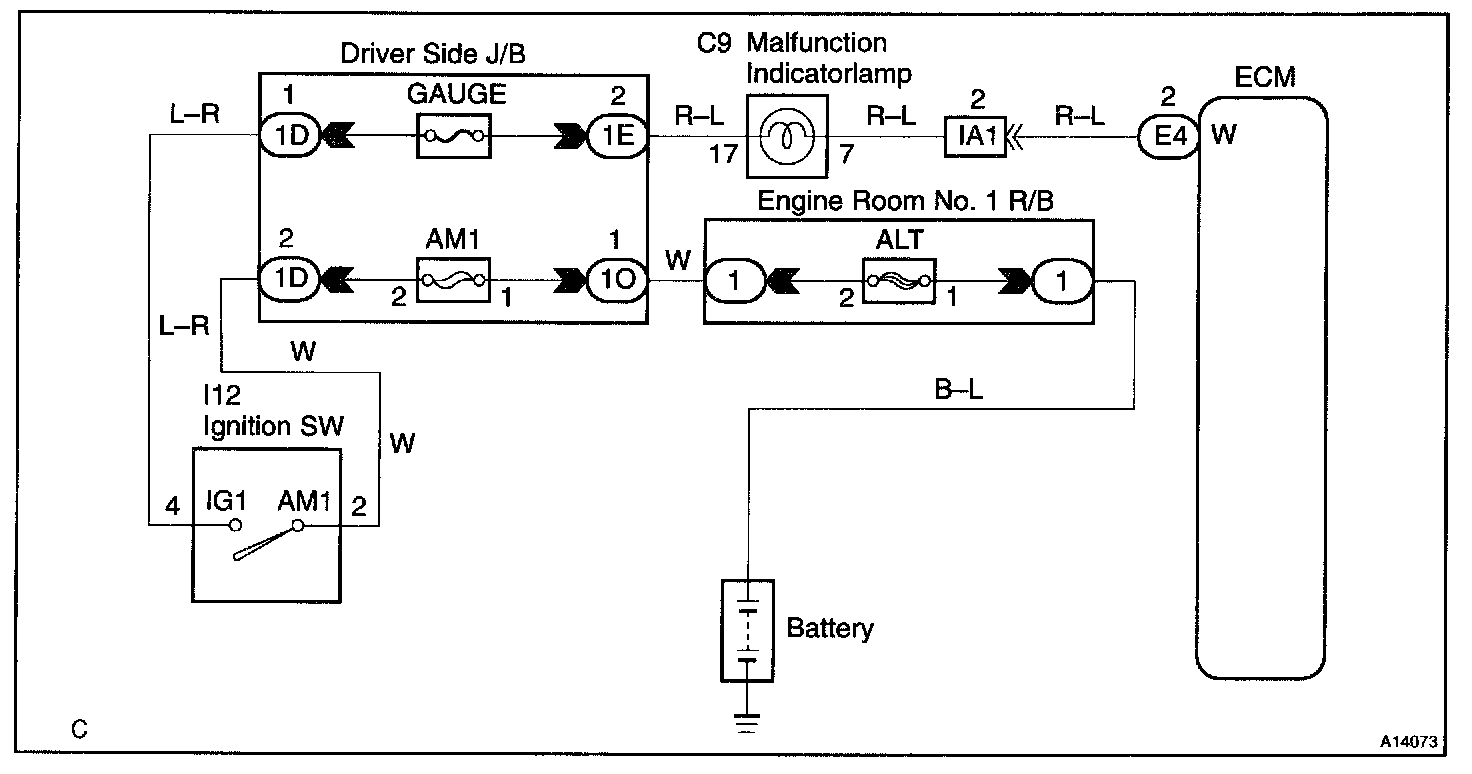

Wiring Diagram:

Step 1:

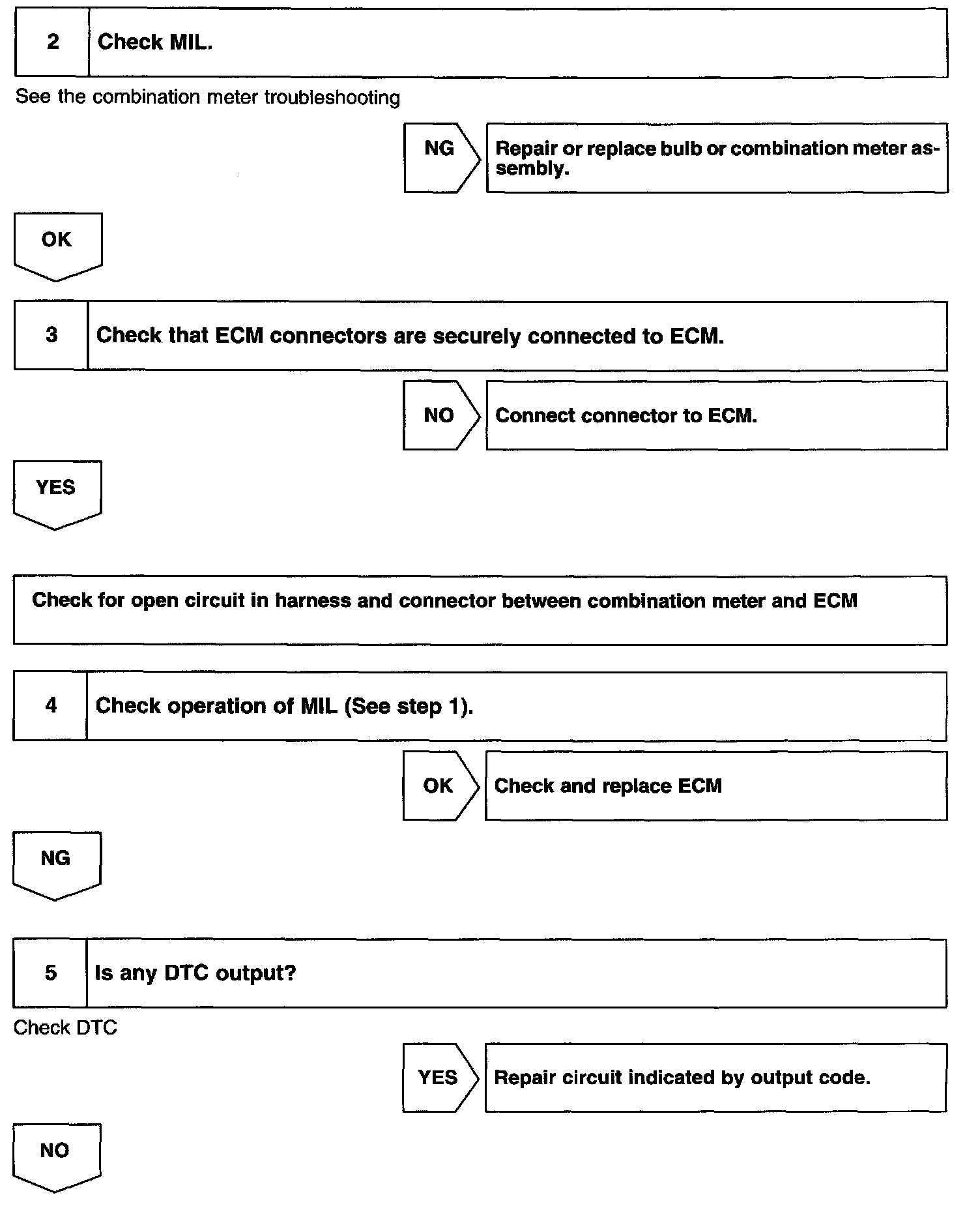

Step 2 - 5:

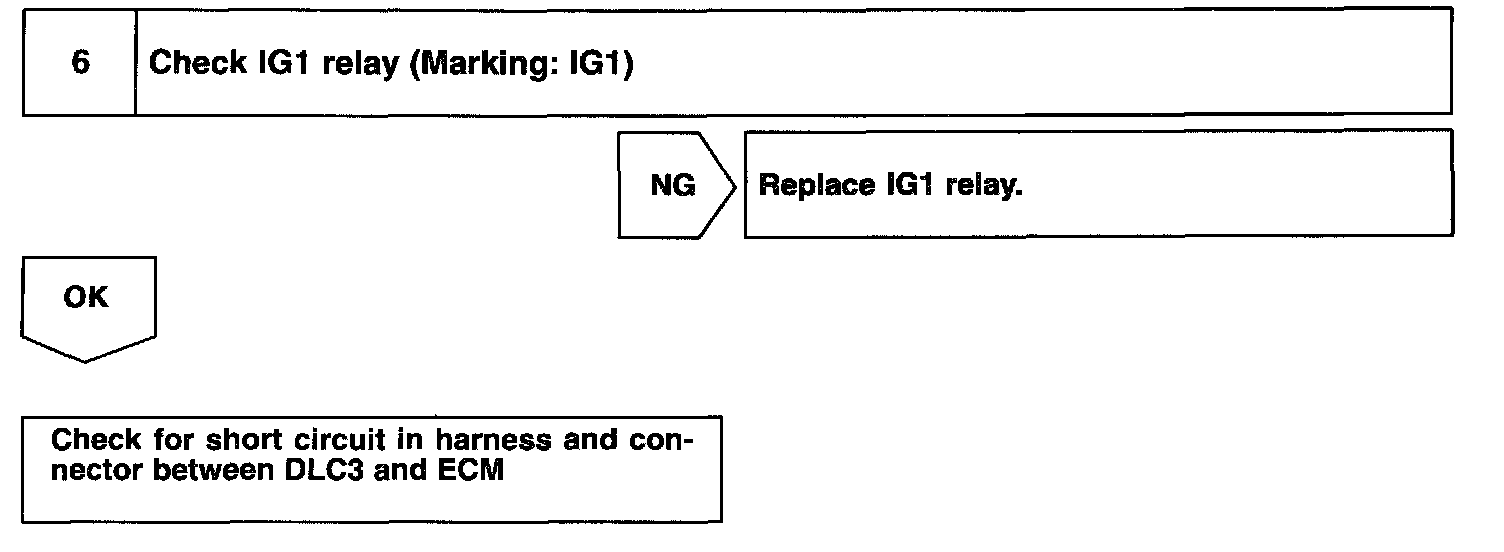

Step 6:

INSPECTION PROCEDURE
