Engine Compartment

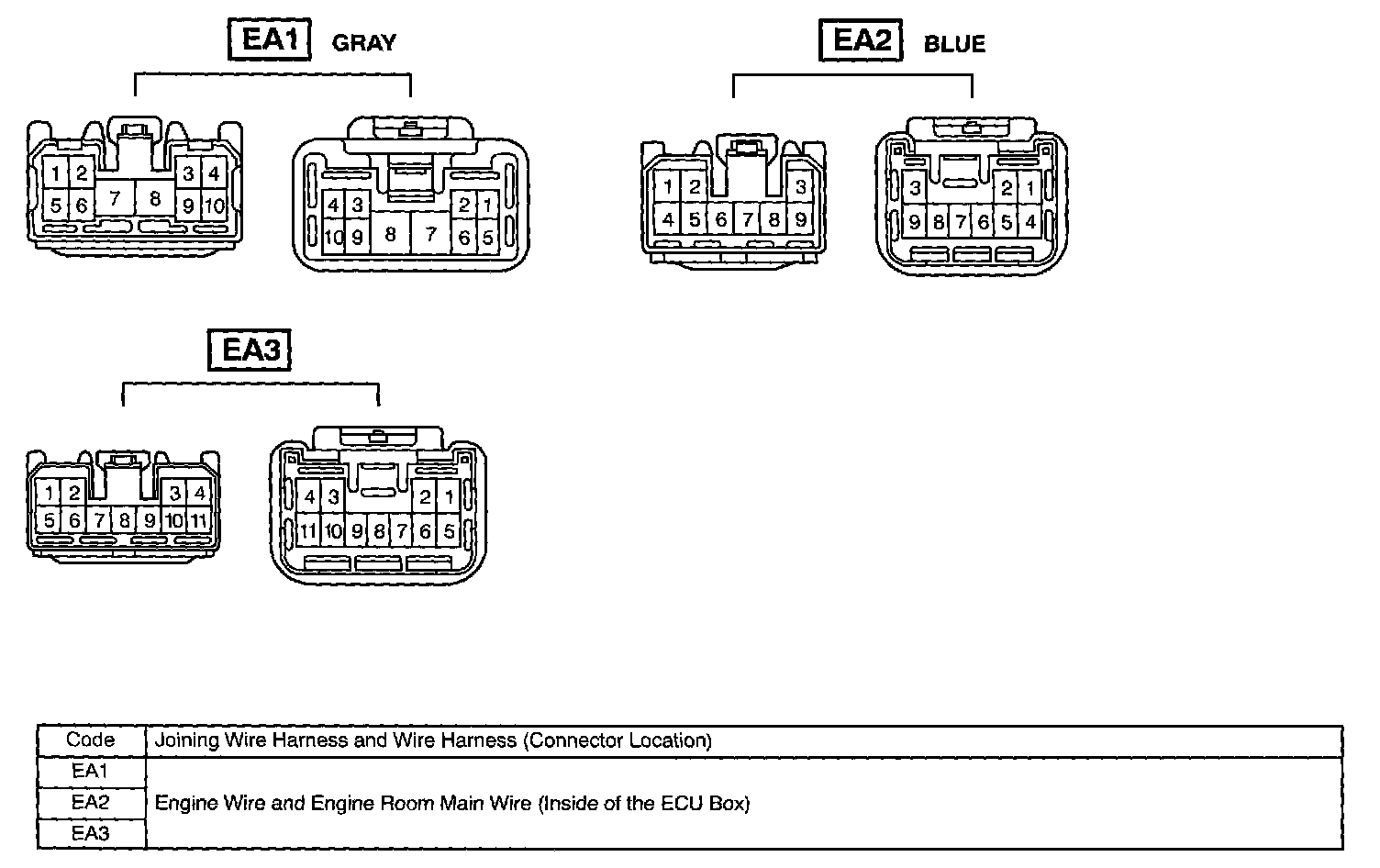

Under Hood Wire Harness To Wire Harness Connectors (EA1 - EA3):

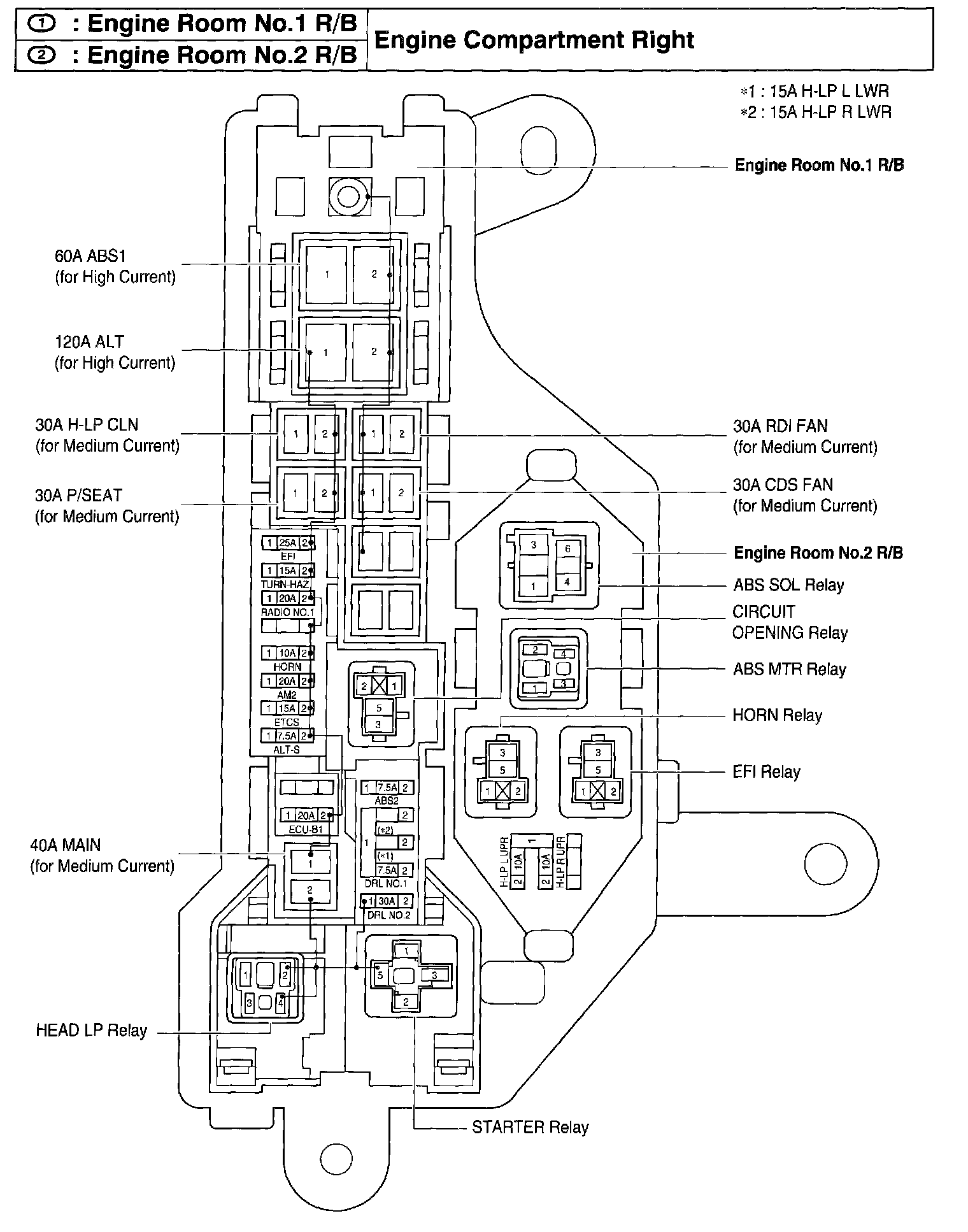

Engine Room No.1 , No.2 R/B:



Engine Room No.3 R/B:
