Always On - Malfunction In ECU VSC Warning Light Circuit

DTC Always ON Malfunction in ECU VSC Warning Light Circuit

CIRCUIT DESCRIPTION

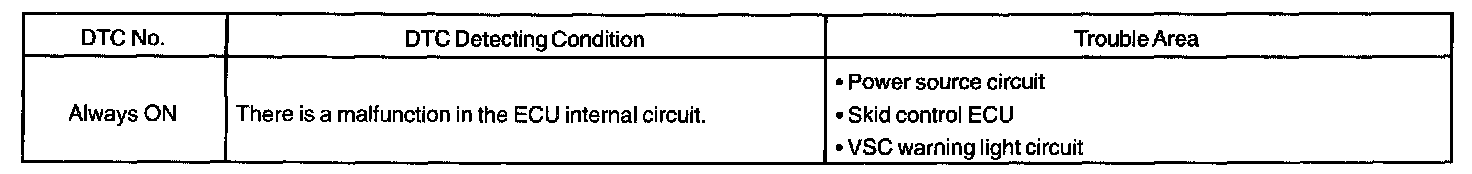

DTC Detecting Condition:

HINT: If fail safe function is activated in VSC system, "VSC OFF" indicator light lights up.

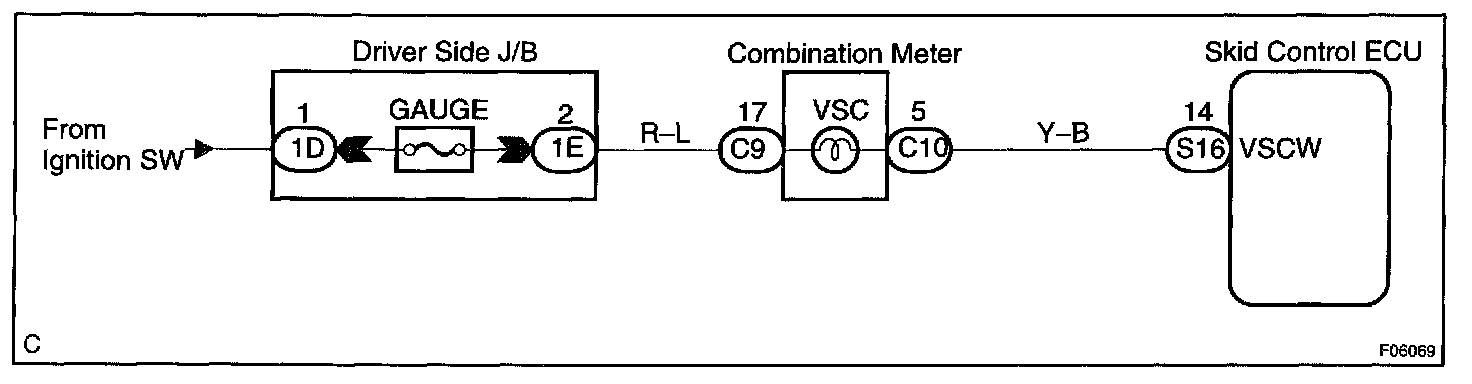

Wiring Diagram:

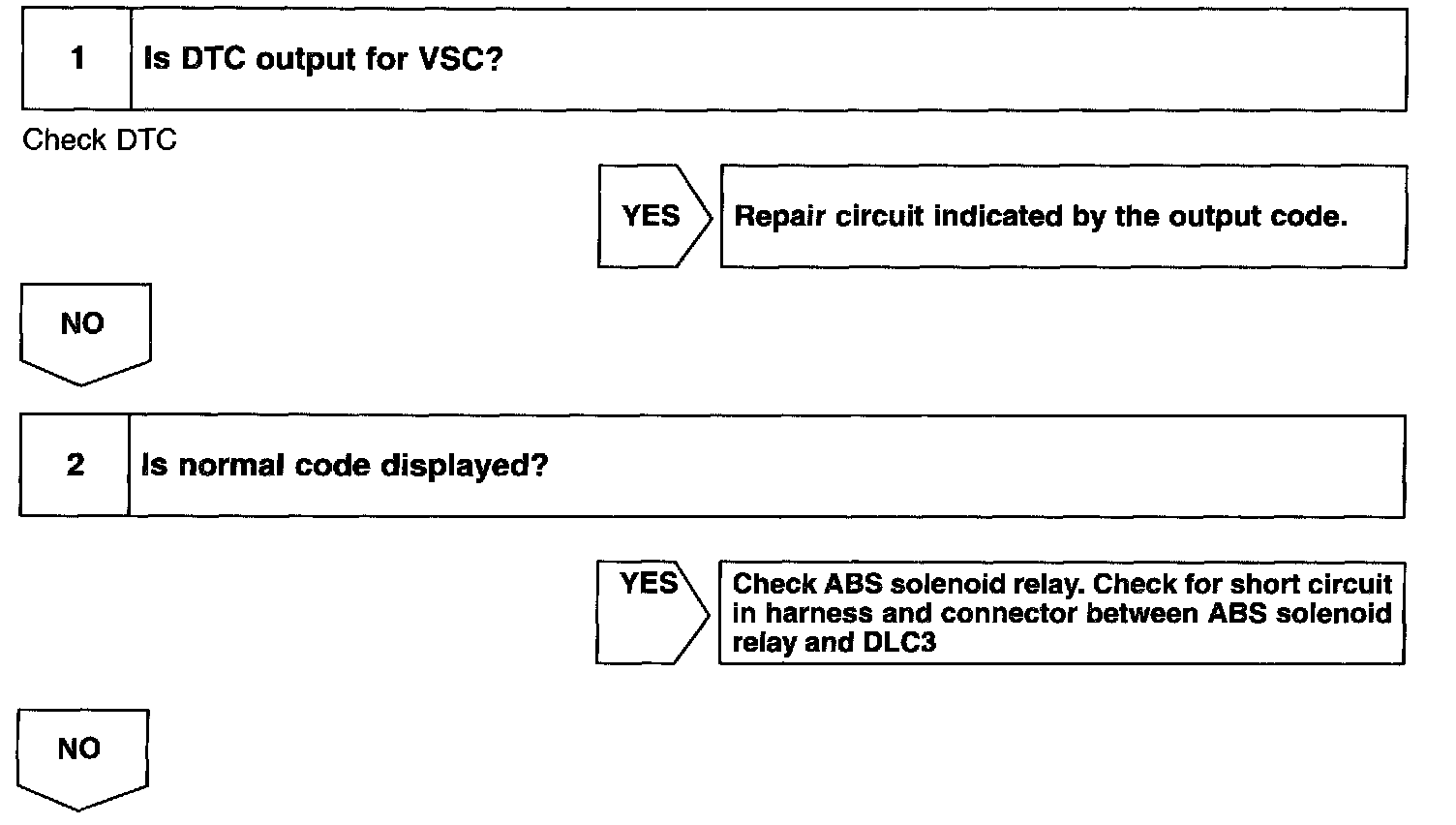

Step 1 - 2:

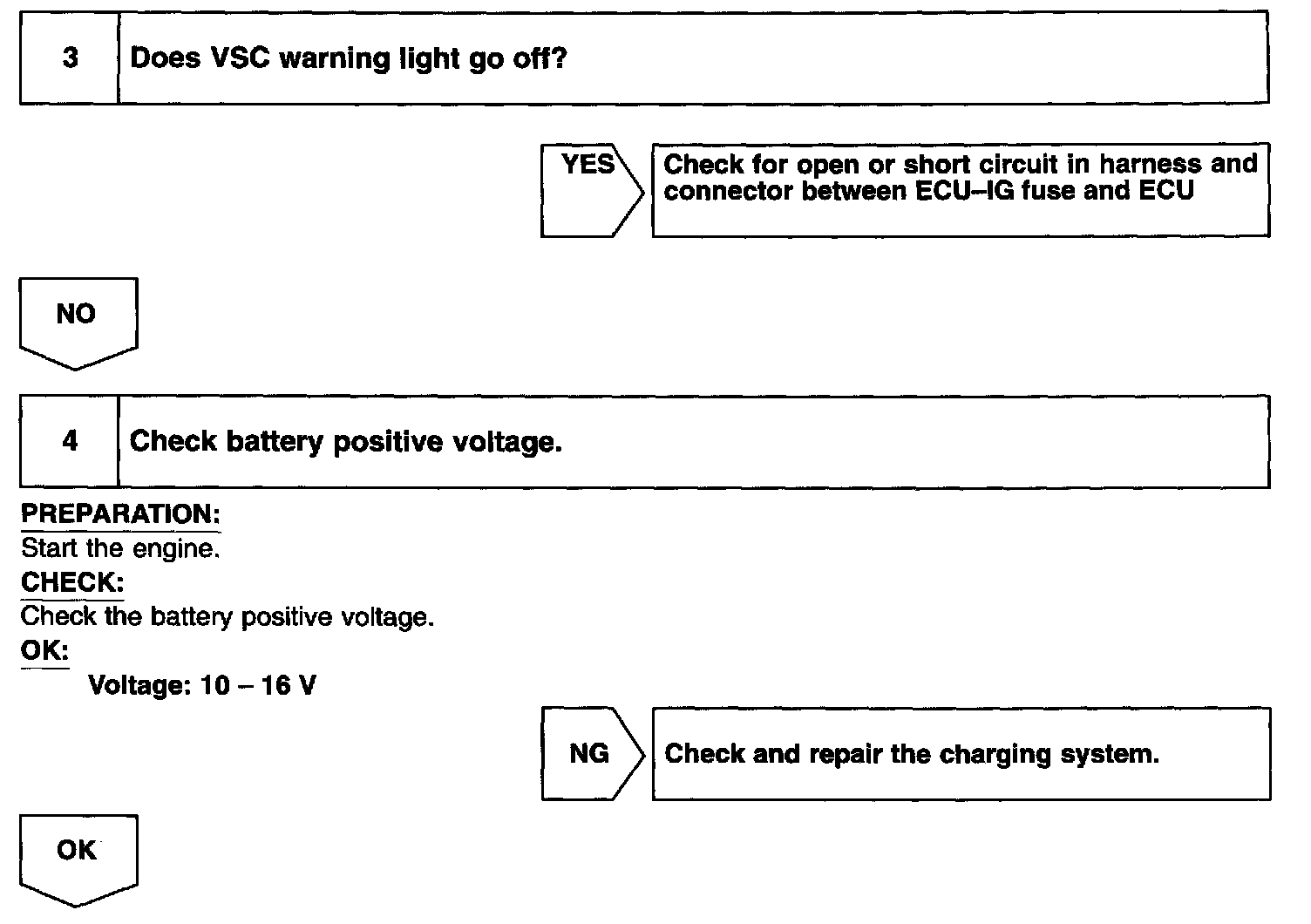

Step 3 - 4:

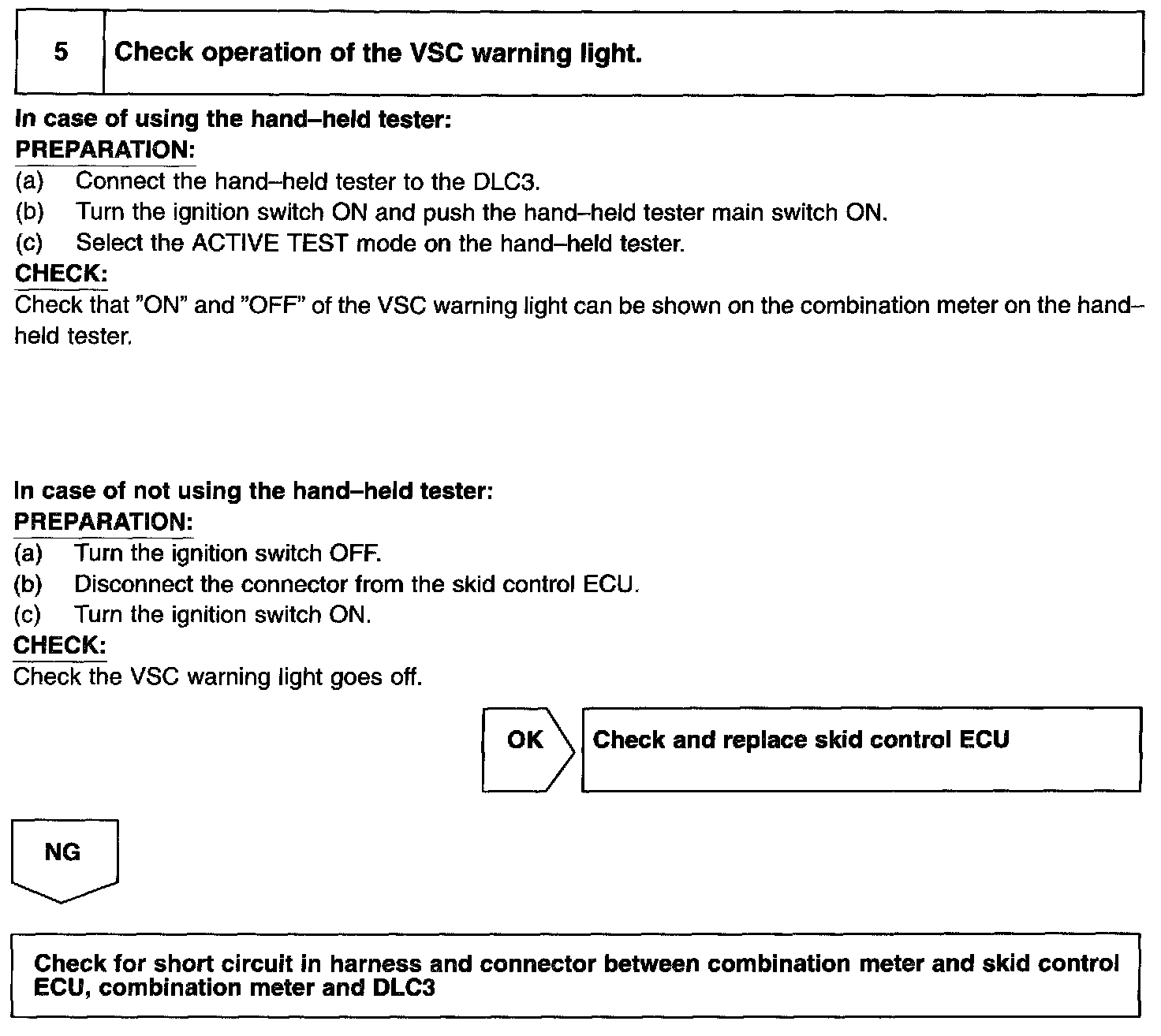

Step 5:

INSPECTION PROCEDURE
