Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
ABS W/EBD & BA & TRAC System
>>
SLIP Indicator Light Circuit
SLIP Indicator Light Circuit
CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.

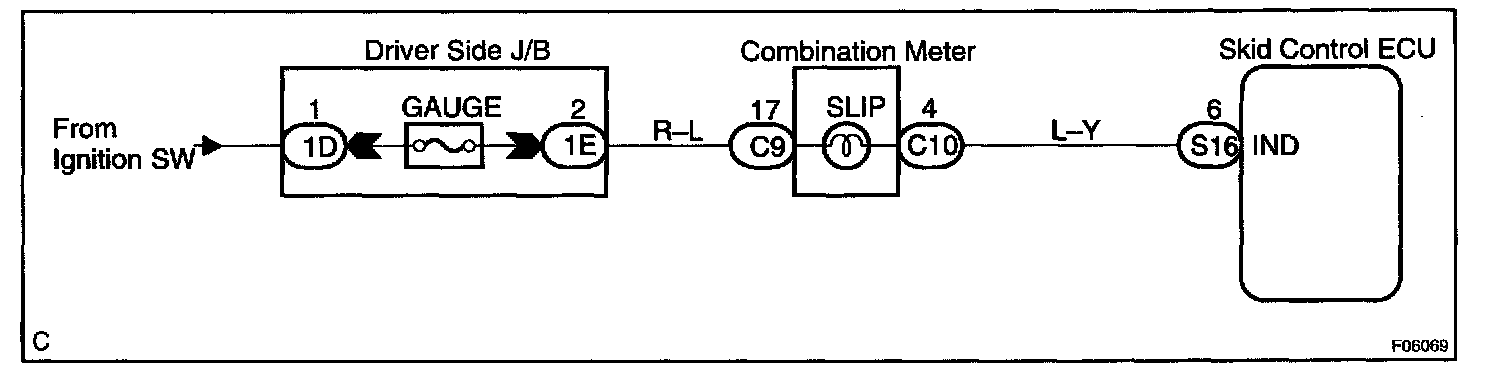

Wiring Diagram:
Step 1 - 2:
Step 3 - 4:

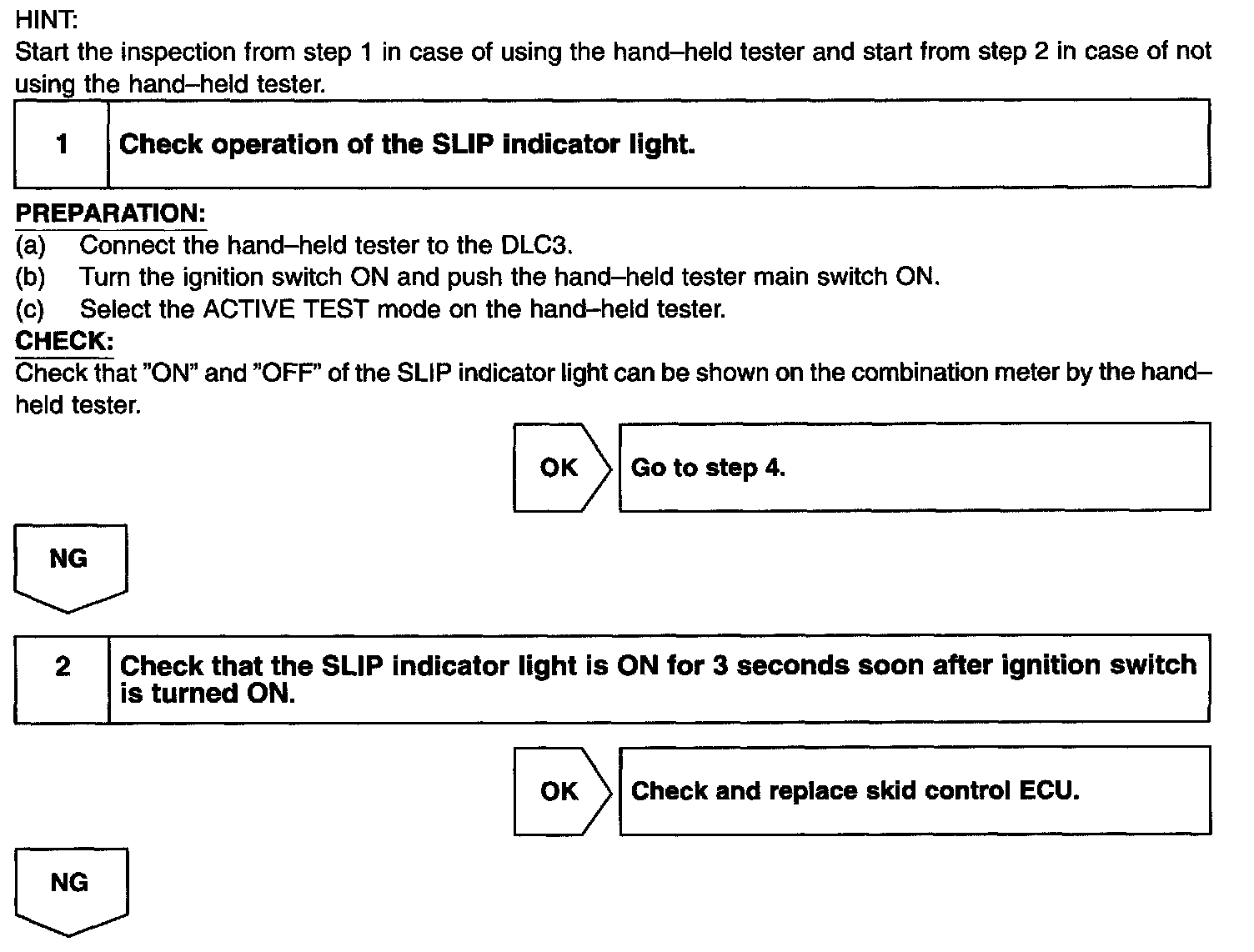

INSPECTION PROCEDURE
