ABS Warning Light Circuit

CIRCUIT DESCRIPTION

If the ECU detects a trouble, it lights the ABS warning light while at the same time prohibiting ABS control.

At this time, the ECU records a DTC in memory.

Connect terminals Tc and CG of the DLC3 to make the ABS warning light blink and output the DTC.

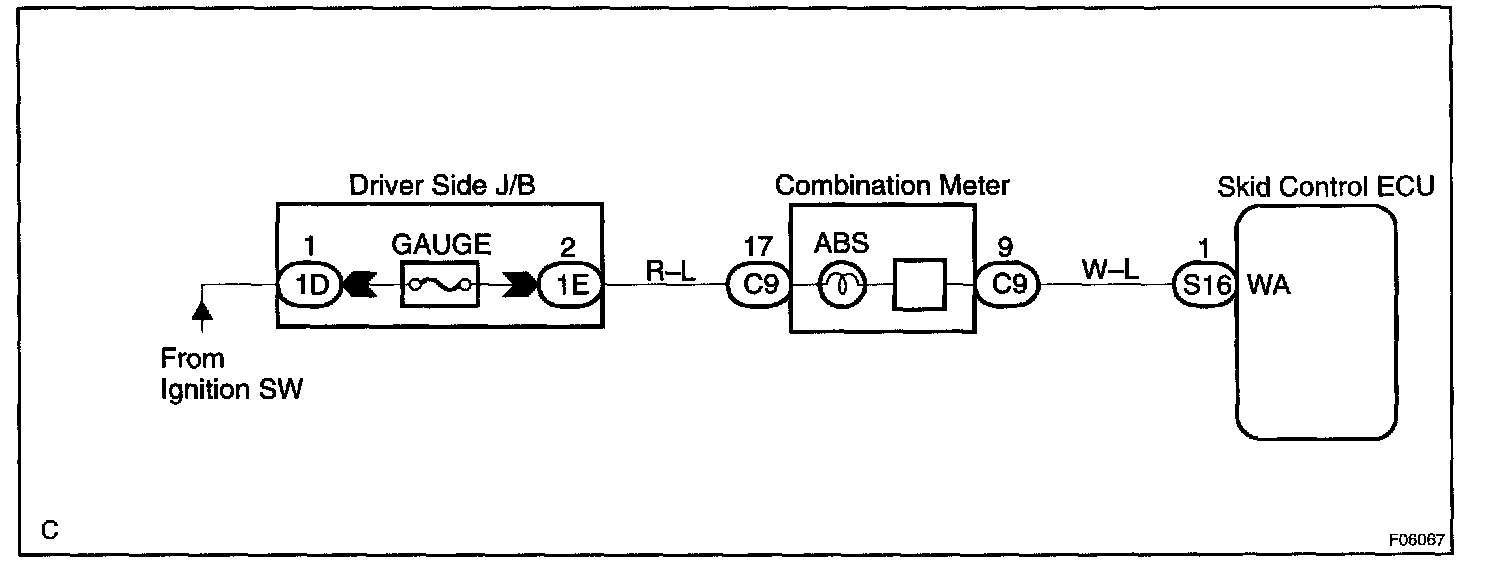

Wiring Diagram:

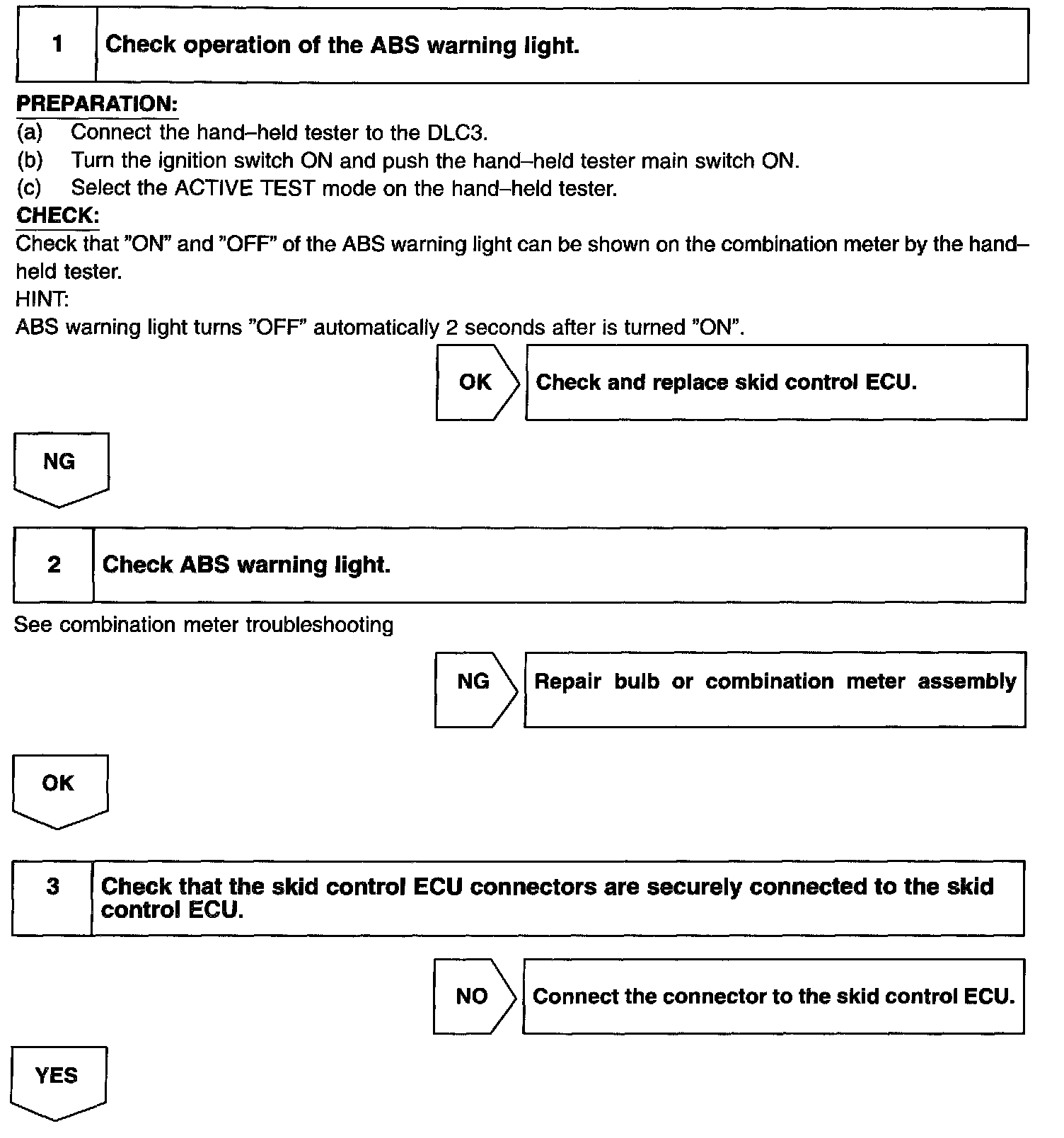

Step 1 - 3:

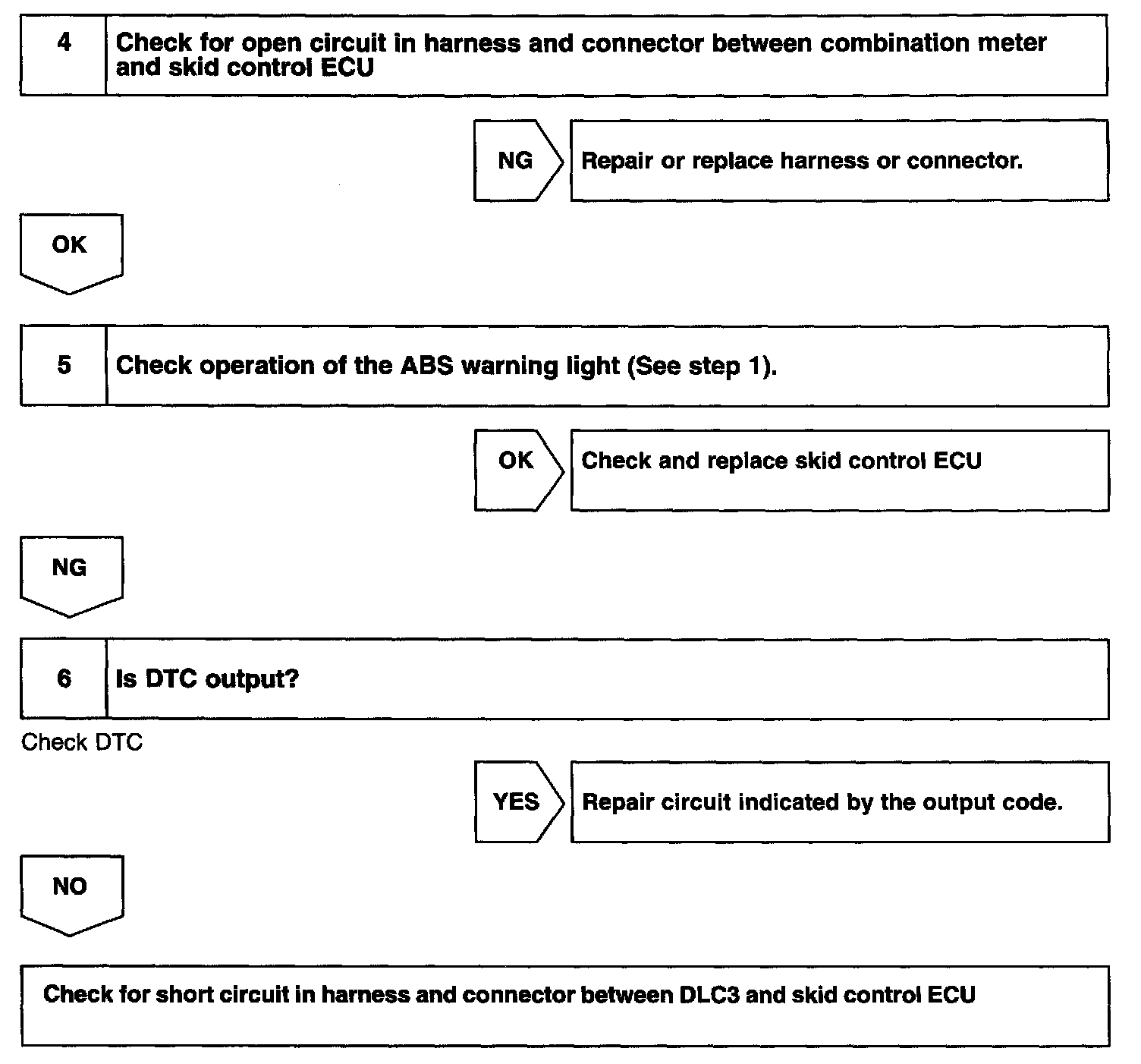

Step 4 - 6:

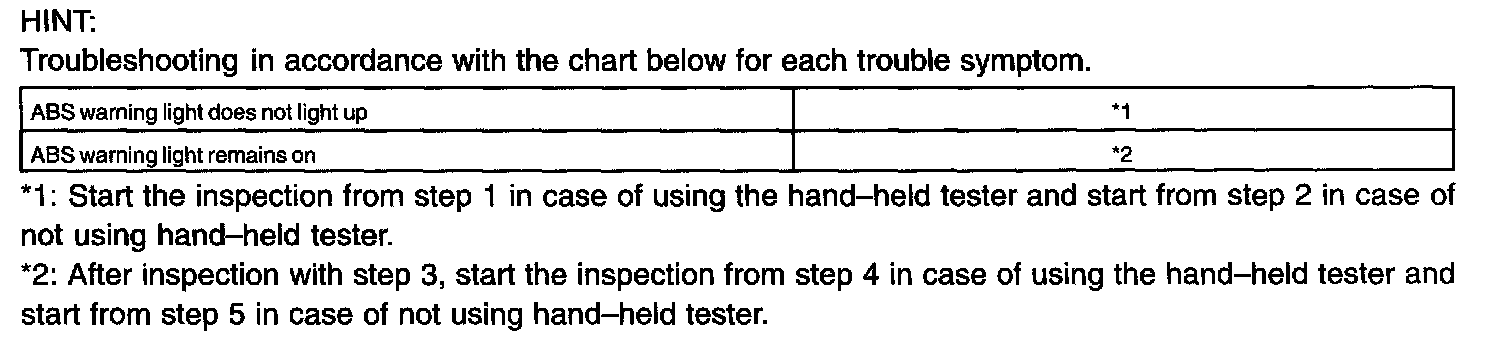

INSPECTION PROCEDURE
