VSC Warning Light Circuit

CIRCUIT DESCRIPTION
If the ECU stores DTC, the VSC warning light lights on the combination meter.

Wiring Diagram:

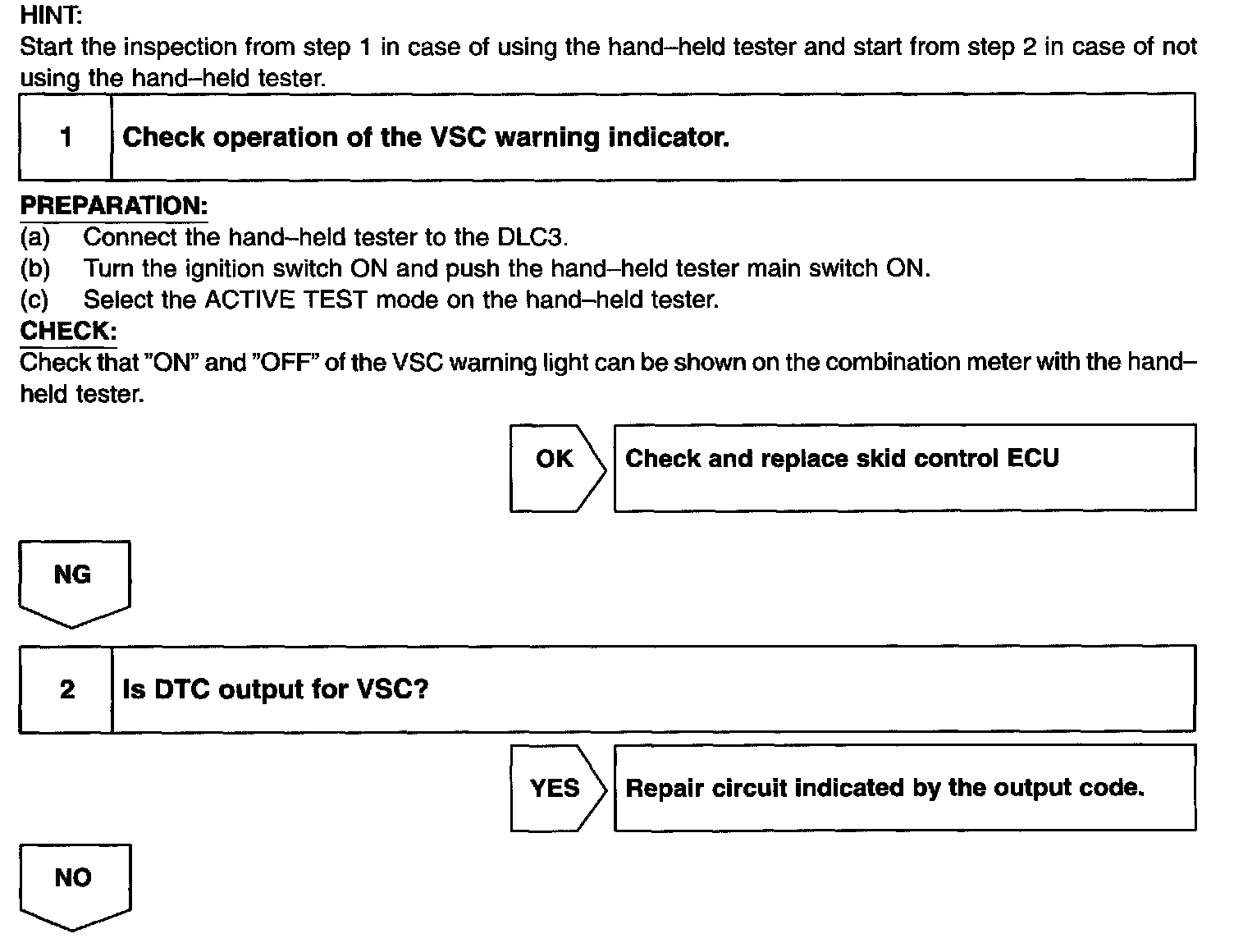

Step 1 - 2:

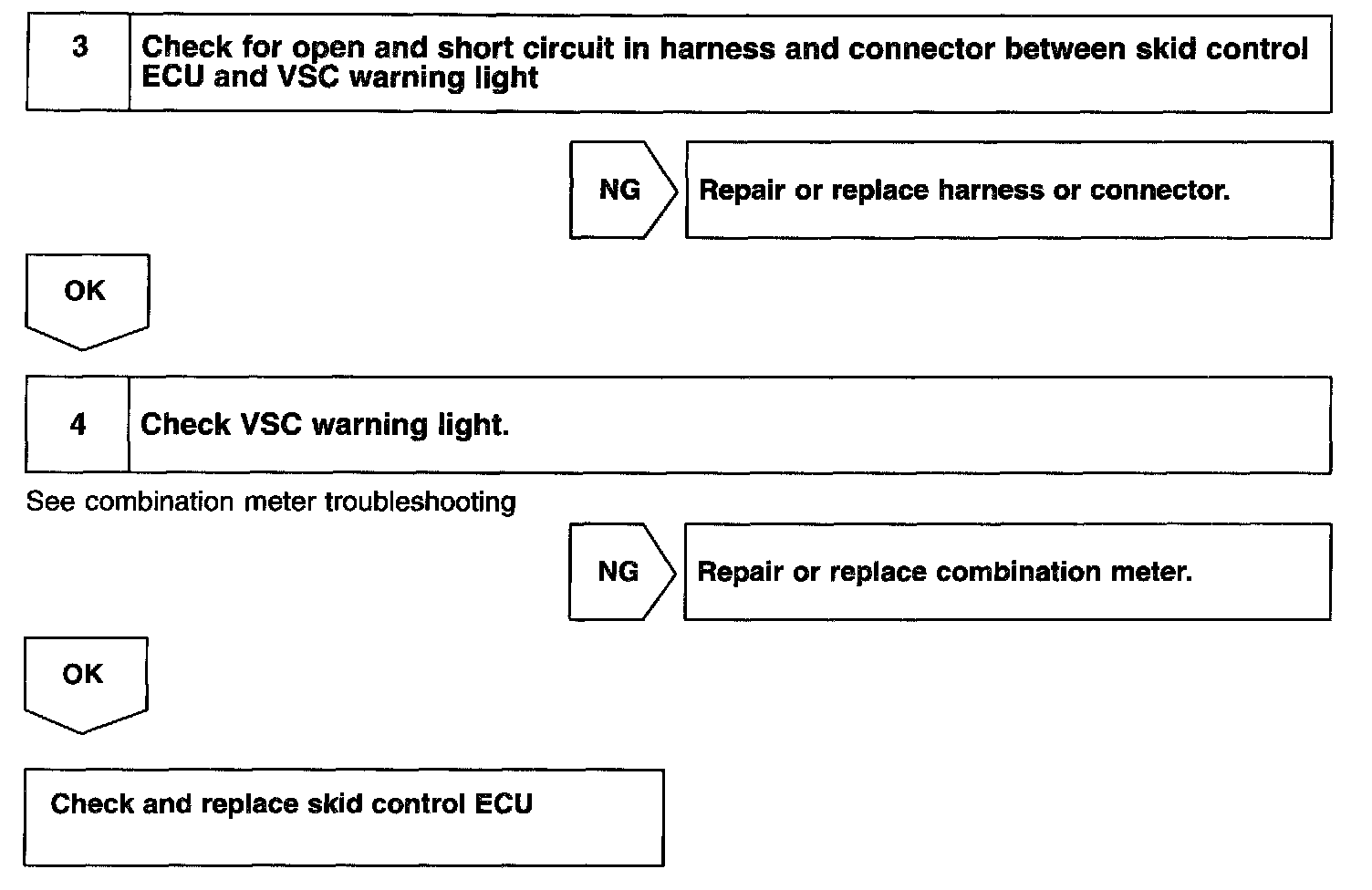

Step 3 - 4:




INSPECTION PROCEDURE
