VSC Warning Buzzer Circuit
CIRCUIT DESCRIPTION
The VSC warning buzzer sounds during VSC operation.

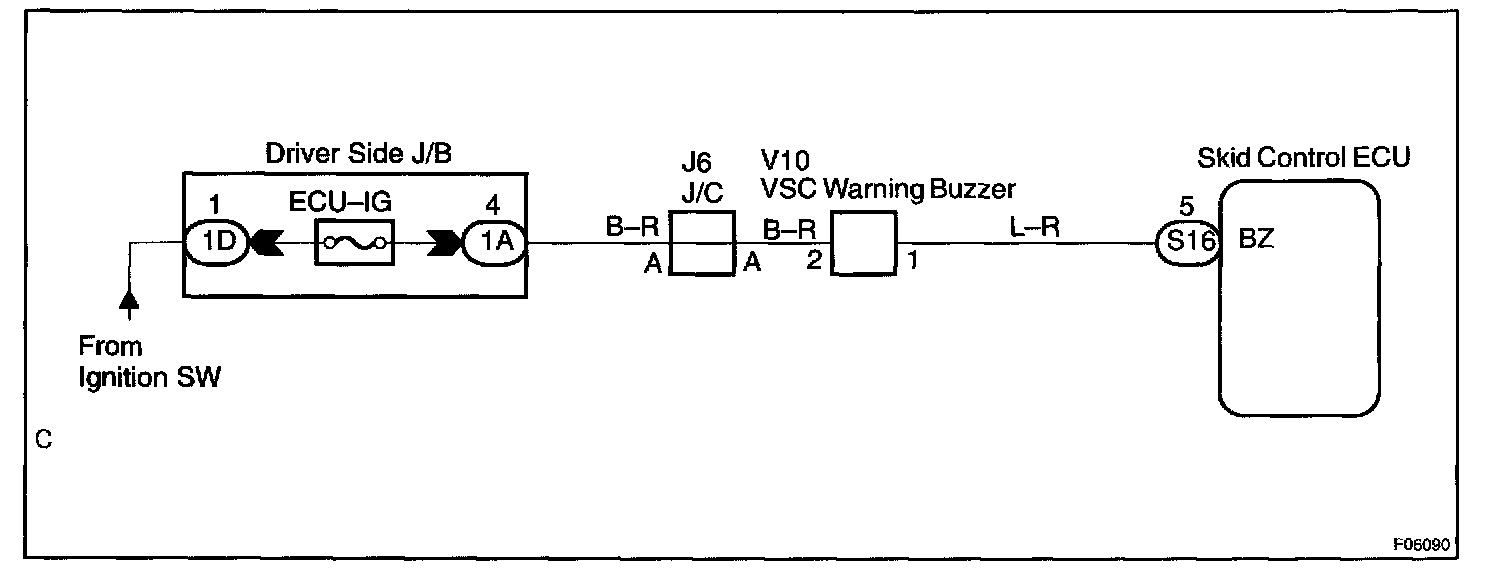

Wiring Diagram:

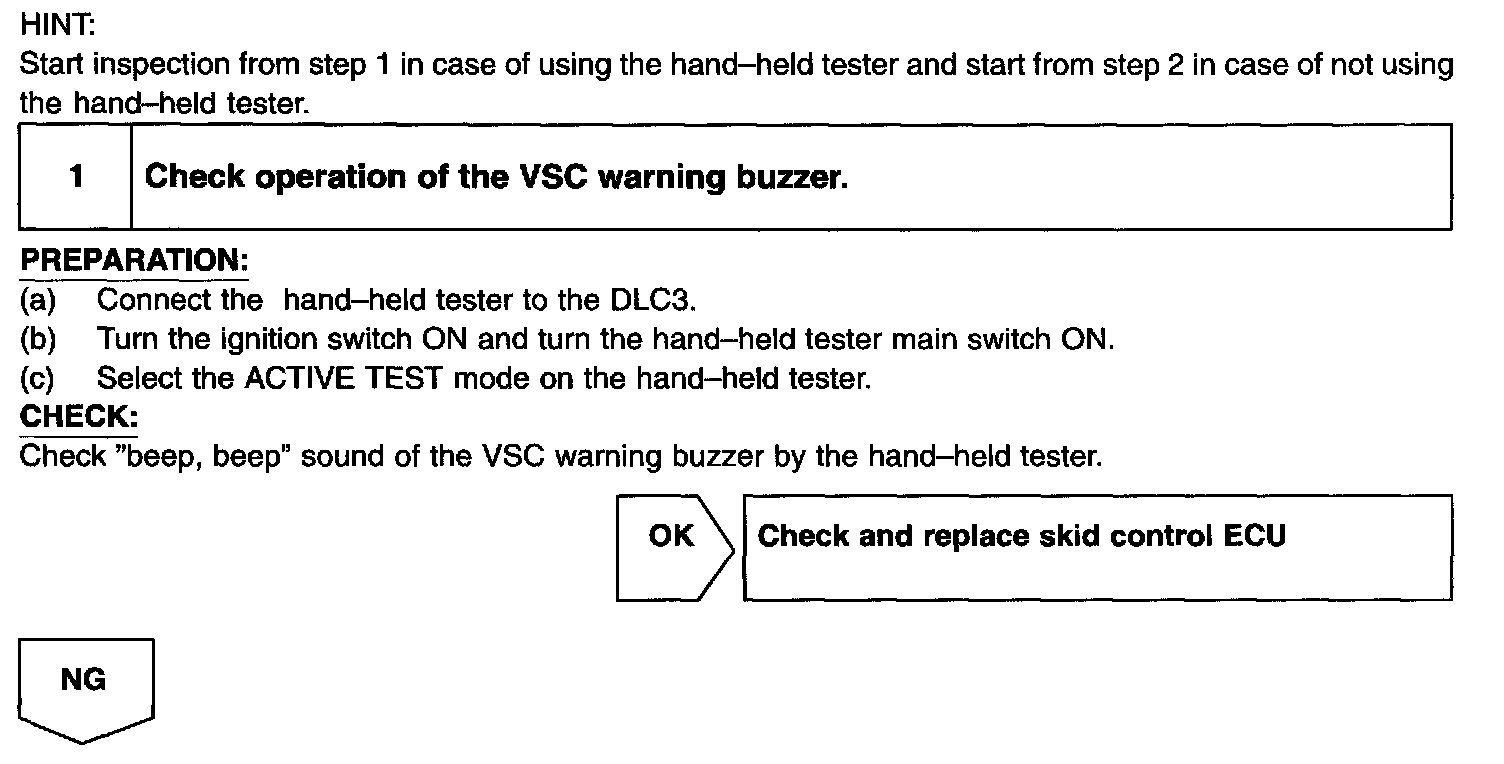

Step 1:

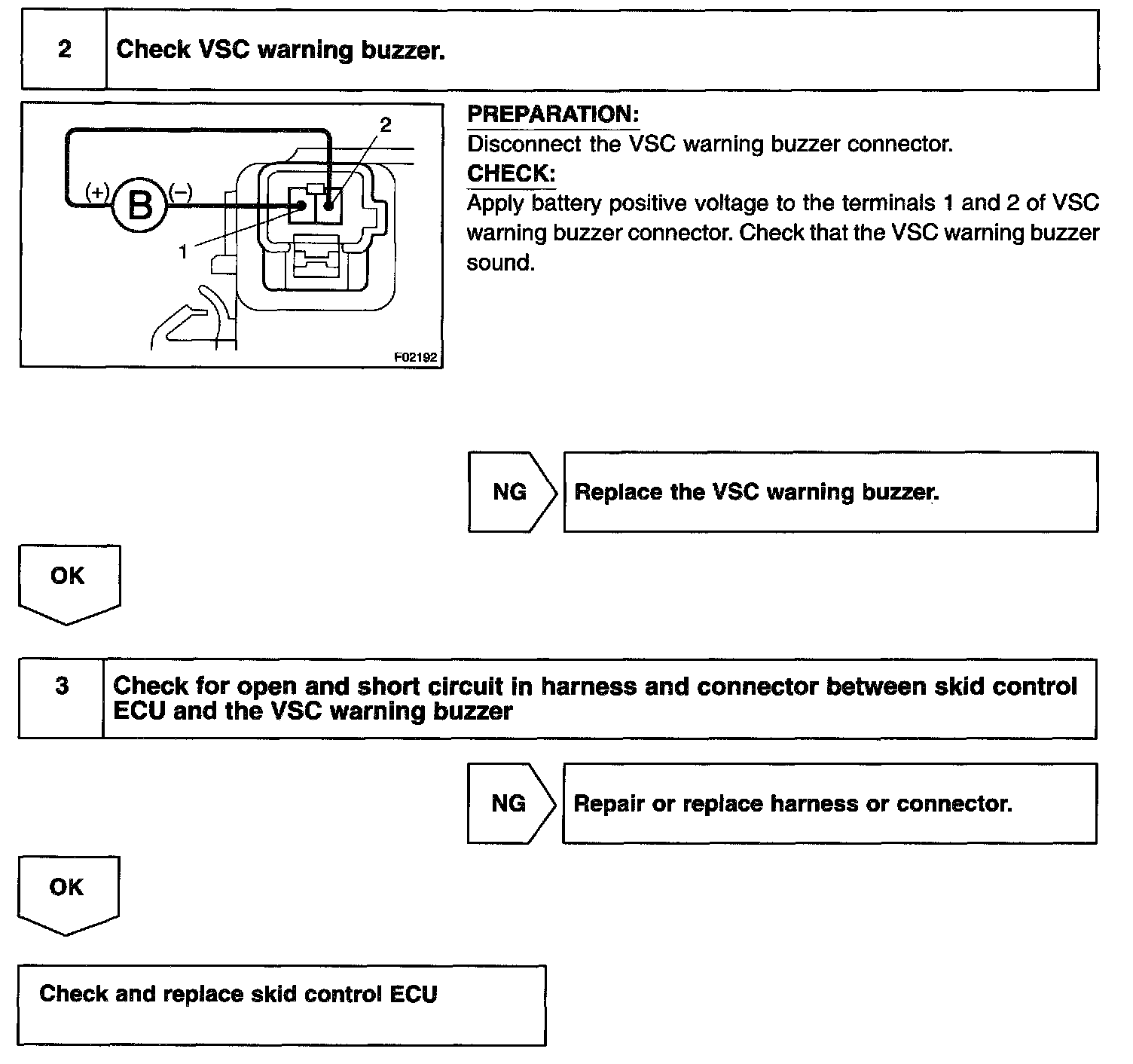

Step 2 - 3:
INSPECTION PROCEDURE
