ABS W/EBD & BA & TRAC & VSC System
>>
Slip Indicator Light Circuit
Slip Indicator Light Circuit
CIRCUIT DESCRIPTION
The SLIP indicator blinks during TRAC operation.

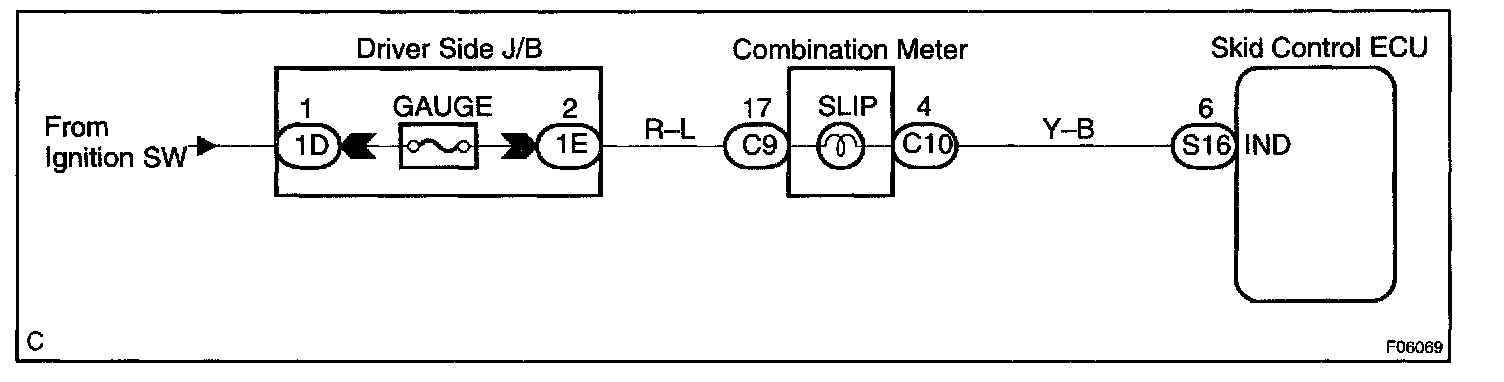

Wiring Diagram:
Step 1 - 2:
Step 2 (Continued) - 4:

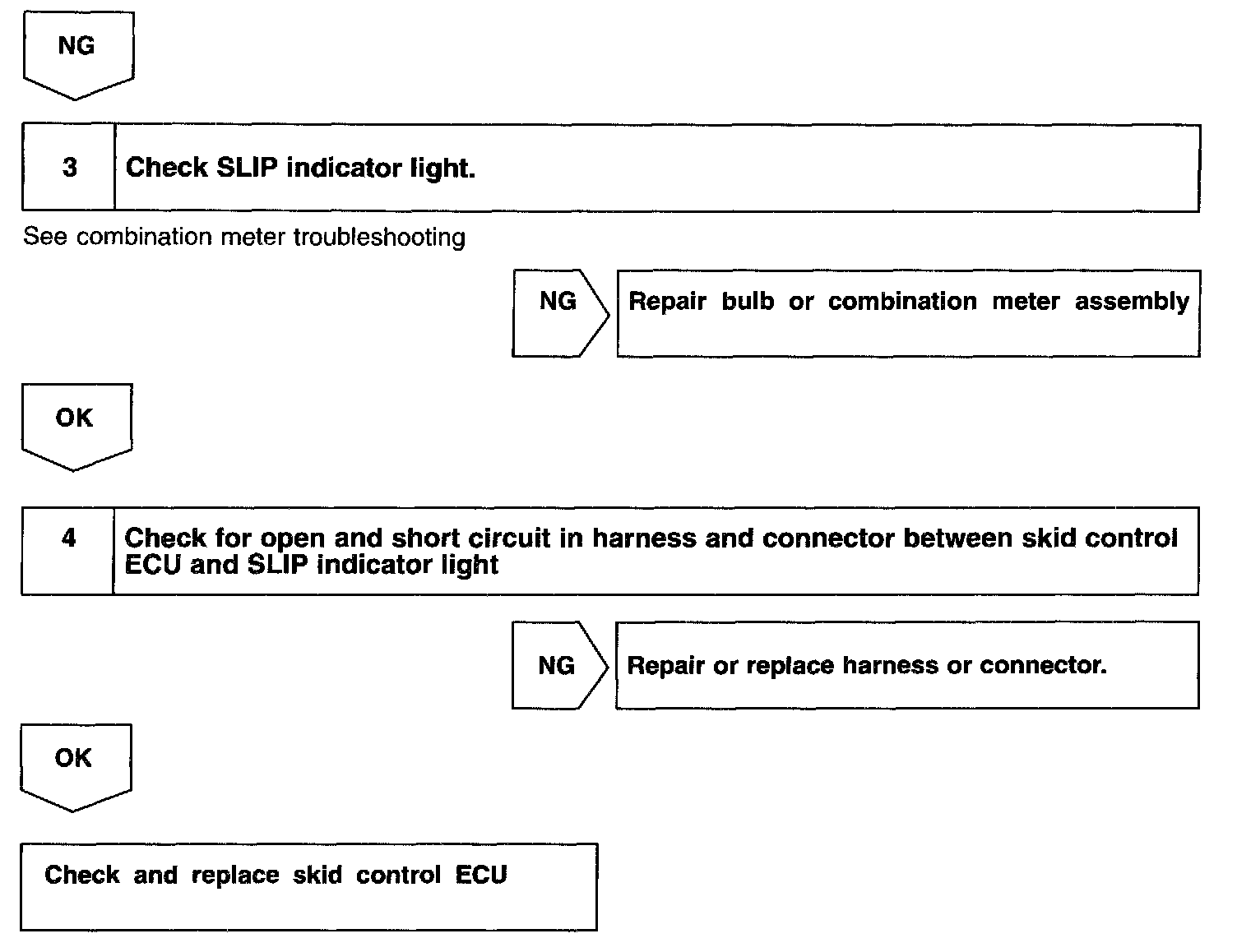

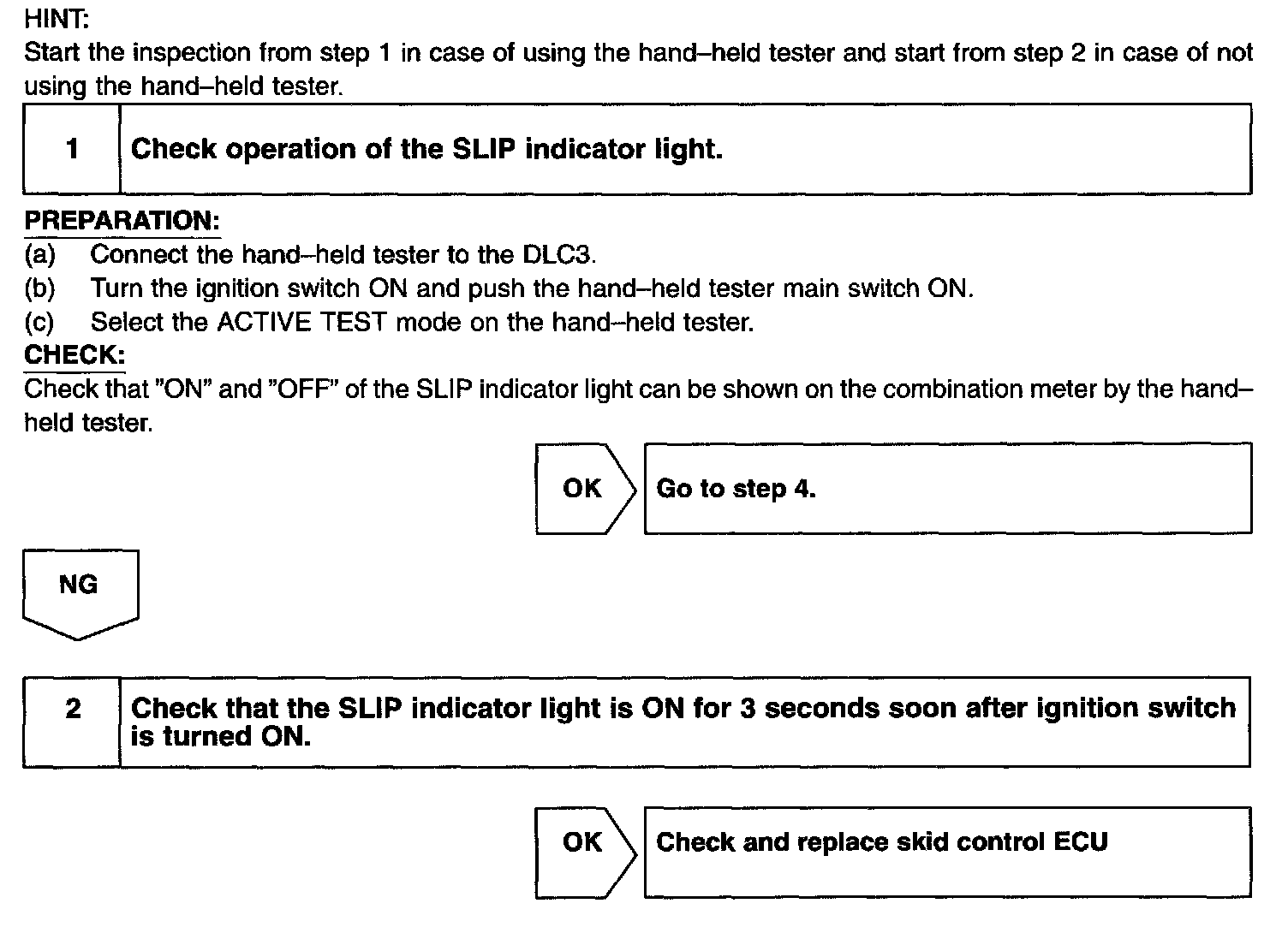

INSPECTION PROCEDURE
