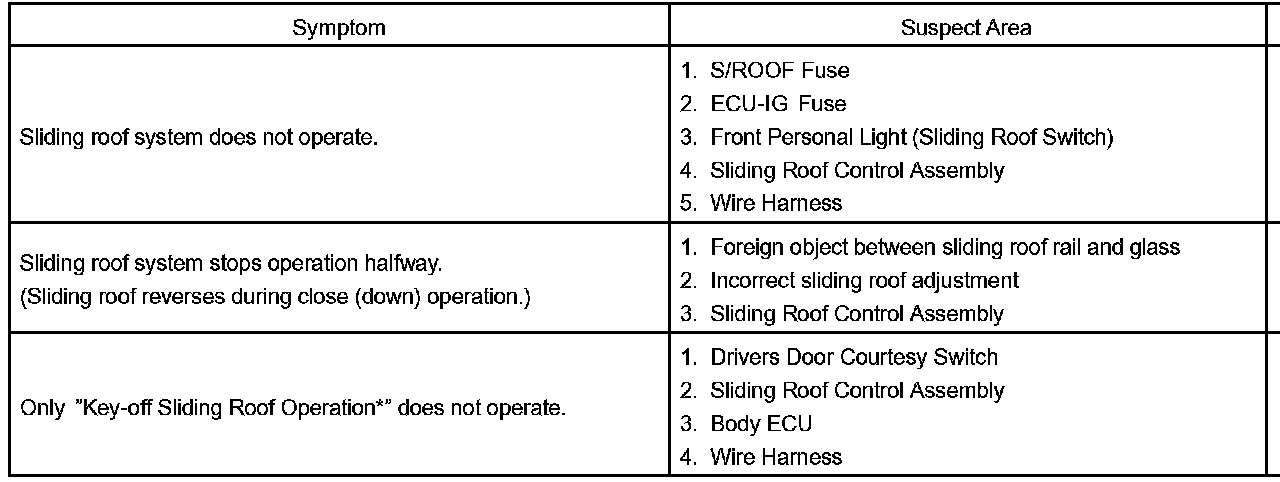

Problem Symptoms Table

NOTE: This article contains changes called out by TSB# PG008-05.





SLIDING ROOF SYSTEM

HINT: The sliding roof system must be initialized after any of the following is done:
- The battery is disconnected.
- The S/ROOF fuse is replaced.
- The sliding roof assembly (sliding roof ECU) is replaced.
- The sliding roof is removed and reinstalled or replaced.

Initialize the sliding roof system as follows:
- Using the tilt switch, tilt the roof fully upward, and then fully downward. Using the slide switch, fully open the roof, and then fully close it.

NOTE: The sliding roof can be operated for approximately 45 seconds, after the ignition switch is turned from ON to OFF with all doors closed. However, if the driver side door is opened during this time, the operation is canceled.
