Rear Defogger Relay Circuit

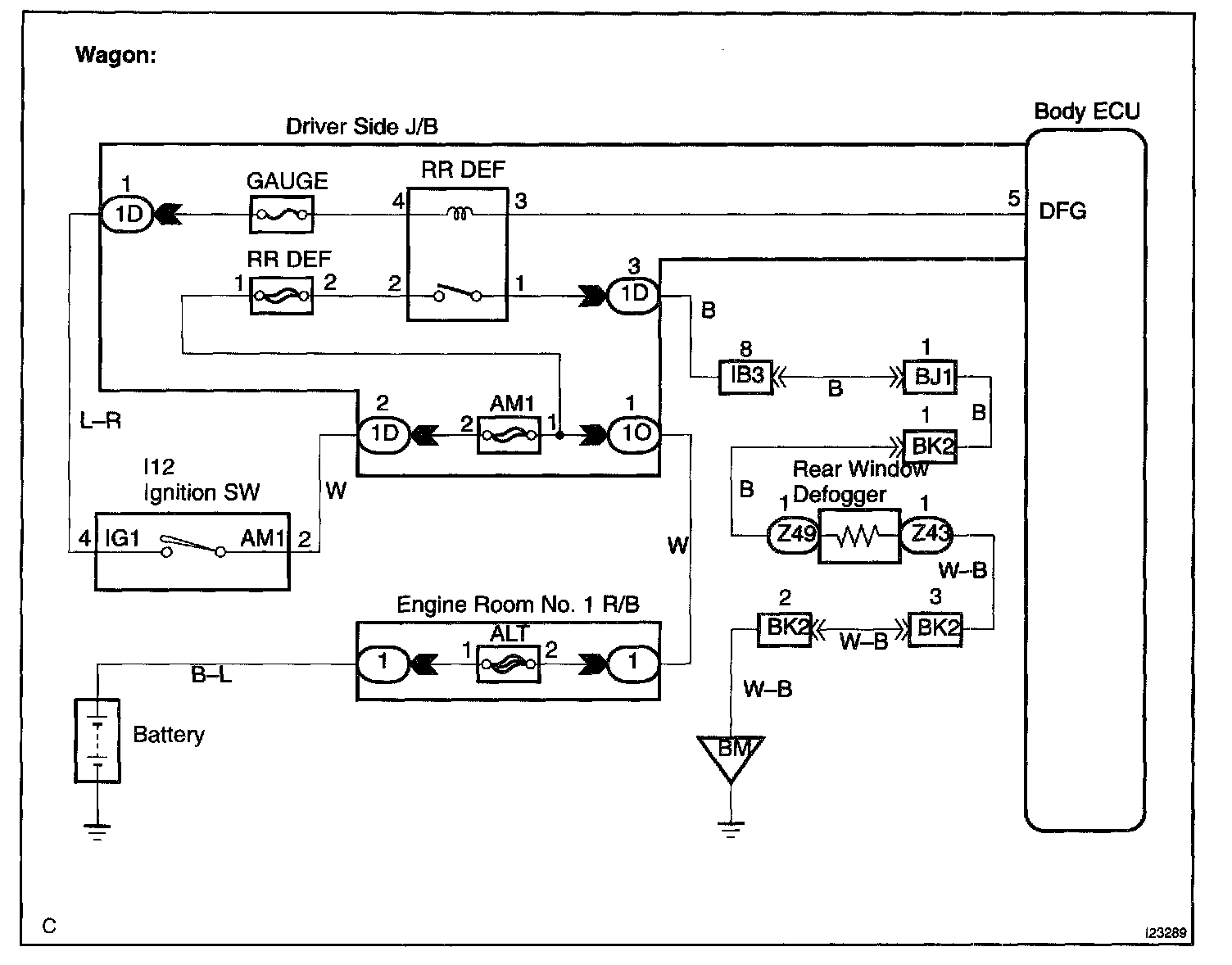

Wiring Diagram Part 1:




Wiring Diagram Part 2:

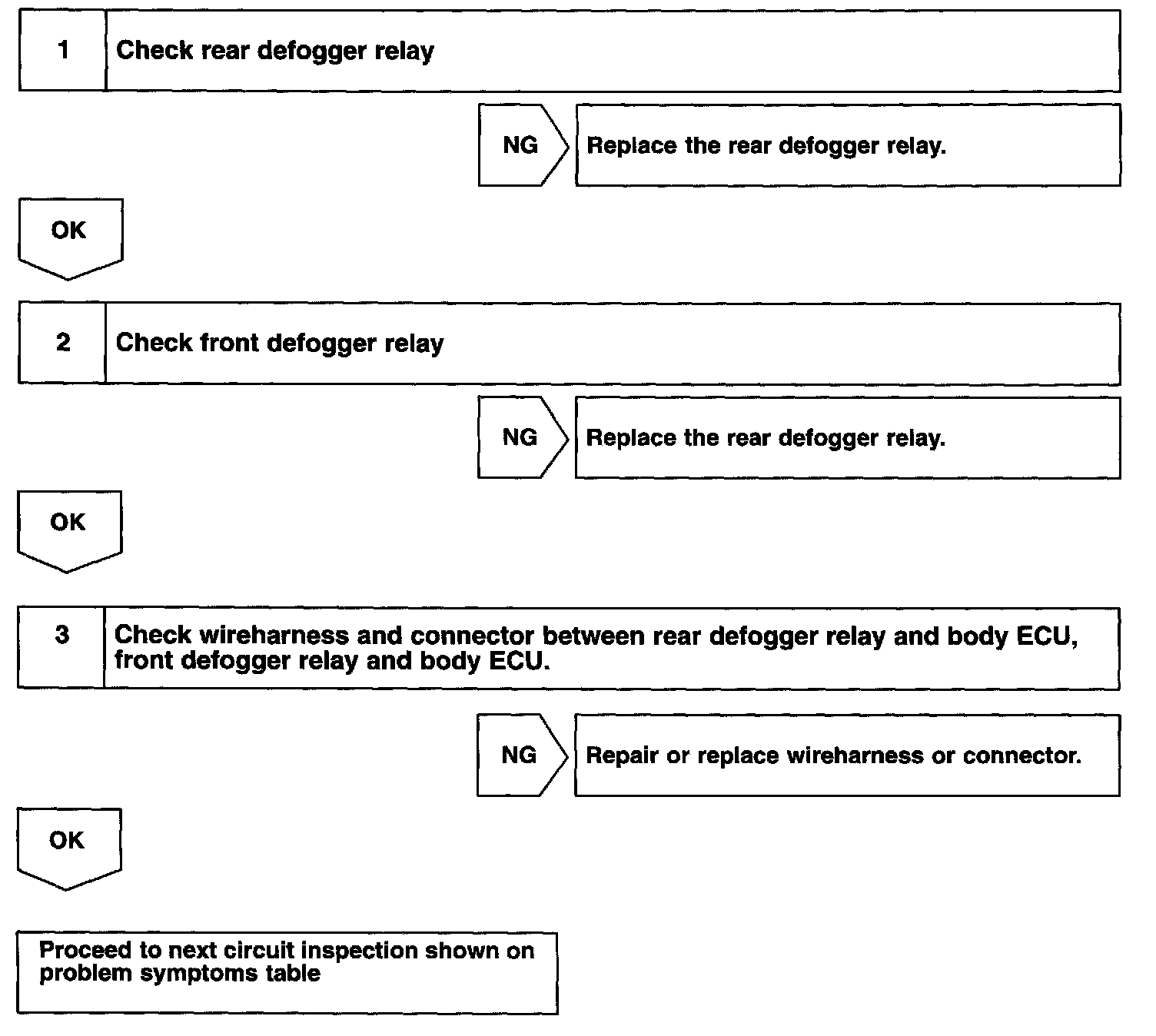

Step 1 - 3:




INSPECTION PROCEDURE
