Home >> Lexus >> 2002 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Locations

Body Control Systems: Locations

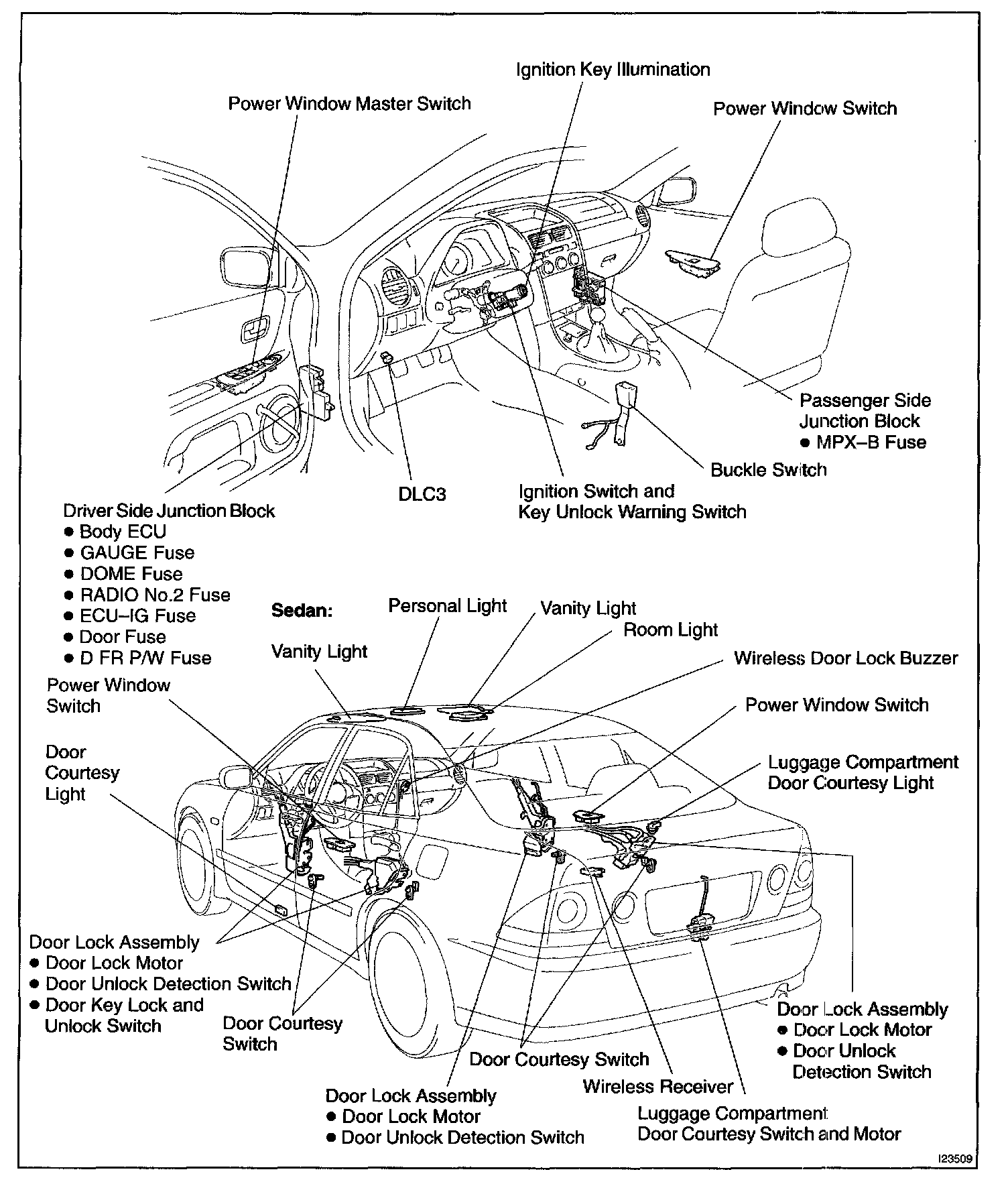

Body Control System Part 1:

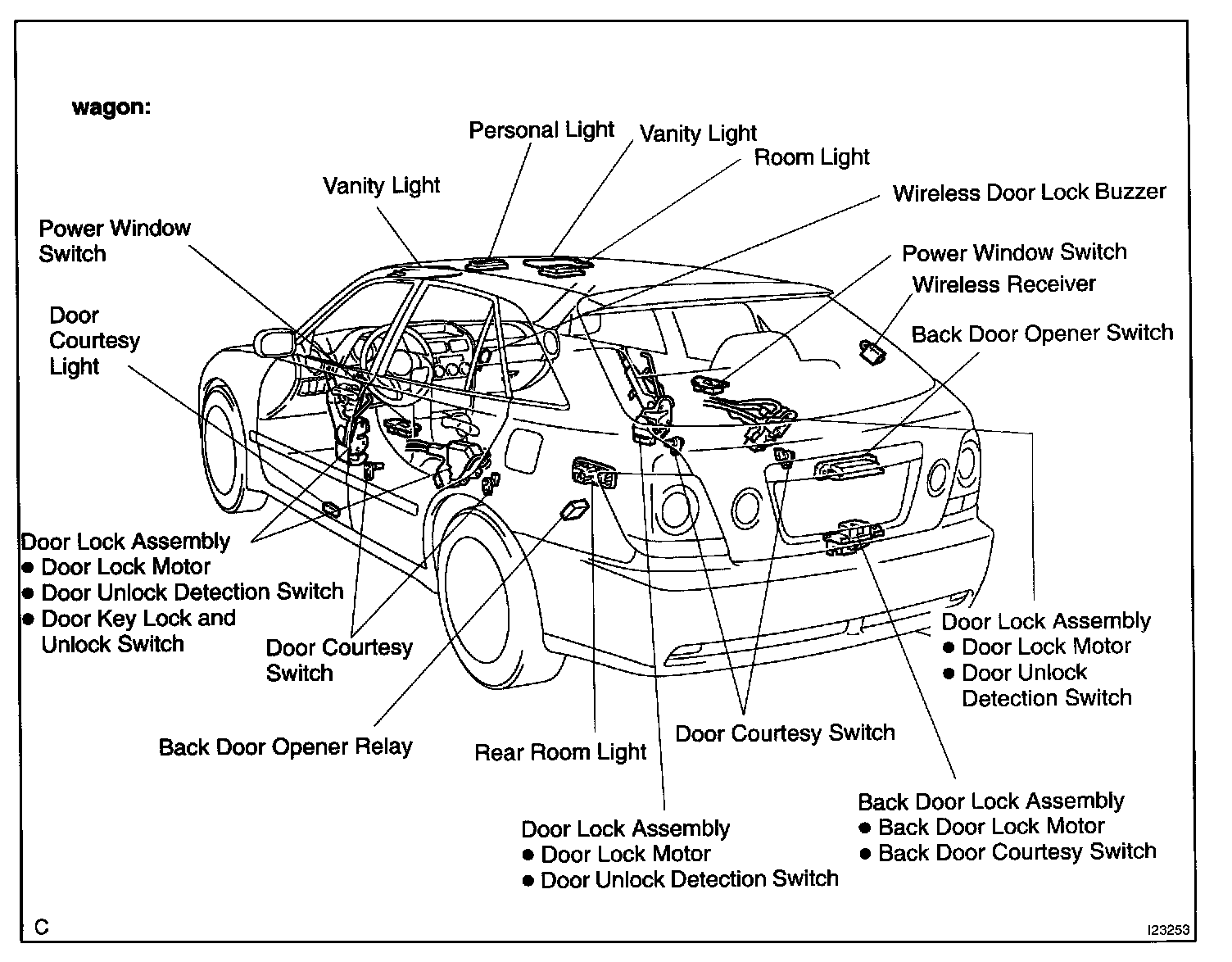

Body Control System Part 2:
