Home >> Lexus >> 2002 >> IS 300 L6-3.0L (2JZ-GE) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Locations >> Component Locations

Component Locations

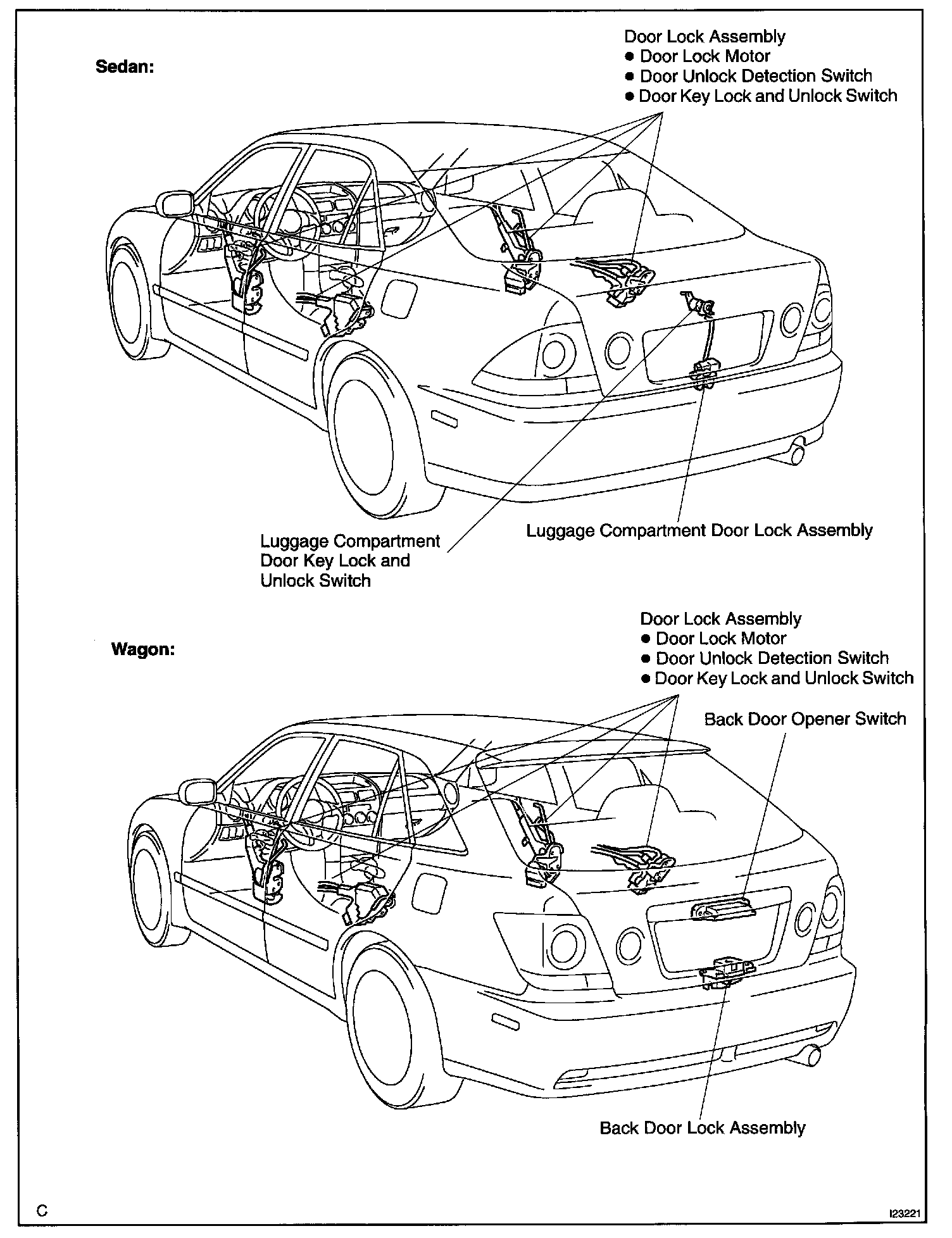

Theft Deterrent System Part 1:

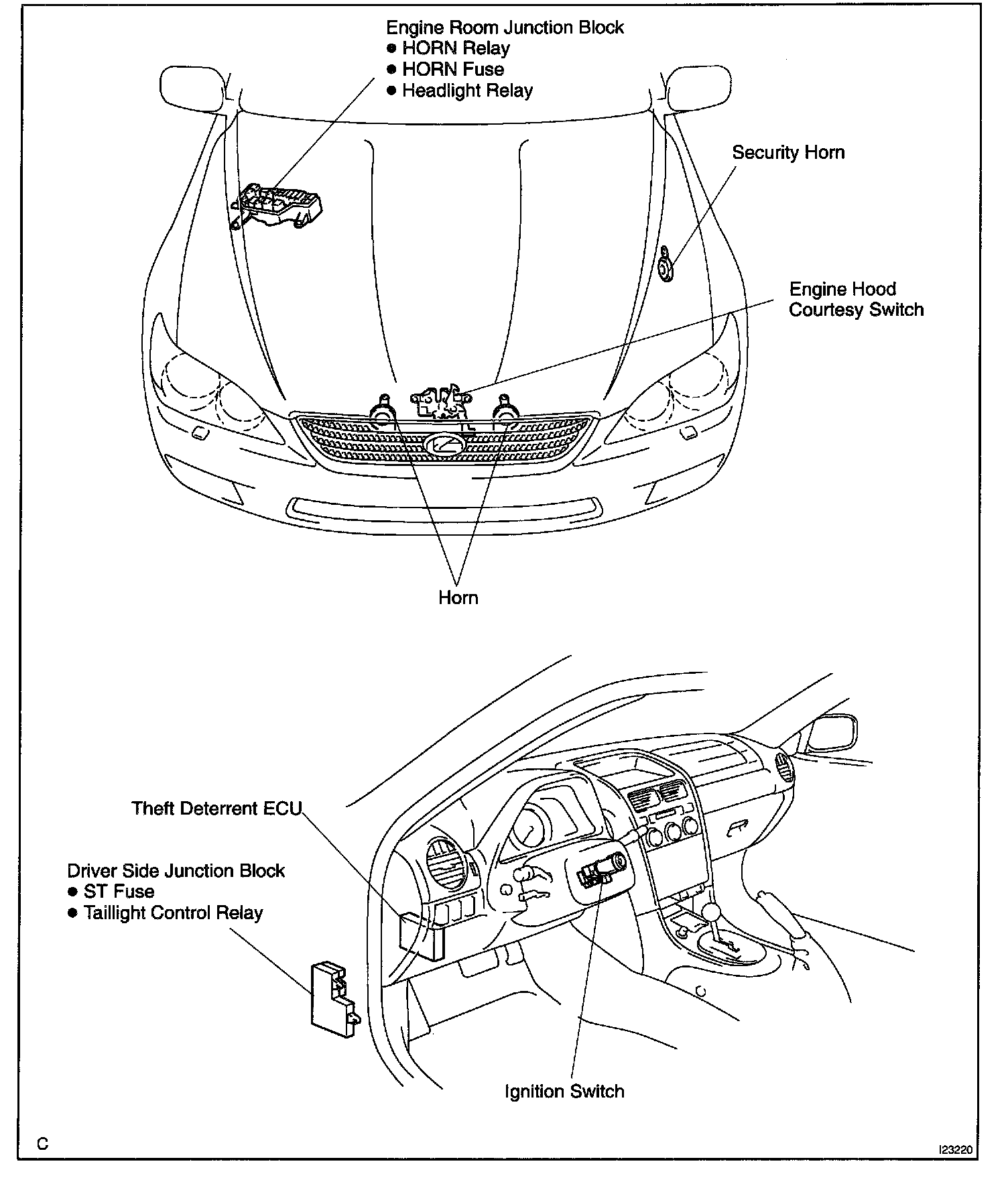

Theft Deterrent System Part 2:

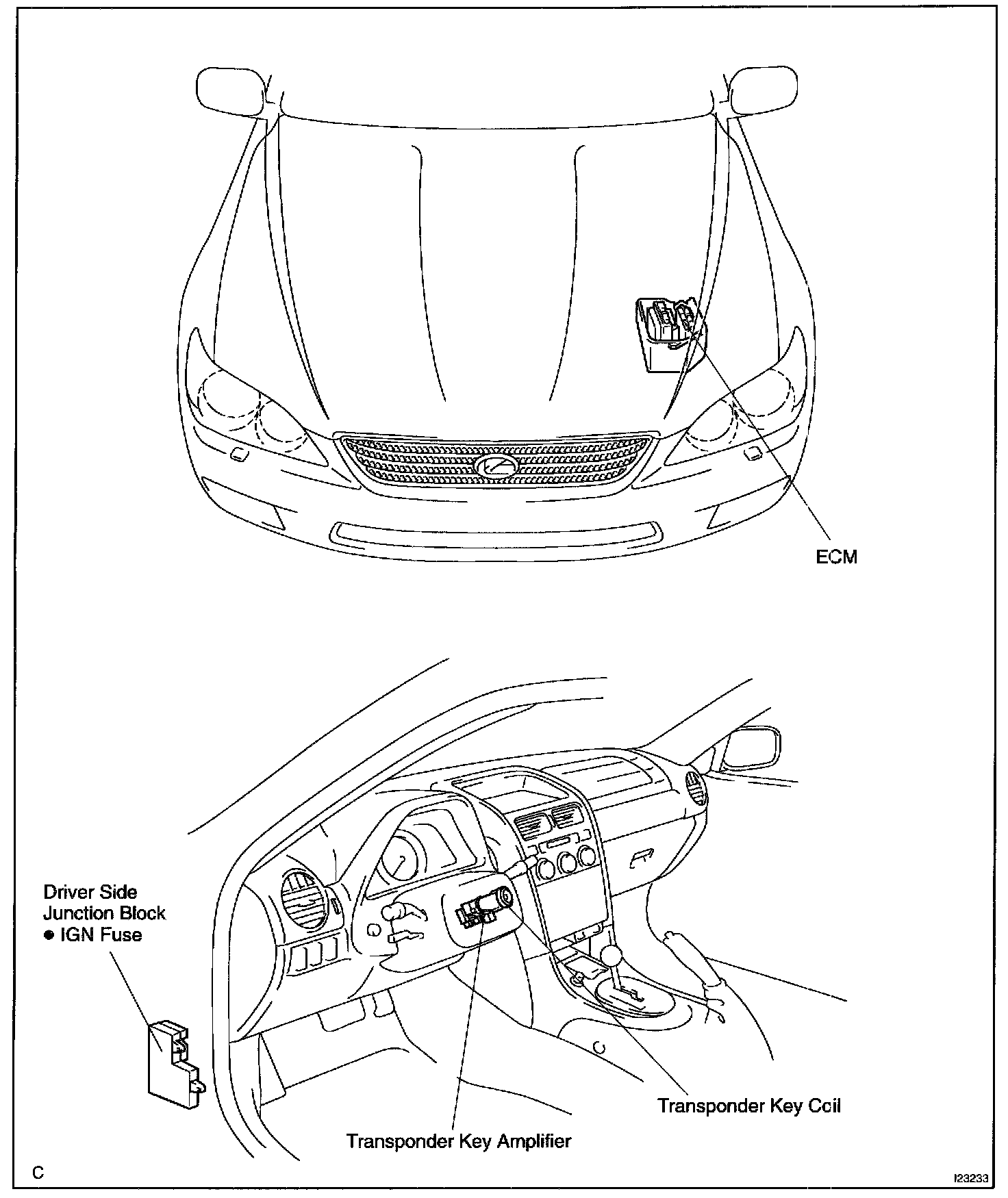

Engine Immobiliser System:



Theft Deterrent System Part 1:



Theft Deterrent System Part 2:

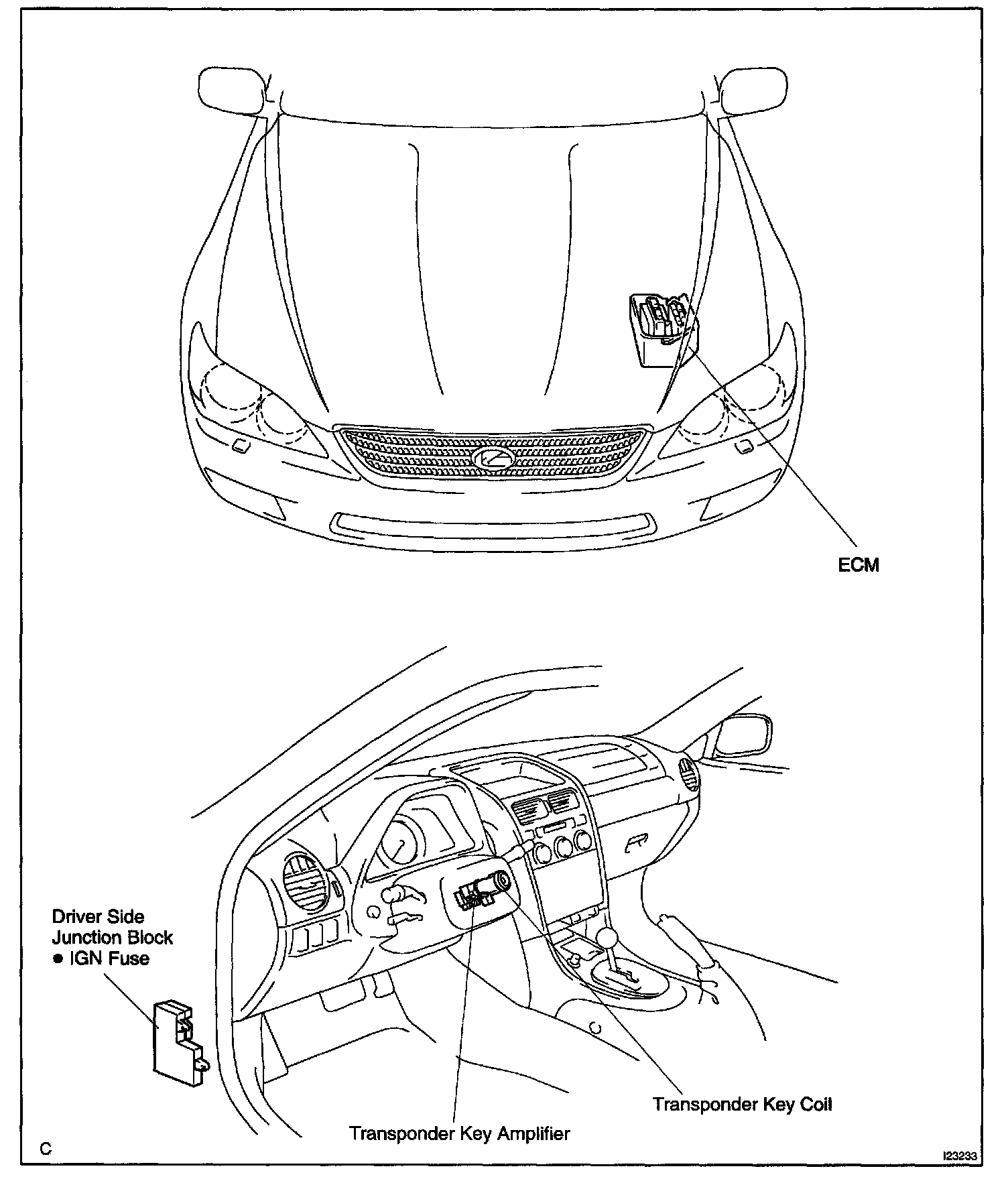

Engine Immobiliser System:
