P1755

DTC P1755 Linear Solenoid for Lock-up Control Circuit Malfunction (Shift Solenoid Valve SLU)

CIRCUIT DESCRIPTION

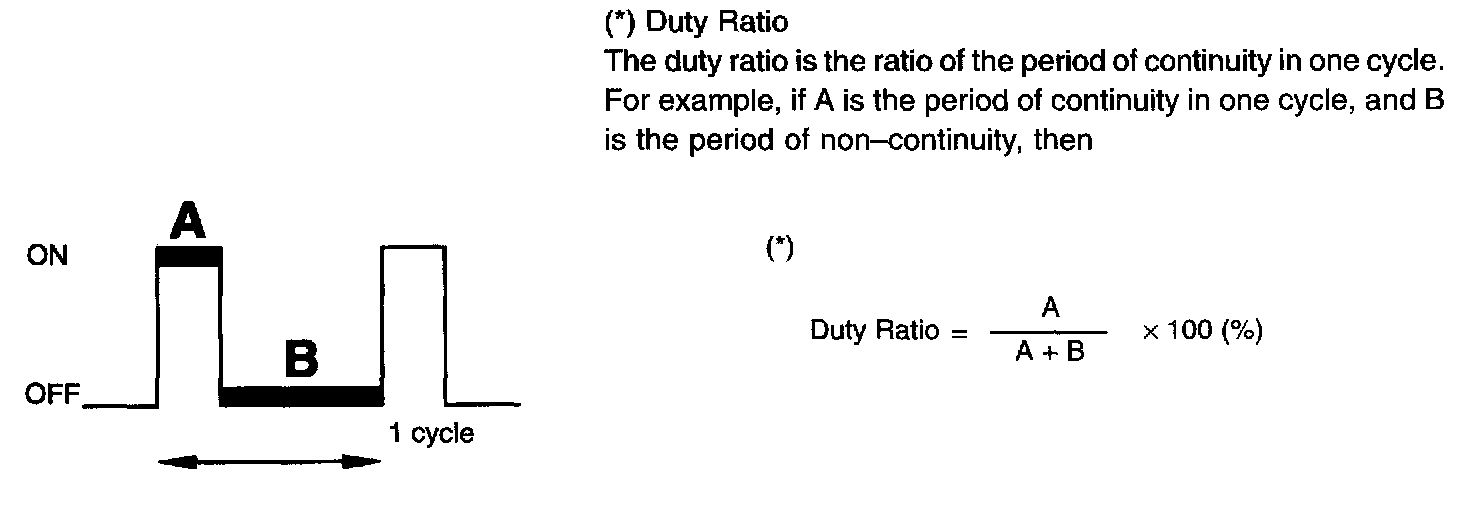

Duty Ratio:

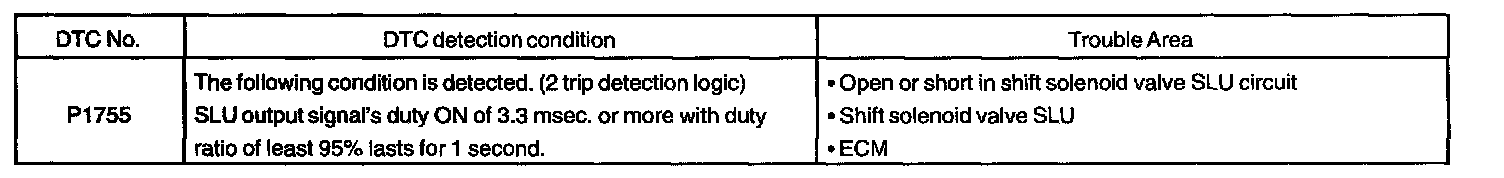

DTC Detection Condition:

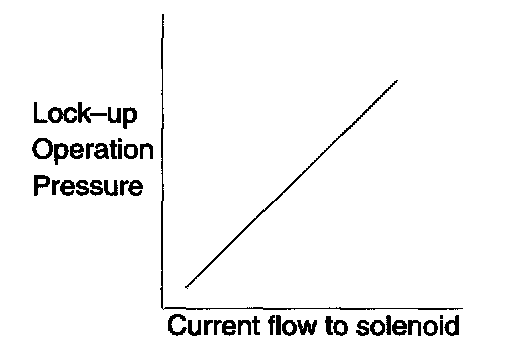

The amount of current flow to the solenoid is controlled by the (*) duty ratio of the ECM output signal. The higher the duty ratio becomes, the higher the lock-up hydraulic pressure becomes during the lock-up operation.

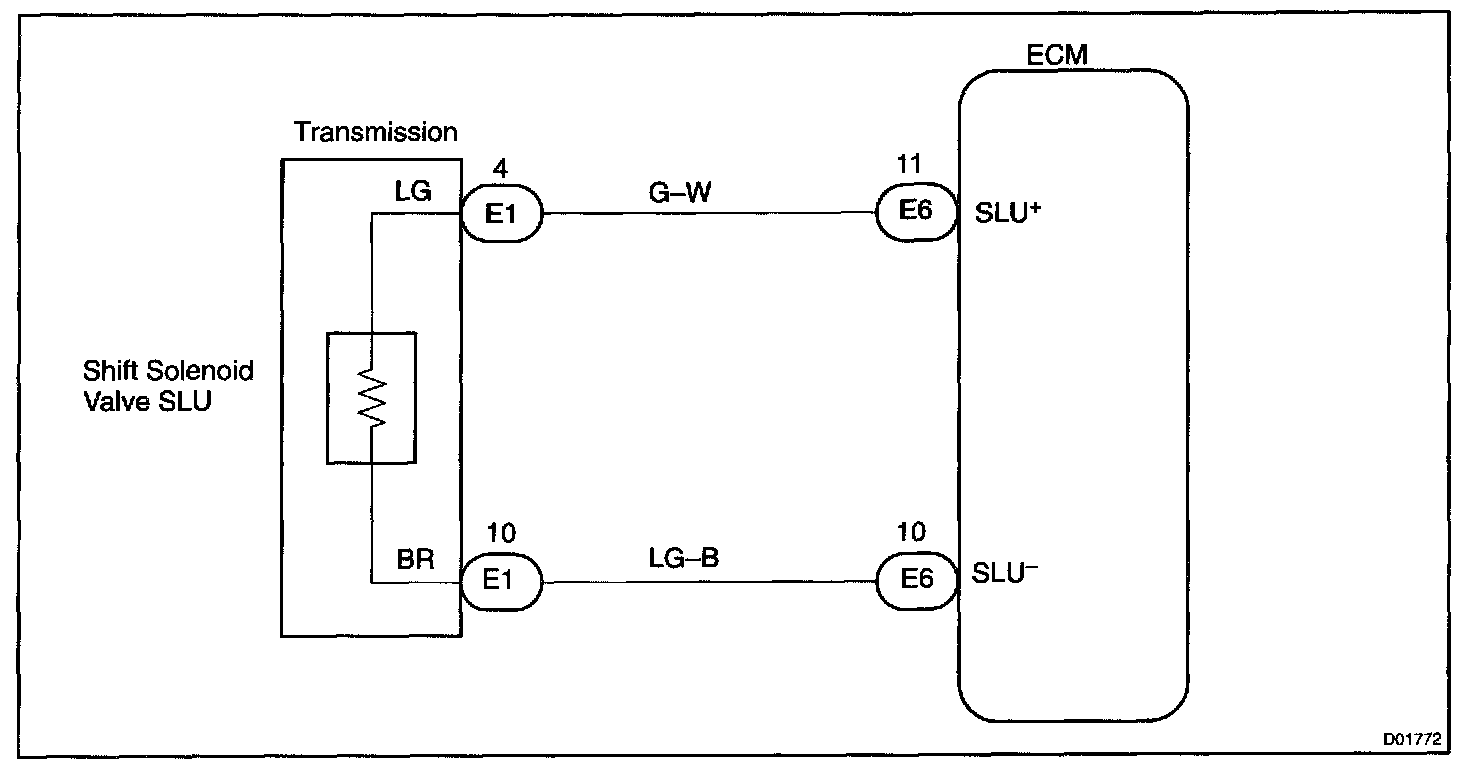

Wiring Diagram:

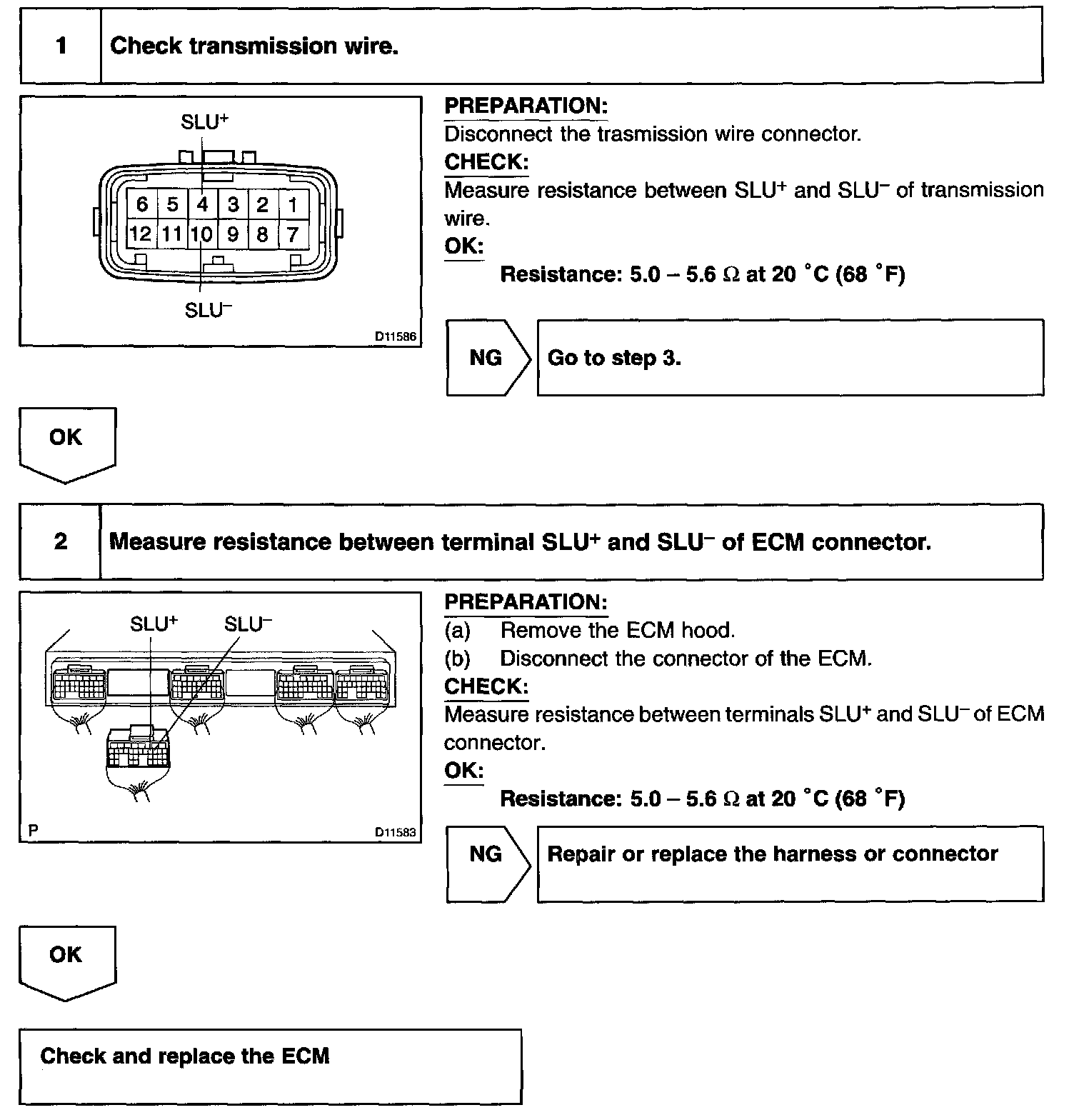

Step 1 - 2:

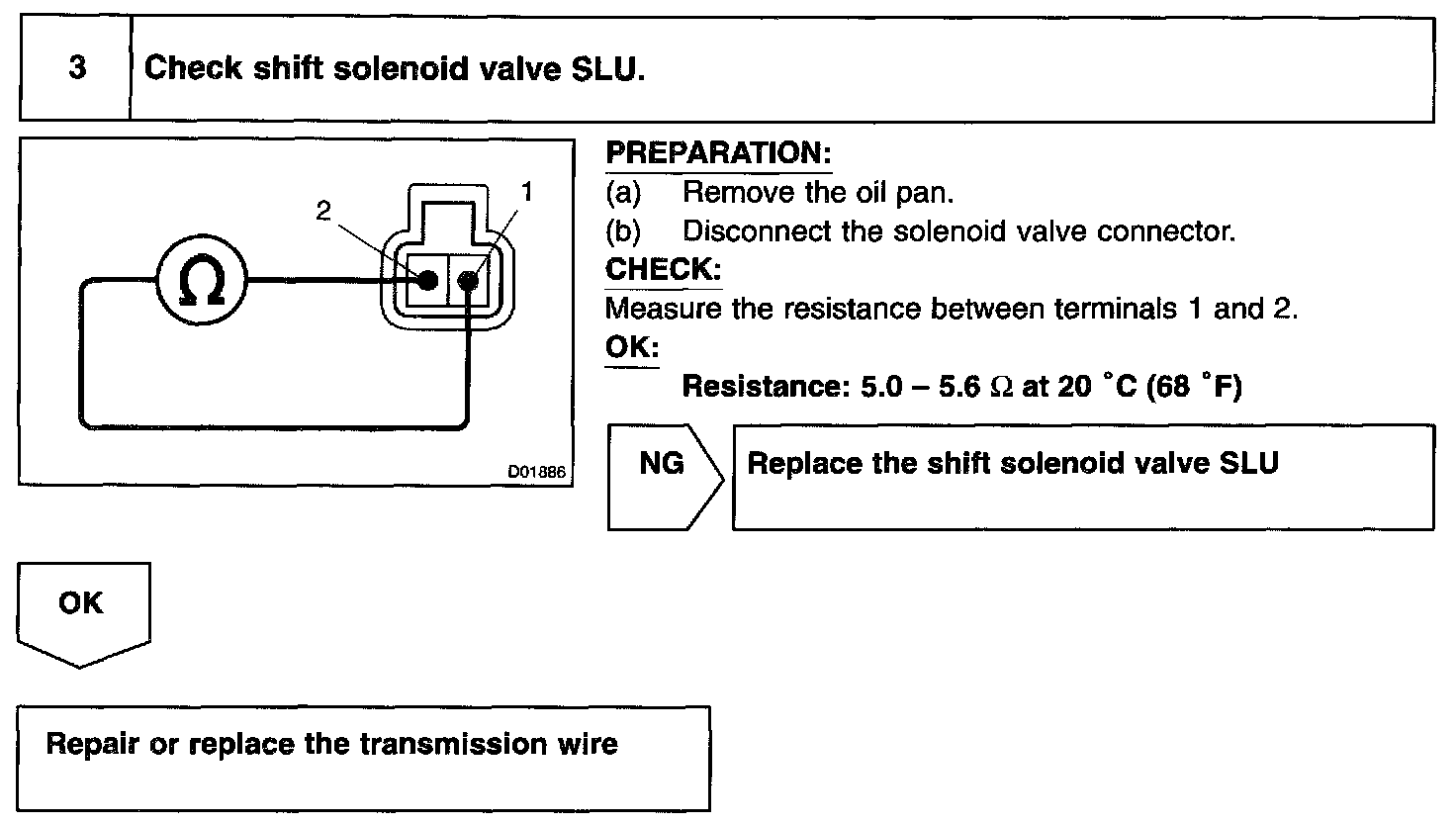

Step 3:

INSPECTION PROCEDURE
