Troubleshooting

DTC P0711 Transmission Fluid Temperature sensor Circuit Range/Performance

CIRCUIT DESCRIPTION

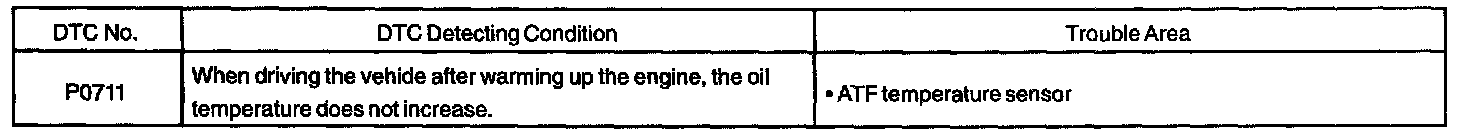

DTC Detecting Condition:

The ATF temperature sensor converts fluid temperature into a resistance value which is input into the ECM.

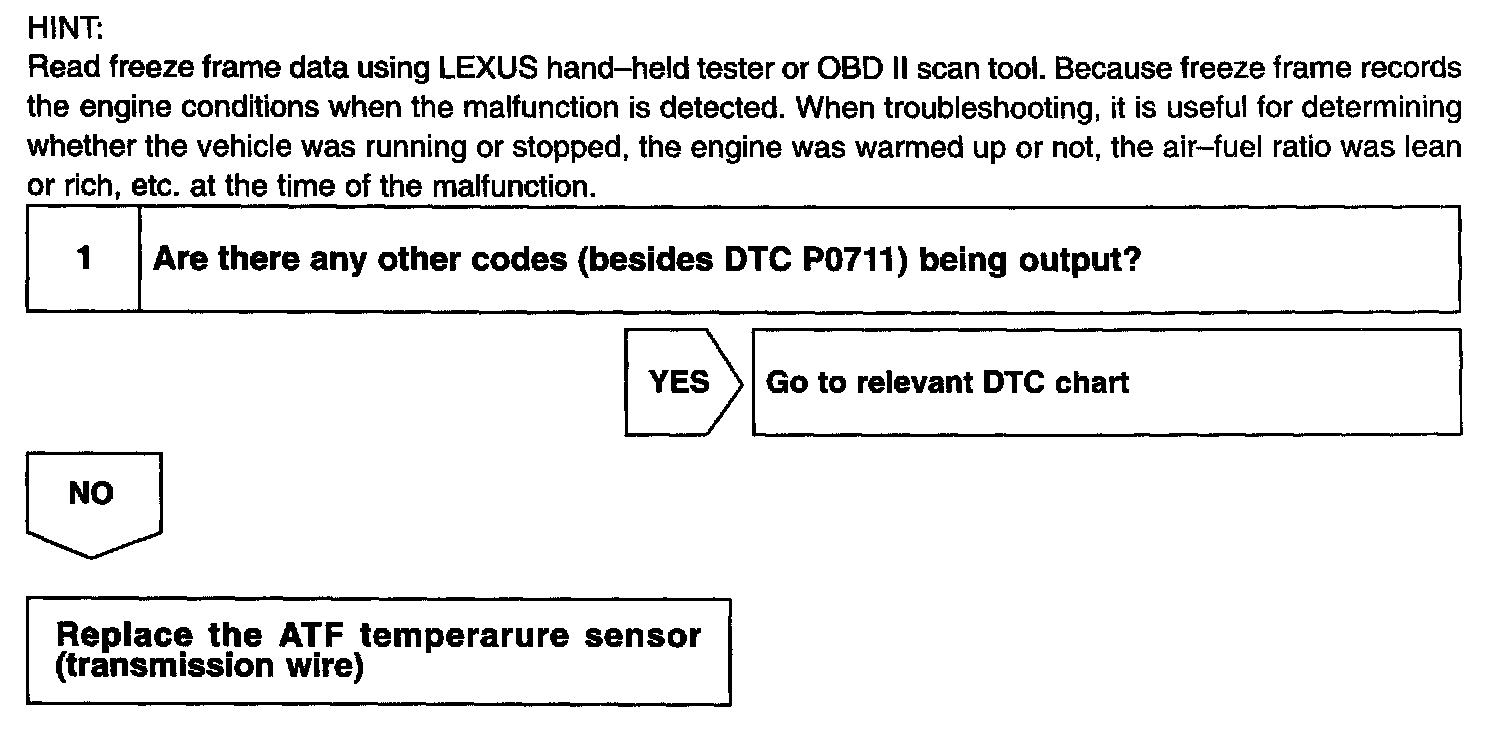

Step 1:

INSPECTION PROCEDURE
