Engine Control System

DTC P0500 Vehicle Speed Sensor Malfunction

CIRCUIT DESCRIPTION

DTC Detecting Condition:

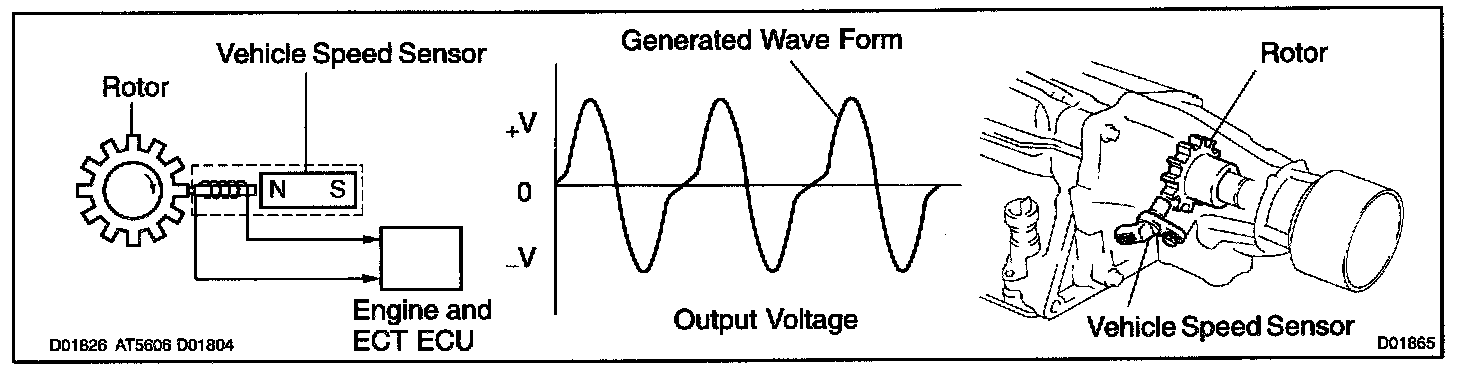

The vehicle speed sensor detects the rotation speed of the transmission output shaft and sends signals to the ECM. The ECM determines the vehicle speed based on these signals. An AC voltage is generated in the vehicle speed sensor coil when the rotor mounted on the output shaft rotates, and then this voltage is sent to the ECM.

Wiring Diagram:

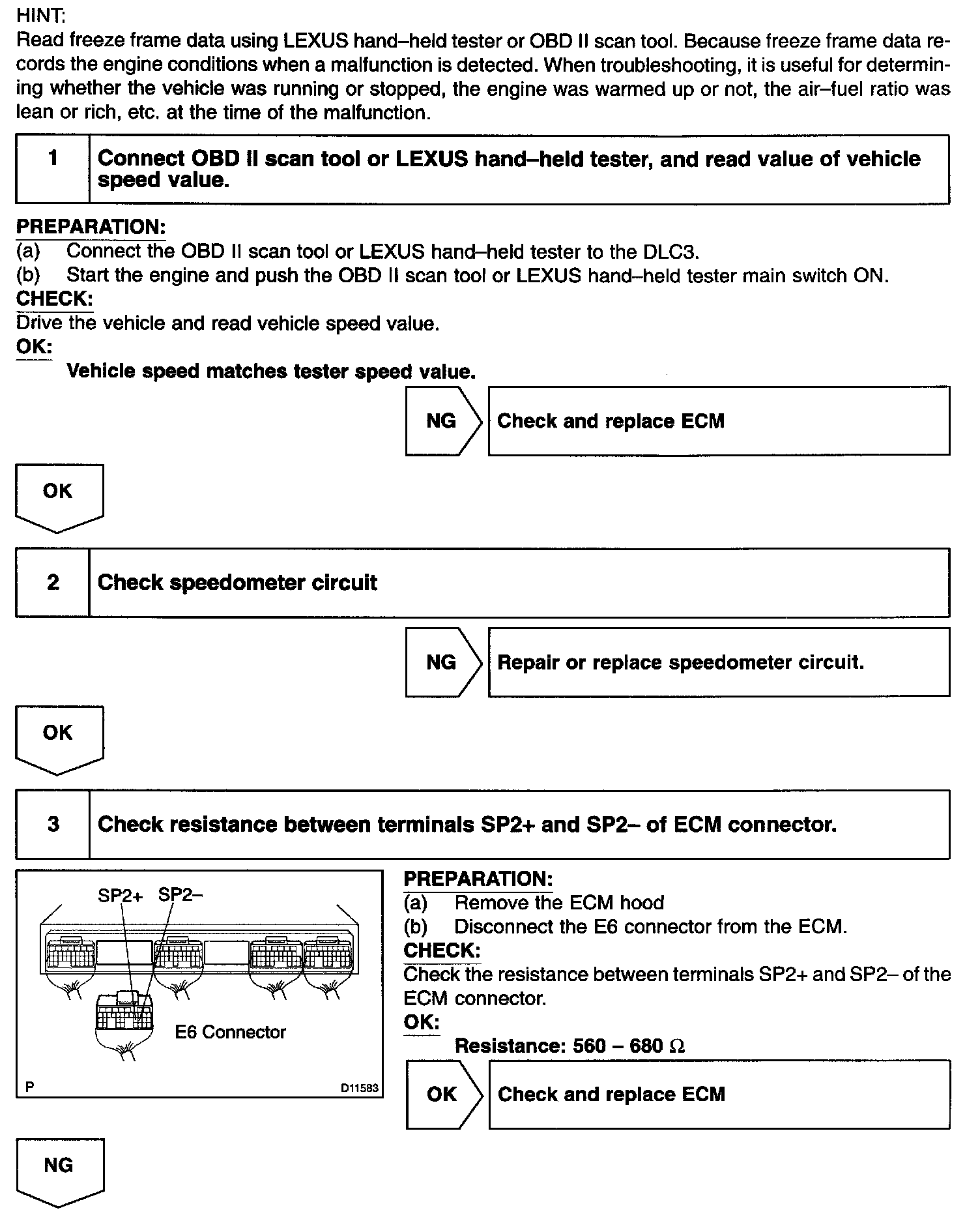

Step 1 - 3:

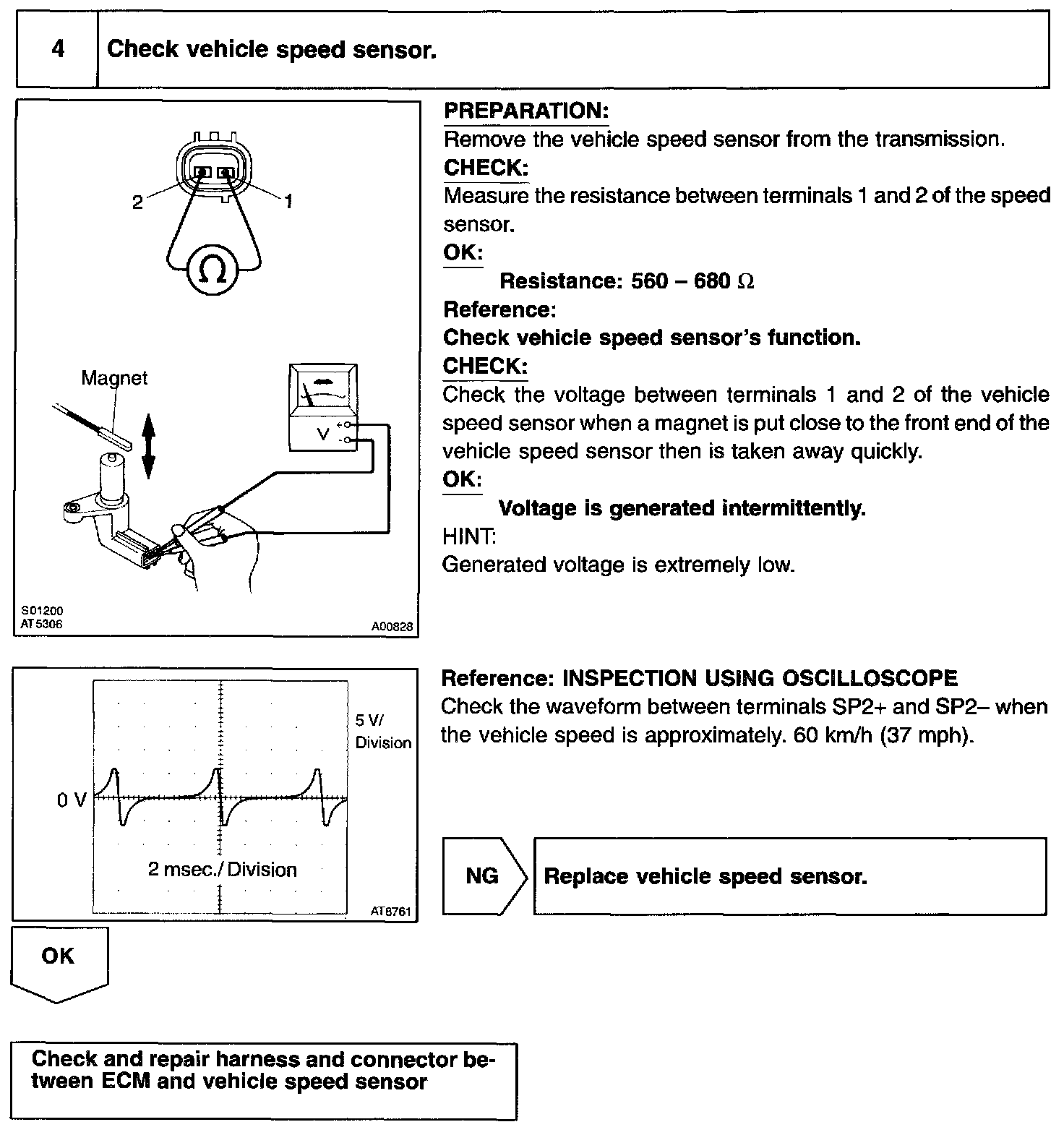

Step 4:

INSPECTION PROCEDURE
