P0450

DTC P0450 Evaporative Emission Control System Pressure Sensor Malfunction

CIRCUIT DESCRIPTION

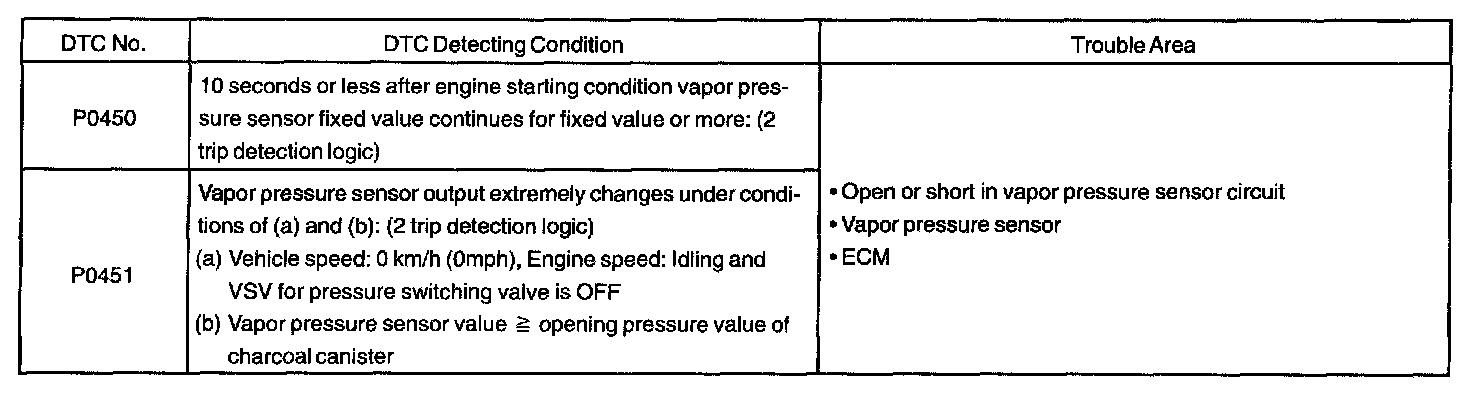

DTC Detecting Condition:

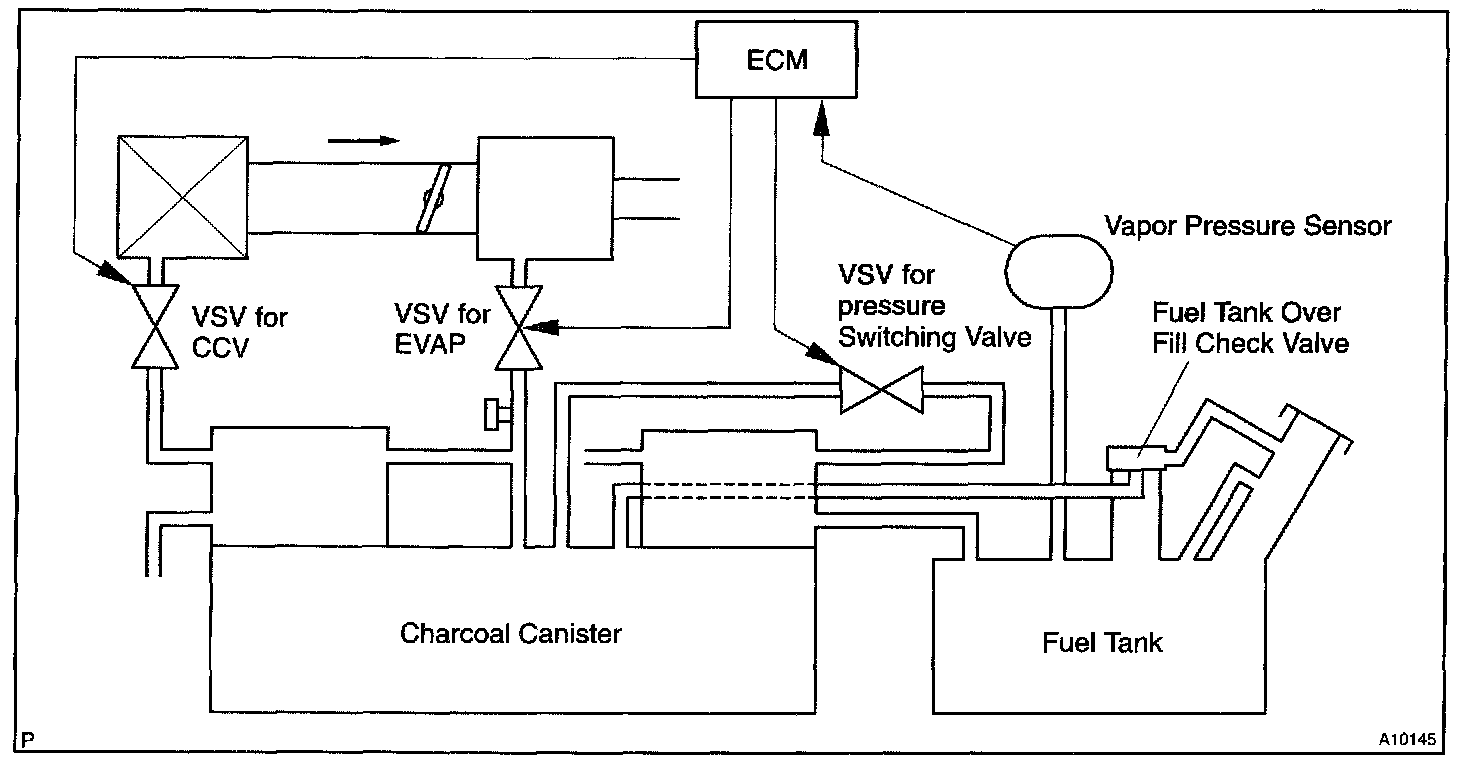

The vapor pressure sensor, VSV for canister closed valve (CCV) and VSV for pressure switching valve are used to detect abnormalities in the evaporative emission control system.

The ECM decides whether there is an abnormality in the evaporative emission control system based on the vapor pressure sensor signal.

DTC P0450 or P0451 is recorded by the ECM when the vapor pressure sensor malfunction.

Wiring Diagram:

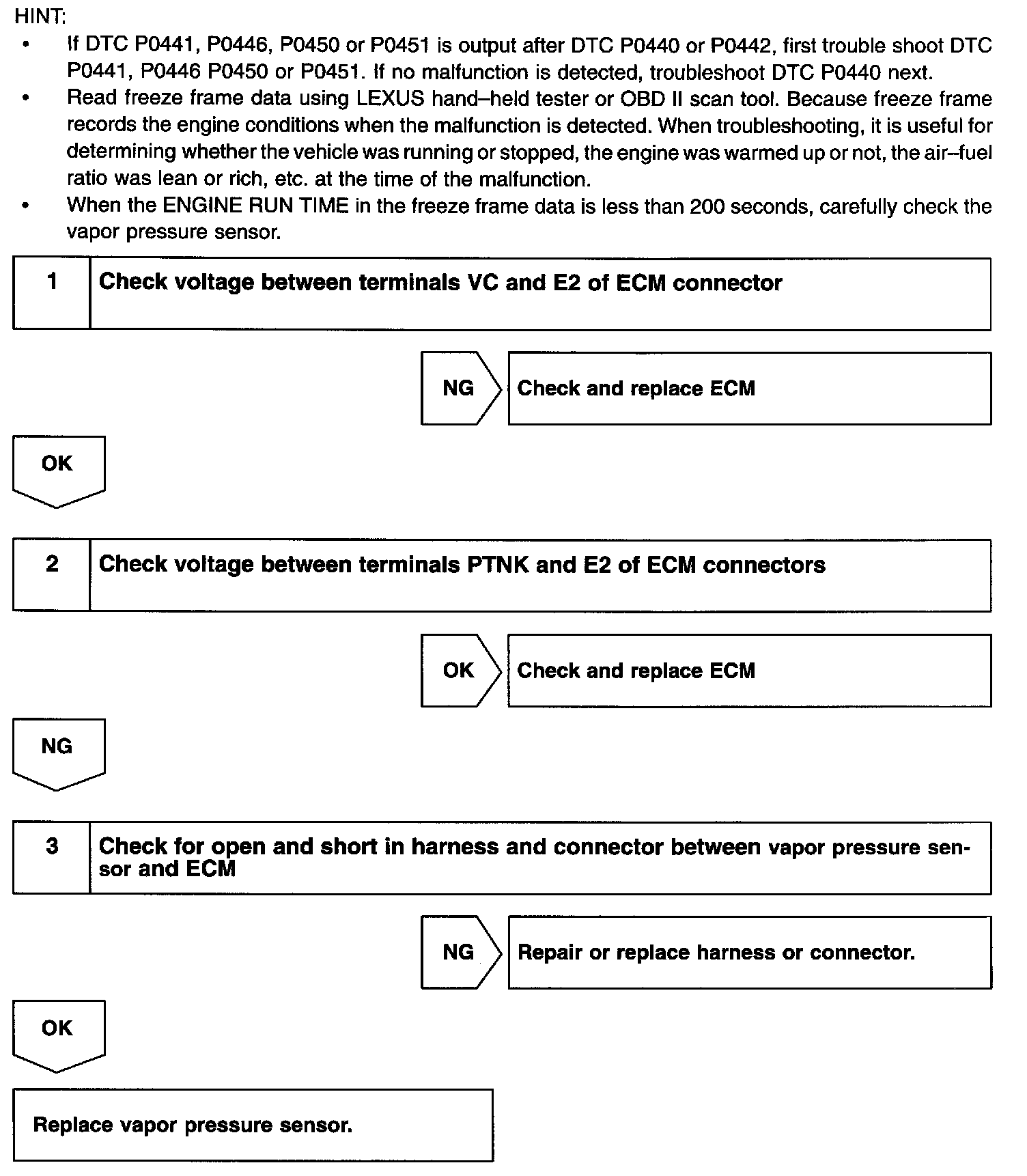

Step 1 - 3:

INSPECTION PROCEDURE
