ABS W/EBD & BA & TRAC System
DIAGNOSTIC TROUBLE CODE CHARTHINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, refer to the corresponding troubleshooting under respective "DTC No." in the DTC chart.
C0278/11 - C1239/39:

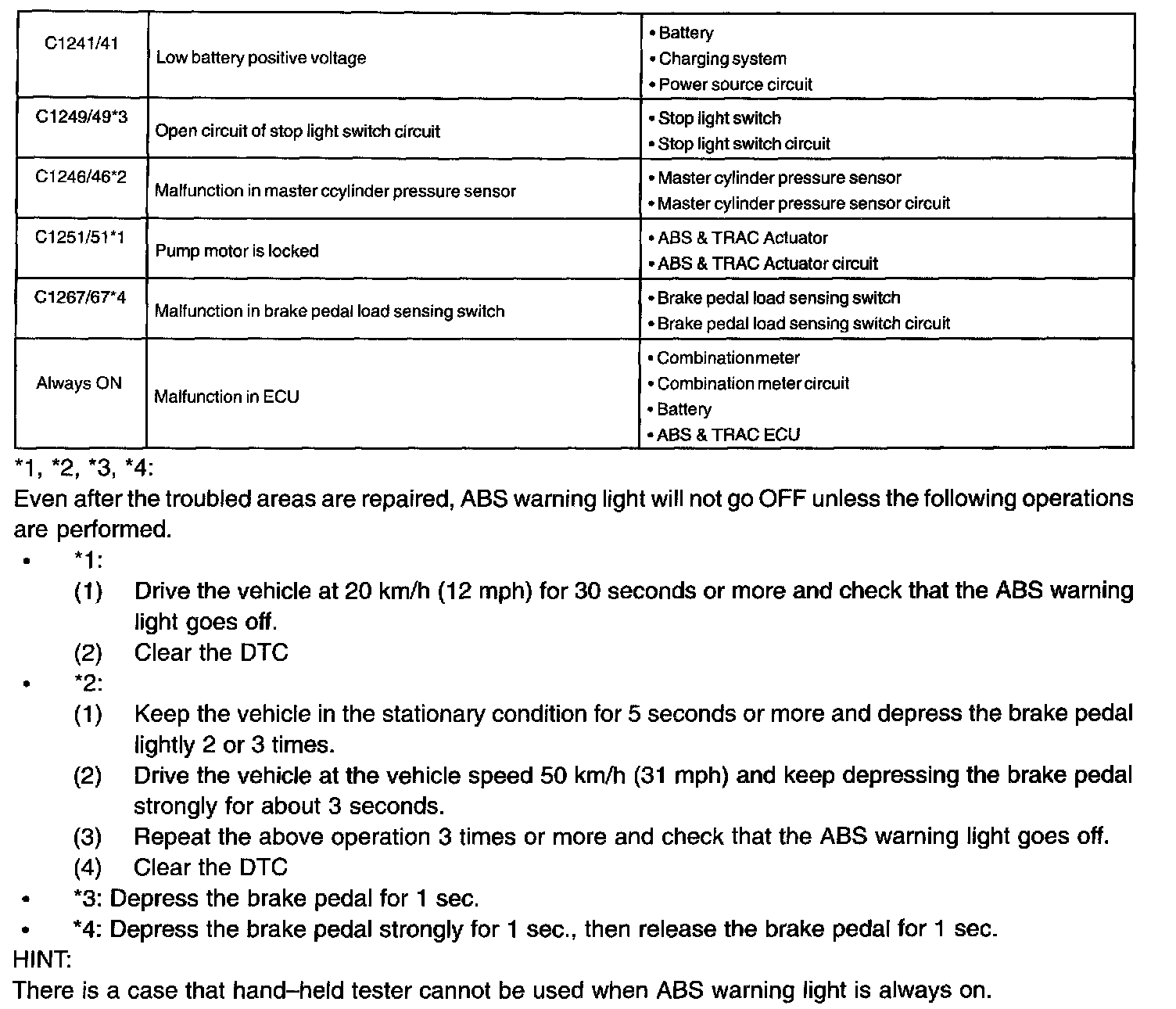

C1241/41 - C1267/67:

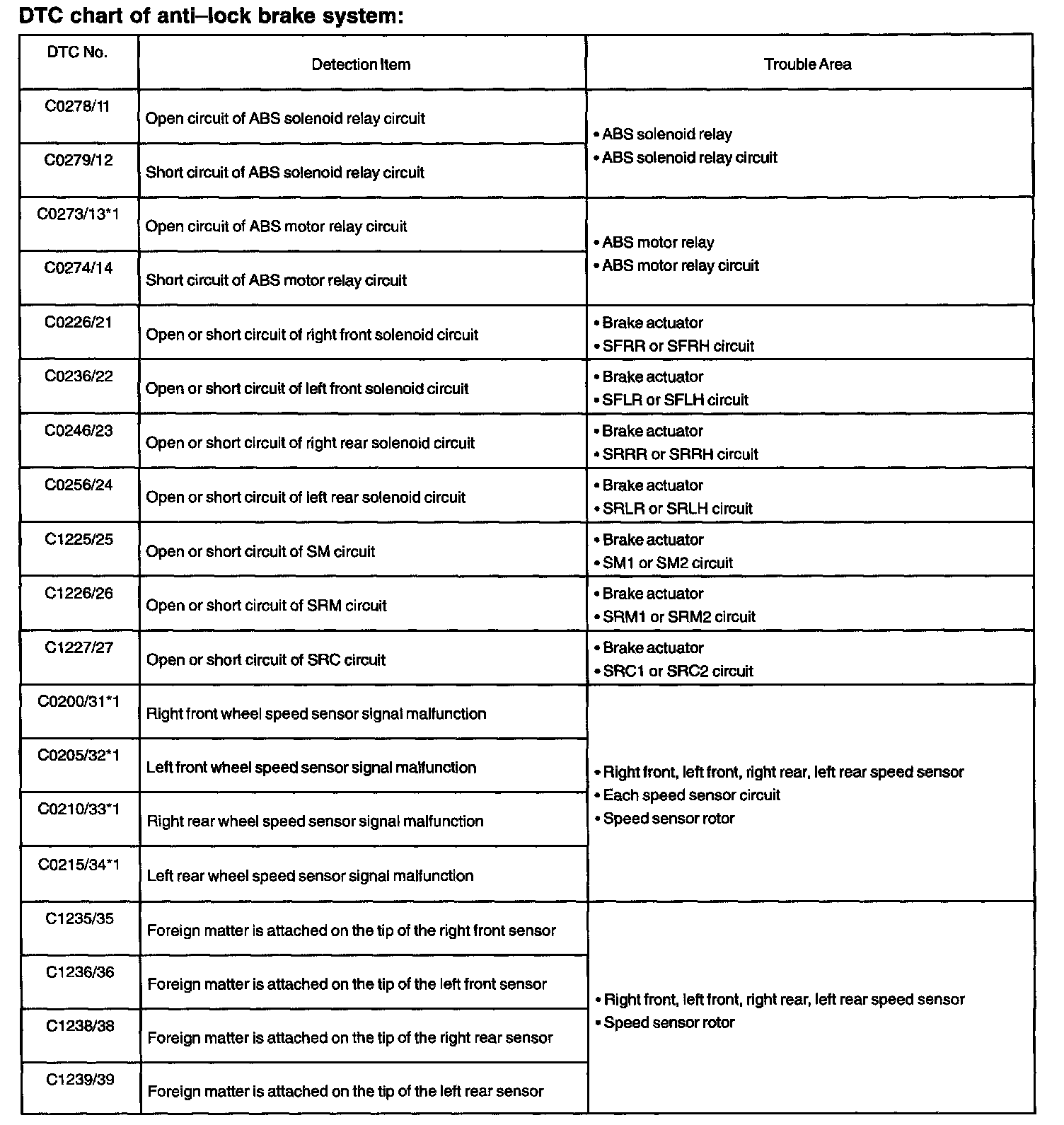

DTC Chart Of Anti-Lock Brake System
C1223/43 - C1203/53:

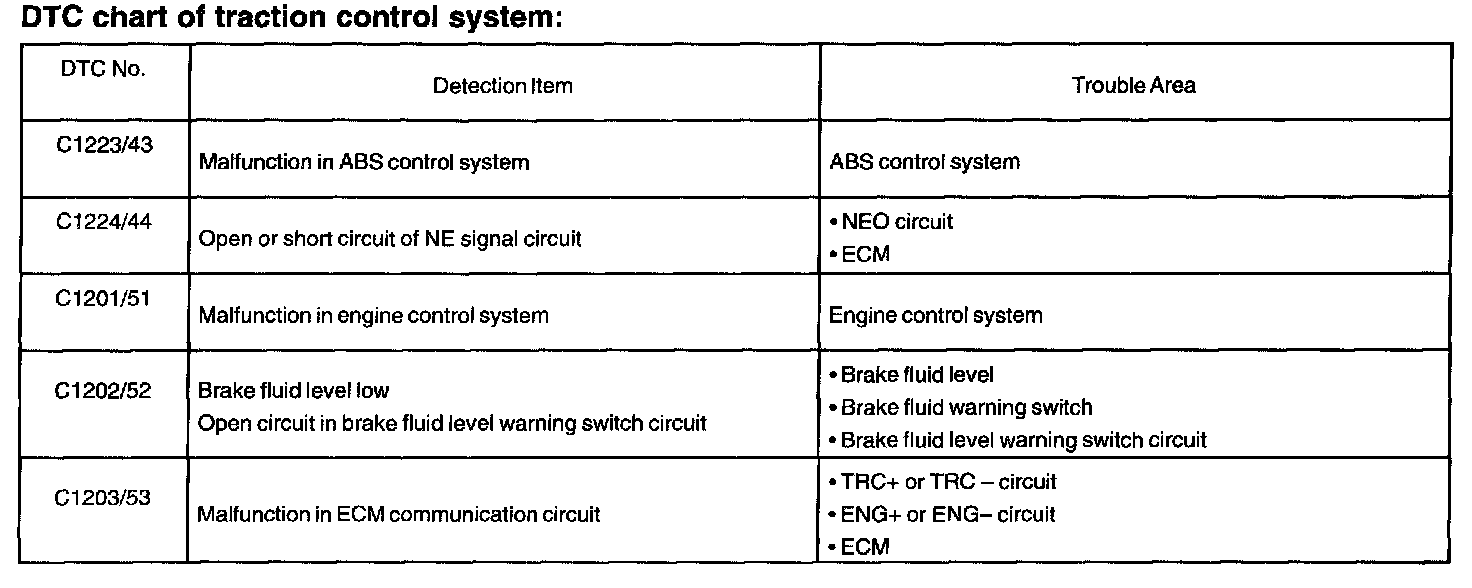

DTC Chart Of Traction Control System
