ABS W/EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

NOTE: Before replacing or removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18040, connect the terminals Tc and CG of DLC3.
- If any abnormality is not found on inspected parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit indicated by DTC. For details of each code, refer to the respective "DTC No." in the DTC chart.

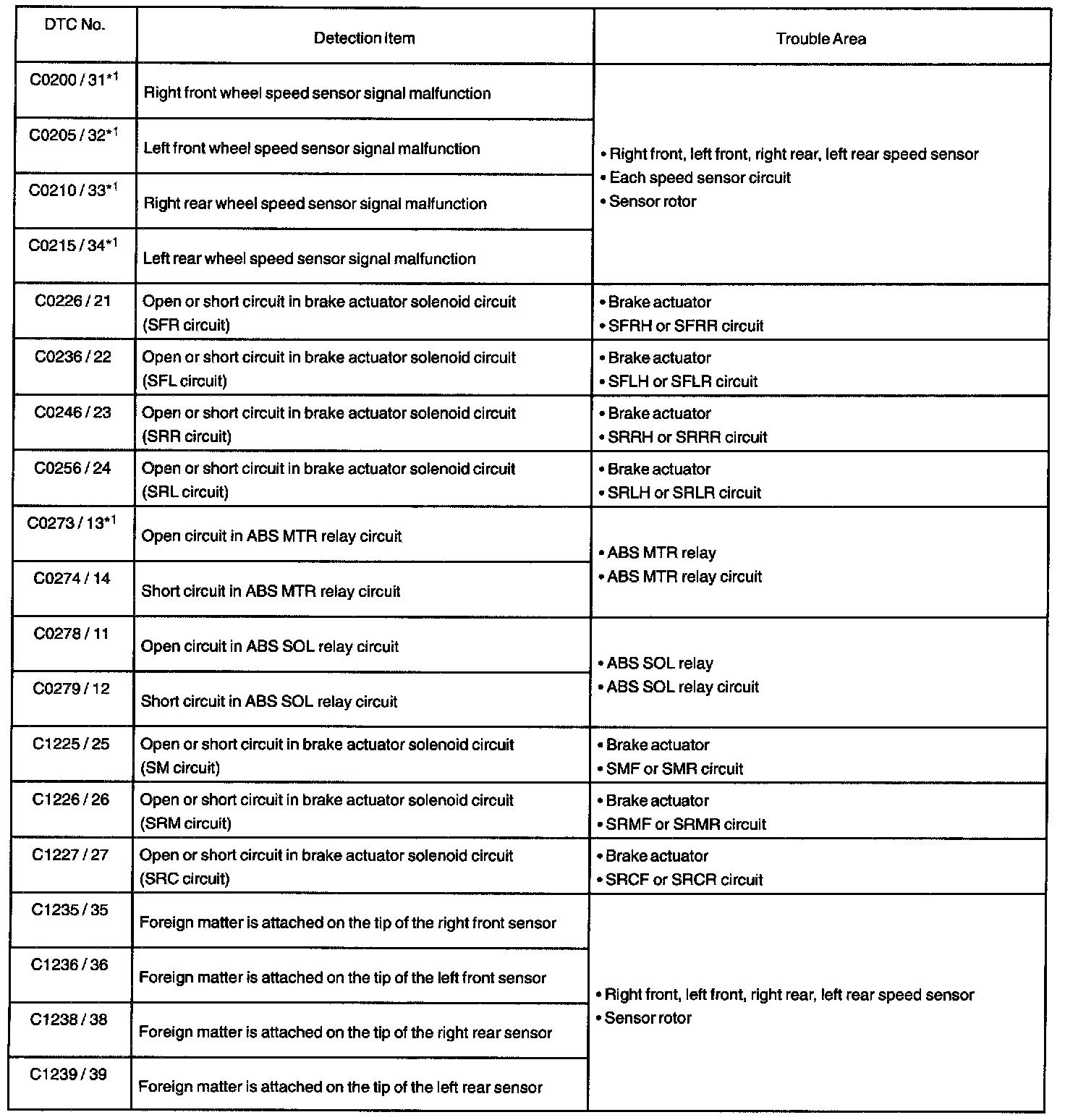

C0200/32 - C1239/39:

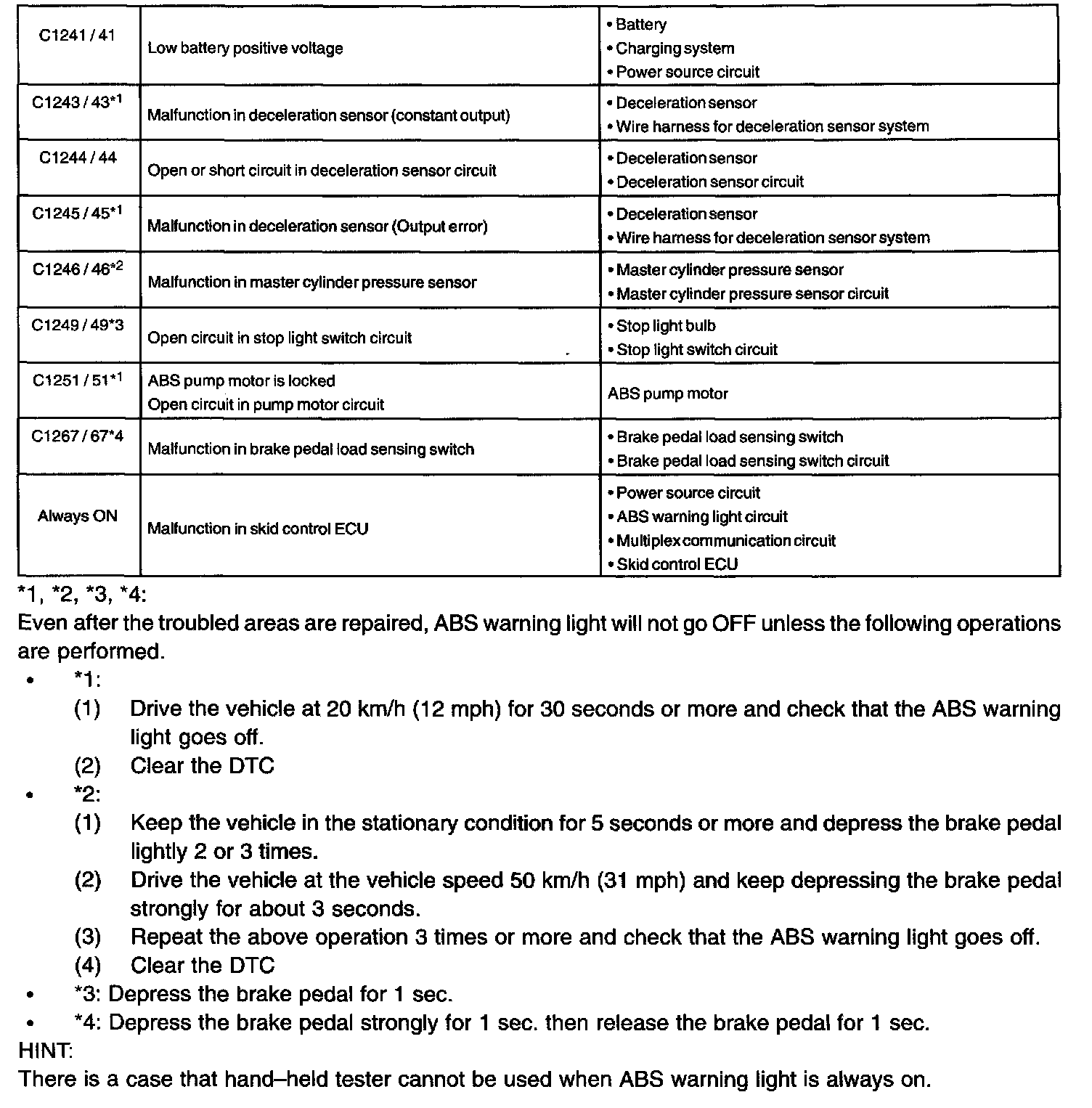

C1241/41 - C1267/67:

DTC chart of ABS

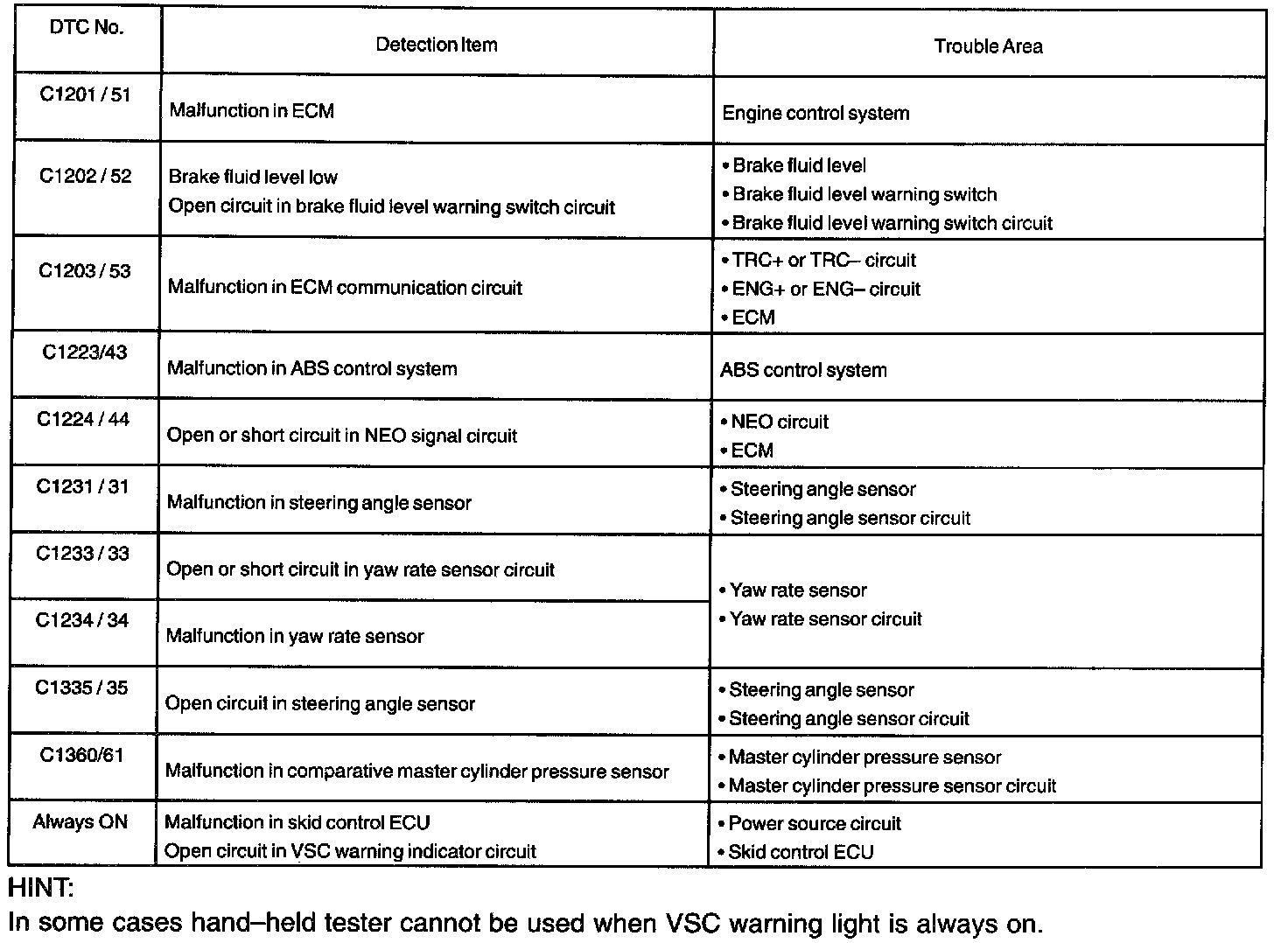

C1201/51 - C1360/61:

DTC chart of VSC
