C1234

DTC C1234 Malfunction In Yaw Rate Sensor

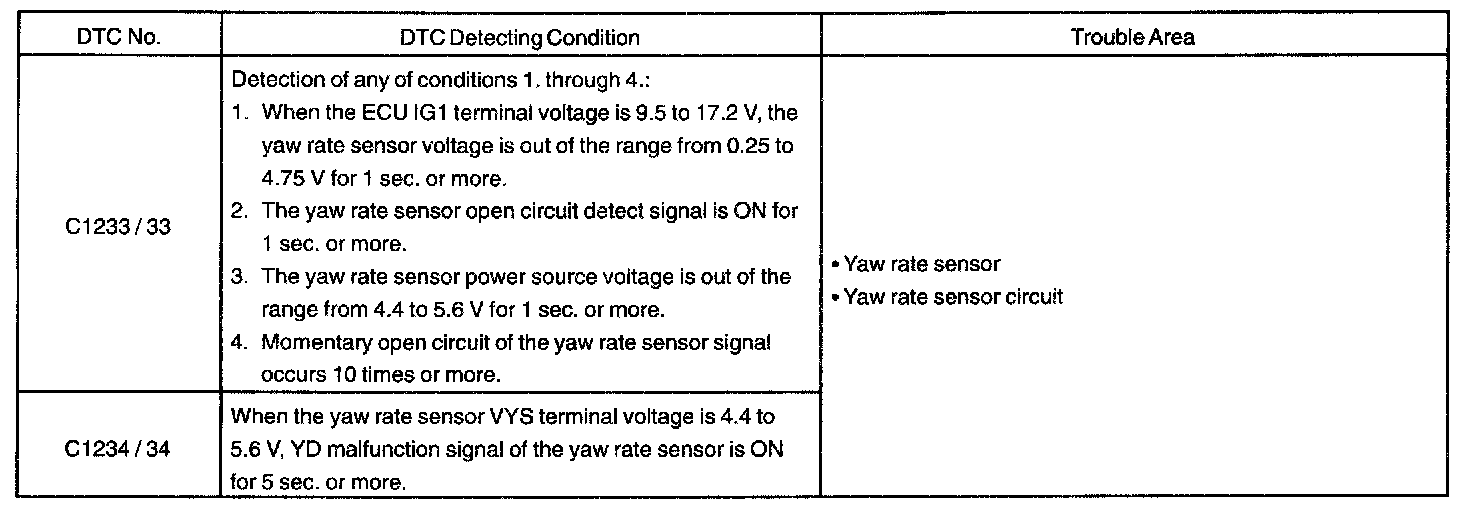

DTC Detecting Condition:




CIRCUIT DESCRIPTION

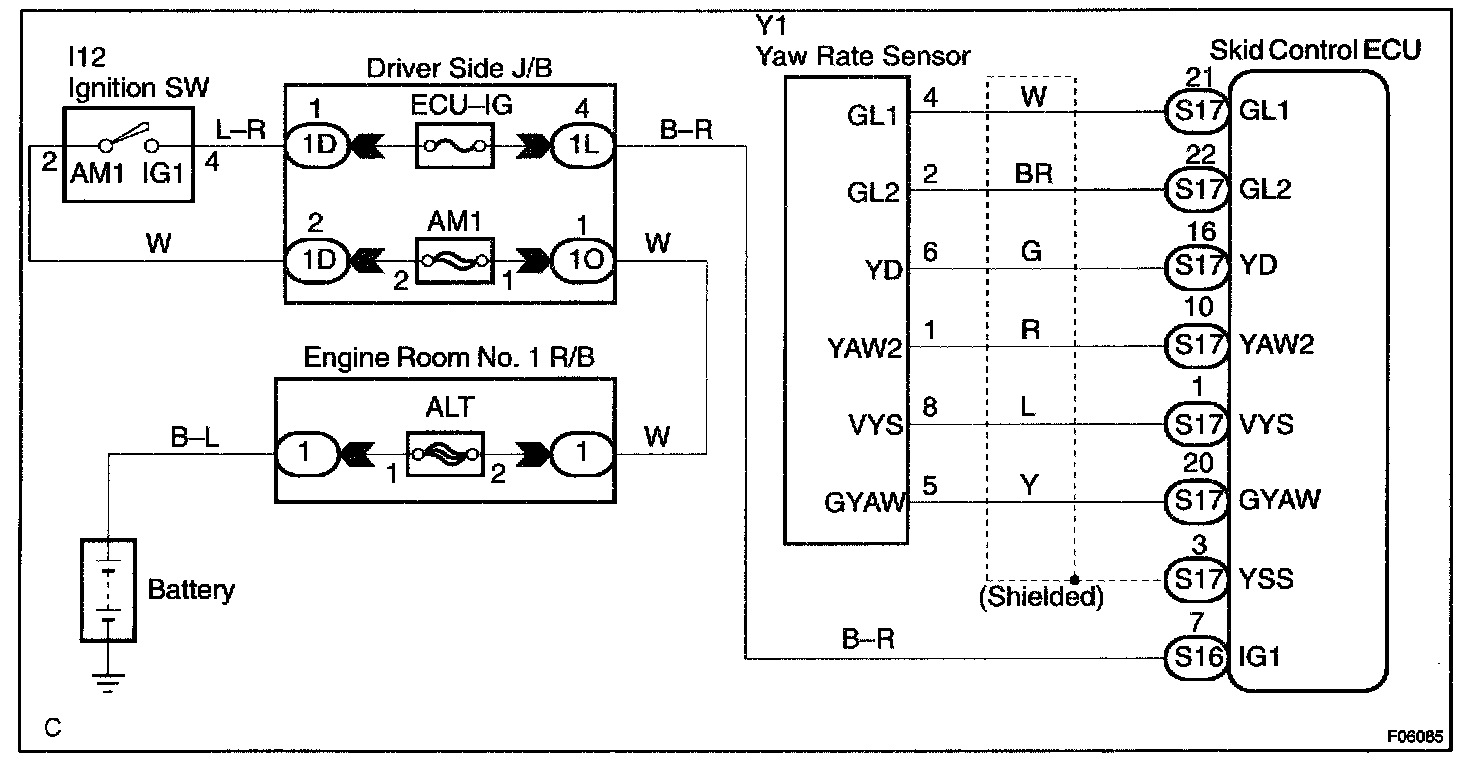

Wiring Diagram:

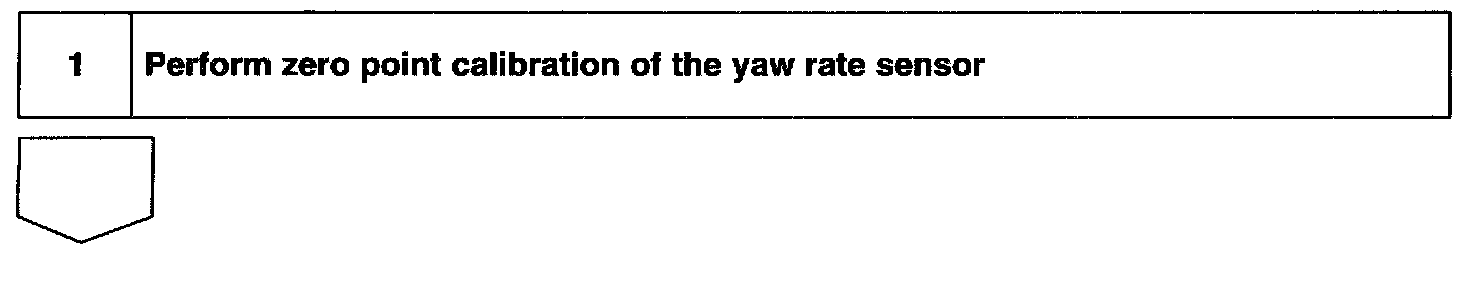

Step 1:

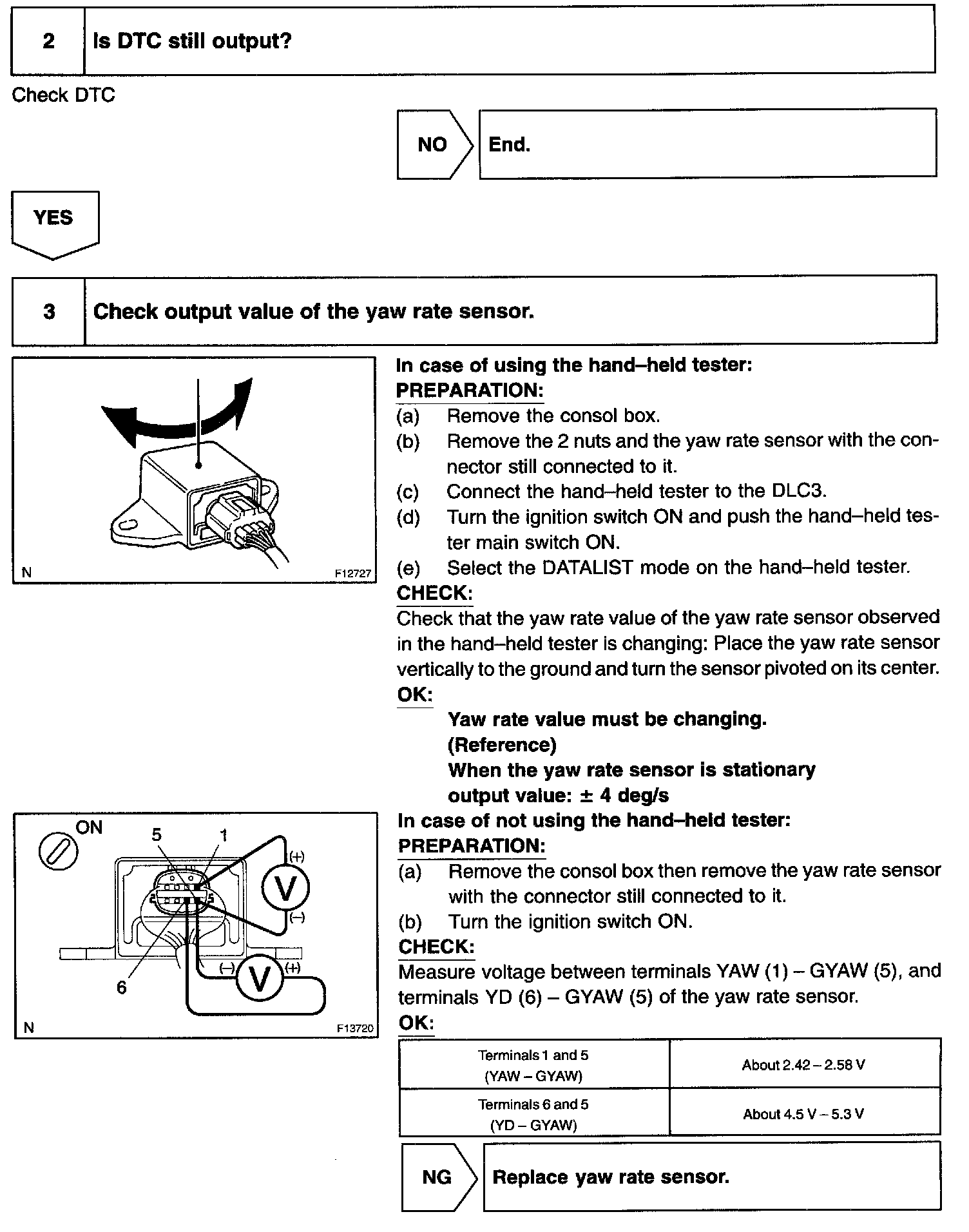

Step 2 - 3:

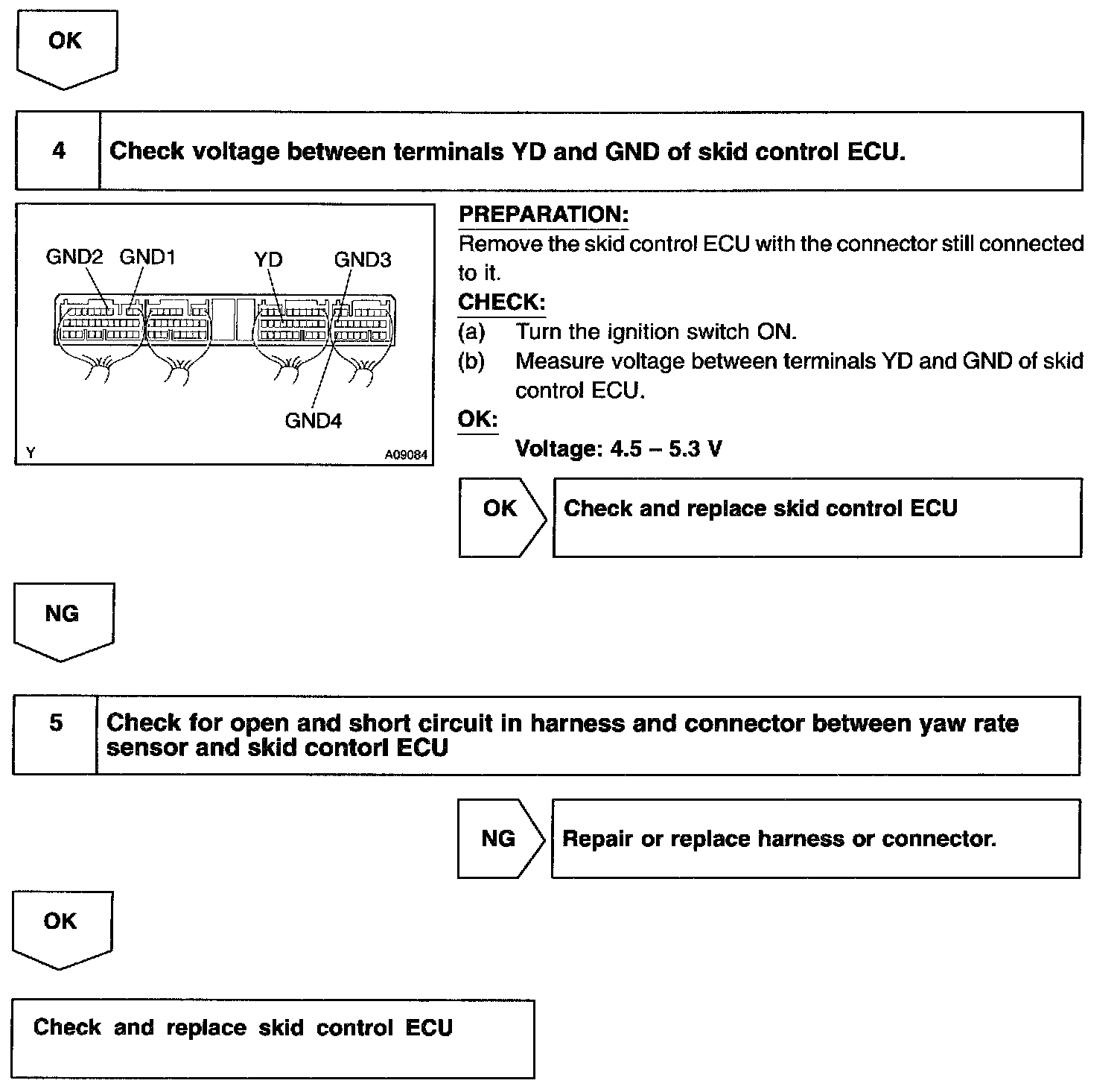

Step 3 (Continued) - 5:




INSPECTION PROCEDURE
