ABS W/EBD & BA & TRAC & VSC System

DTC C0278 - Open Circuit In ABS SOL Relay Circuit

CIRCUIT DESCRIPTION

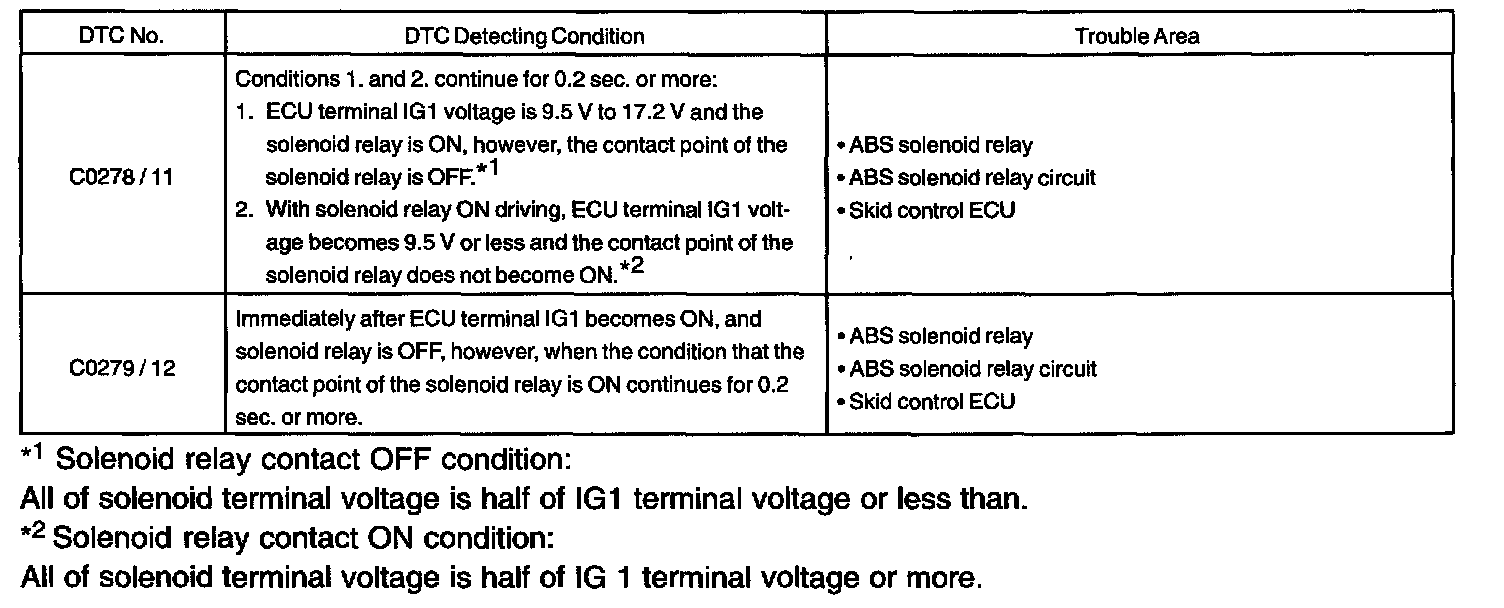

DTC Detecting Condition:

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the initial check is OK, the relay goes on.

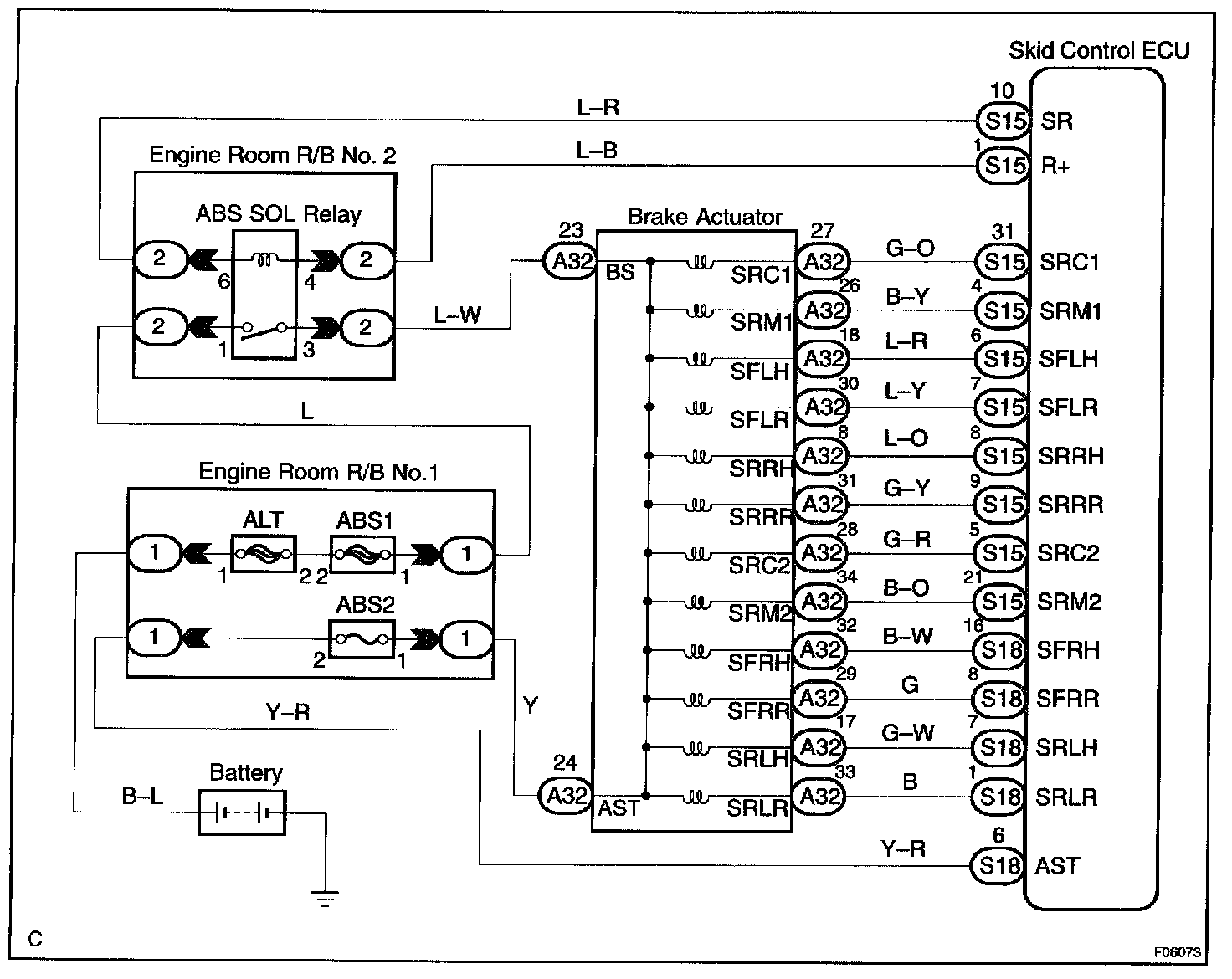

Wiring Diagram:

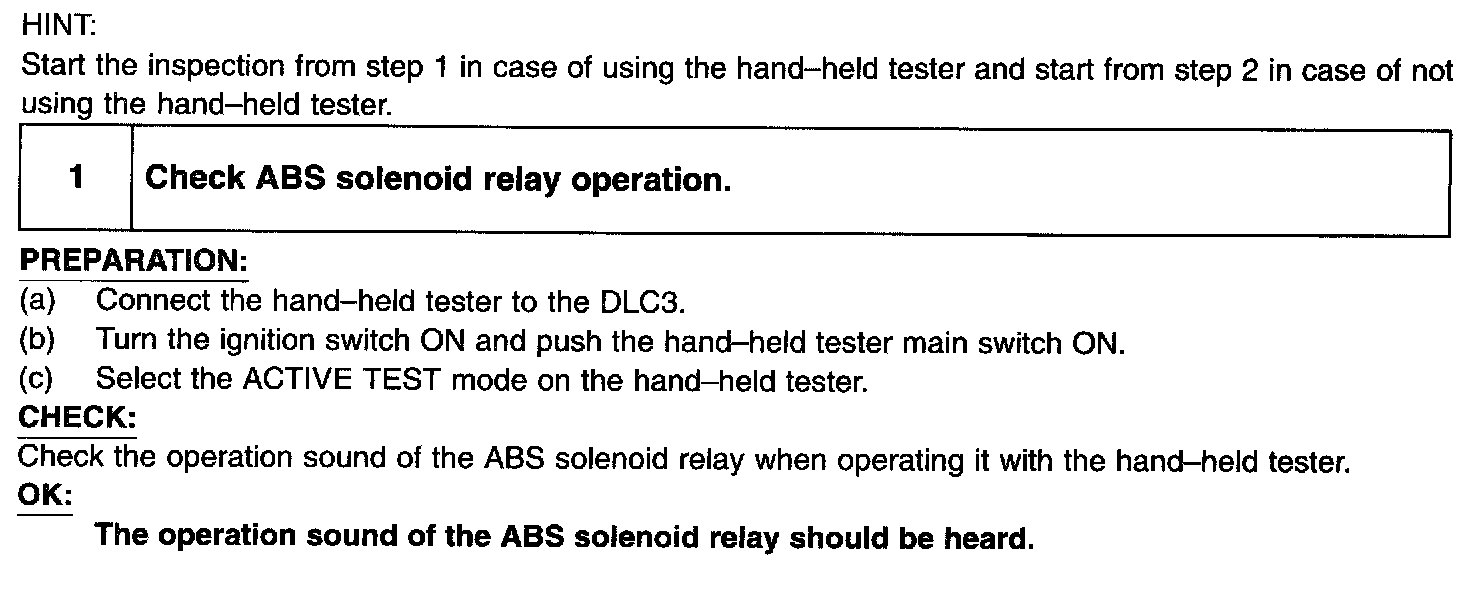

Step 1:

Step 1 (Continued) - 2:

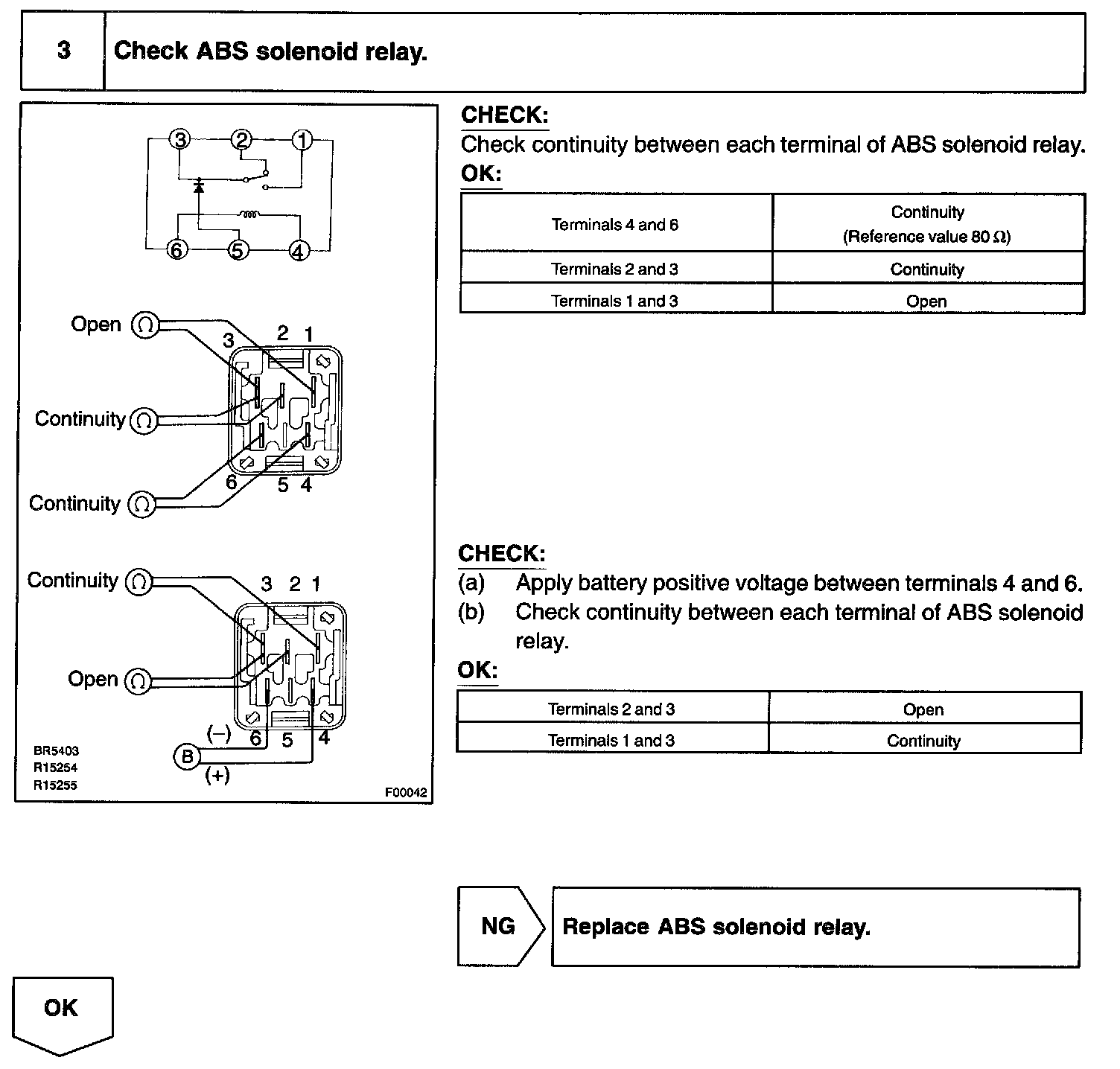

Step 3:

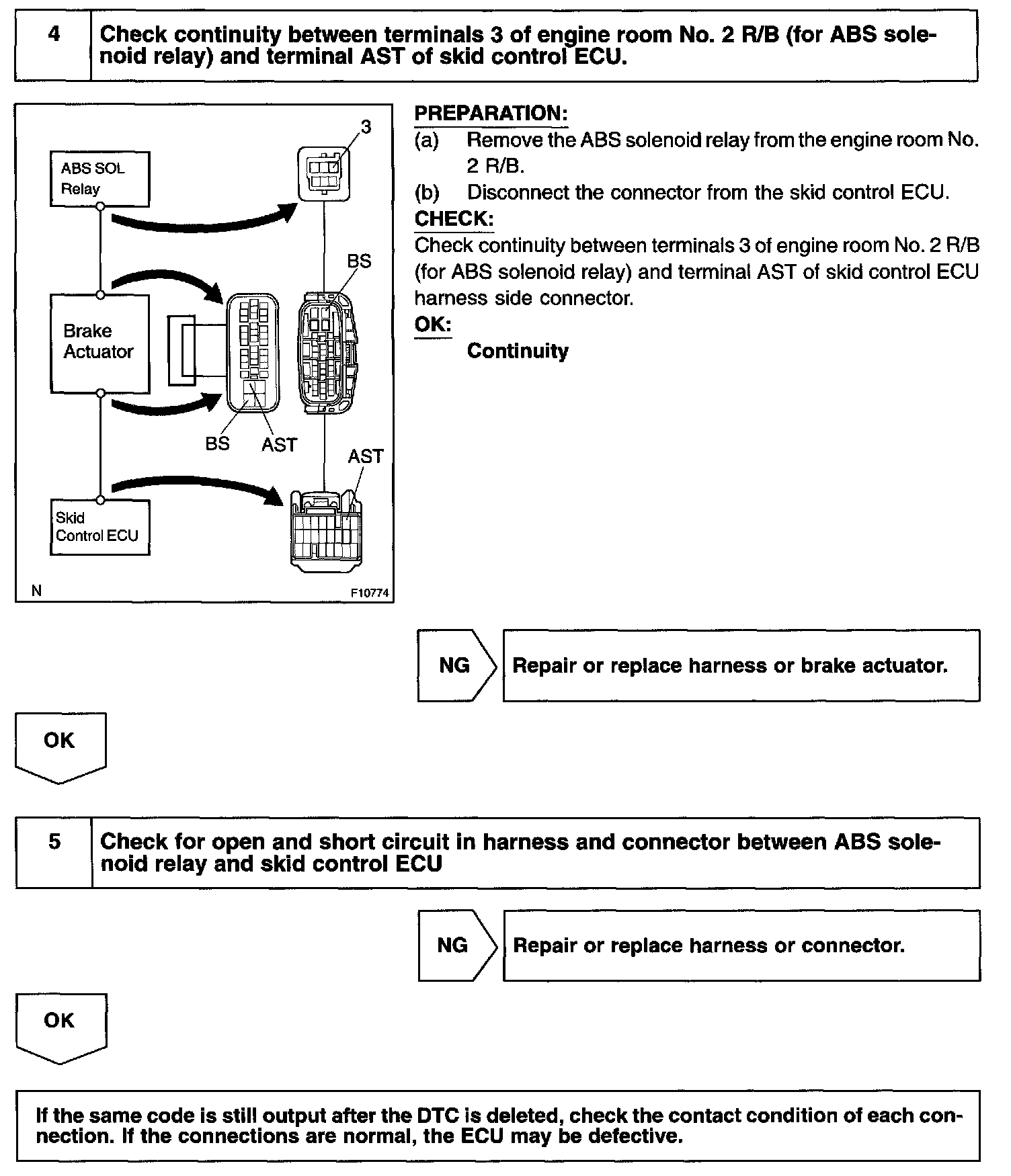

Step 4 - 5:

INSPECTION PROCEDURE
