ABS W/EBD & BA & TRAC & VSC System

DTC C0274 - Short Circuit In ABS MTR Relay Circuit

CIRCUIT DESCRIPTION

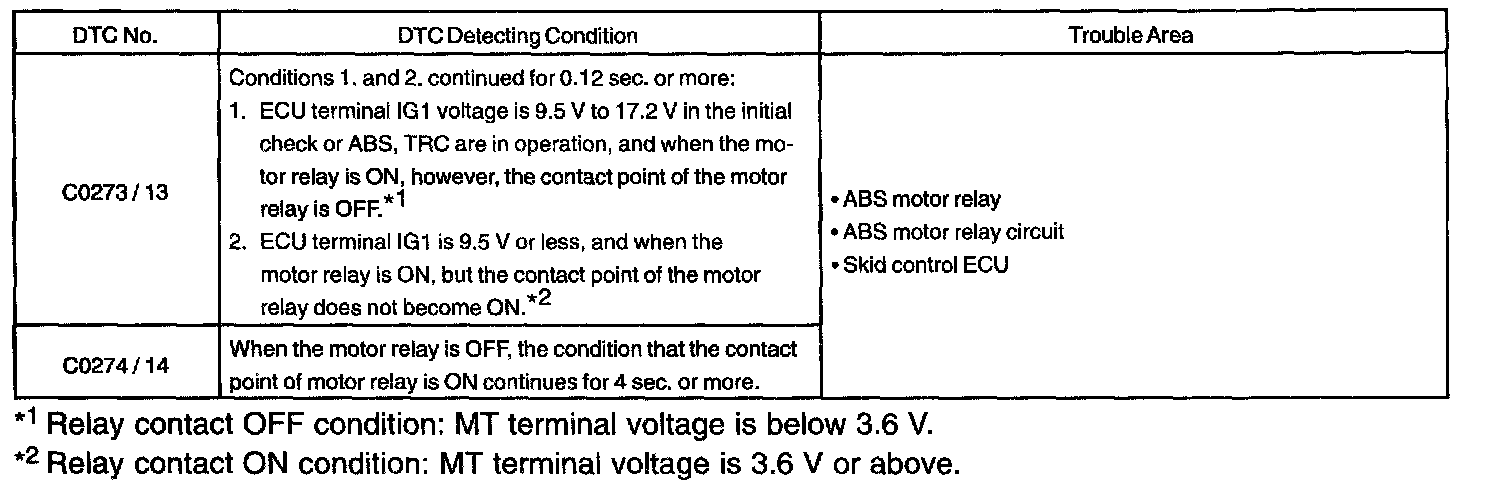

DTC Detecting Condition:

The ABS motor relay supplies power to the ABS pump motor. While the ABS & TRAC & VSC are activated, the ECU switches the motor relay ON and operates the ABS pump motor.

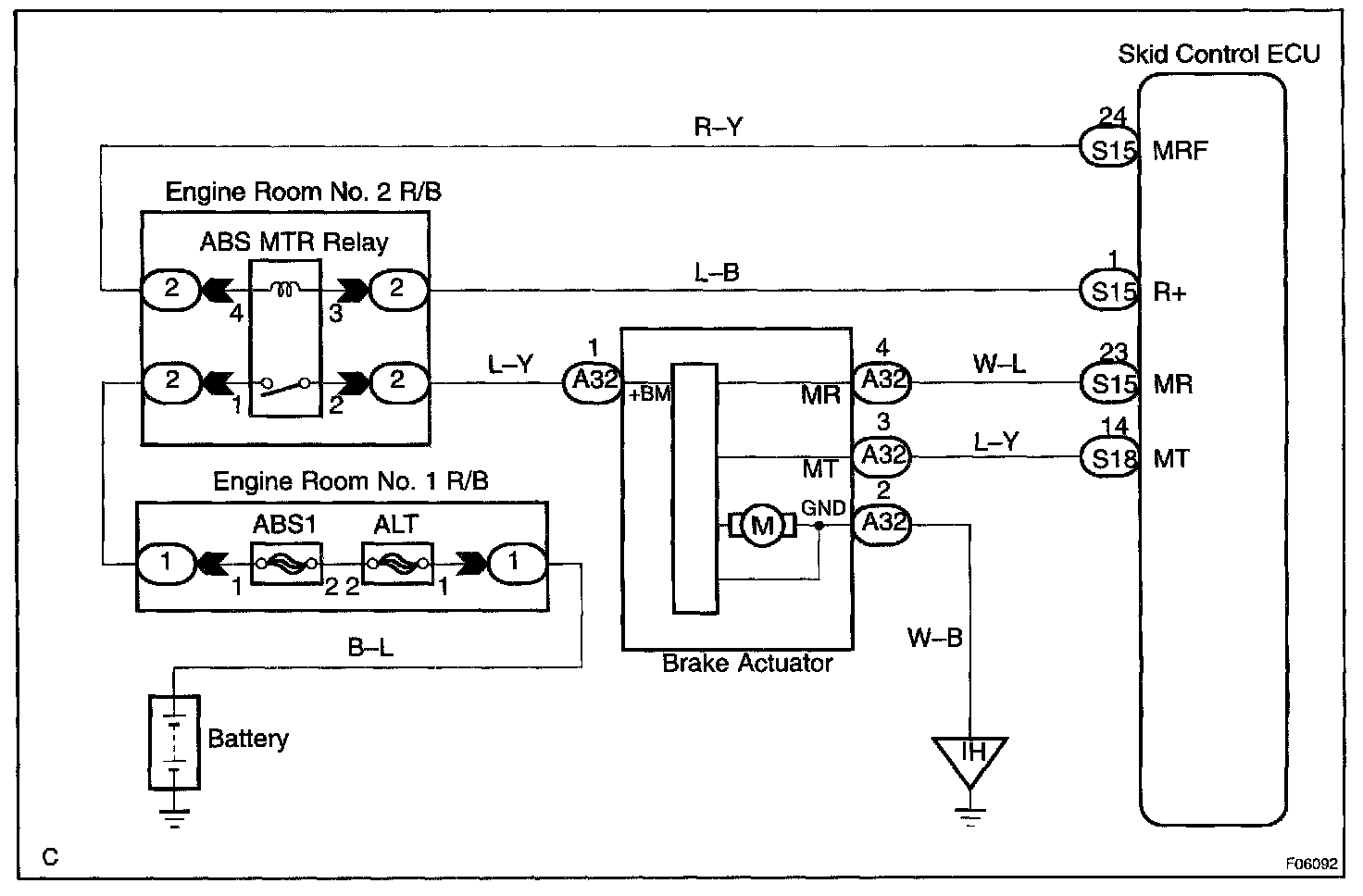

Wiring Diagram:

Step 1 - 2:

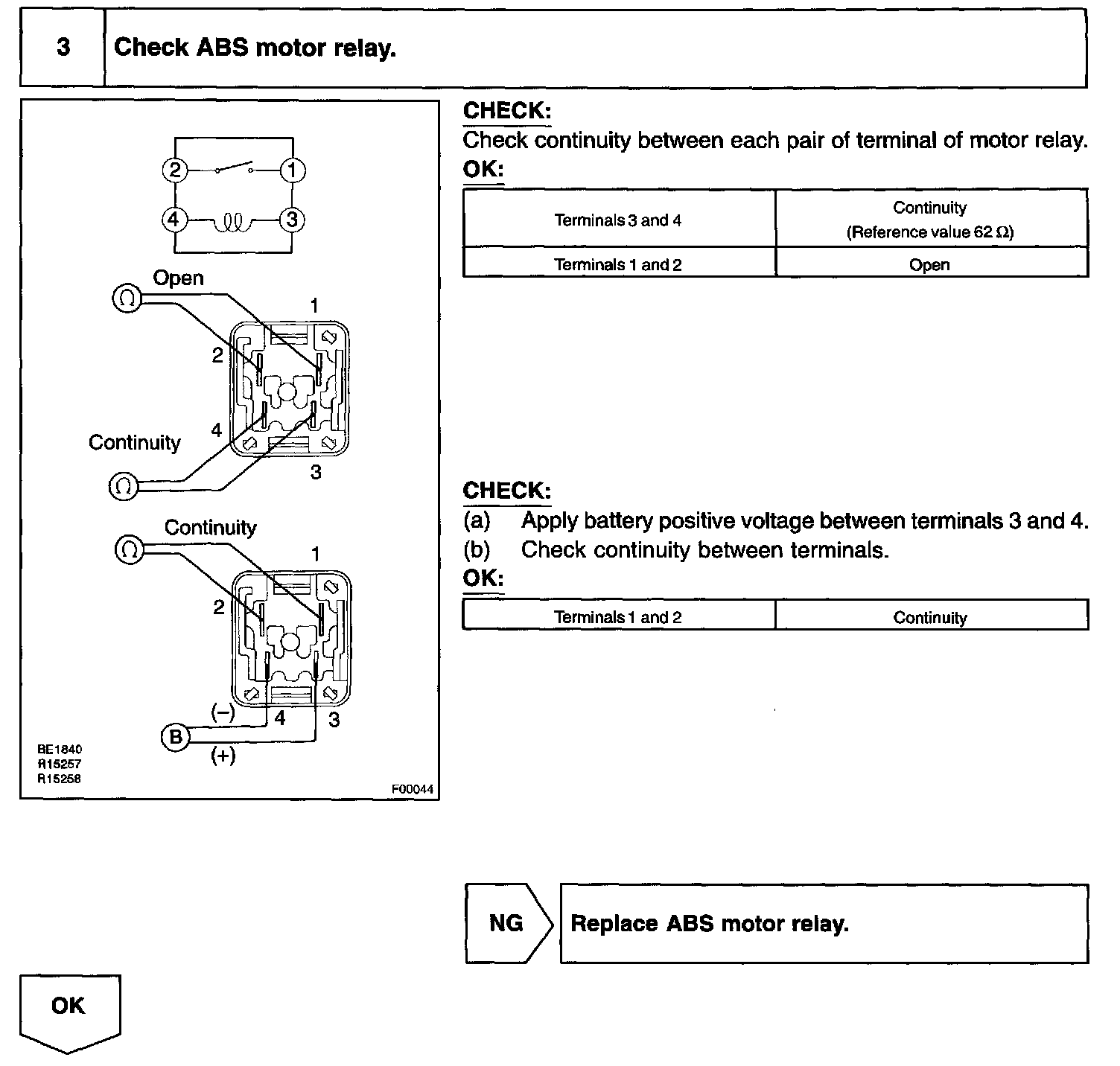

Step 3:

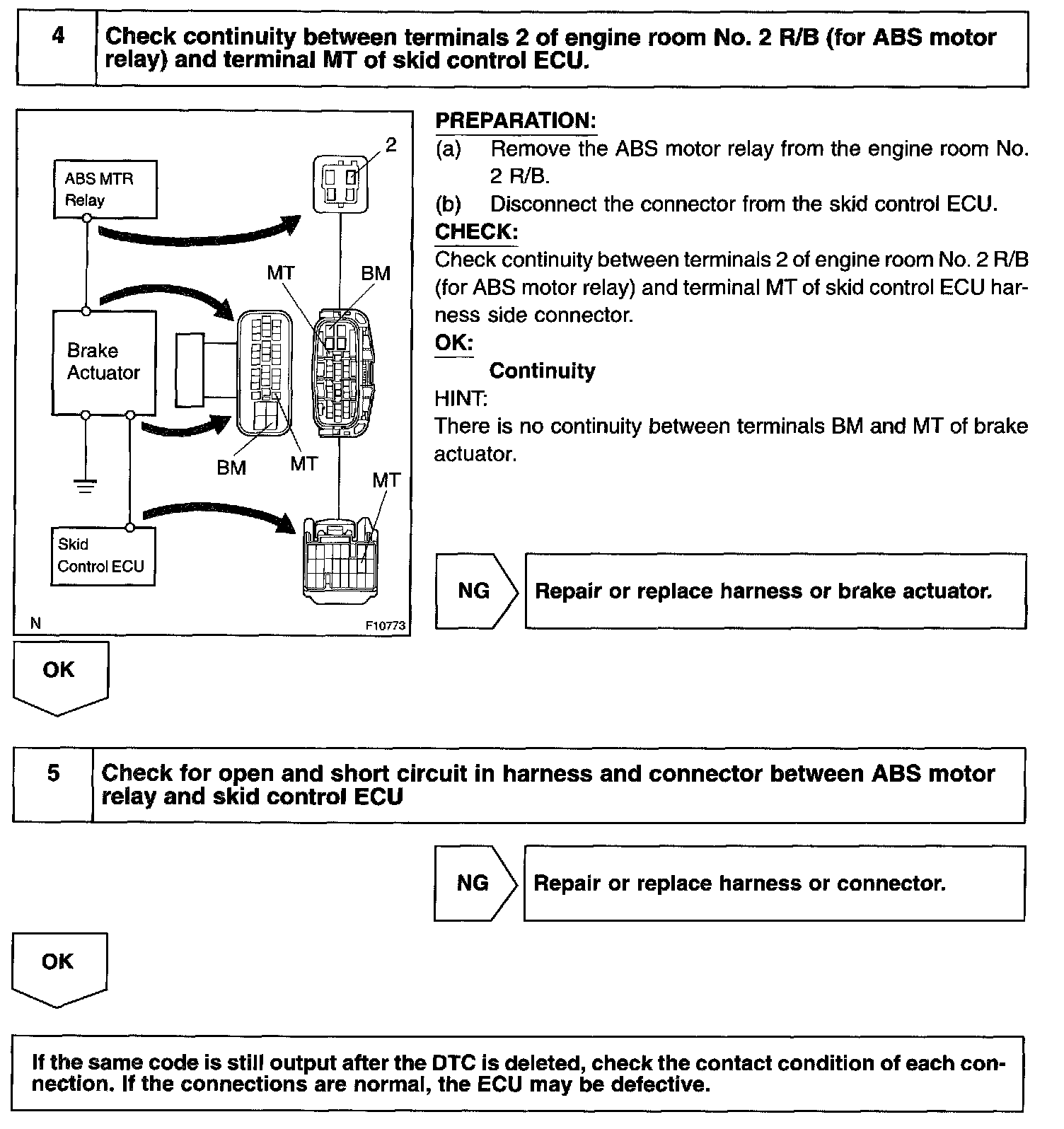

Step 4 - 5:

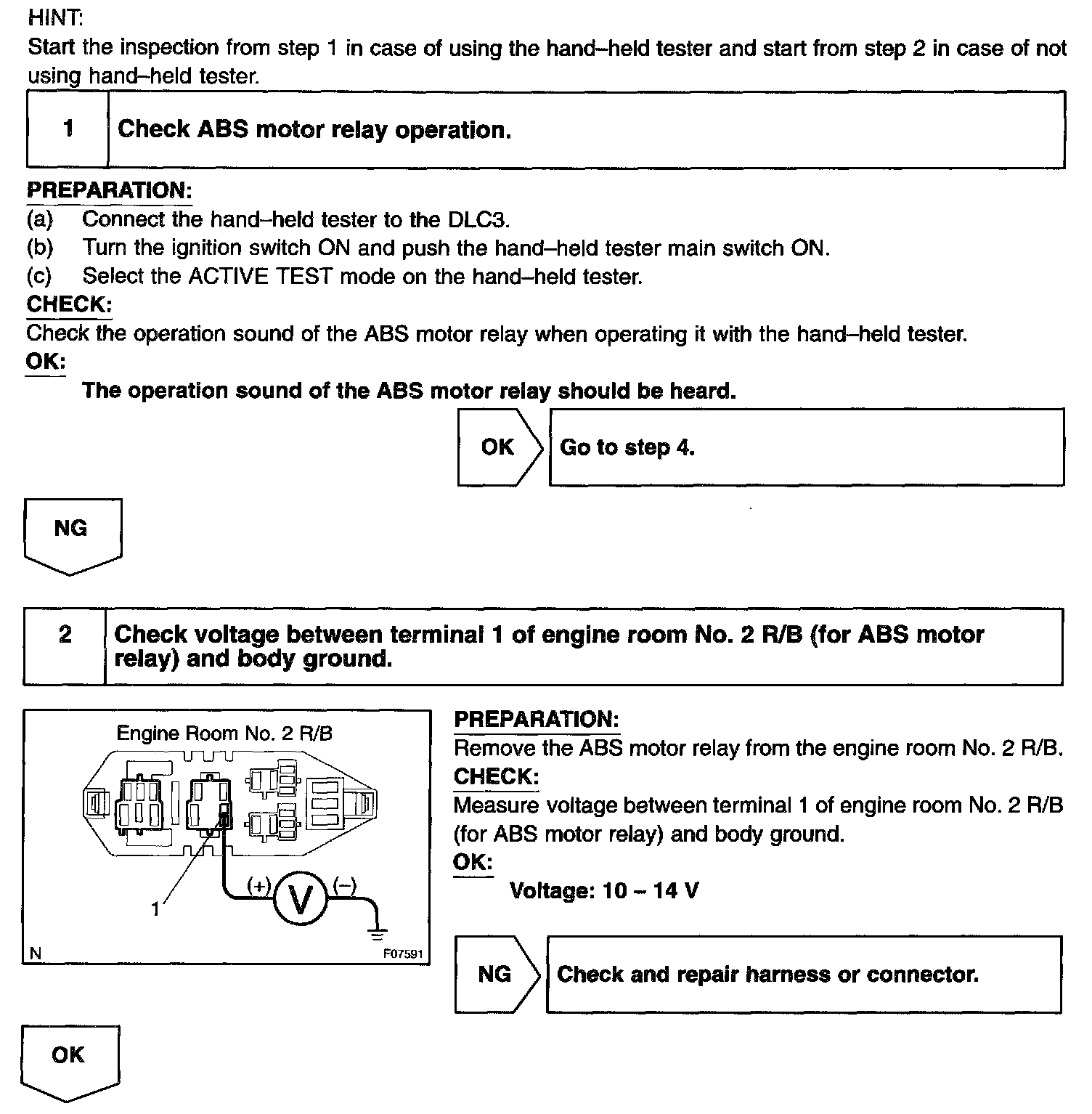

INSPECTION PROCEDURE
