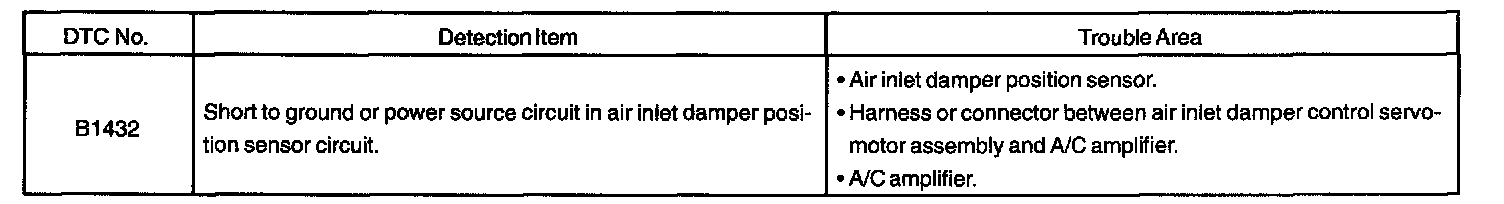

DTC B1432 Air Inlet Damper Position Sensor Circuit

CIRCUIT DESCRIPTION

Detection Item:

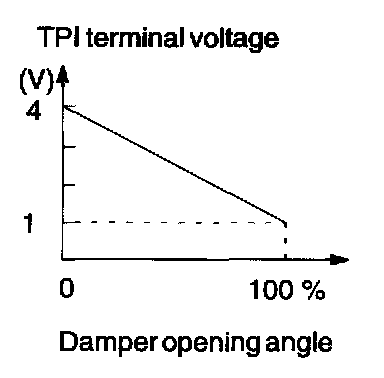

This sensor detects the position of the air inlet damper and sends the appropriate signals to the A/C amplifier. The position sensor is built into the air inlet damper control servomotor assembly.

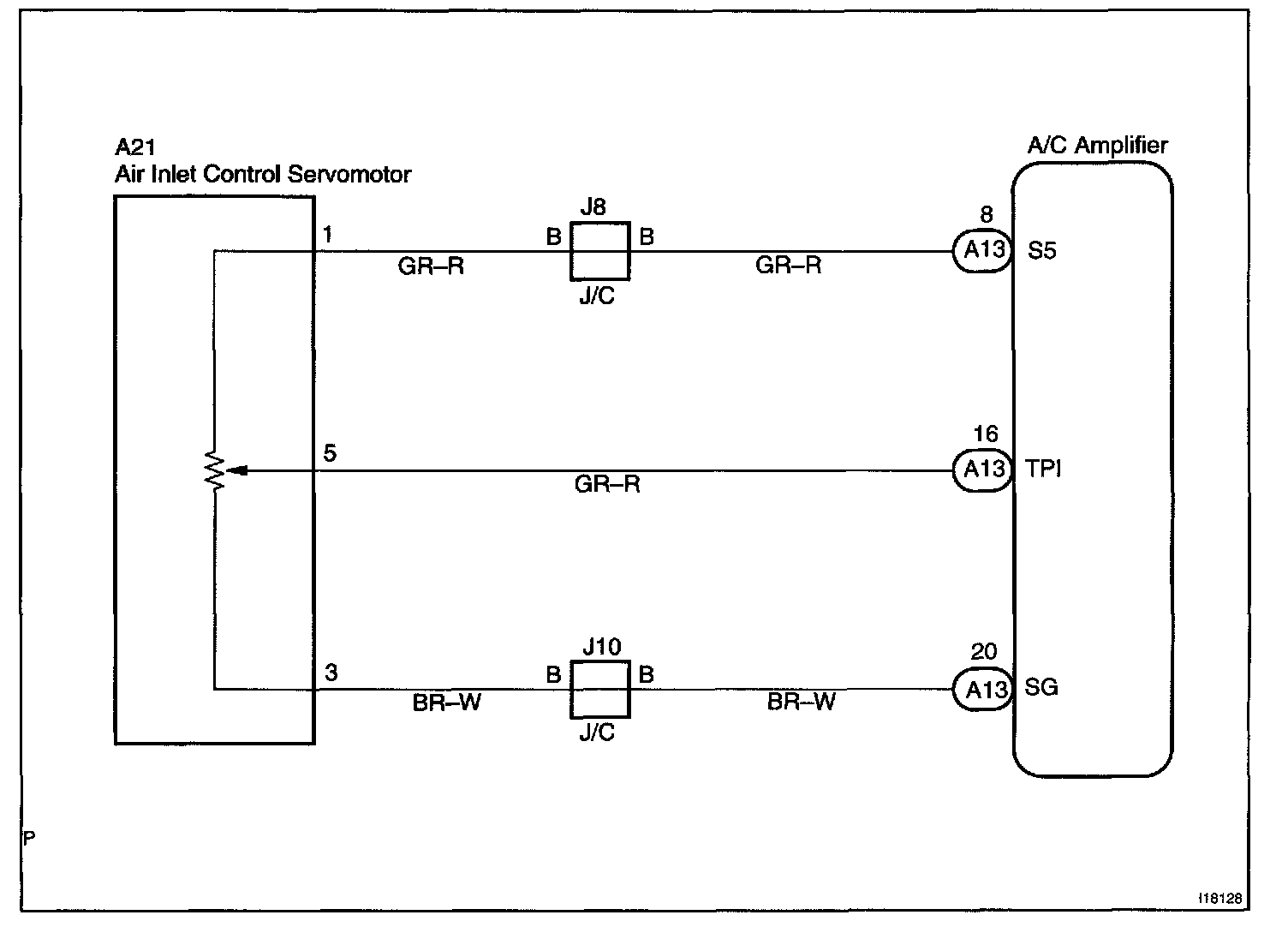

Wiring Diagram:

Step 1 - 2:

Step 3 - 4:

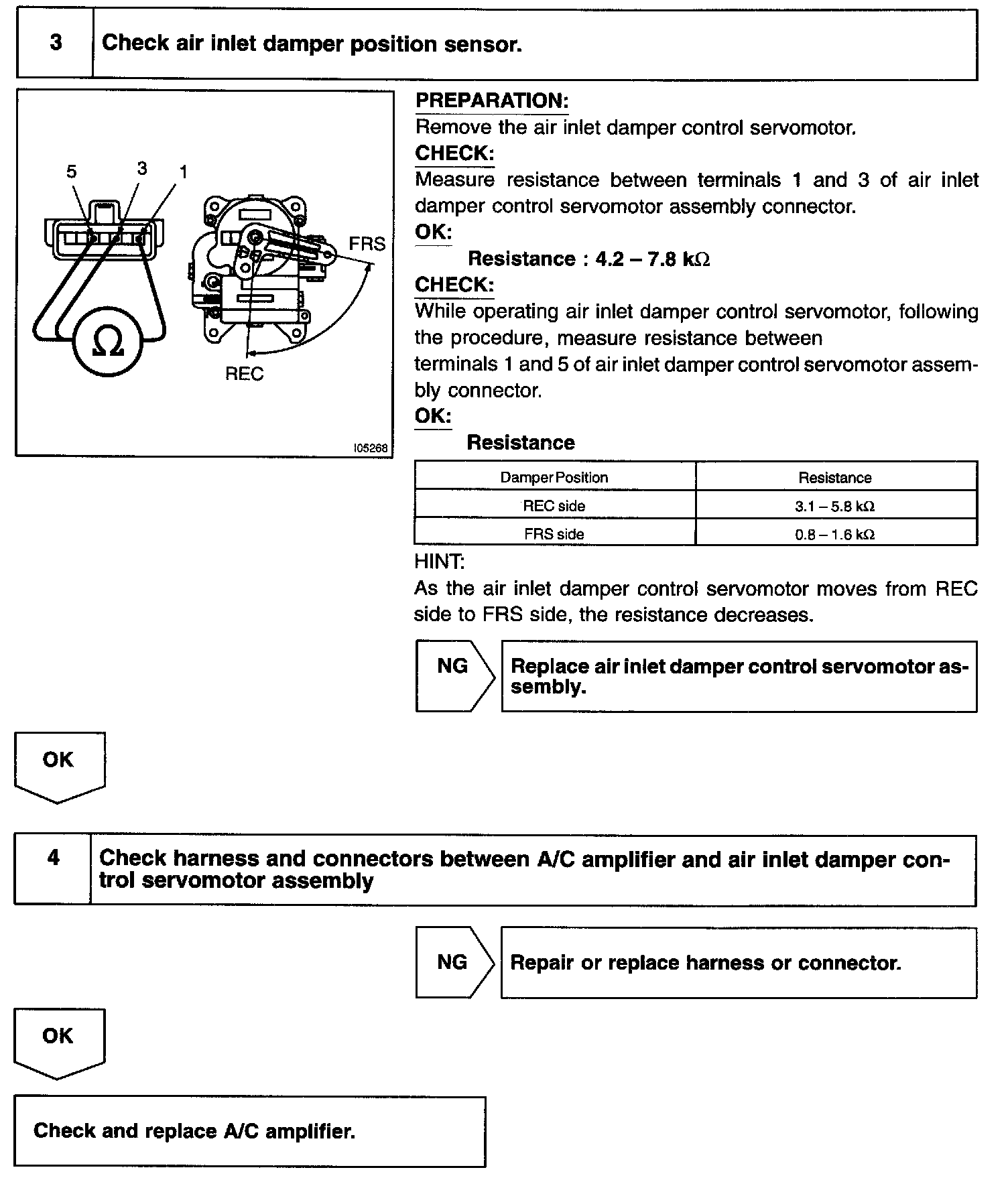

INSPECTION PROCEDURE
