B1431

DTC B1431 Air Mix Damper Position Sensor Circuit

CIRCUIT DESCRIPTION

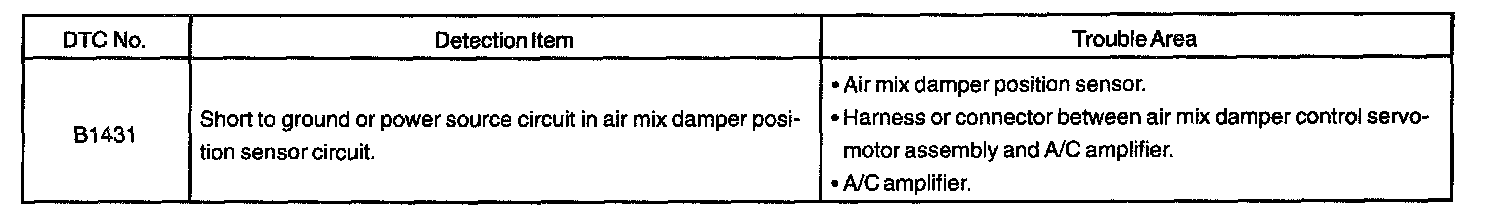

Detection Item:

This sensor detects the position of the air mix damper and sends the appropriate signals to the A/C amplifier. The position sensor is built into the air mix damper control servomotor assembly.

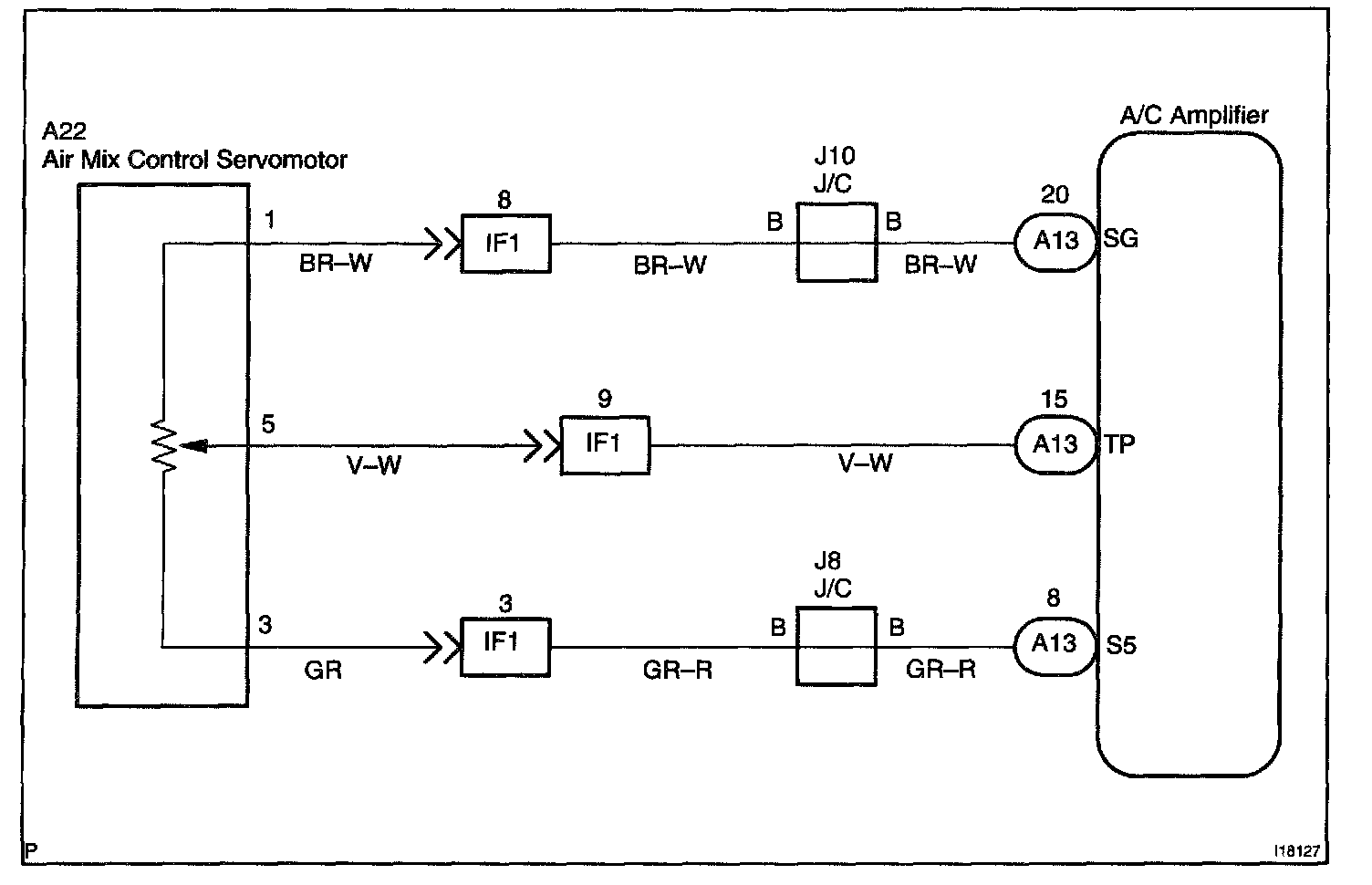

Wiring Diagram:

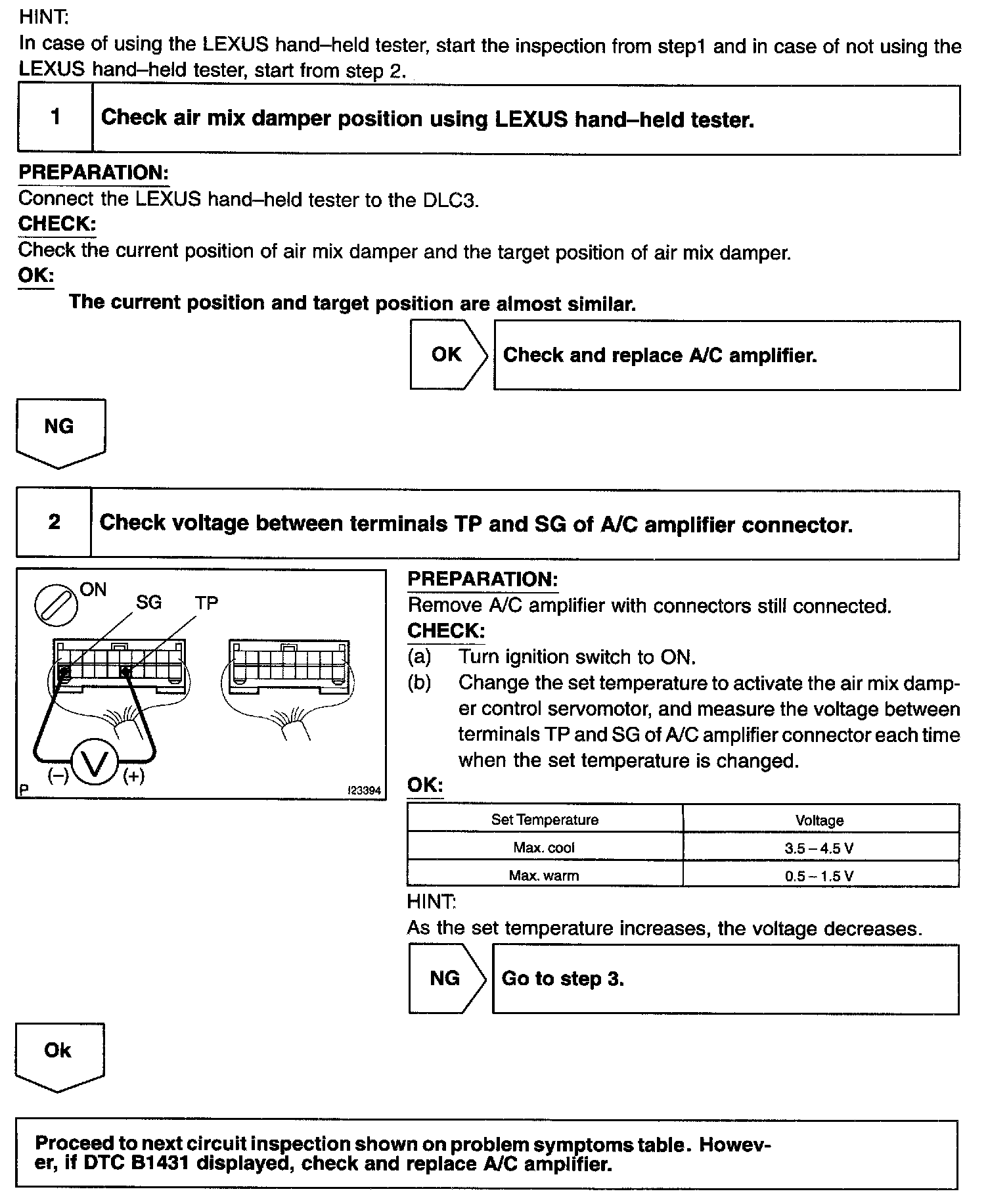

Step 1 - 2:

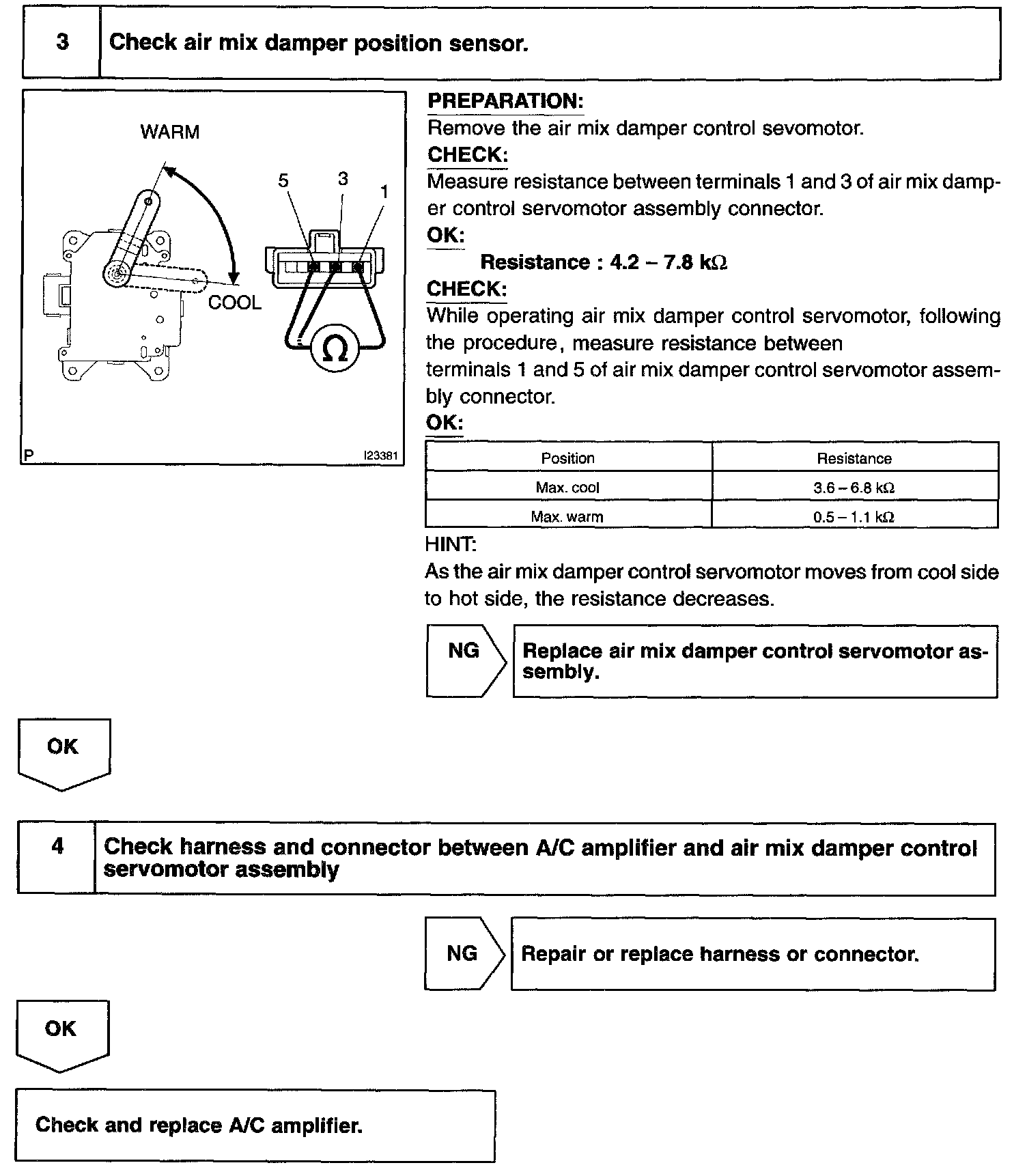

Step 3 - 4:

INSPECTION PROCEDURE
