B1421

DTC B1421 Solar Sensor Circuit

CIRCUIT DESCRIPTION

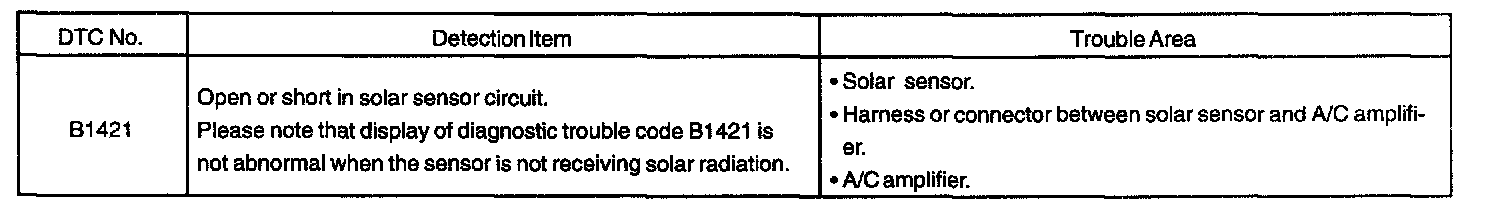

Detection Item:

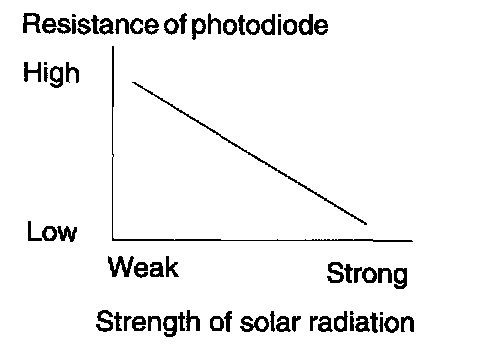

A photo diode in the solar sensor detects solar radiation and sends signals to the A/C amplifier.

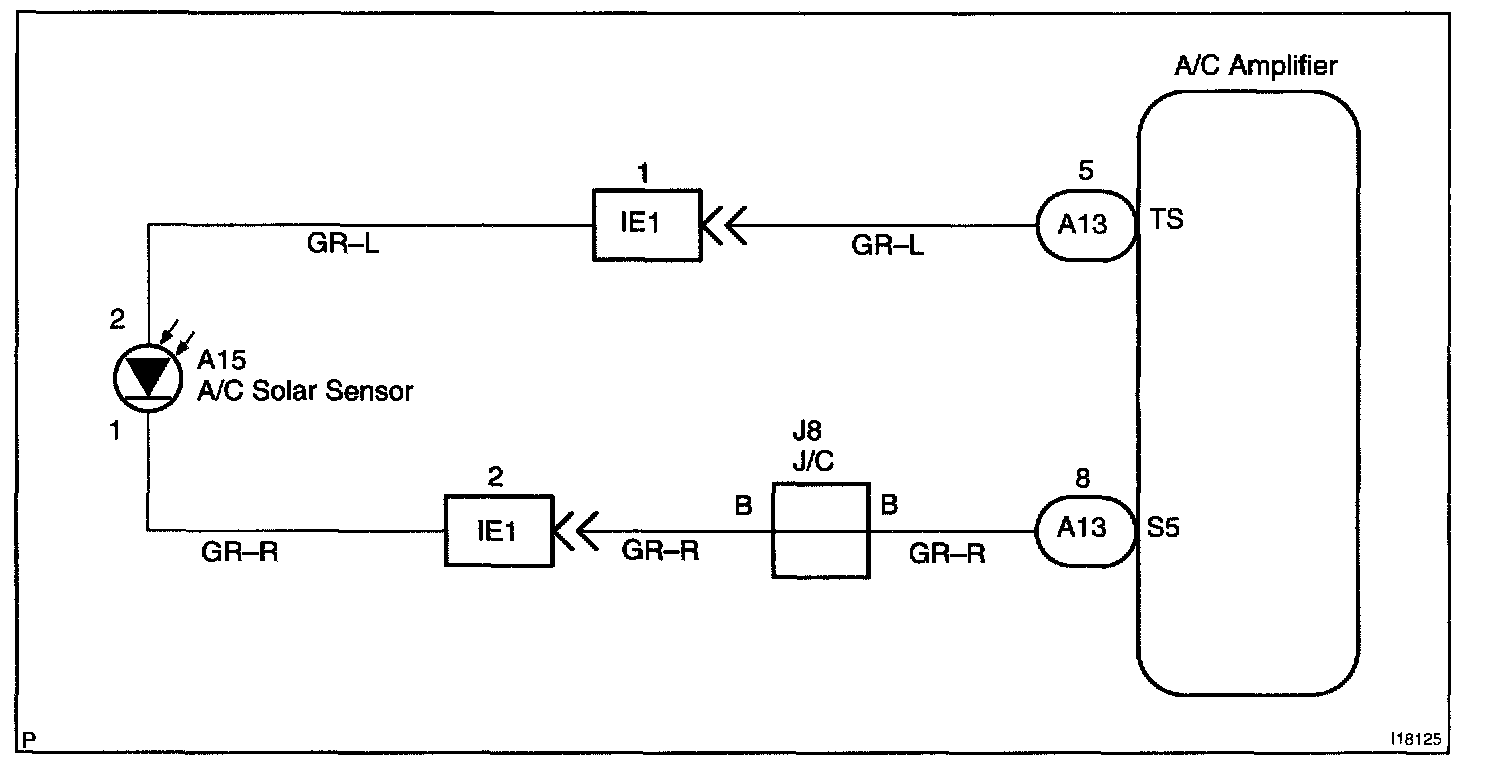

Wiring Diagram:

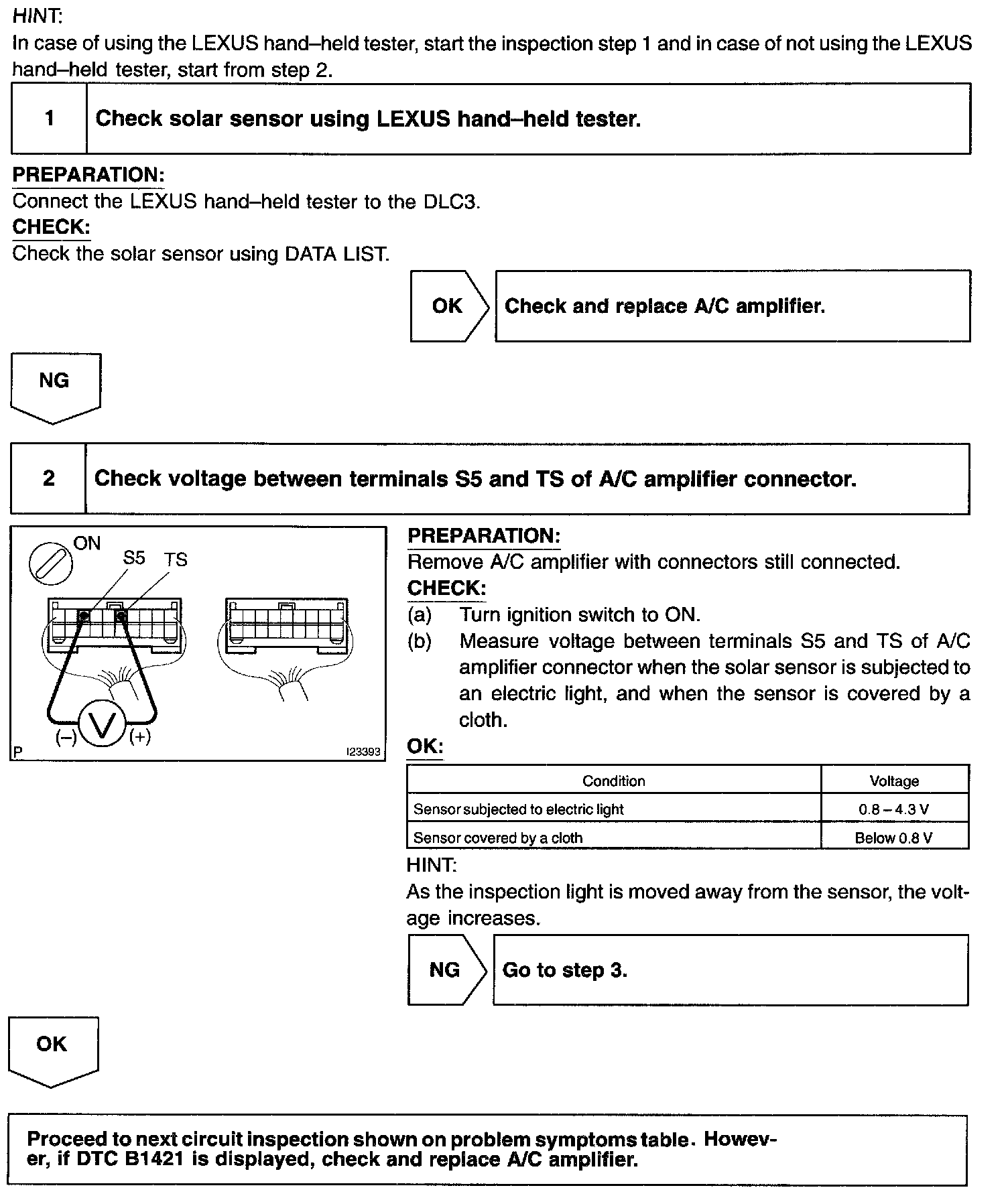

Step 1 - 2:

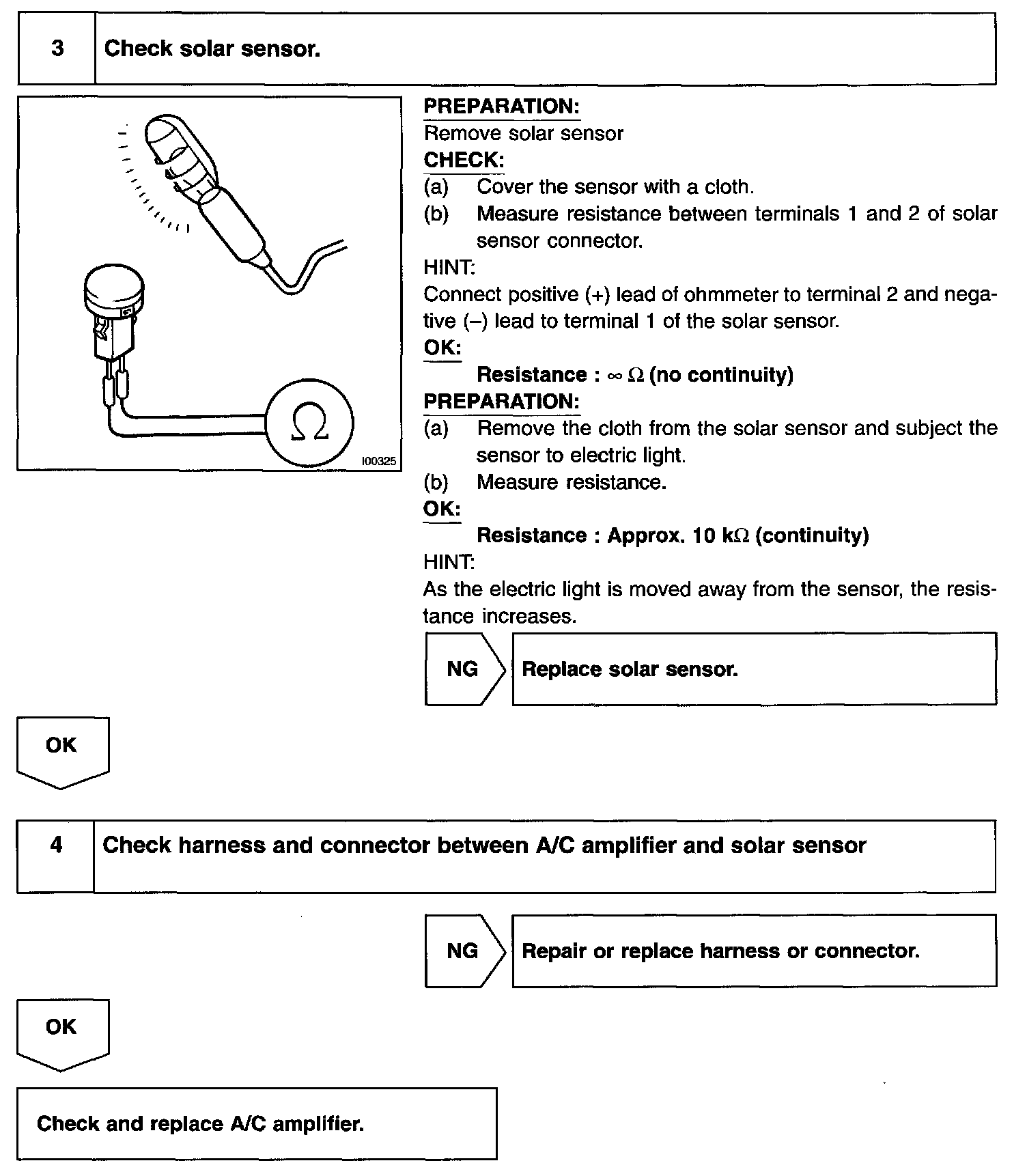

Step 3 - 4:

INSPECTION PROCEDURE
