B0103

CIRCUIT DESCRIPTION

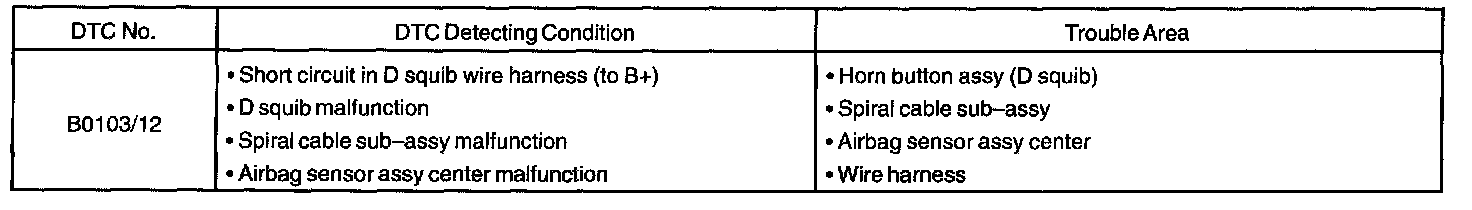

DTC Detecting Condition:

The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.

It causes the SRS to deploy when the SRS deployment conditions are satisfied.

For details of the function of each component, see DESCRIPTION AND OPERATION.

DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.

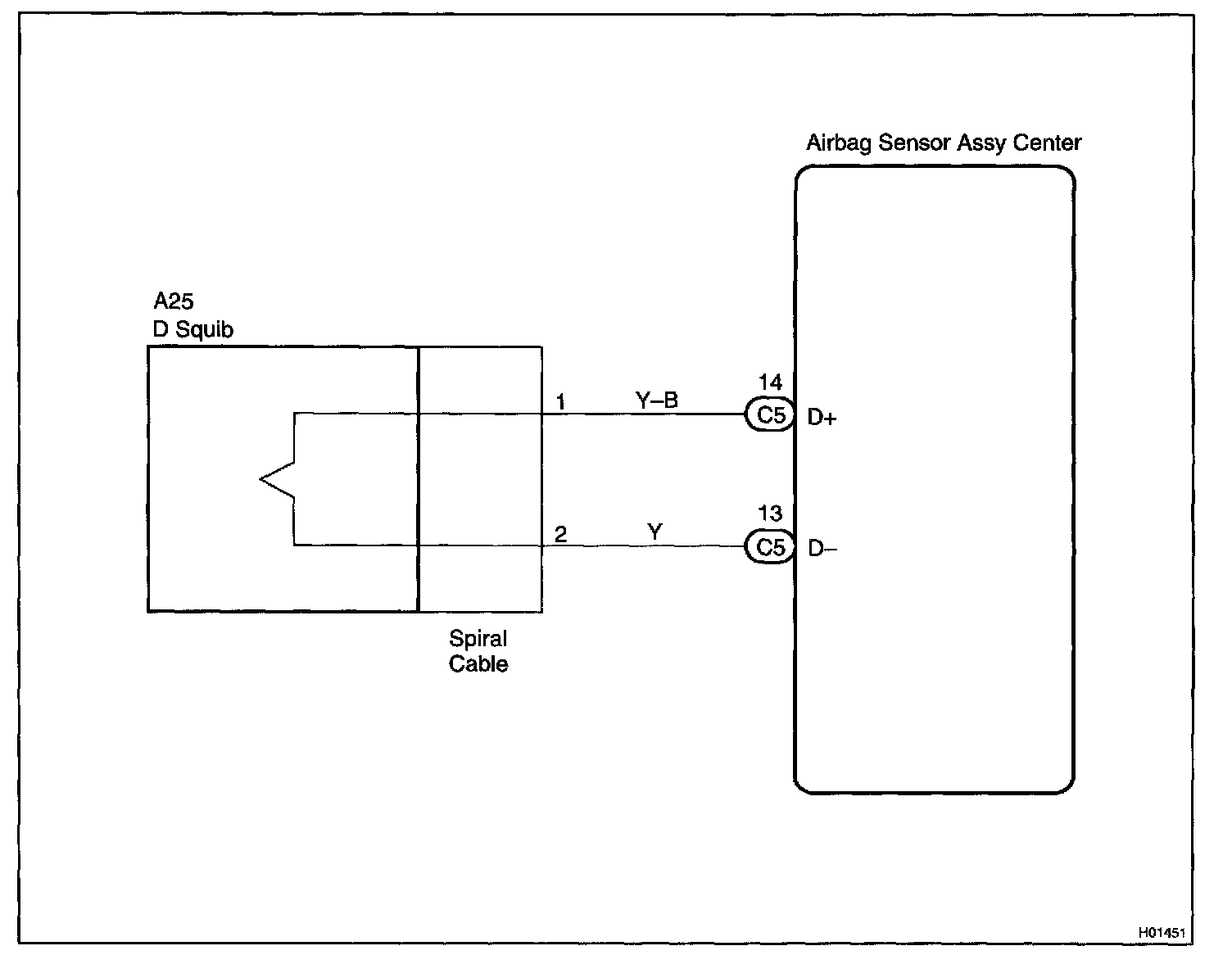

Wiring Diagram:

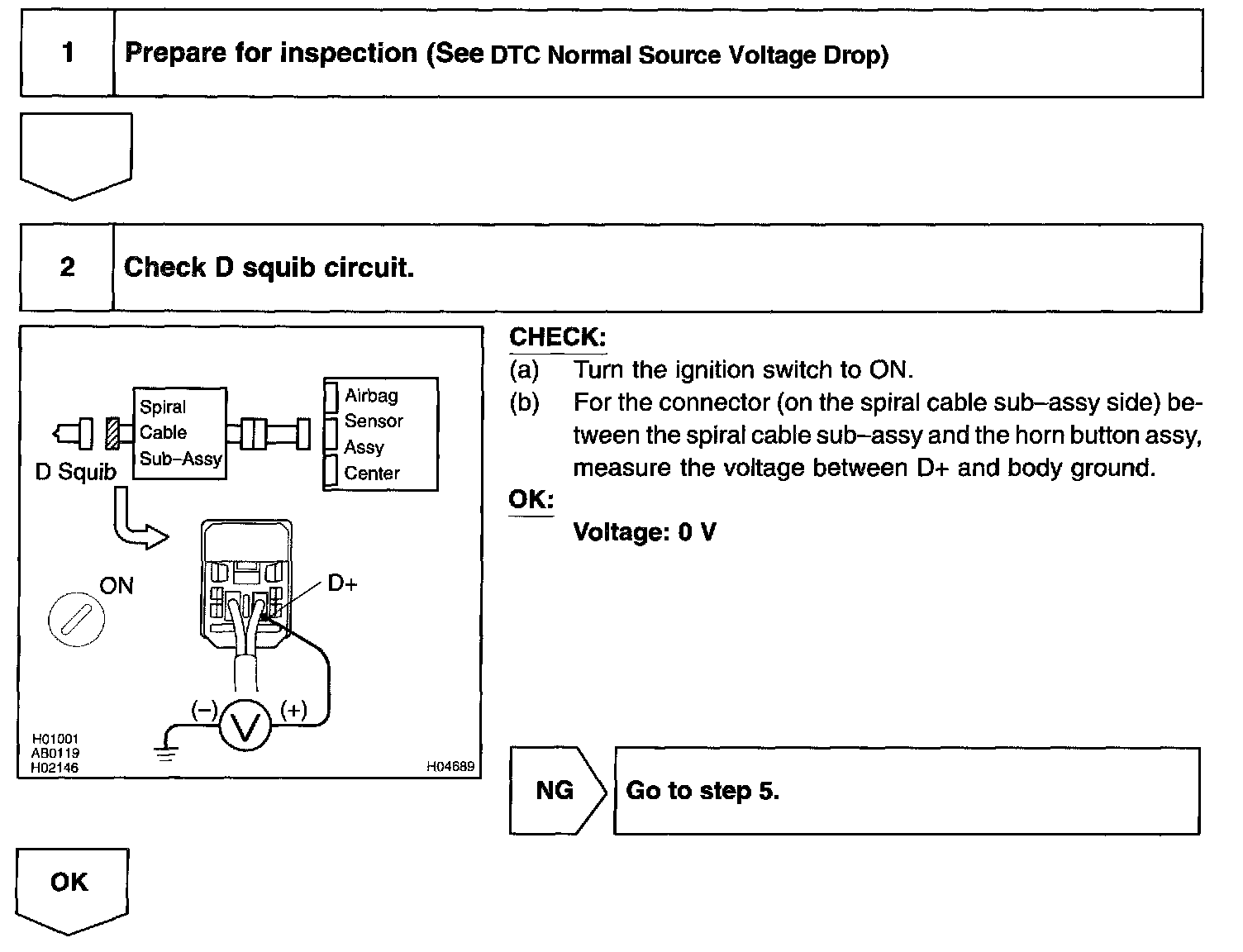

Step 1 - 2:

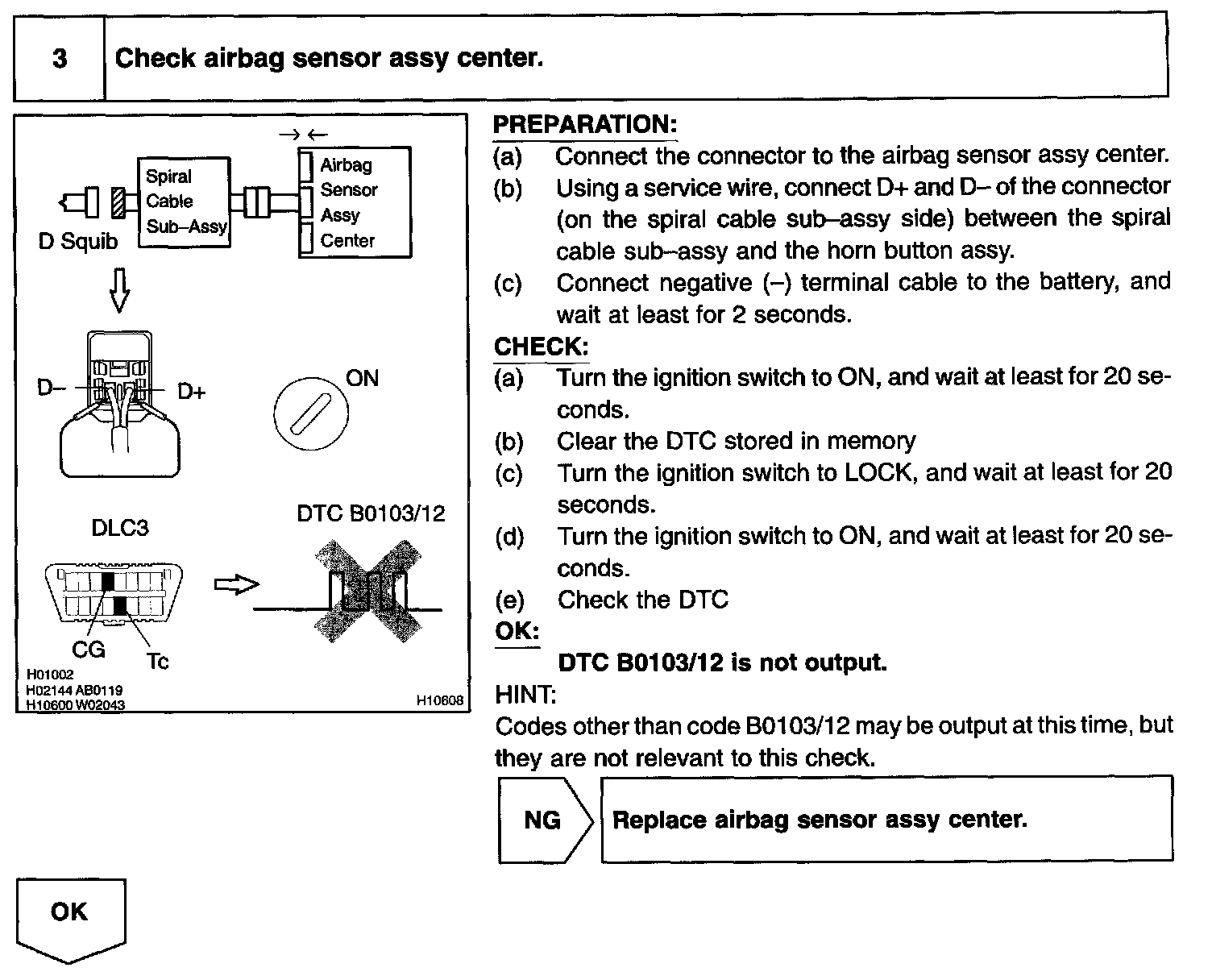

Step 3:

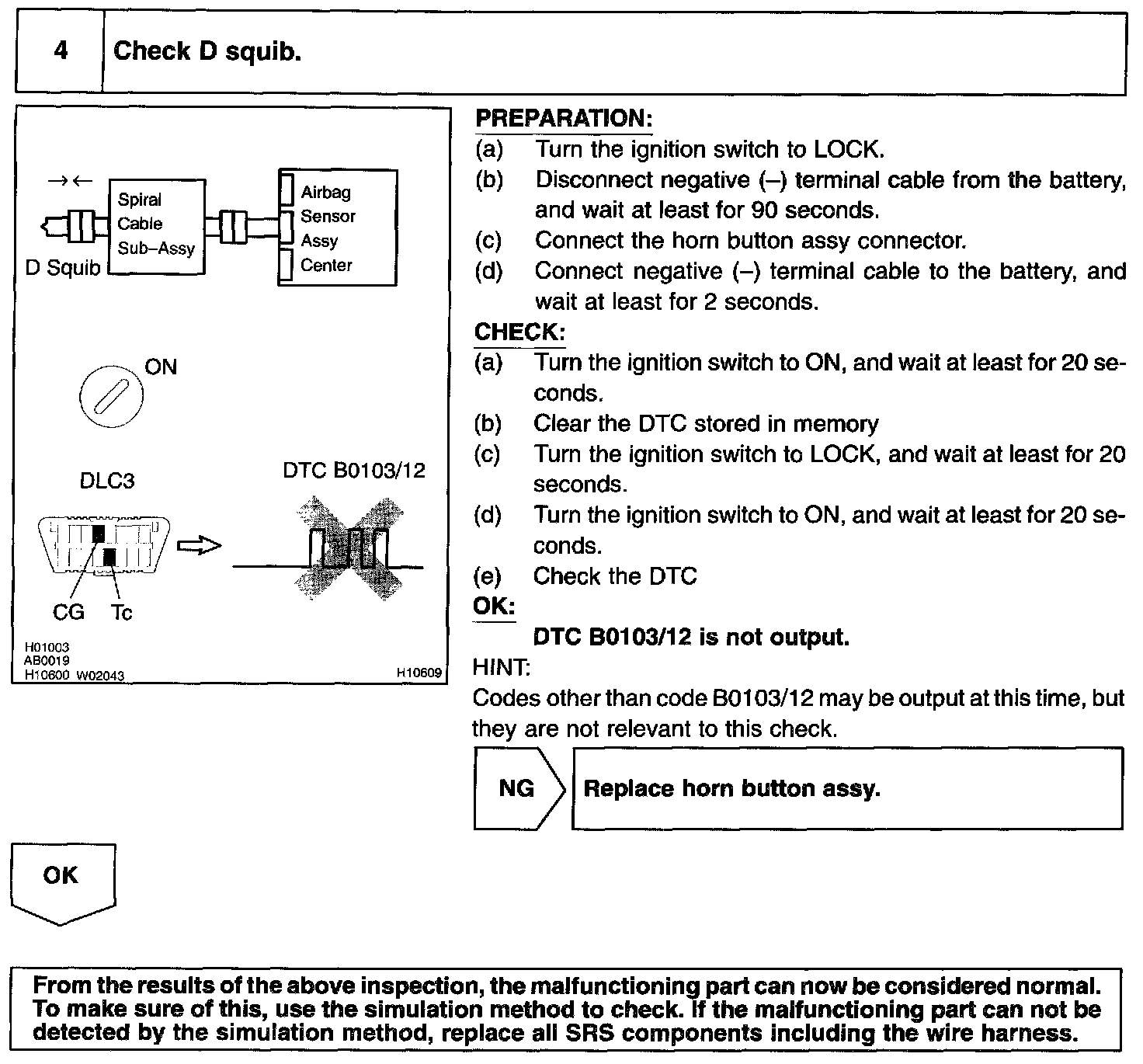

Step 4:

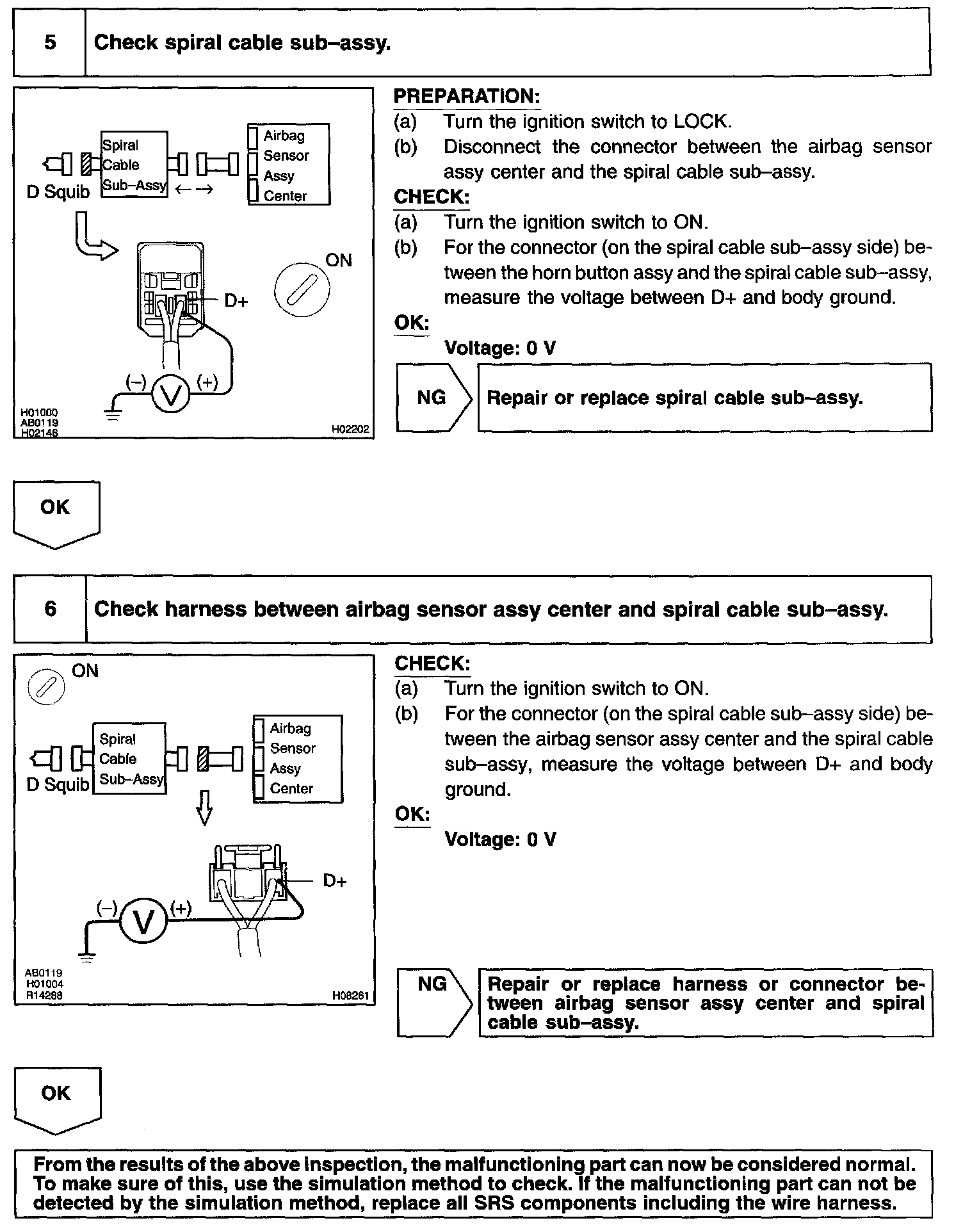

Step 5 - 6:

INSPECTION PROCEDURE
