Home >> Lexus >> 2002 >> GS 430 V8-4.3L (3UZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Description and Operation >> Operation

Operation

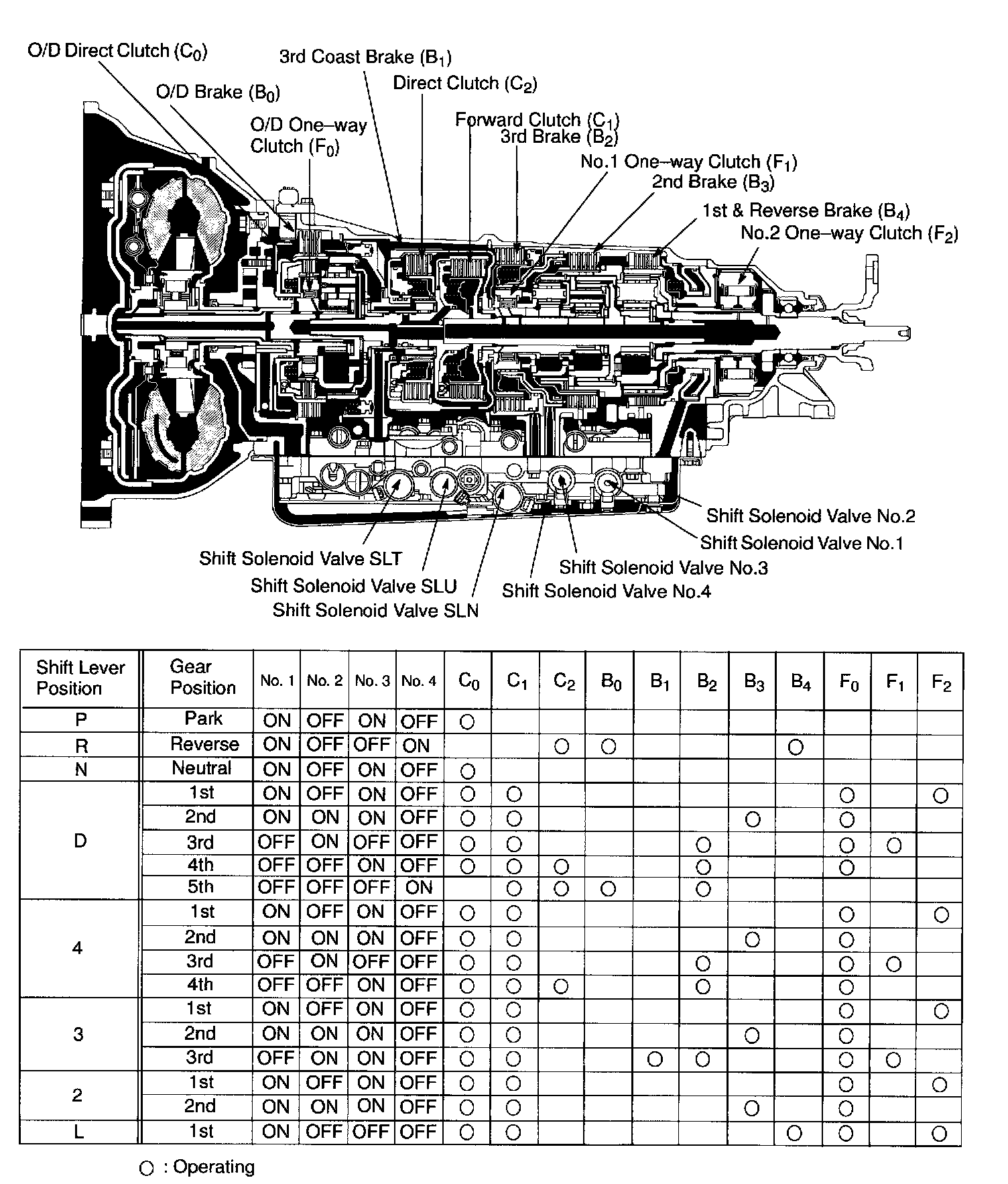

OPERATION

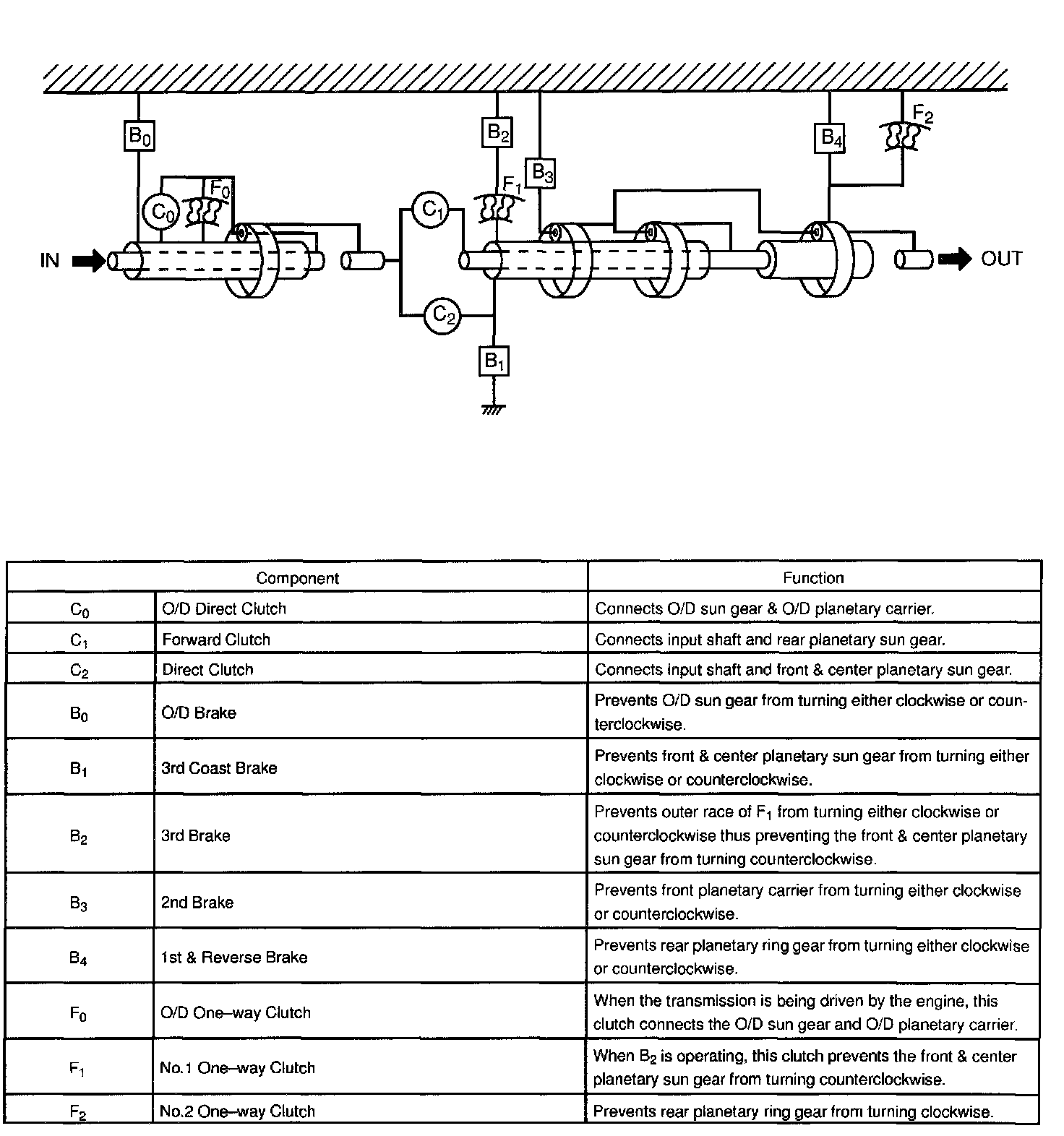

FUNCTION OF COMPONENTS

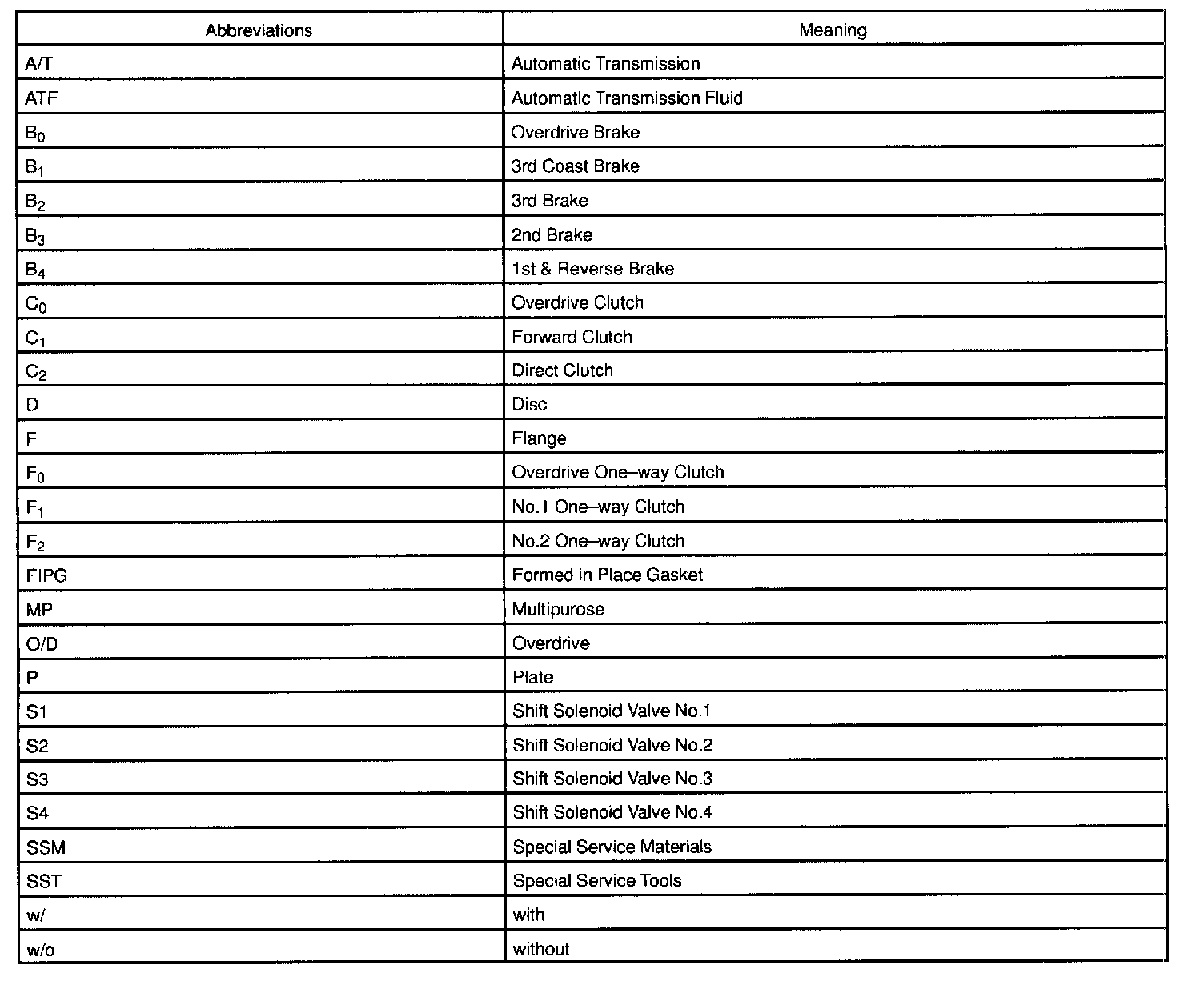

ABBREVIATIONS USED IN THE SERVICE PROCEDURES
