Fail-Safe Operation
Fail-Safe Operation

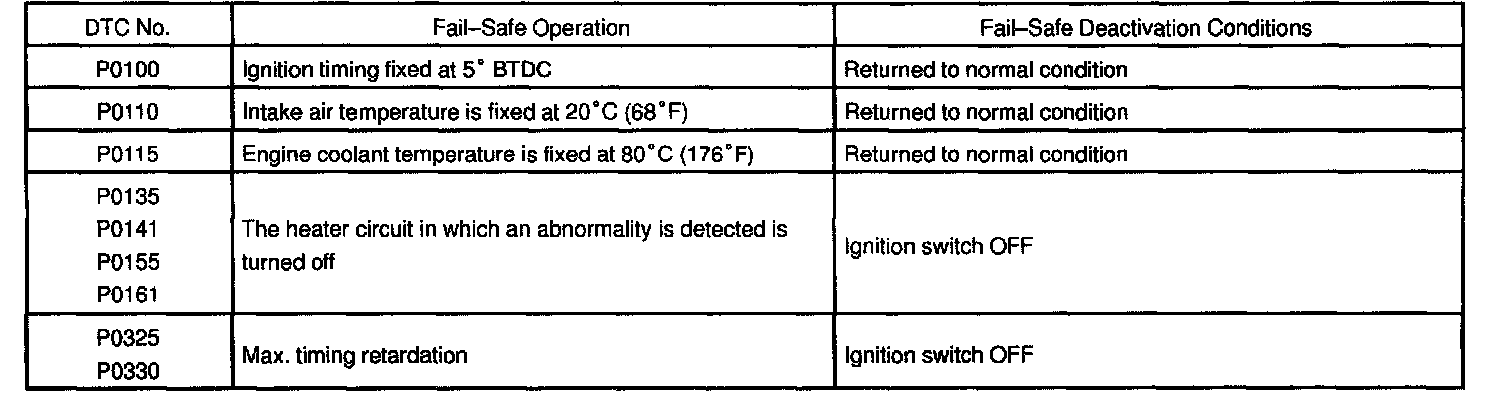

Part 1:

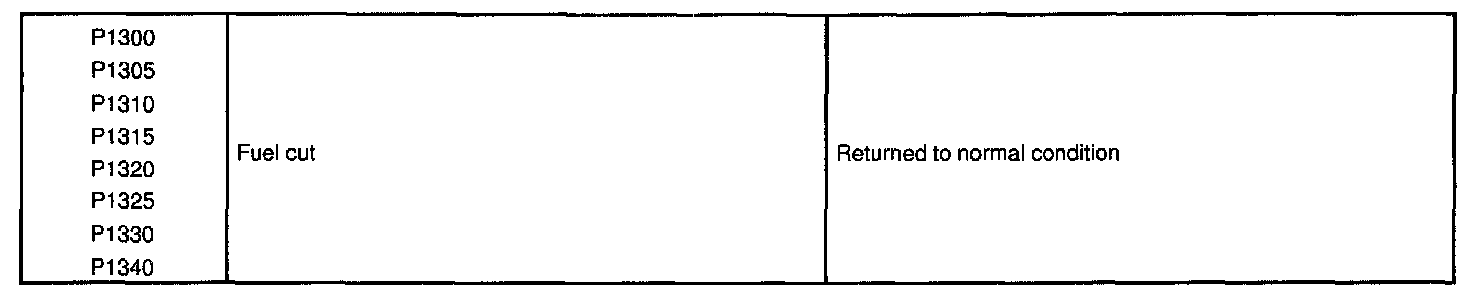

Part 2:
FAIL-SAFE CHART
If any of the codes is recorded, the ECM enters fail-safe mode.
