P1121

P1121 - Accelerator Pedal Position Sensor Range/Performance Problem

CIRCUIT DESCRIPTION

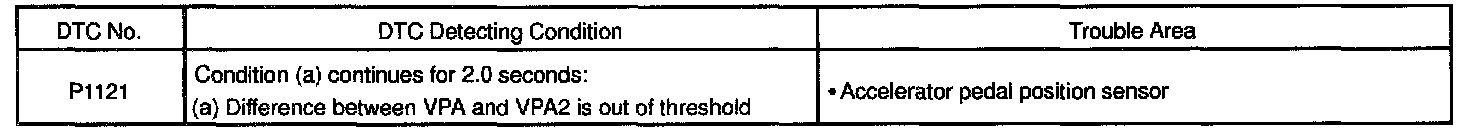

DTC Detecting Condition:

Accelerator pedal position sensor is mounted on the accelerator pedal bracket and it have the 2 sensors to detects the accelerator position and a malfunction of the accelerator position's own.

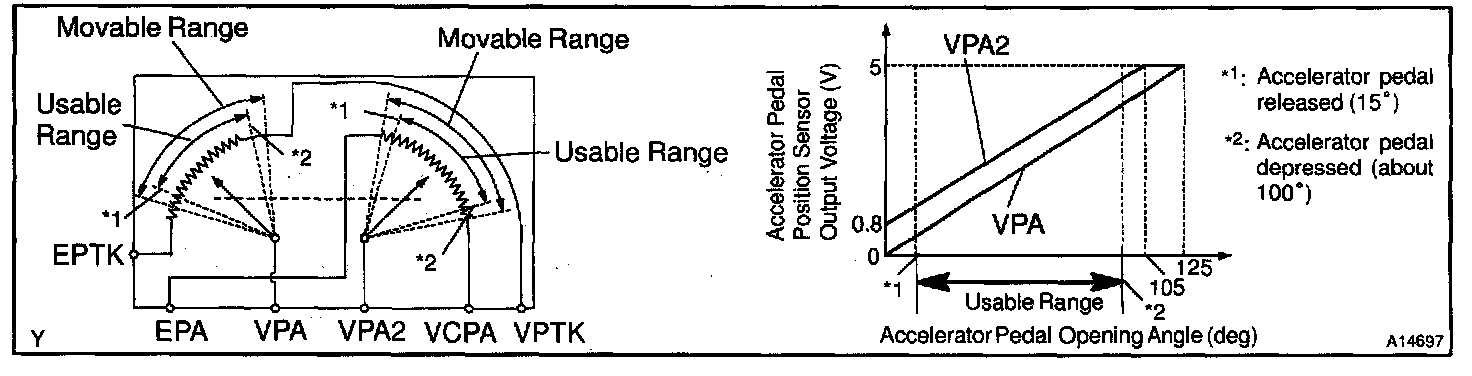

The accelerator pedal position sensor is the voltage applied to the terminals VPA and VPA2 of the ECM changes between 0 V and 5 V in proportion to the opening angle of the accelerator pedal.
The ECM judges the current opening angle of the accelerator pedal from these signals input from terminals VPA and VPA2 and the ECM controls the throttle motor based on these signals.
If this DTC is stored, the ECM shuts down the power for the throttle motor, and the throttle valve is fully closed by the return spring.

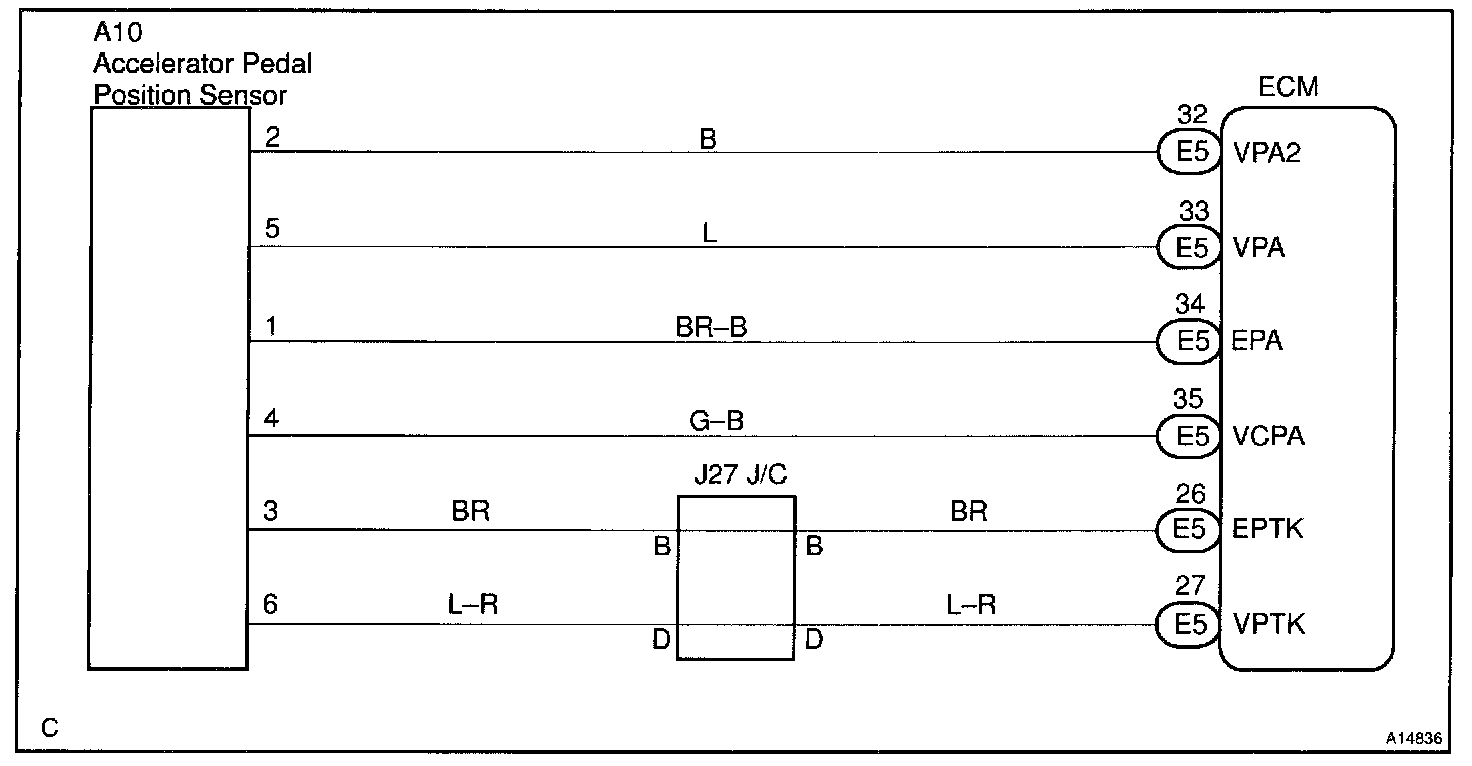

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Read freeze frame data using LEXUS hand-held tester or OBD II scan tool. Because freeze frame records the engine conditions when the malfunction is detected. When troubleshooting, it is useful for determining whether the vehicle was running or stopped, the engine was warmed up or not, the air-fuel ratio was lean or rich, etc. at the time of the malfunction.

Replace accelerator pedal assembly.
